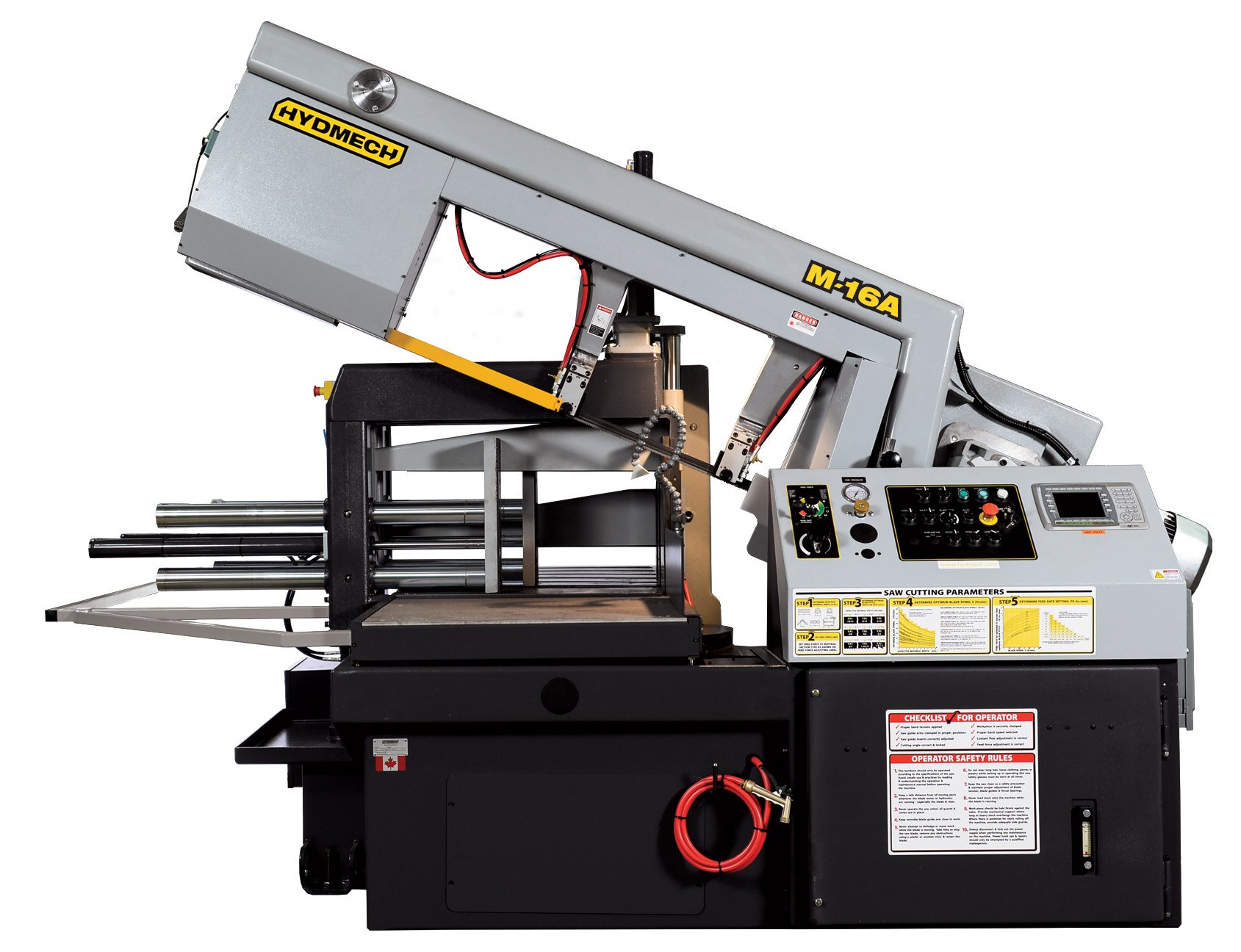

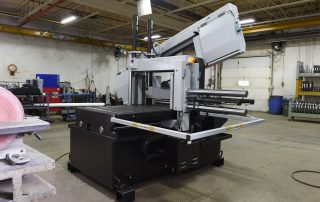

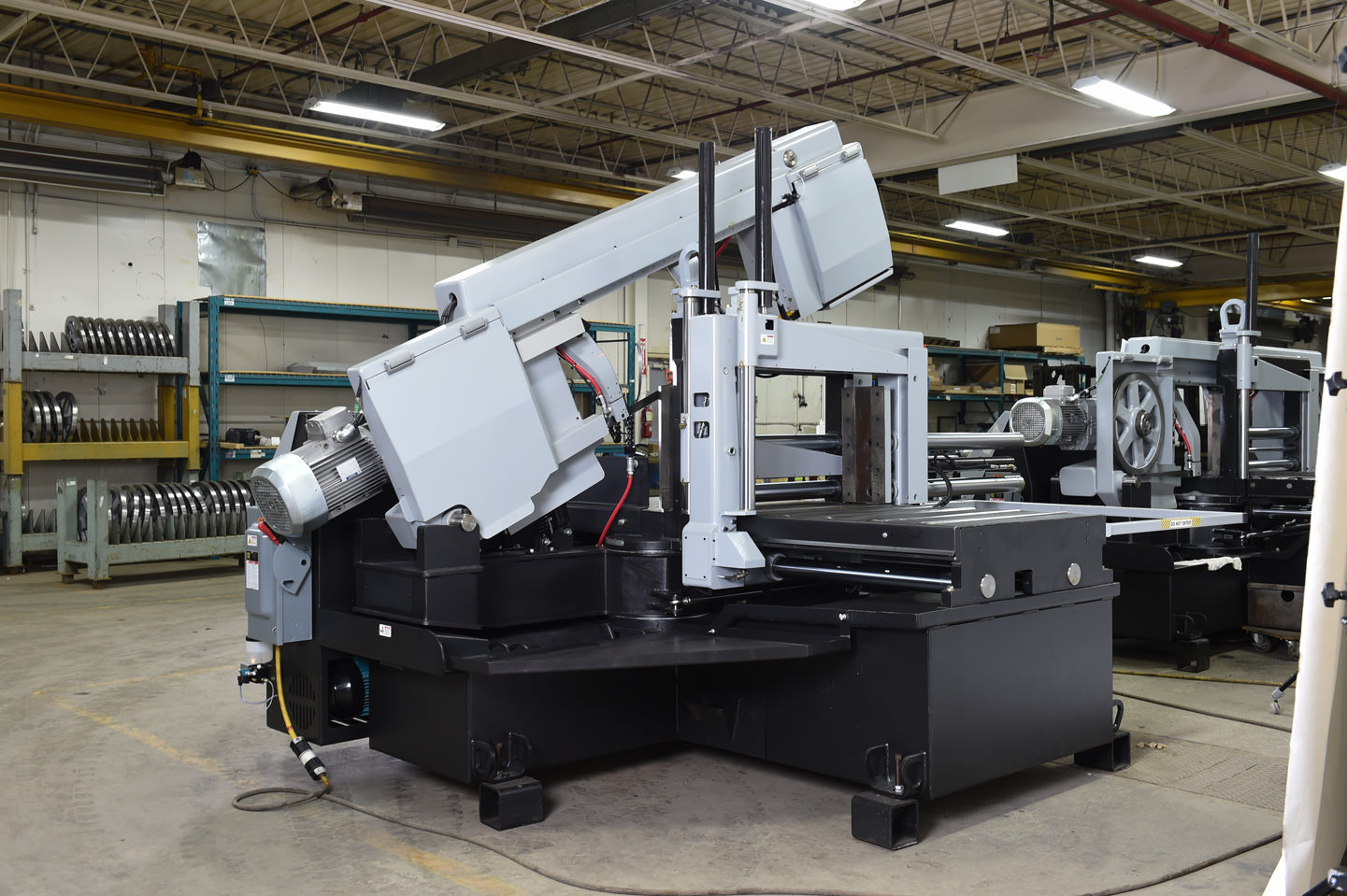

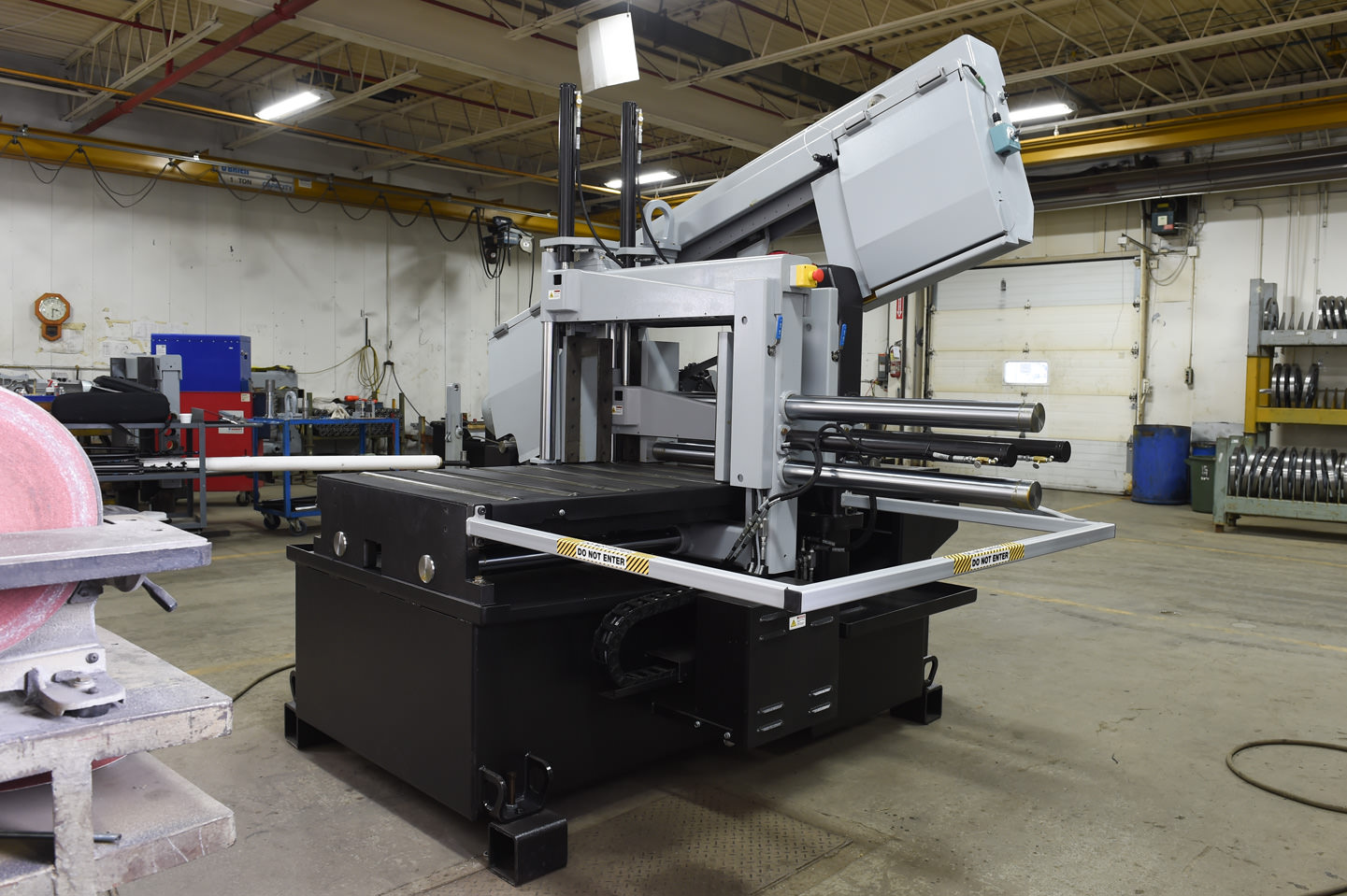

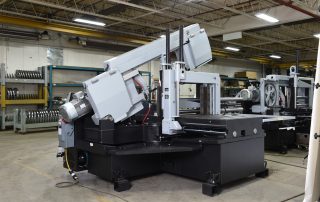

M-16A HORIZONTAL PIVOT BAND SAW

The M-16A is an automatic scissor style band saw providing exceptional miter cutting capability for heavy-duty applications.

It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material. The M-16A miters from 90° to 60°.

Featuring a 16″H x 25″W capacity at 90°, 7.5 HP motor, and 1 1/4″ blade, the M-16A is a reliable choice for your heavy-duty metal cutting applications.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	16″ x 25″	16″
45°	16″ x 15″	16″
30°	16″ x 9″	11″
Blade Size	1 1/4” x 18’ 6”
Blade Drive	7.5 HP VFD
Machine Voltage	208, 240, 480, 575 v
Blade Speed	50-350 SFM
Coolant Tank Capacity	9 Gallons
Work Load	8,000 lbs.
Machine Weight	7,400 lbs.
Table Height	32”
Dimensions (w x l x h)	132” x 90” x 66”

METRIC

Capacity	Rectangular (h x w)	Round
90°	406 mm x 635 mm	406 mm
45°	406 mm x 381 mm	406 mm
30°	406 mm x 228 mm	280 mm
Blade Size	32 mm x 5638 mm
Blade Drive	5.6 kW VFD
Machine Voltage	208, 240, 480, 575 v
Blade Speed	15-106 m/min
Coolant Tank Capacity	34 Liters
Work Load	3,636 kg
Machine Weight	3356 kg
Table Height	812 mm
Dimensions (w x l x h)	3352 x 2286 x 1676 mm

STANDARD FEATURES

Built to withstand heavy fabricating environments
Automatic programmable mitering with “go to” angle from 90° to 30°

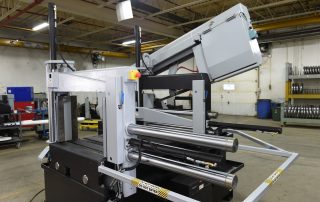

Automatic multi-indexing up to 33” in a single stroke

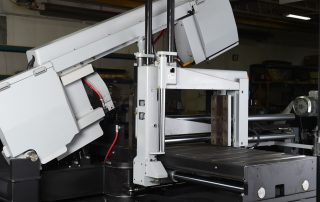

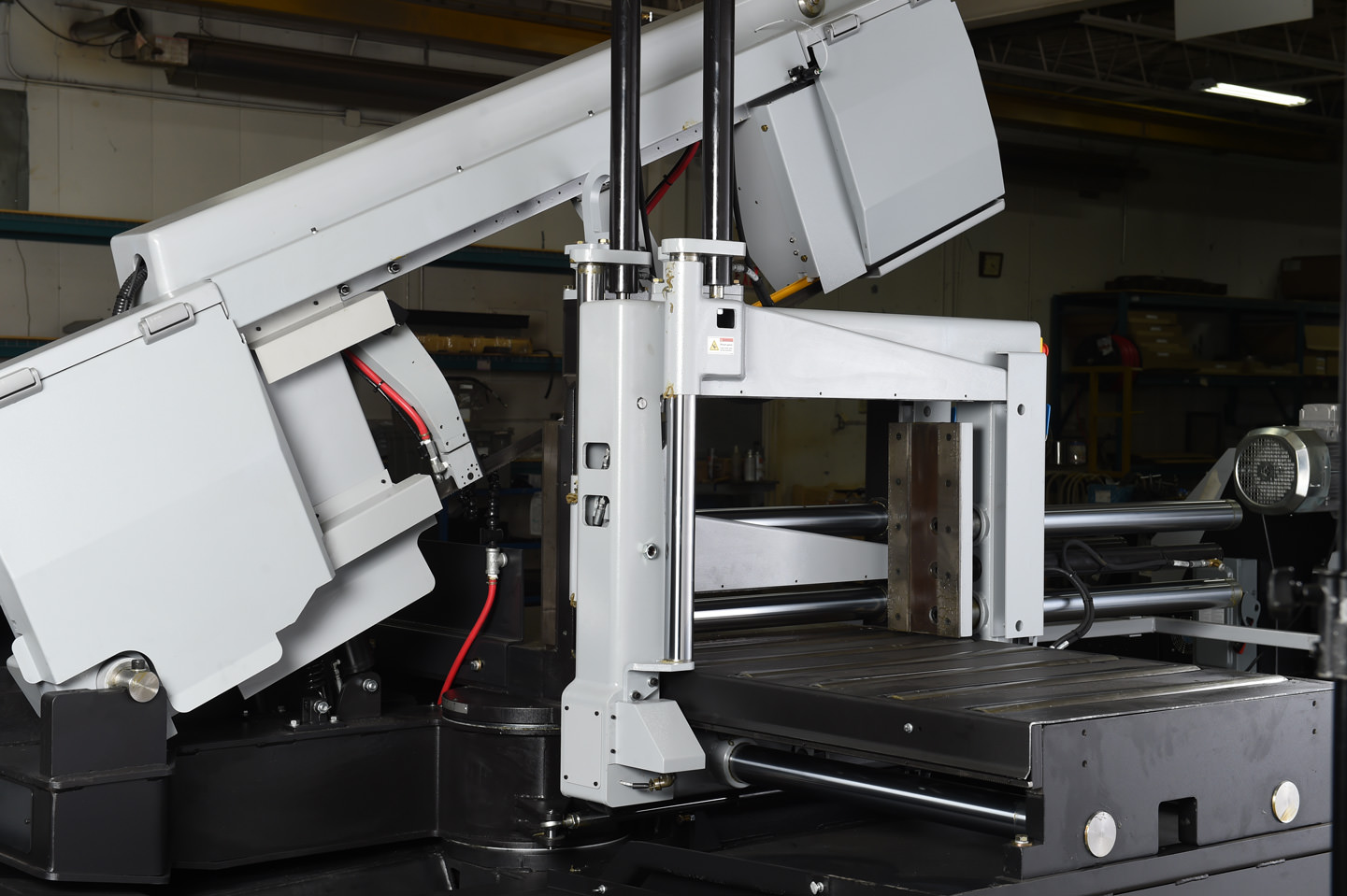

Full capacity, full stroking hydraulic vises

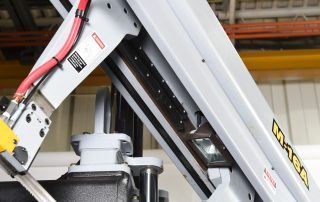

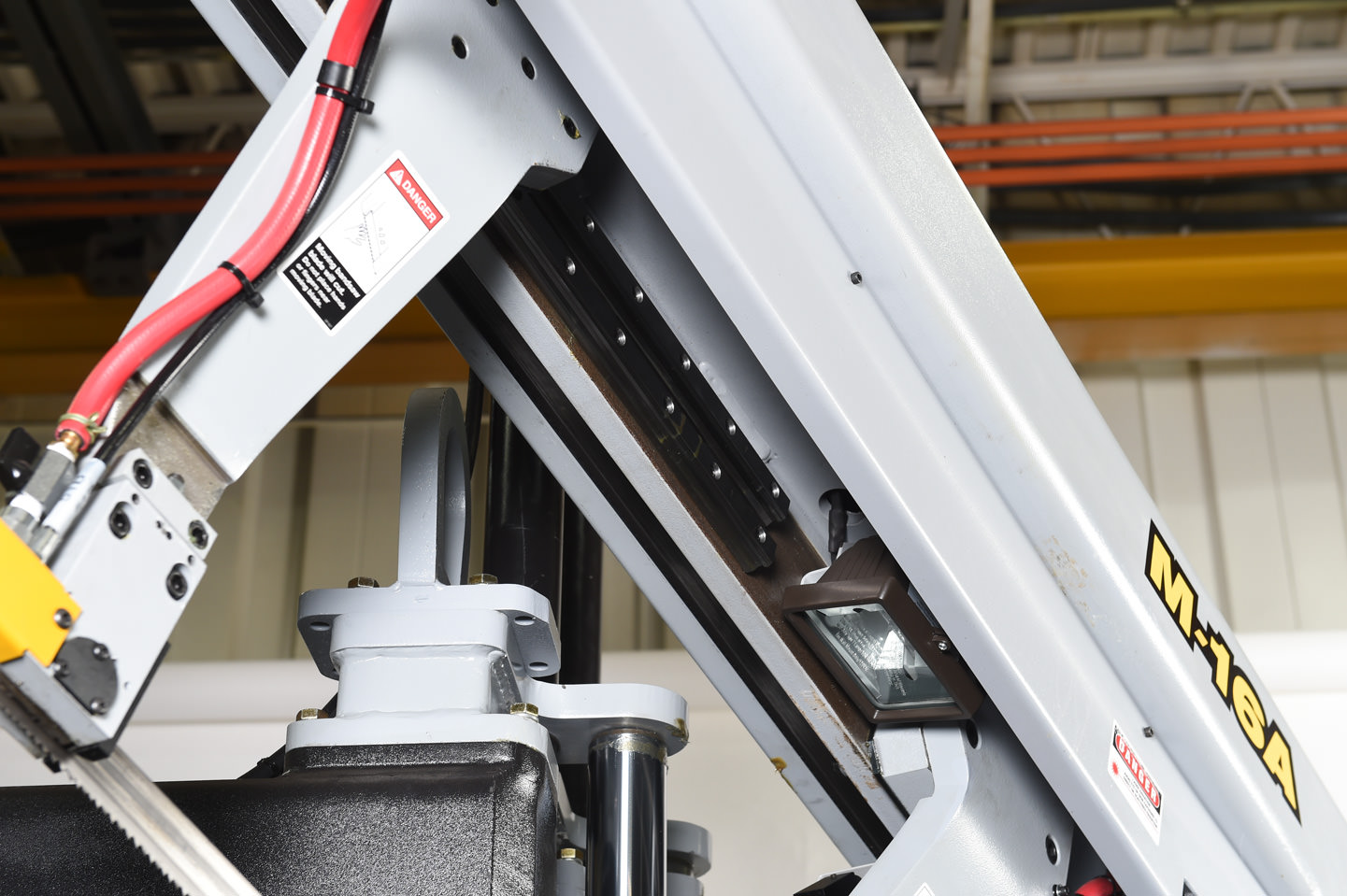

Guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

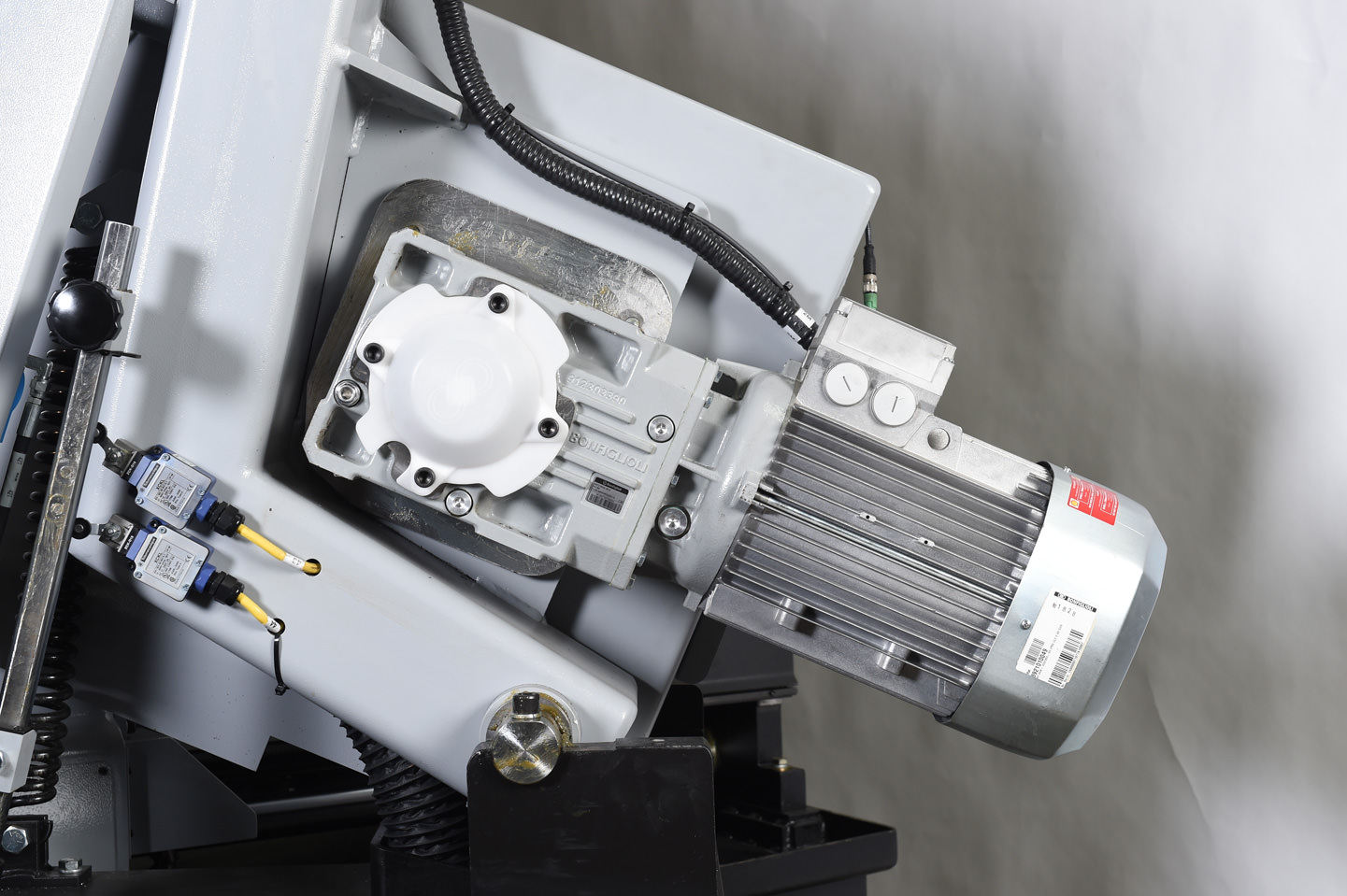

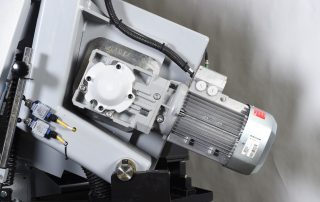

7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Blade chamber separates material from cut part

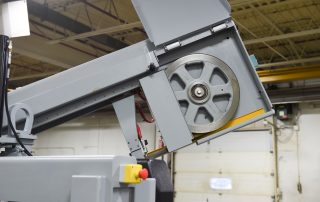

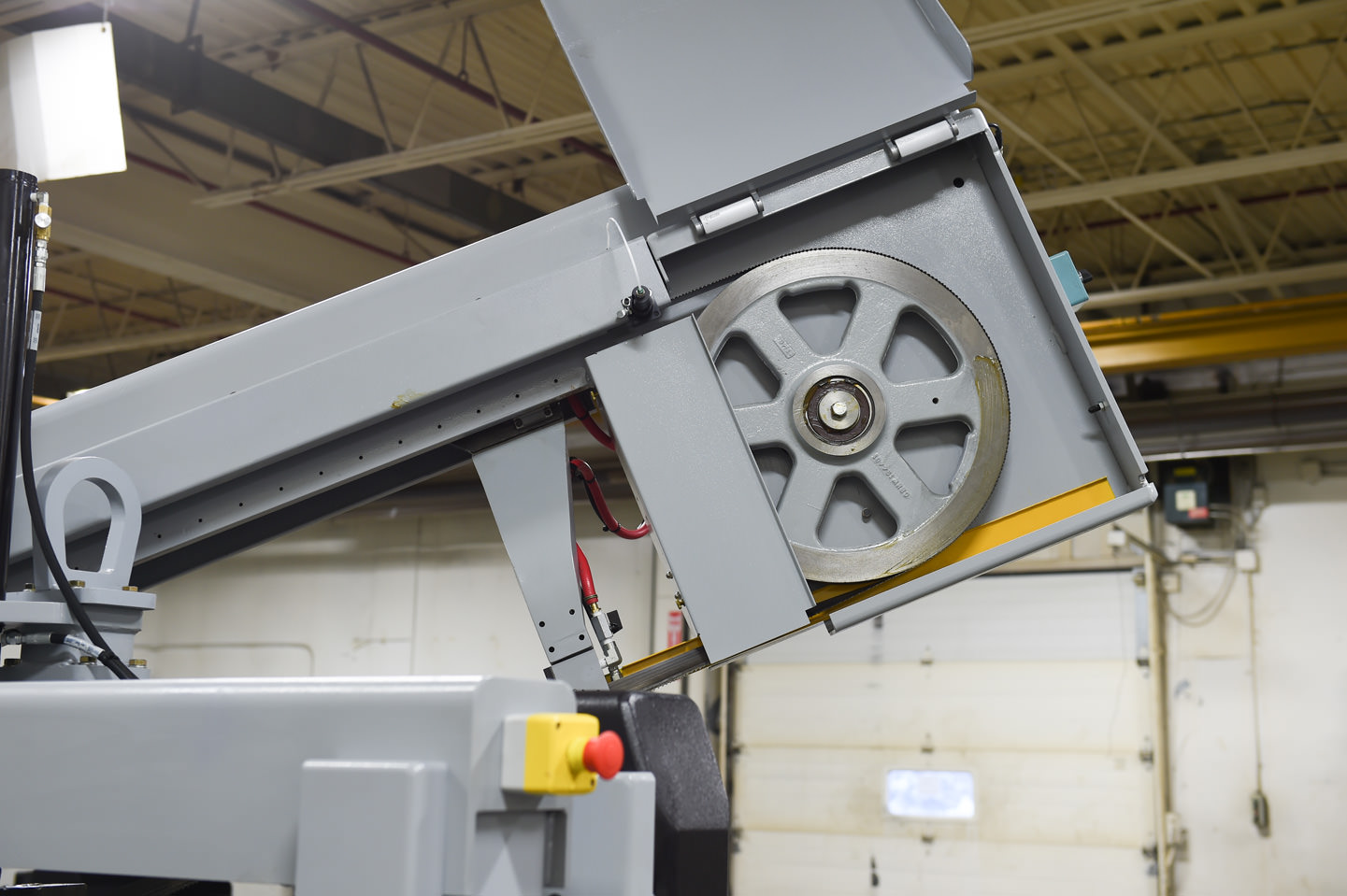

Cast iron band wheels

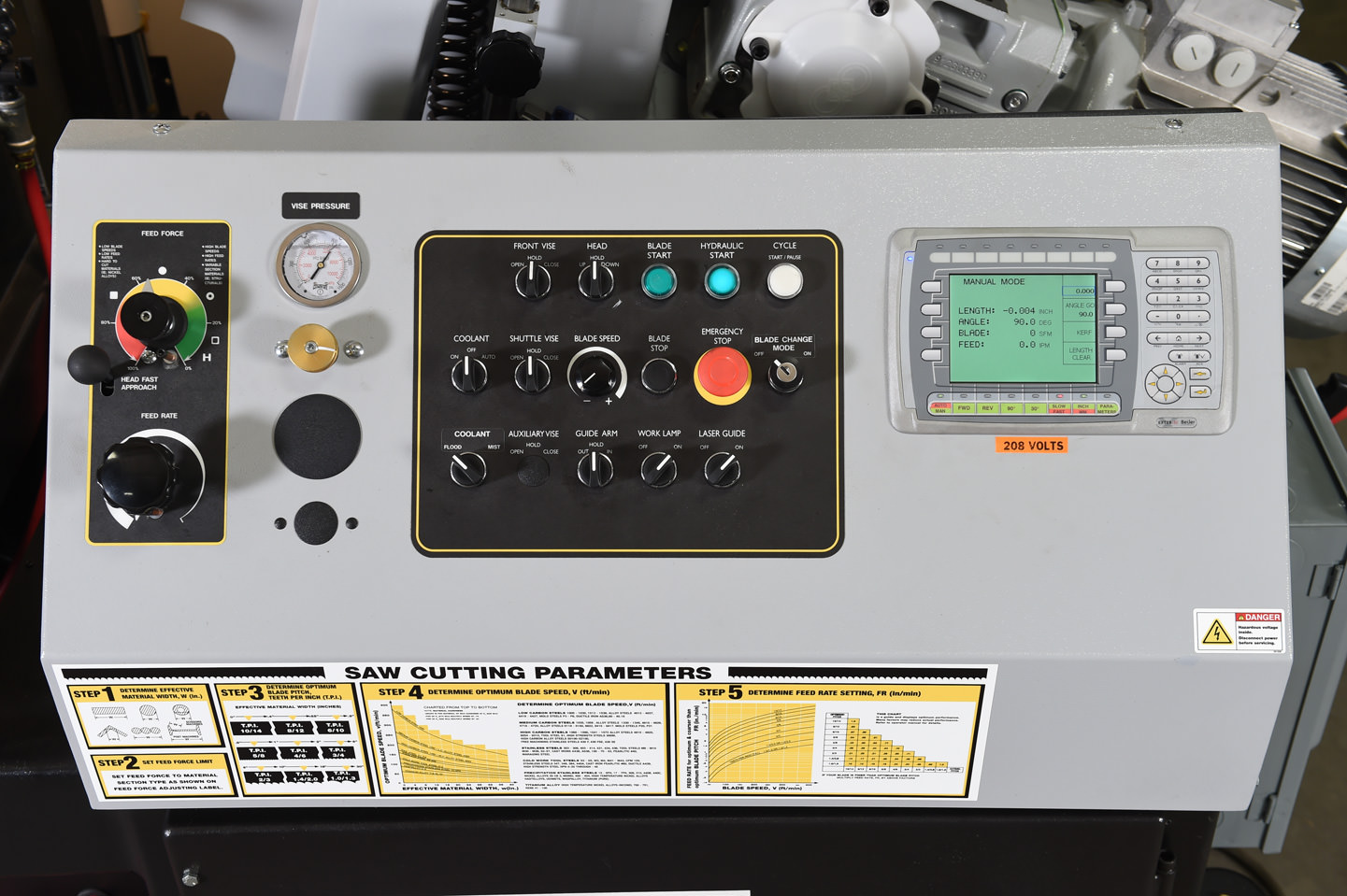

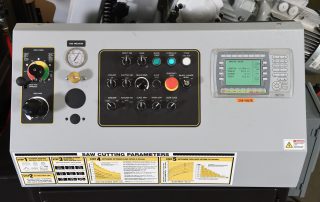

Automatic PLC control programmable up to 99 jobs with 5 in queue.

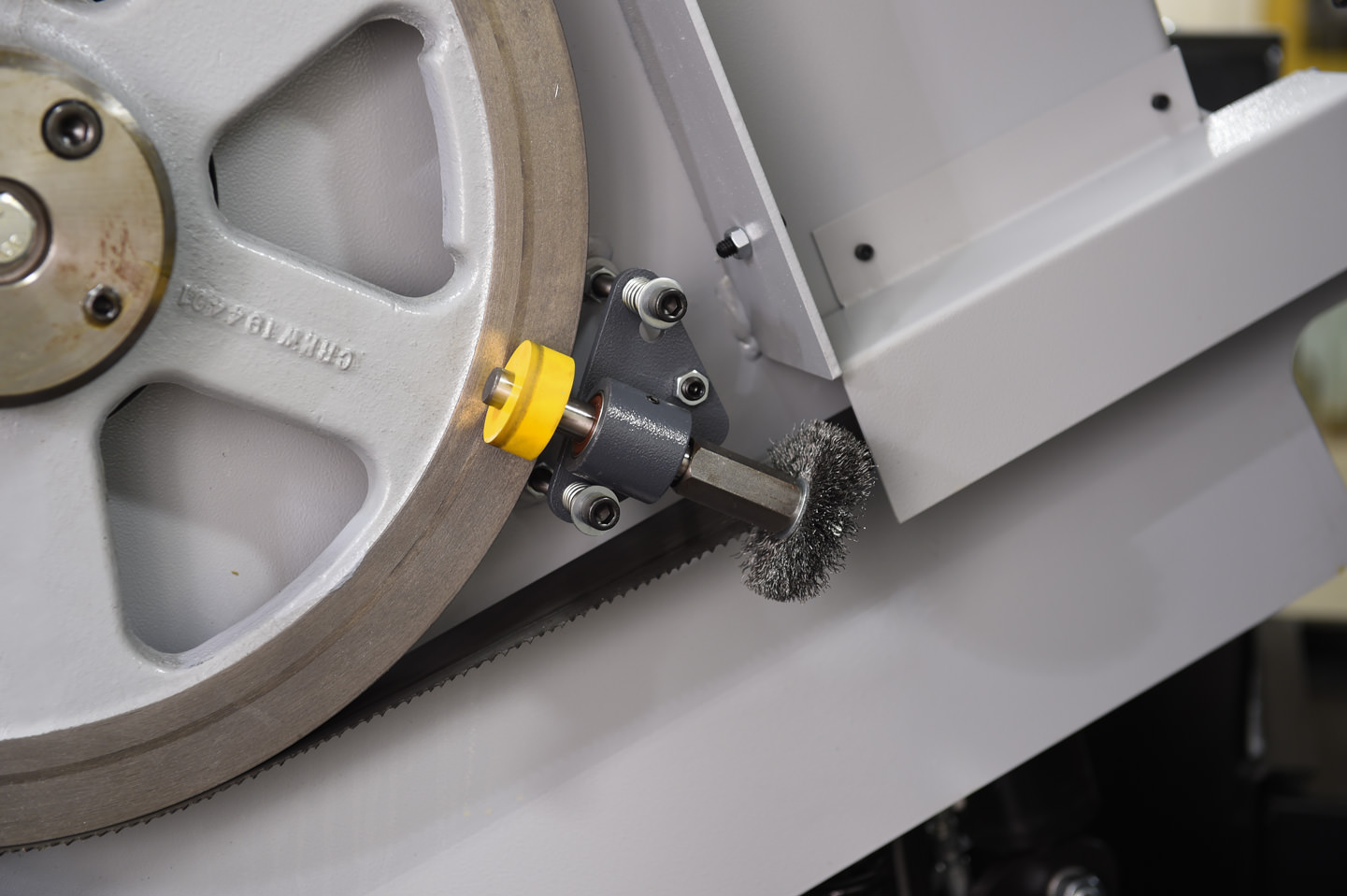

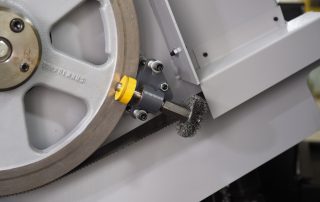

Replaceable blade brush
Robust steel base

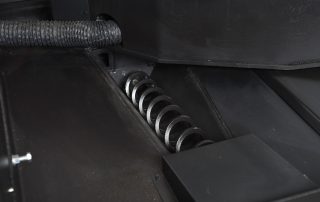

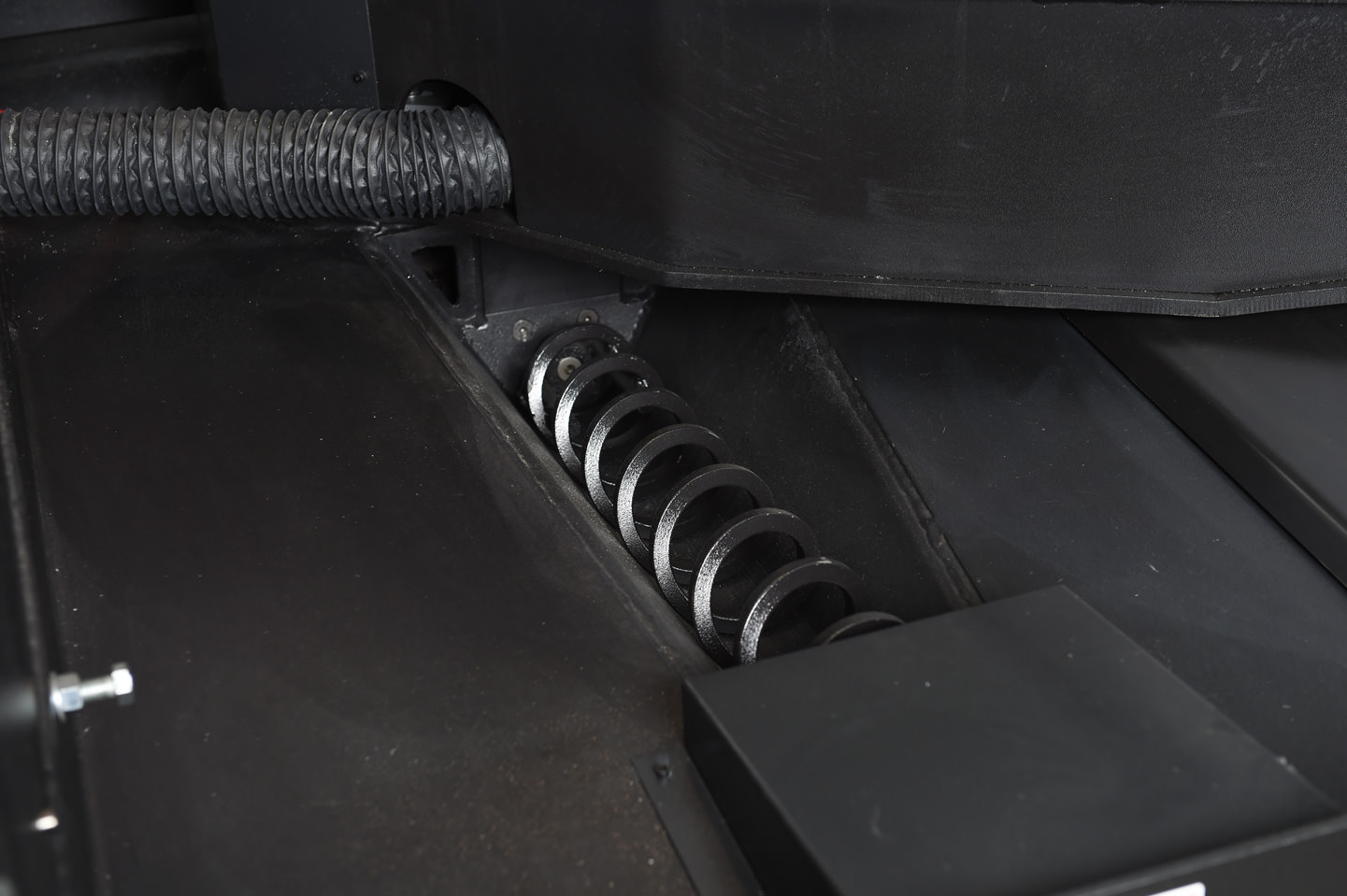

Automatic chip removal auger

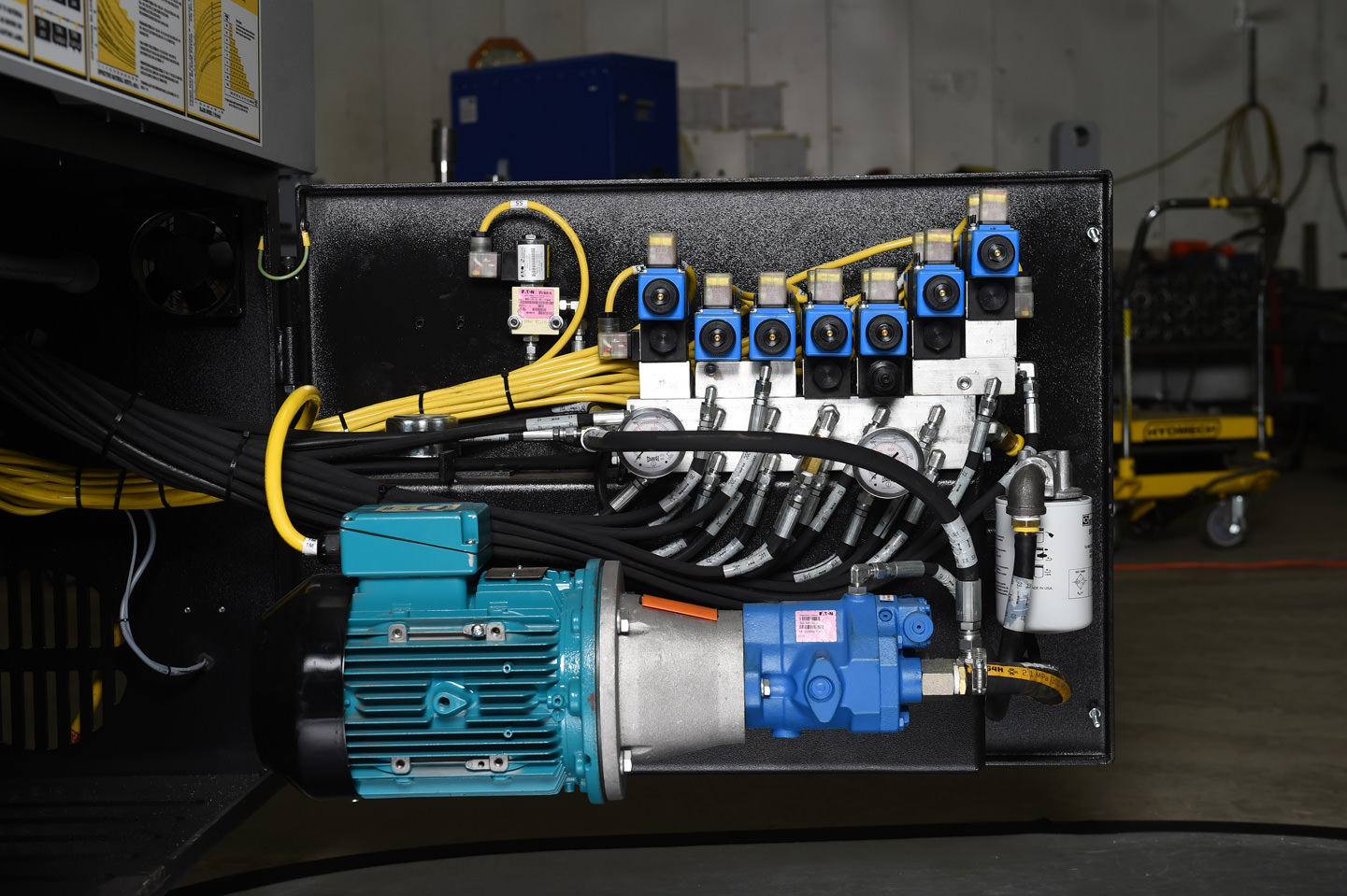

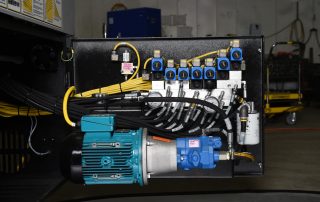

Easy access electrical panel and hydraulics
Blade breakage switch
Hardened replaceable wear plates on material vises
Hydraulic band tensioning
Hydraulic carbide guide tensioning
Safety door interlocks
Flood coolant with wash down hose

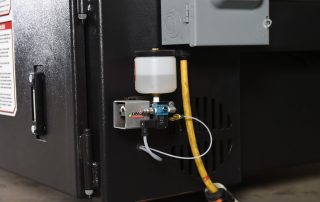

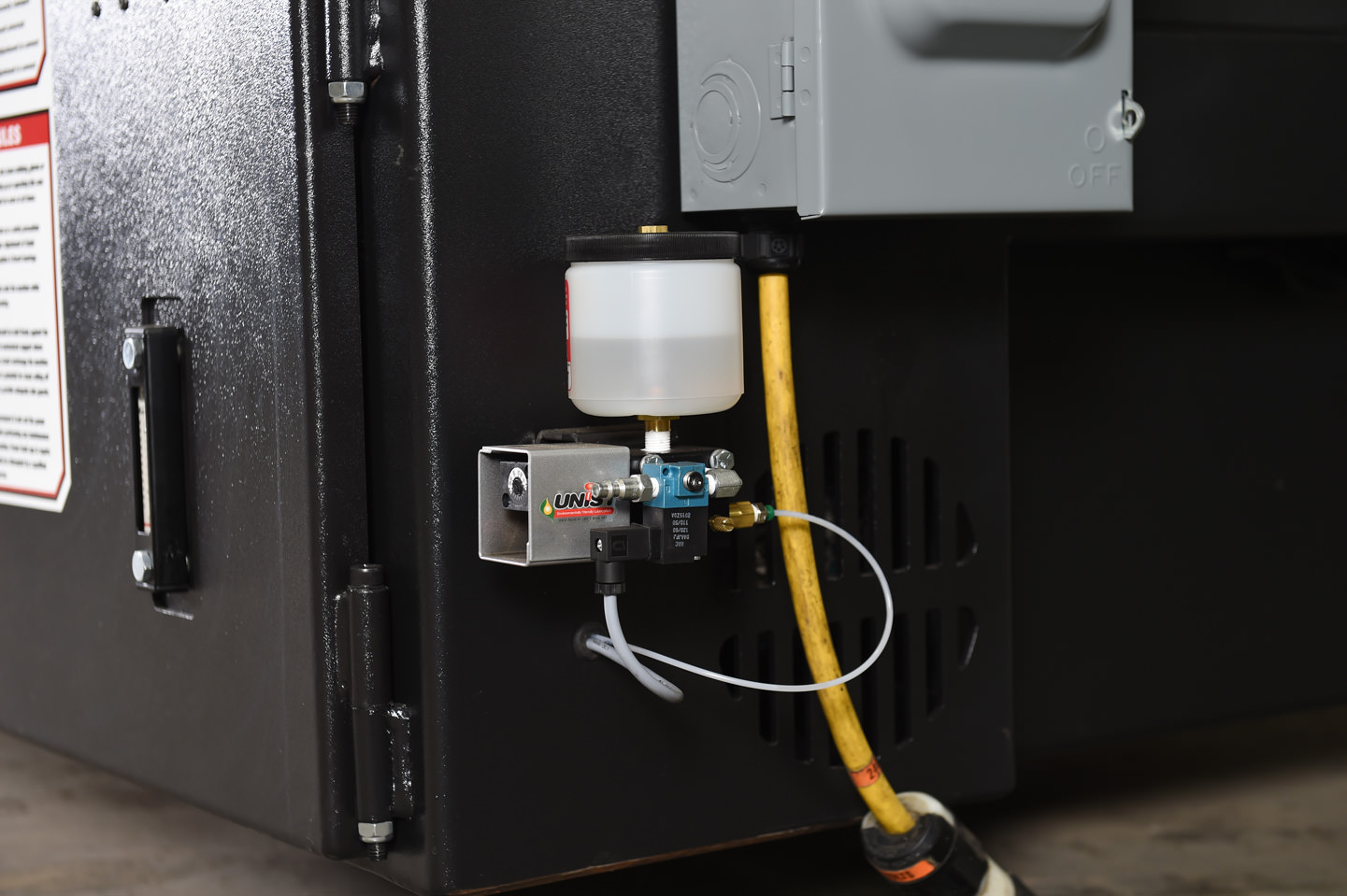

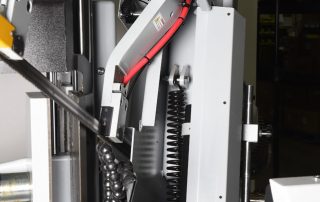

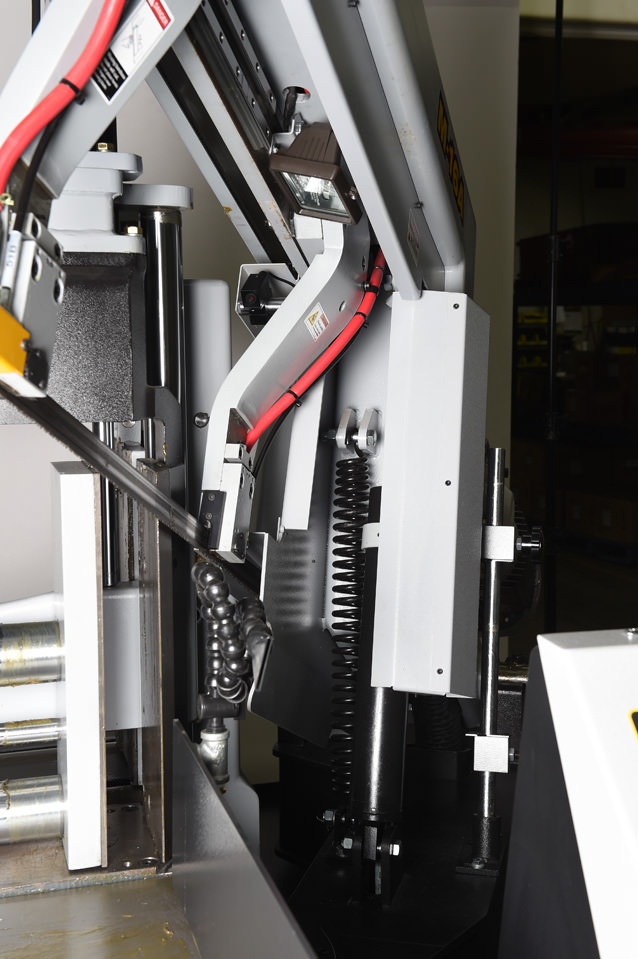

Laser light
Work light
Out of stock switch
Variable vise pressure

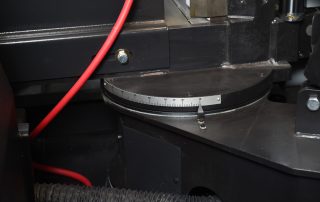

Programmable Powered Mitering

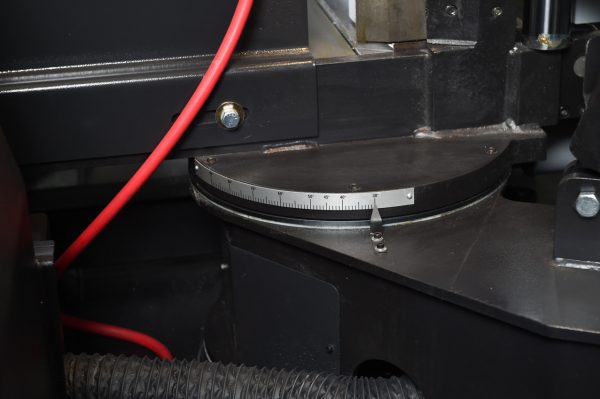

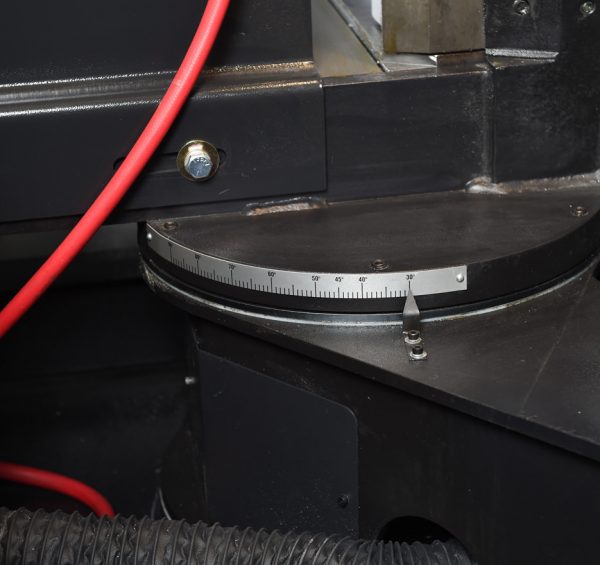

Programmable powered mitering with angle “go to” feature for faster set up times. Machine will automatically index and miter material.

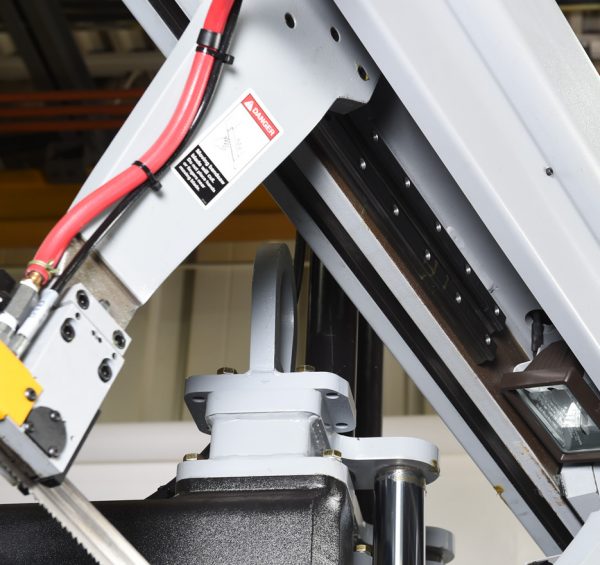

Hydraulic Guide Arm Positioning

Hydraulic guide arm positioning for faster set up times. The operator doesn’t have to manually position guide arm.

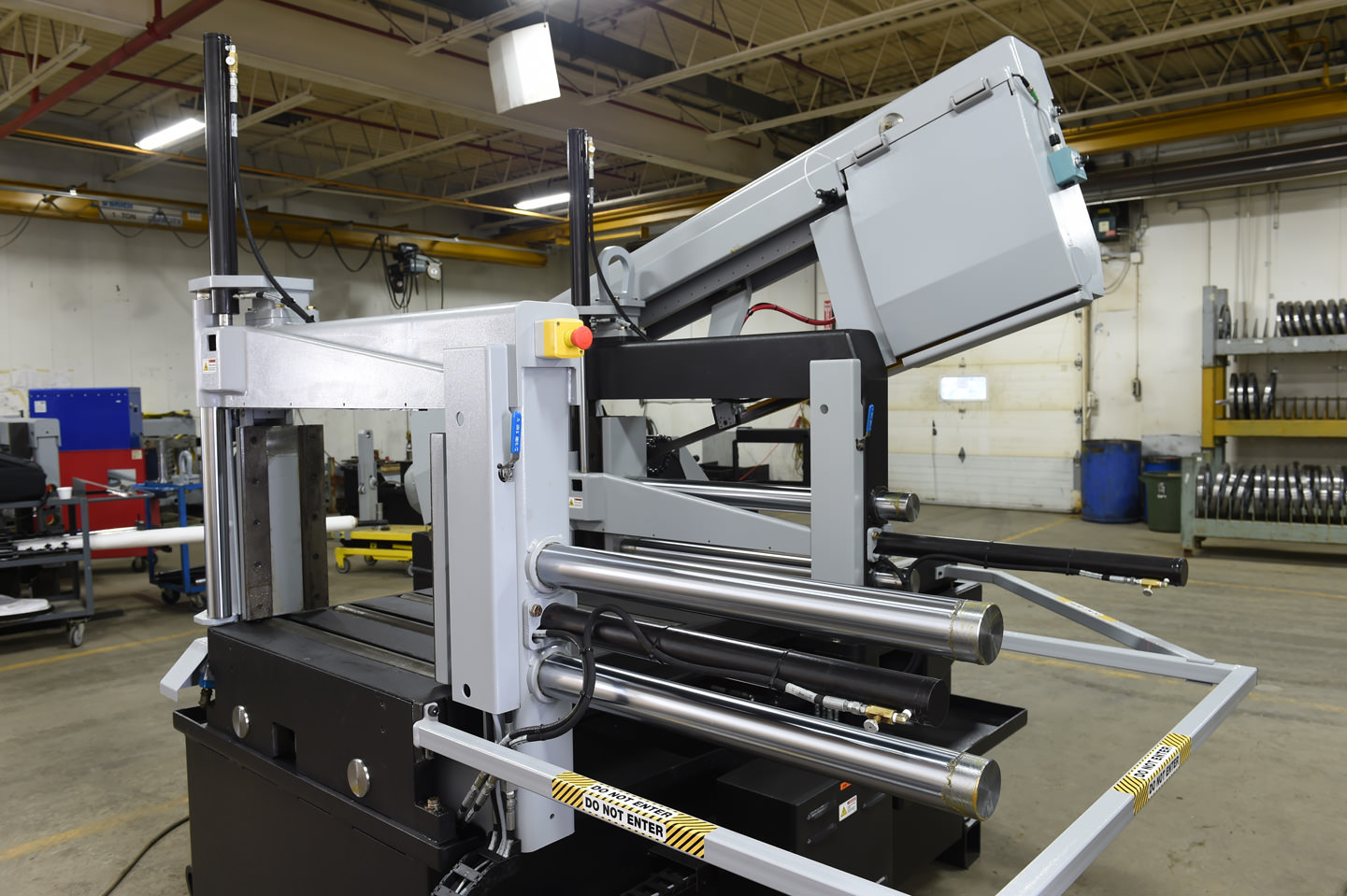

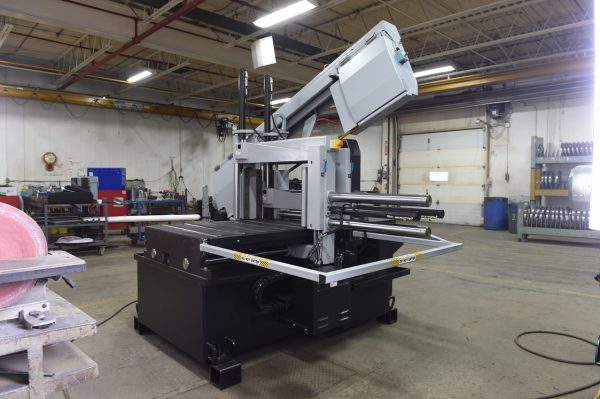

33″ Single Index Stroke

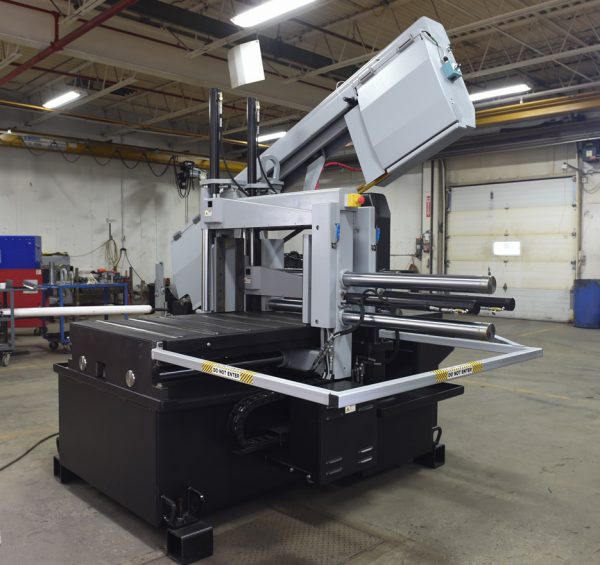

A 33” single index stroke means anything 33” and under can be cut in one single index. All programming is done at operator control no walking around machine to set stops. Automatic kerf compensation is standard for accurate cuts.

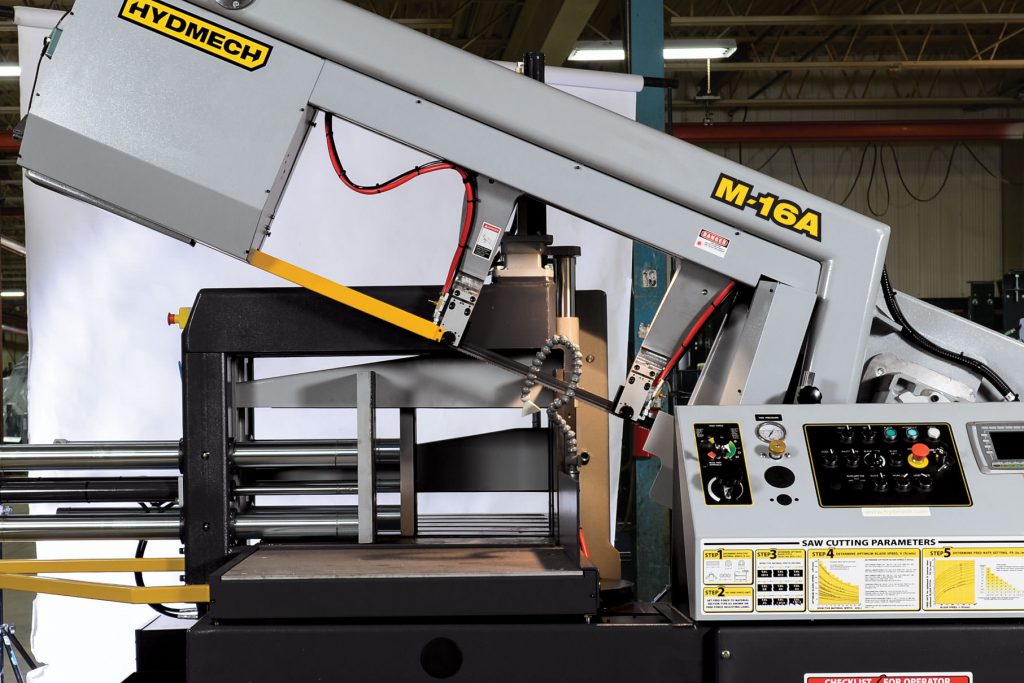

Dual Down Feed

Efficient dual hydraulic down feed rate and force controlled. Feed will automatically adjust based on the cross-section of material. This allows for better cutting rates and longer tool life
