VCS-36 VERTICAL CONTOUR BAND SAW
VCS-36 VERTICAL CONTOUR BAND SAW
Large Capacity, Heavy-duty, vertical contour-style saw
The VCS-36 is a multi-purpose machine that can cut a large range of materials – from steel to aluminum, to wood, plastics, rubber, and everything in between! This versatile machine is designed with the flexibility to cut tight radius sections or larger cut-off sections.
With a throat (band to column) of 36″ and work height of 12″, 3 Hp motor, and the ability to utilize blades from 1/18″ to 1″, the HYDMECH VCS-36 is the ideal choice for all your vertical contour cutting needs.
MACHINE SPECIFICATIONS
| Capacity Throat (band to column) |
36” |
| Maximum Work Height | 12″ |
| Blade Drive | 3 HP VFD |
| Blade Speed | 40-5,000 SFM |
| Blade Size | 1/18″ to 1″ x 196″ |
| Table Dimensions | 24″ x 28″ |
| Voltages Available | 480 v (all other voltages require optional transformer) |
| Machine Weight | 1,740 lbs. |
| Dimensions (w x l x h) | 76” x 43” x 75” |
| Capacity Throat (band to column) |
914 mm |
| Maximum Work Height | 304 mm |
| Blade Drive | 2.2 KW |
| Blade Speed | 12-1,524 MPM |
| Blade Size | 3.2 mm to 25.4 mm x 4978 mm |
| Table Dimensions | 609 mm x 711 mm |
| Voltages Available | 480 v (all other voltages require optional transformer) |
| Machine Weight | 790 kg |
| Dimensions (w x l x h) | 1930 mm x 1092 mm x 1905 mm |
STANDARD FEATURES
- Blade speed indicator
- Blade tension indicator
- Work light
- Safety door interlocks
- Quad range transmission
- Inverter drive control
- Dynamic braking
- Wheels with crowned rubber tires

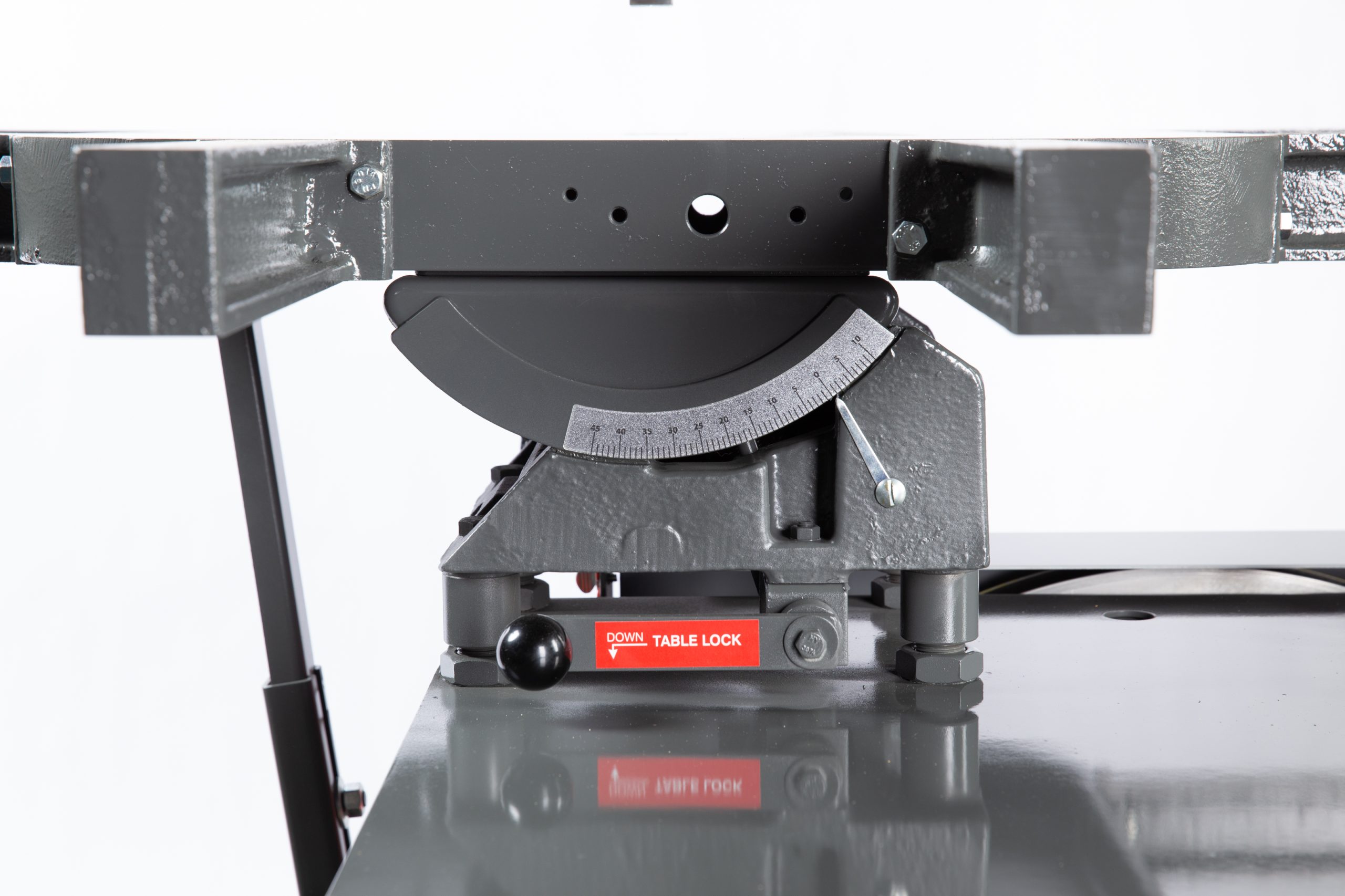

- Tilting cast table – 10° L / 45° R
- One set of single piece guide blocks
- One set of steel guide inserts for 3/8”, and 1/2” blades
OPTIONAL FEATURES
- Fused disconnect
- Air blower
- Rip fence
- Air/Hyd power feed
- Mitering attachment
- Band mist lubricator
- Blade welder w/grinder
- Power transformer

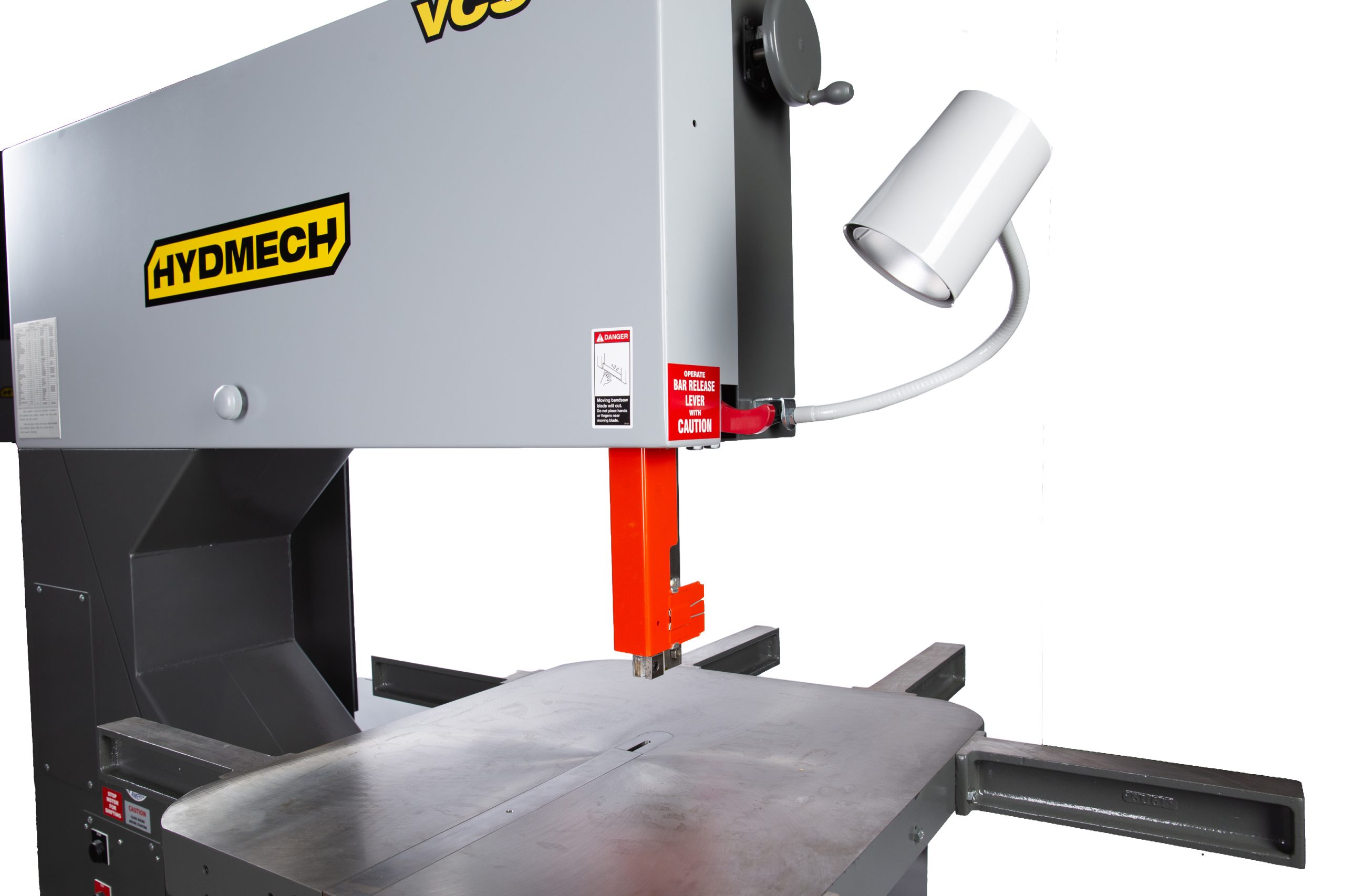

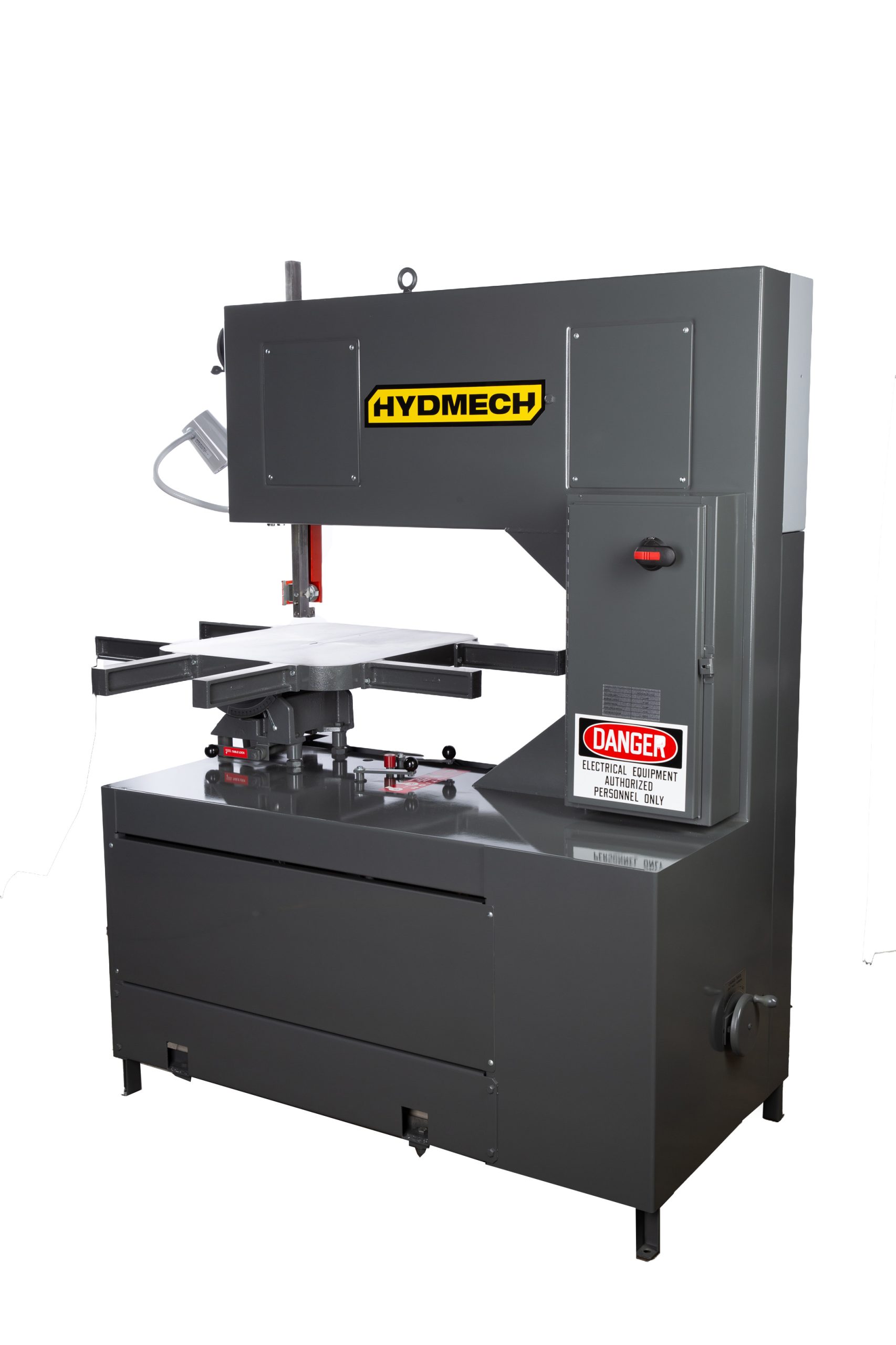

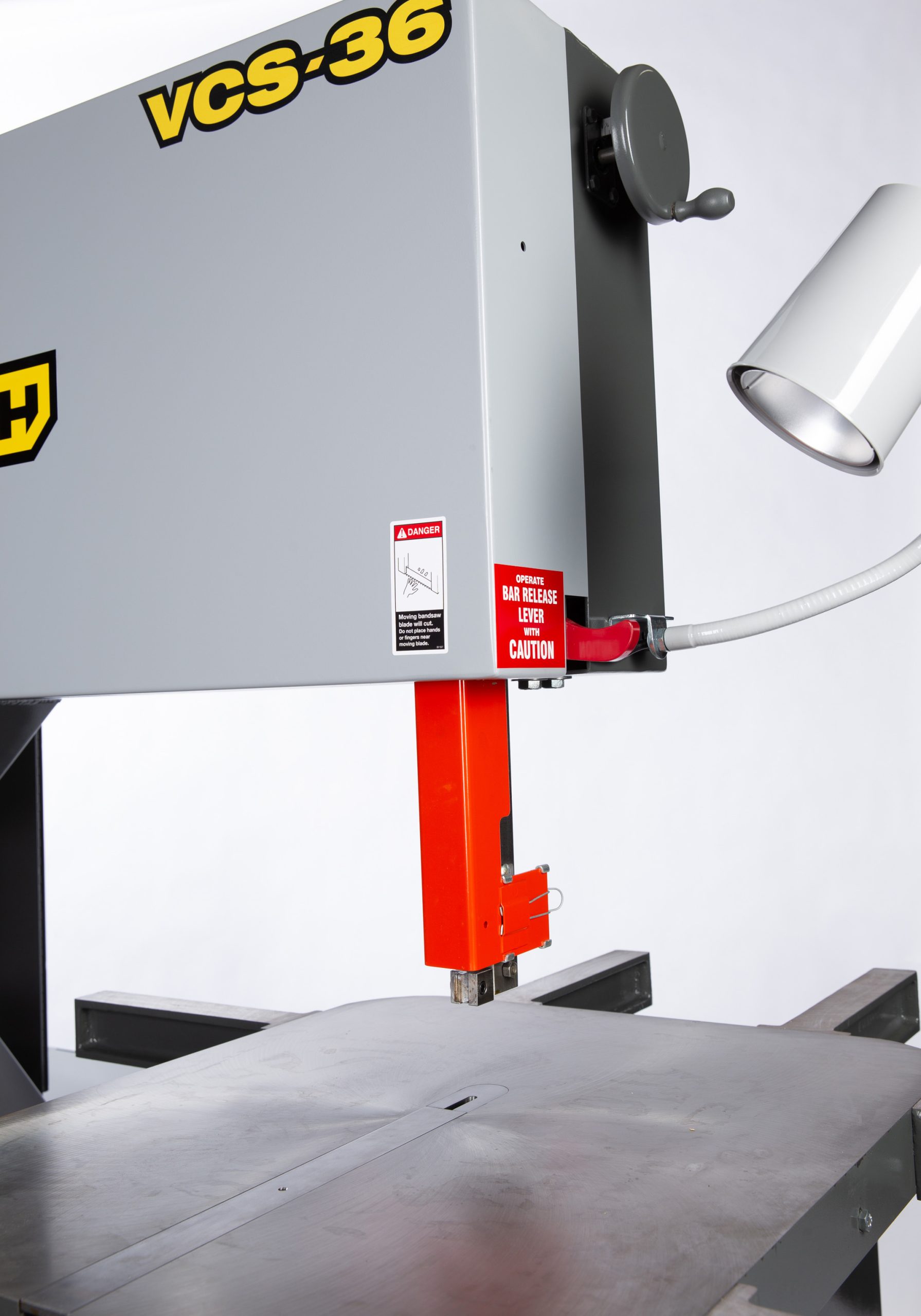

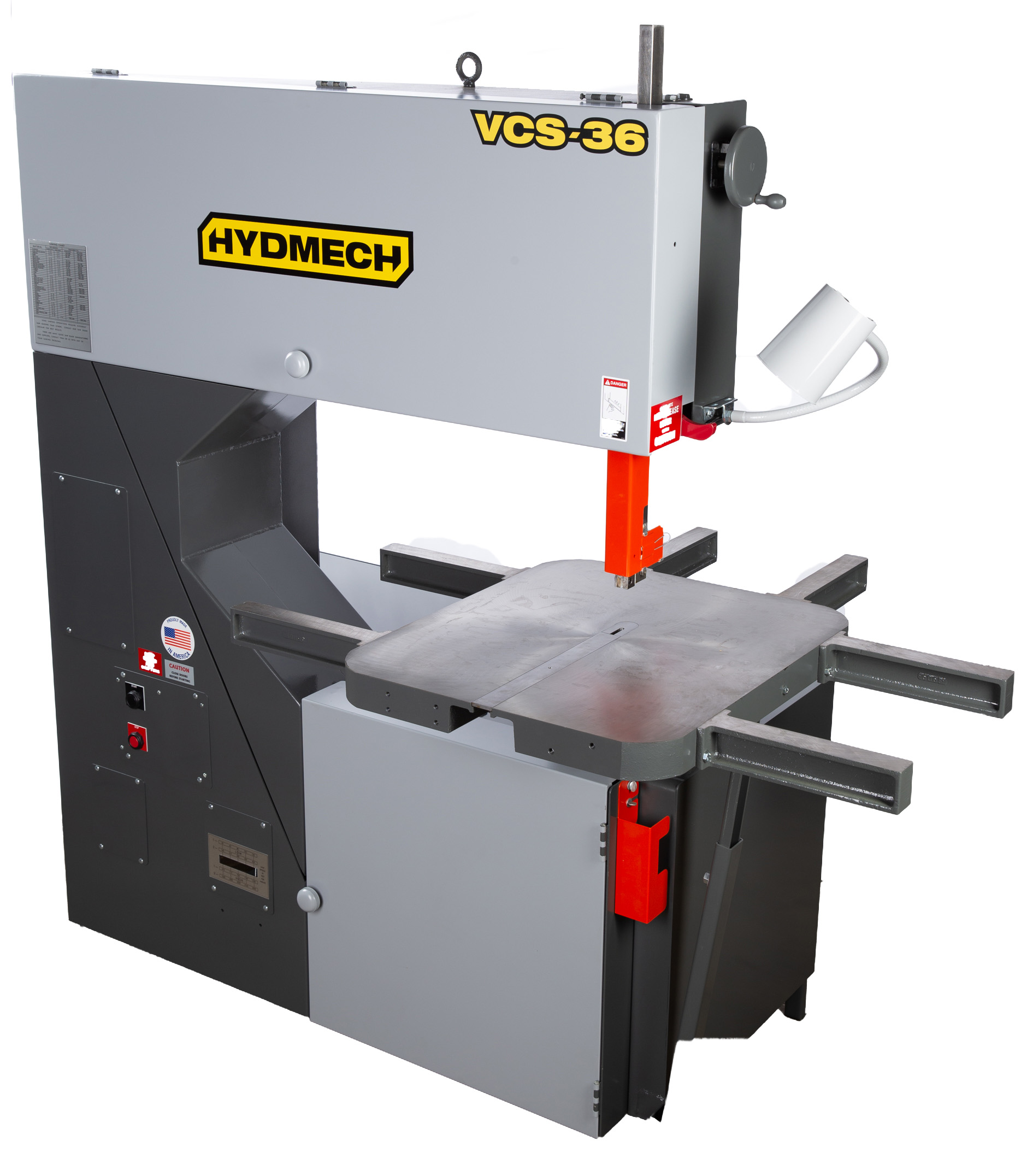

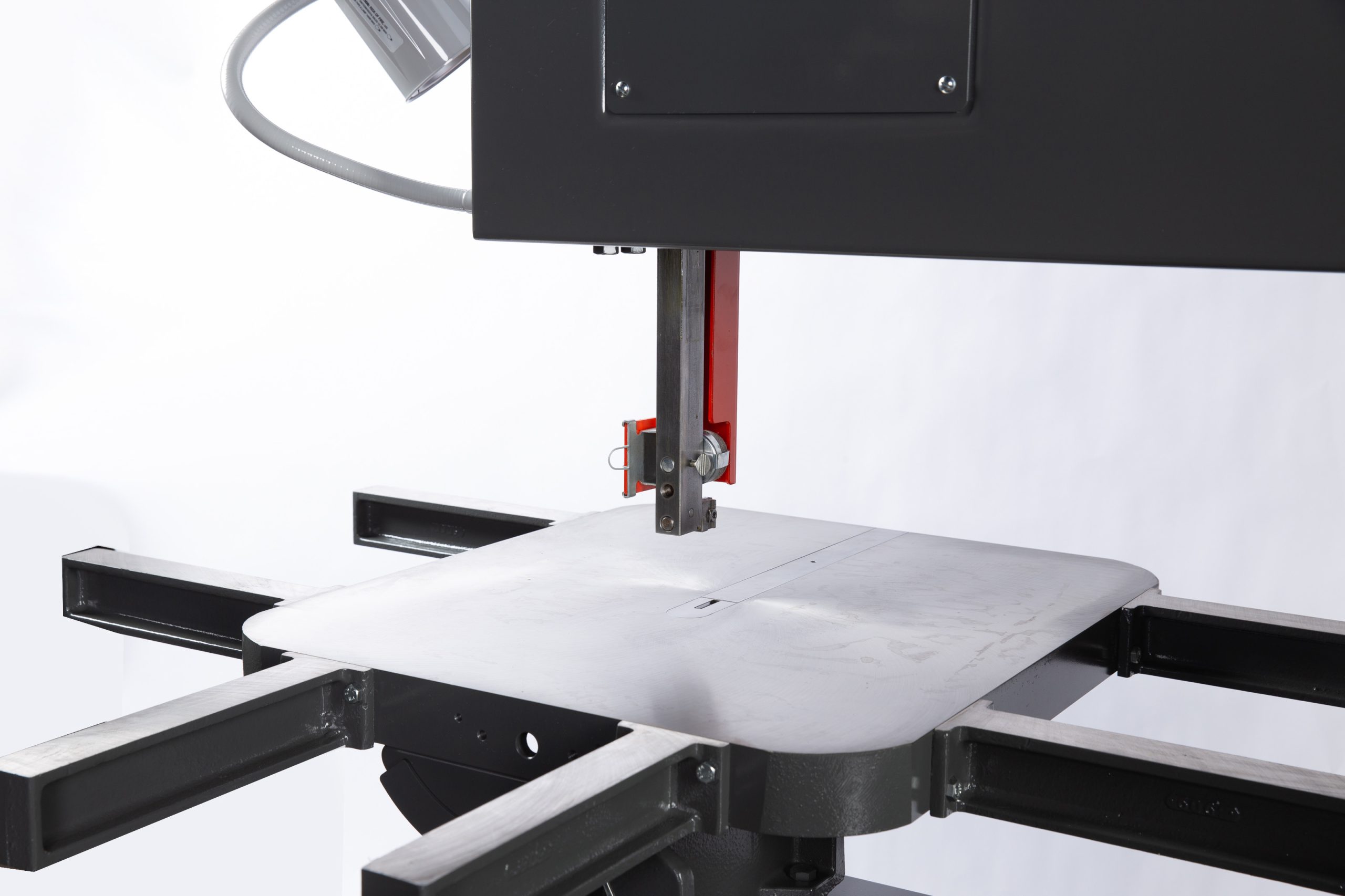

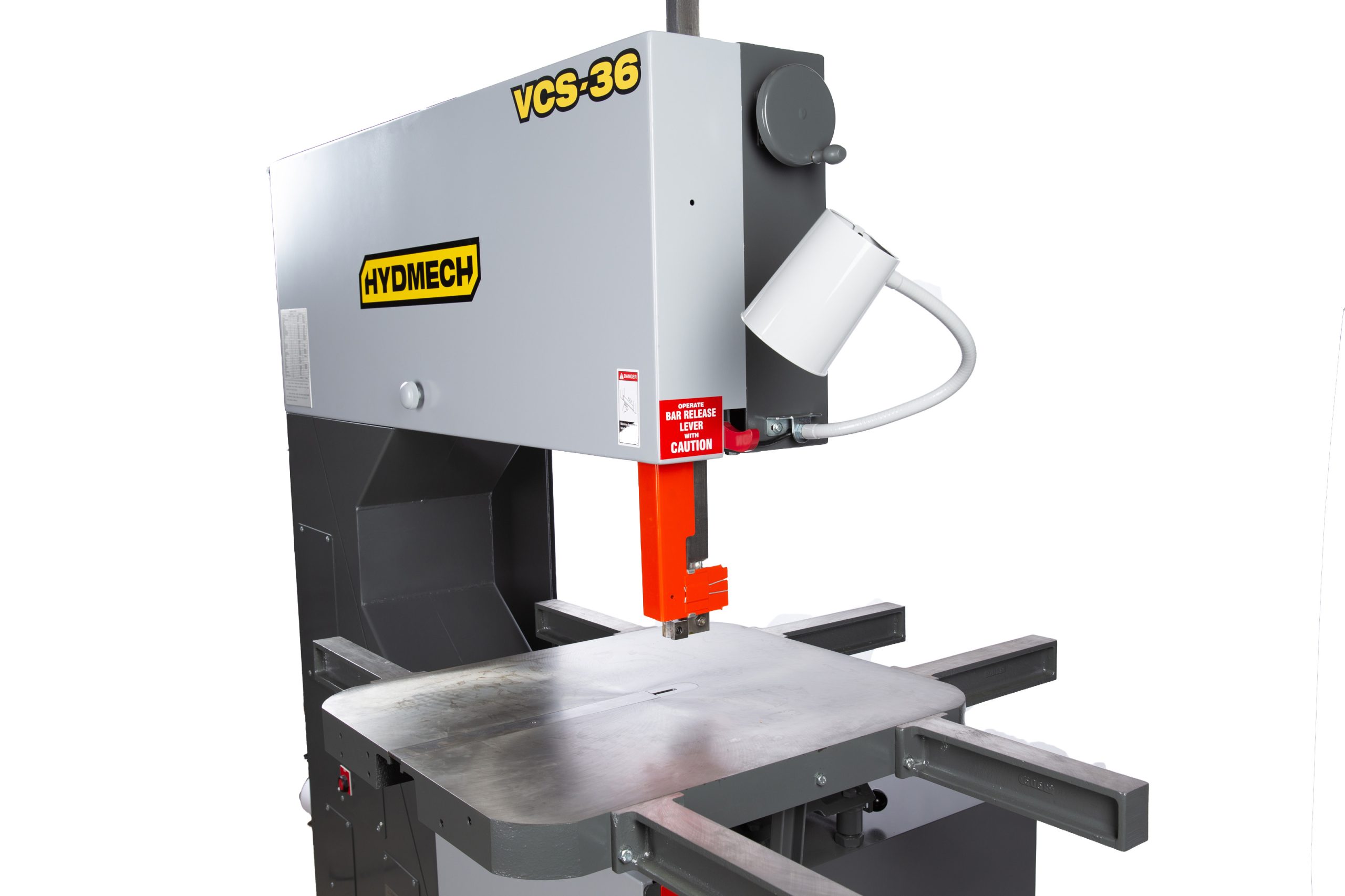

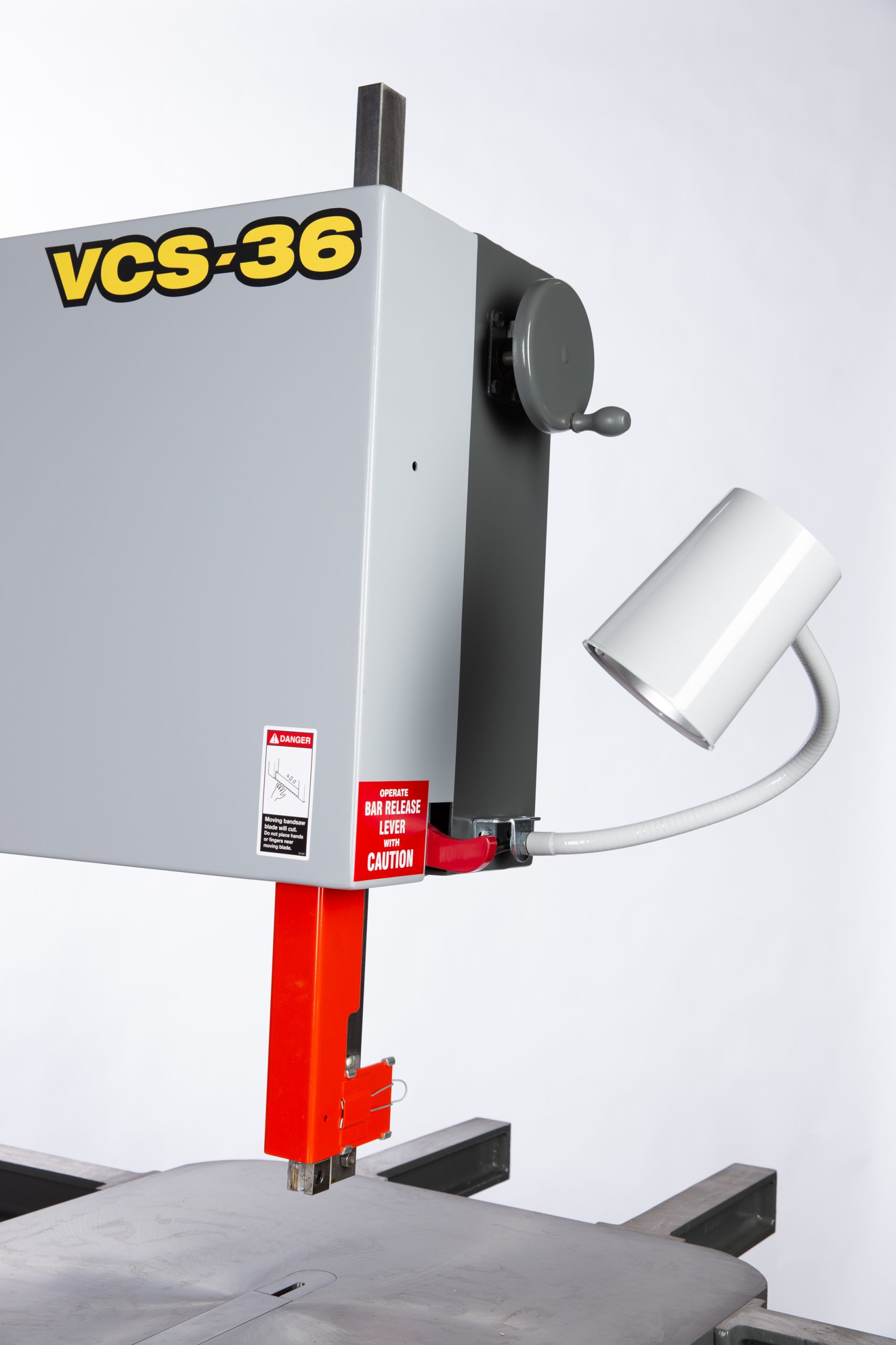

MACHINE IMAGES
