H-32A HORIZONTAL BAND SAW

H-32A HORIZONTAL BAND SAW

H-32A

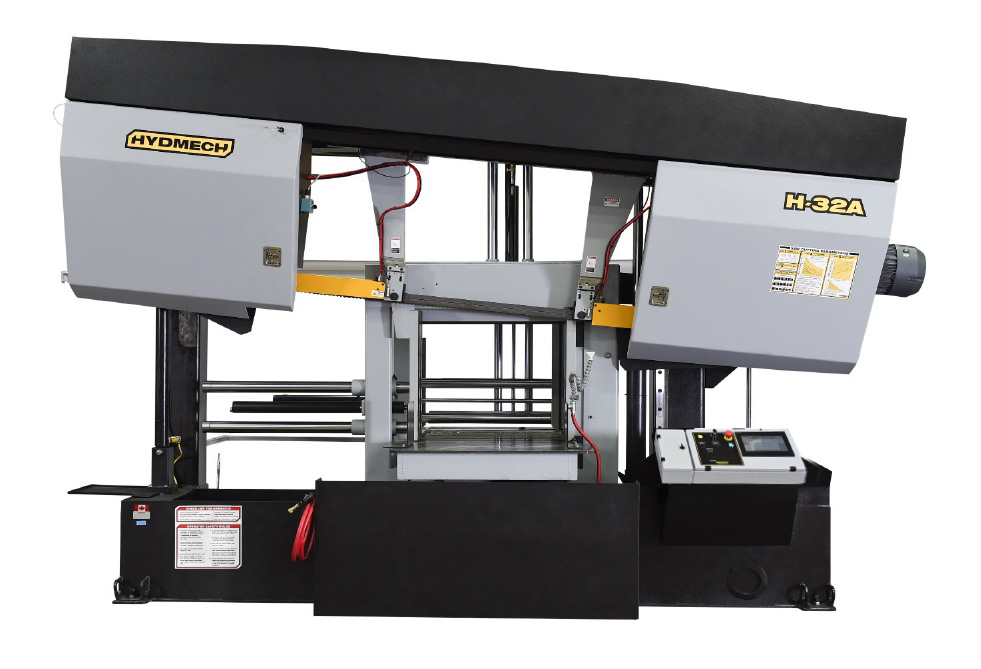

The H-32A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-32A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 32″ x 32″ capacity, 20 HP motor, and 2 5/8″ blade, the H-32A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • One piece design – no alignment necessary

  • Spilt front vise allows for short remnant length

  • Cast iron shuttle features automatic multi-indexing up to 32” in a single stroke with automatic kerf compensation

  • Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing

  • Hydraulic positive down feed

  • Cast iron band wheels

  • Automatic chip removal auger

  • 20 HP VFD. True direct blade drive

  • Full capacity, full stroking hydraulic vises

  • High resolution feed rate valve allows for constant feed rate when cutting special alloys

  • Blade chamber separates material from cut part

  • Automatic PLC control programmable up to 99 jobs with 5 in queue

  • Replaceable blade brush

  • Robust steel base

  • Blade breakage switch

  • Variable vise pressure
  • Out of stock switch

  • Easy access electrical panel and hydraulics
  • Hydraulic band tensioning with digital readout

  • 5 HP hydraulic pump system pressure

  • Hydraulic carbide guide tensioning

  • Hardened, replaceable wear plates

  • Safety door interlocks

  • Flood coolant with wash down hose

  • Laser light & work light

H-32A DDF

Electronic Dual Down Feed

Electronic DDF feed is controlled by amperage draw chip load. Head feeding will automatically adjust based on relative chip load. It’s very responsive closed loop system gives better cutting and longer blade life.

H-32A Full Capacity Vises

Full Capacity, Full Stroking Vises

Allow you to operate the vises faster and hold large pieces better. Full height vises allow you to hold large objects more efficiently, like I beams. Full stroking vises mean you don’t have to manually change the position of the vise operator.

H-32A 20 Hp Motor

20 HP True Direct Blade Drive

The Motor and Gear box are bolted together. This results in better transfer of power between the two moving parts. Other benefits include lower maintenance costs, better torque, and less vibration resulting in better blade life.

Retractable Index Datum Vise

Retractable Index datum vise backs up out of the way, helping to index crooked and banded stock. This feature helps the machine to not slip as the shuttle is going rearward.

OPTIONAL FEATURES

  • Full capacity hydraulic overhead bundling

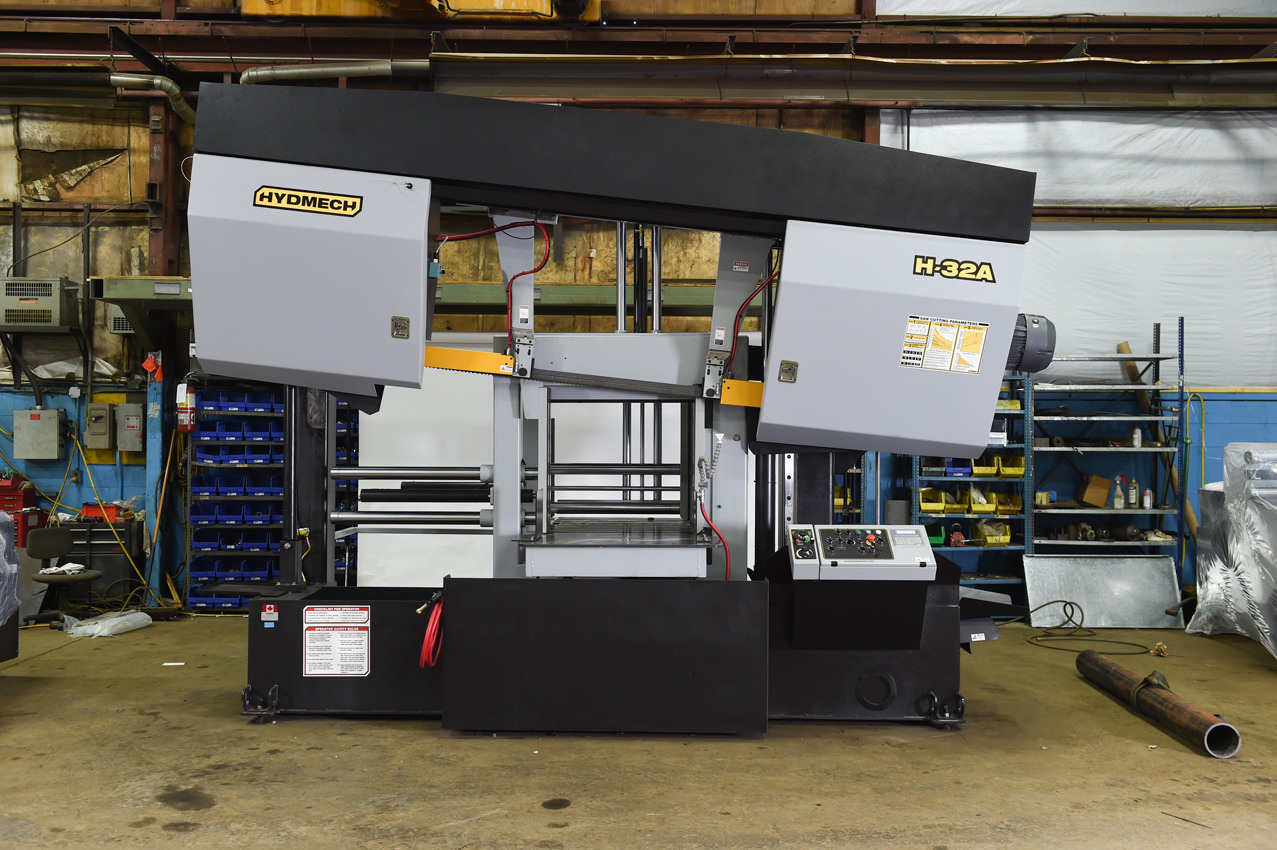

  • 6 degree canted head

  • Blade deviation

  • Mist lubrication

  • Out of stock switch

  • Outboard vise

  • Outboard vise with bundling

  • Pedestal control

  • Roller discharge table

  • Vertical alignment rollers

  • Idler conveyors

  • Powered conveyors
