C350-2AV CIRCULAR COLD SAW

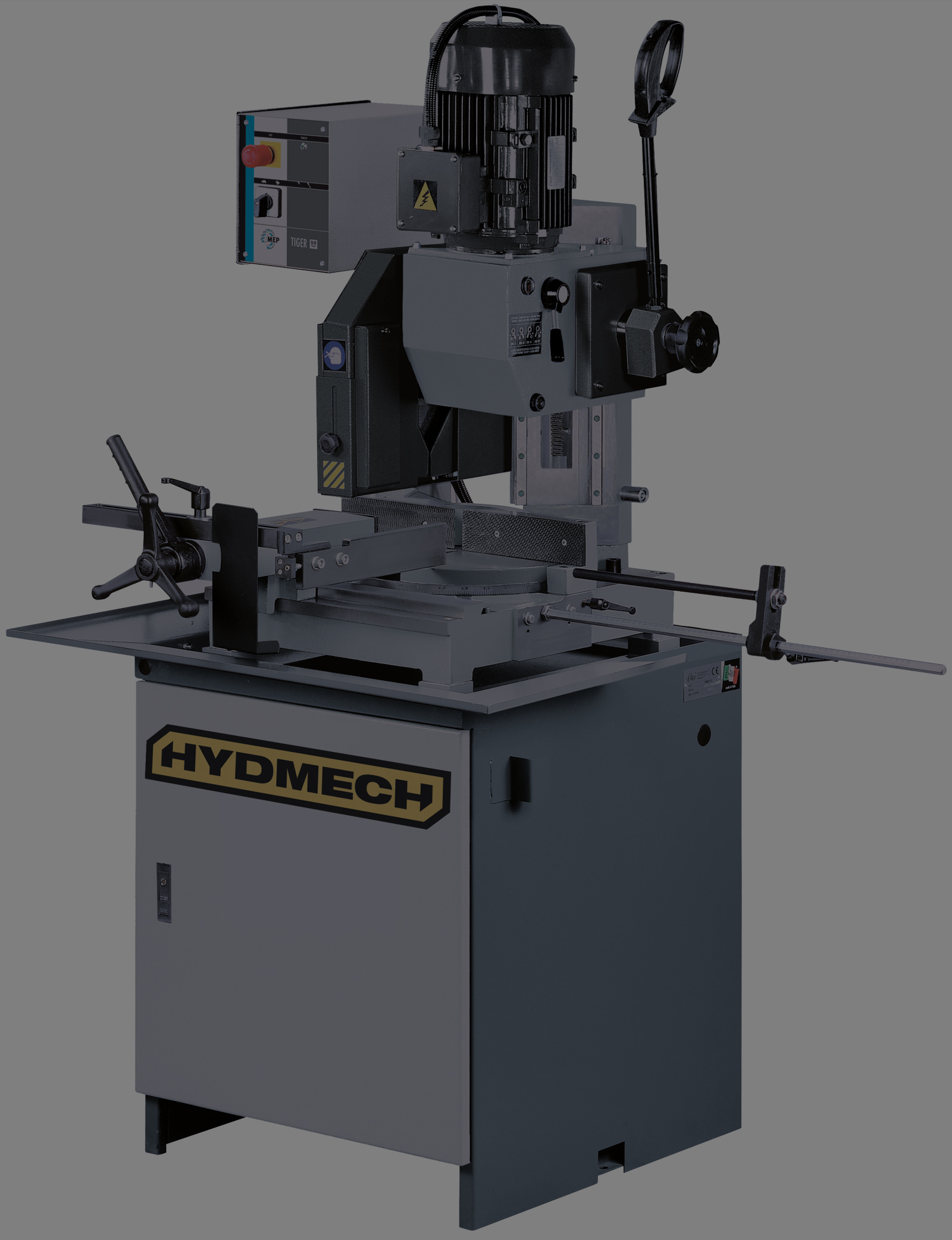

C350-2AV machine shot

Manual Vertical Cold Saw

The C350-2AV is a manual vertical column cold saw ideal for quick, clean, accurate metal cutting. This model miters from 60° left to 45° right and features 4 different blade speeds.

Featuring a 4 1/2″ round hollow capacity, 3 HP motor, and 14″ blade, the C350-2AV manual cold saw is the ideal choice for quick, clean metal cutting.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Manually operated

  • Heavy duty sawing head with manual movement on adjustable dual precision linear rails

  • Robust sawing head miters 45° left and right, and 60° left

  • Four blade speeds of 15,30,45, and 90 rpm

  • Foot pedal control with emergency stop

  • Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position

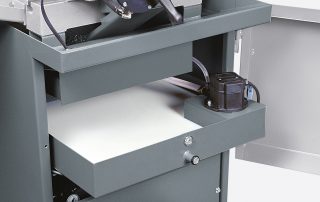

  • Enclosed steel base with chip drawer and coolant tank

  • Replaceable blade brush

  • Ergonomically positioned control panel includes main disconnect and LED display for machine diagnostics

  • Material work stop rod for multiple cuts of the same length

  • Flood coolant with electrical coolant pump

  • One blade included

OPTIONAL FEATURES

  • “Flip over” material stops with 60” ruler

  • R2 ruler extensions for outfeed roller tables

  • K40 5’ roller table

  • Roller table support stands (extra legs)

  • Roller table adapter – required if ordering roller table for out feed
