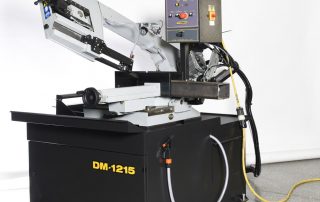

DM-12/15 DOUBLE MITER BAND SAW

The HYDMECH DM-1215 is a double miter band saw that provides exceptional cutting capability.

This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.

A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering.

From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-1215 double miter band saw is solidly built to provide maximum productivity.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Manually operated, double miter easy swing, cast saw head

  • Quick release cast-iron material vise with dovetail ways

  • Direct, Variable Frequency Drive using no belts or pulleys

  • Adjustable speed range from 49 to 377 SFM

  • Rotating table with replaceable wear strips. Cut slot moves in tandem with sawing head.

  • Band tension indicator

  • Infinitely adjustable gravity feeding head feed

  • Replaceable blade brush

  • Small footprint

  • Robust steel base

  • Easy to read angle scale

  • Adjustable guide arm

  • Pre-set, replaceable carbide guide inserts

  • Mechanical blade tensioning

  • Safety door interlocks

  • Flood coolant

  • Work stop

  • Storage in saw base

  • Work light

  • Laser light

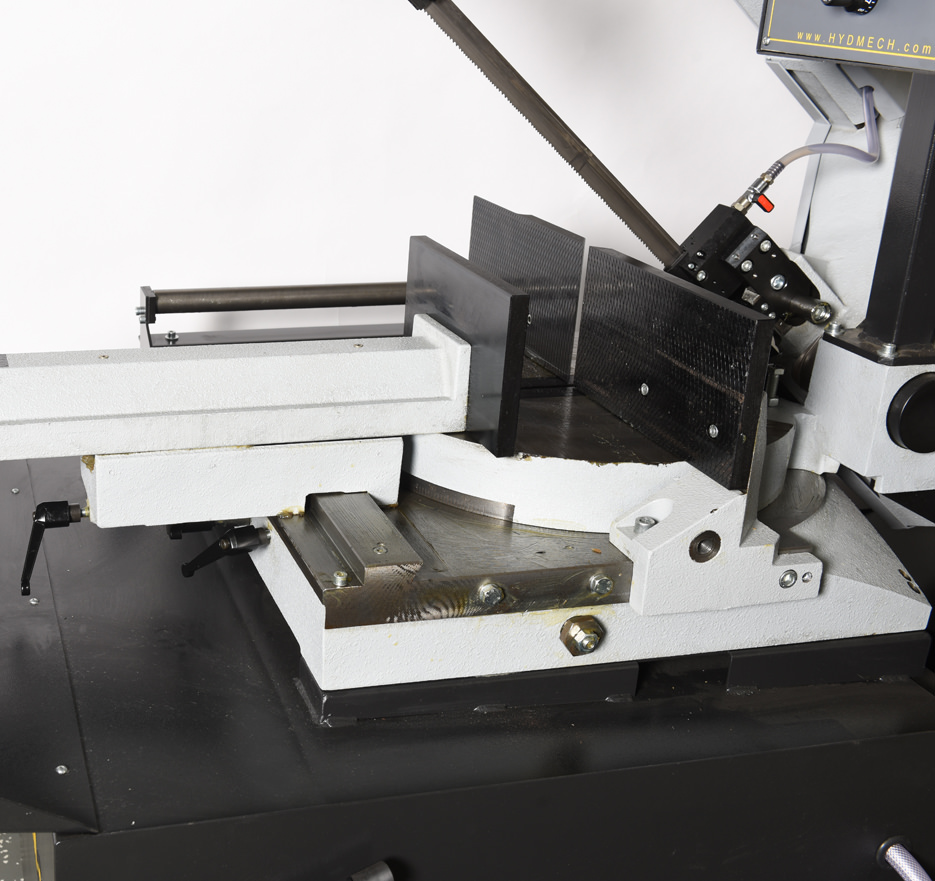

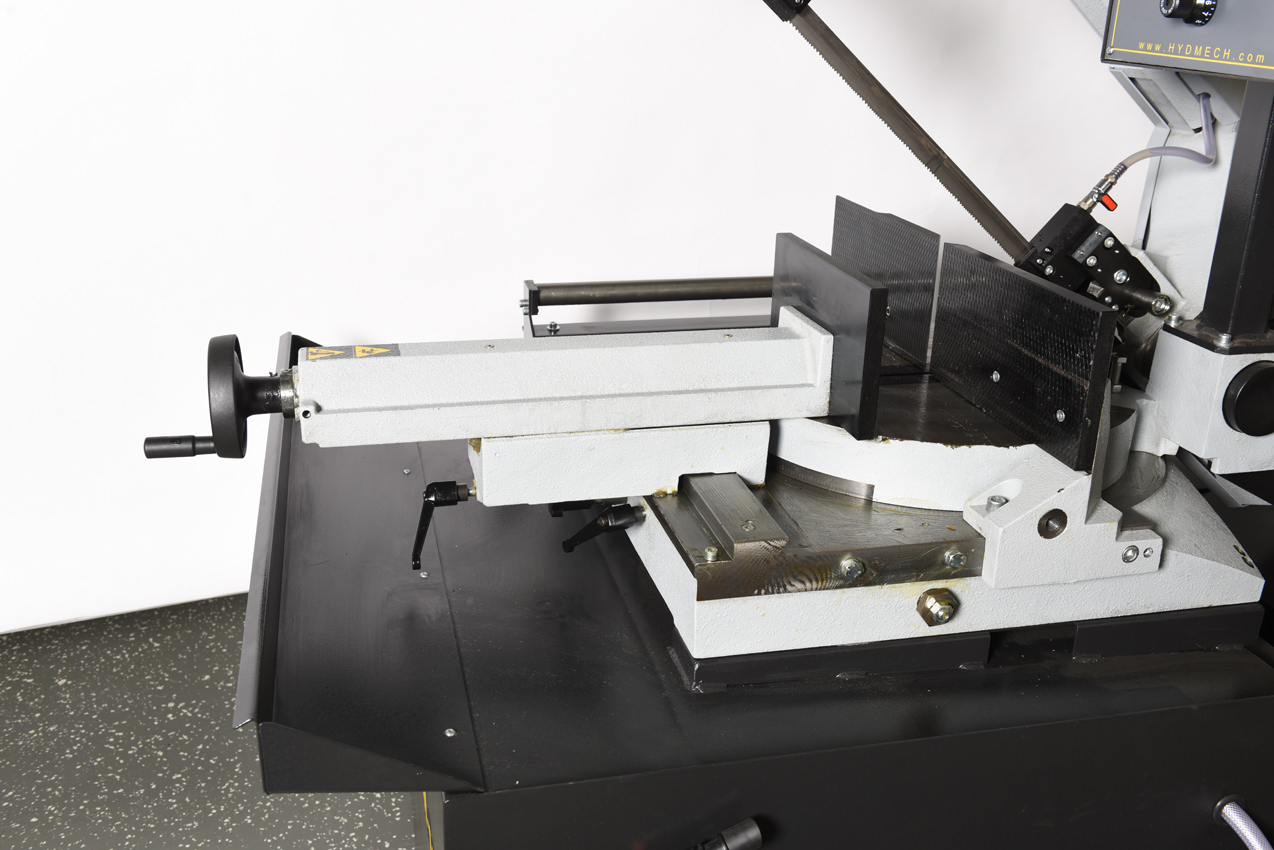

DM-1215 Quick Release Cast Iron Vise On Dovetail Ways

Quick Release Vise

A quick release vise allows for easier setup times between jobs or cuts.

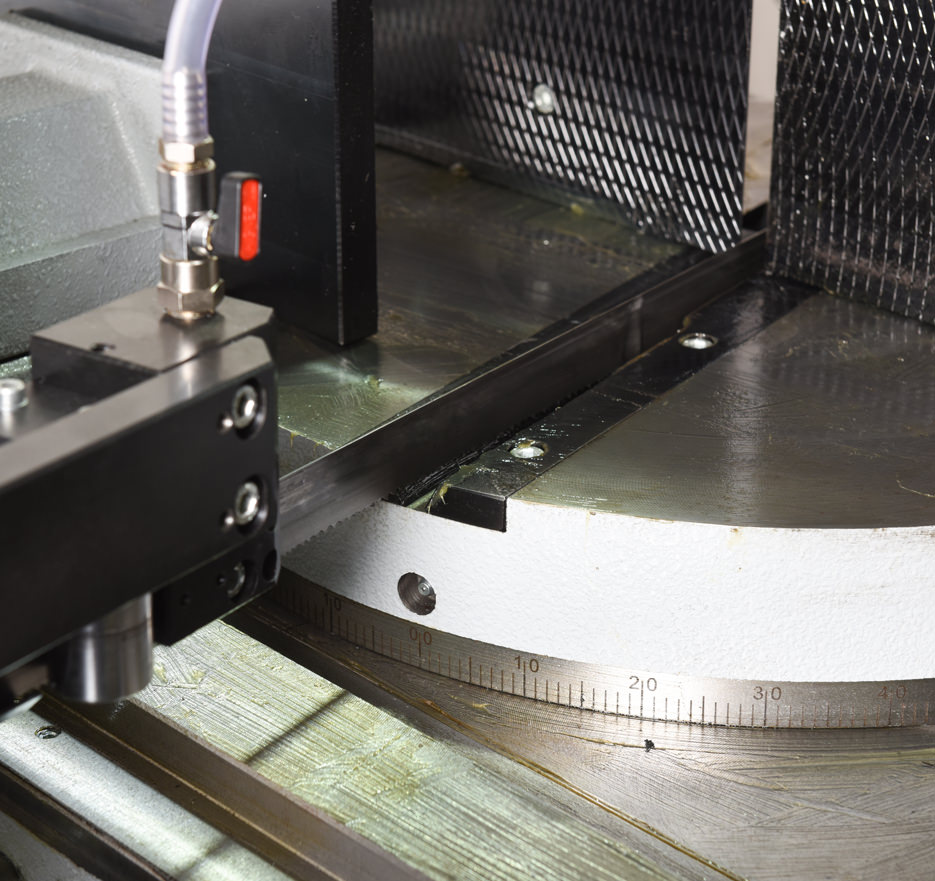

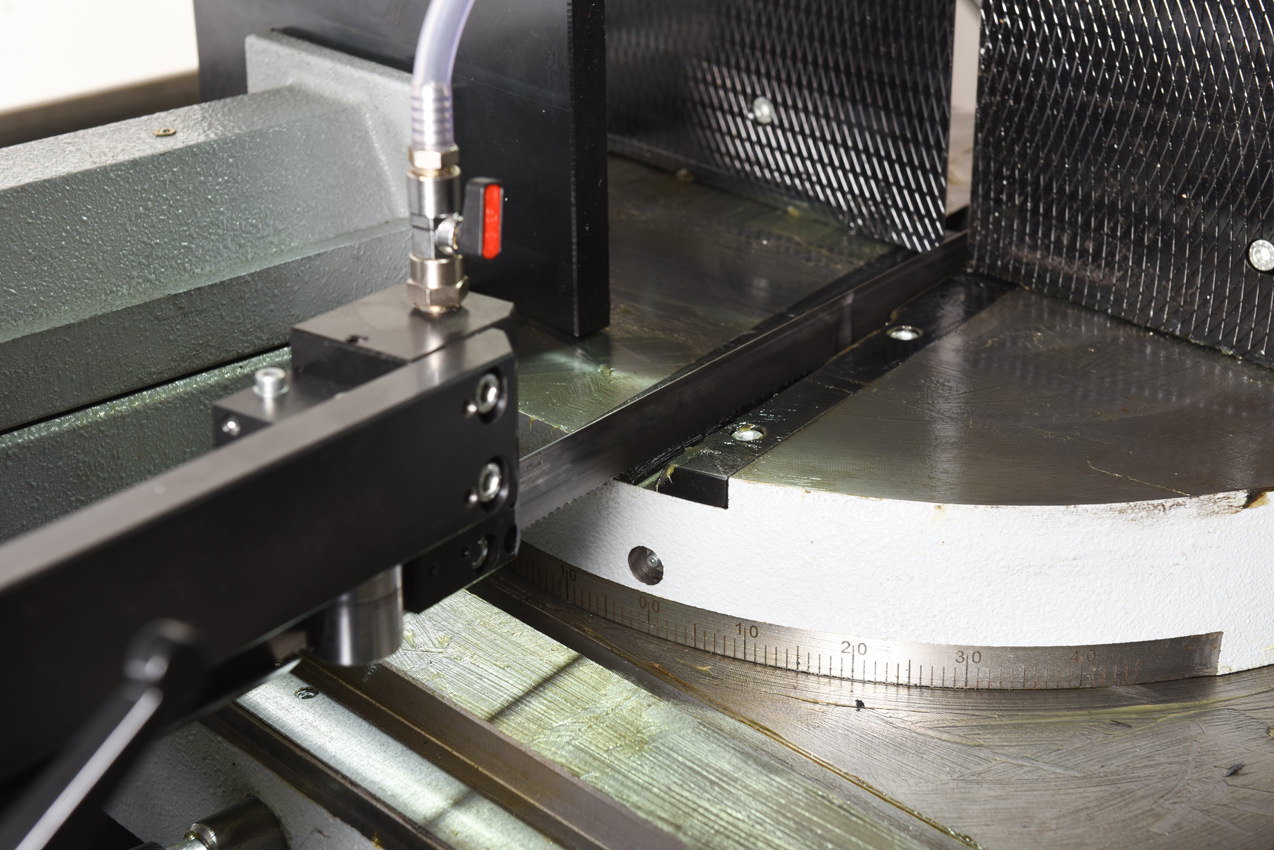

DM-1215 Rotating Table With Single Cut Line

Rotating Table with Single Cut Line

Allows head and blade groove to move together for smooth, accurate mitering.

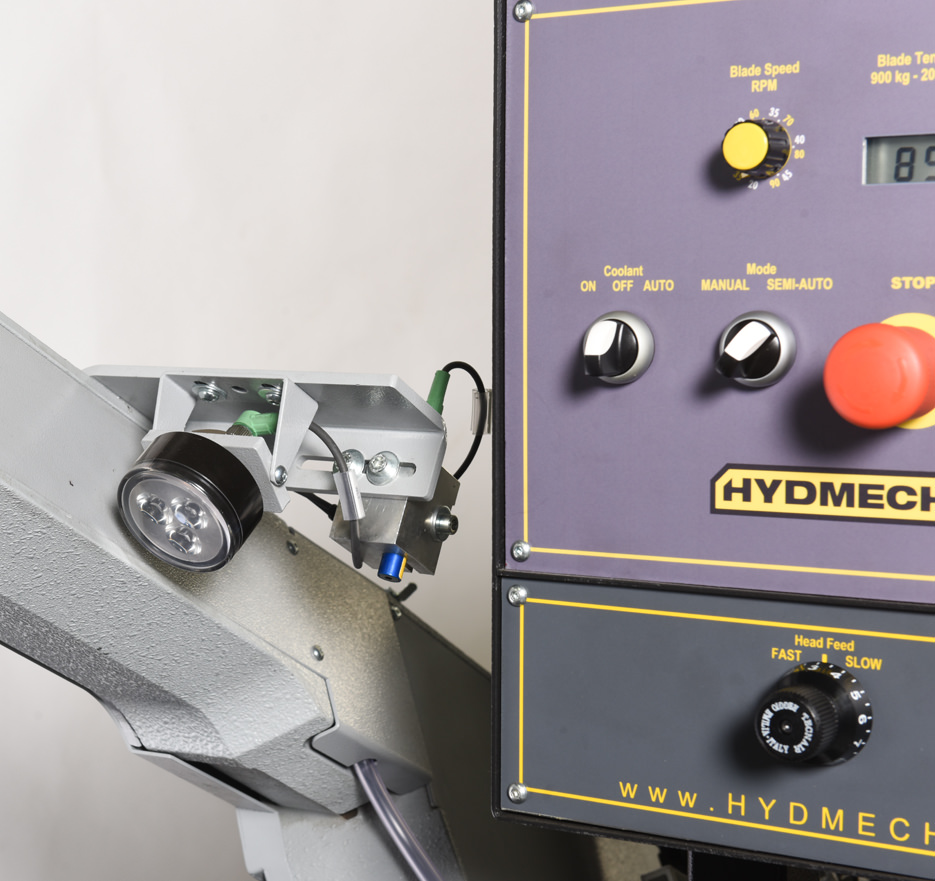

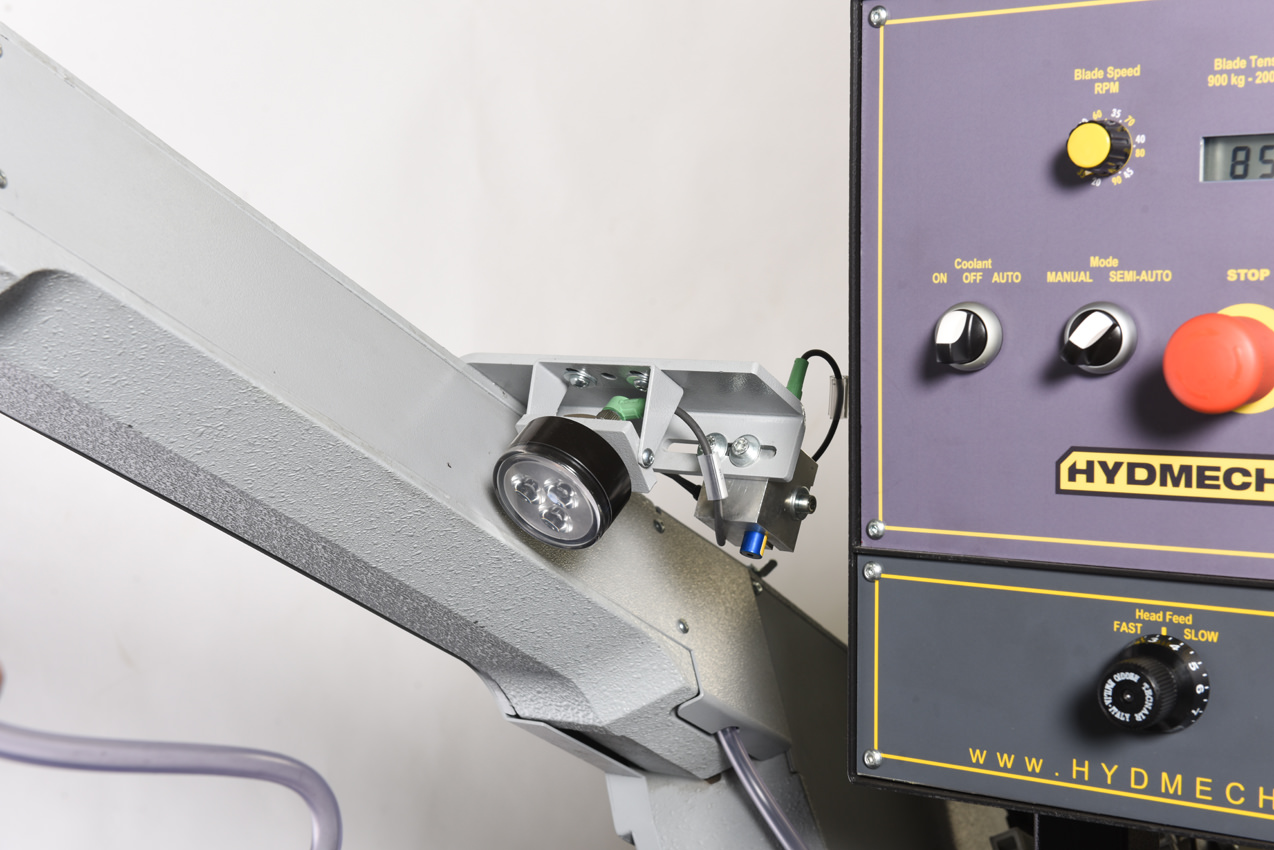

DM-1215 Laser Projector Work Light

Laser and Work Light

The laser light assists the operator in very accurately positioning the material for a cut. The laser throws a thin line across the material where the band saw will cut.A work light illuminates the work area helping the operator better position material for cuts.

S-20 Horizontal Pivot Band Saw Angle Measurement

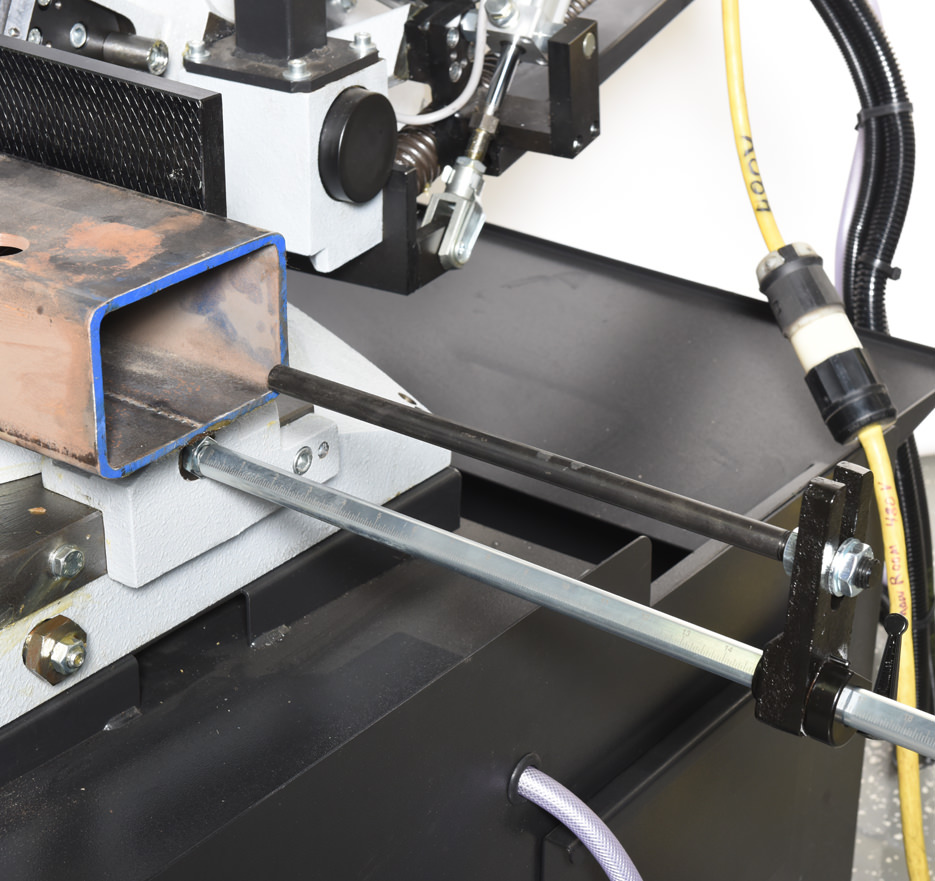

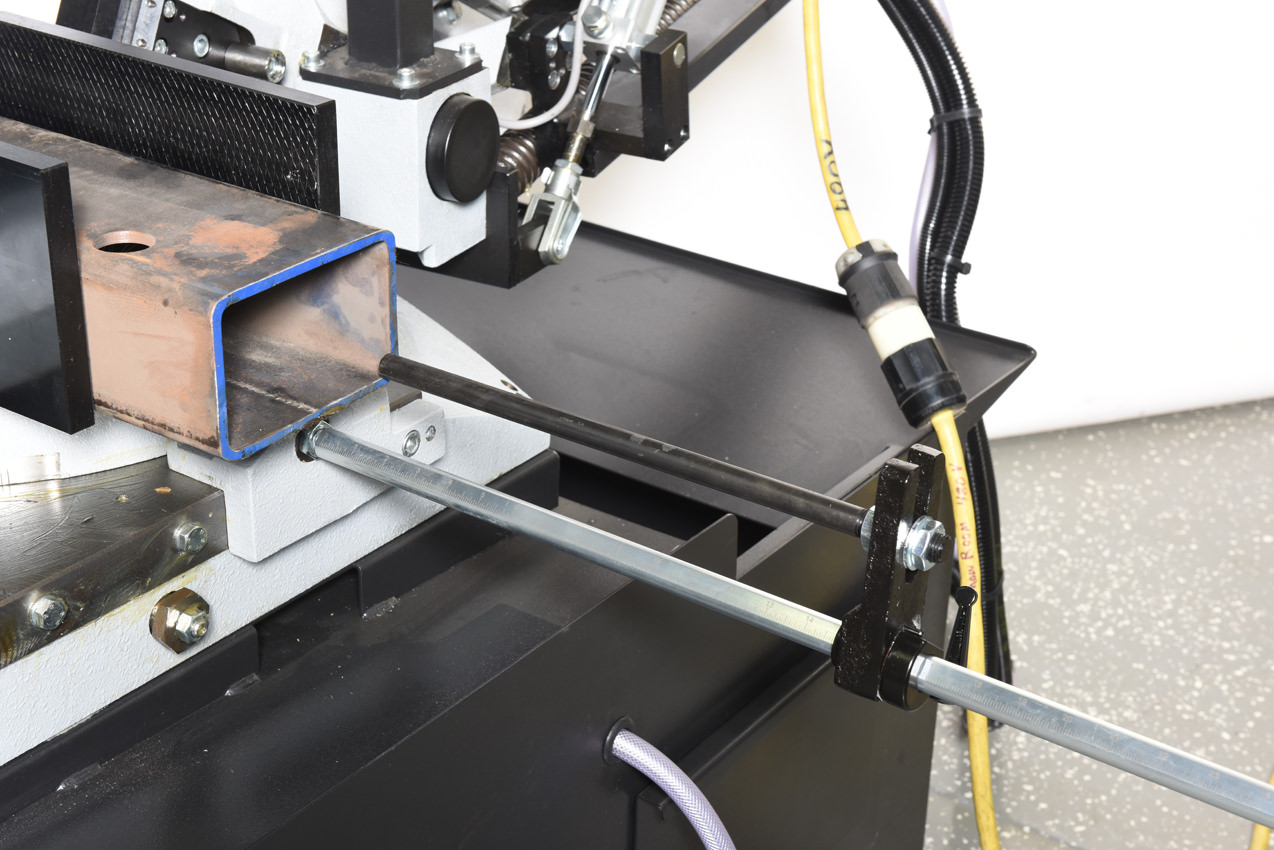

Work Stop

Standard with the Dm12/15, the work stop is an adjustable measure that allows you to make multiple cuts at the same length.

OPTIONAL FEATURES

  • Mist lubrication

  • K210 5’ infeed/out feed roller

  • R2 Work stop for K210 table

  • Adapter Plate for K210 table
