C370-2CNC CIRCULAR COLD SAW

C370-2CNC machine shot

Automatic Vertical Column Cold Saw

The C370CNC is an automatic vertical column cold saw that miters from 60° left to 45° right.

The C370CNC has a standard 40″ single stroke, multi-indexing material feed system. Automatic operation with semi-automatic mode – MEP 50 Controller

Featuring a 4 3/4″ round hollow capacity at 90°, 7.5 HP motor, and 14 1/2″ blade, the C370-2CNC automatic cold saw is the ideal choice for quick, clean, accurate metal cutting.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Automatic operation with semi-automatic mode – MEP 50 Controller

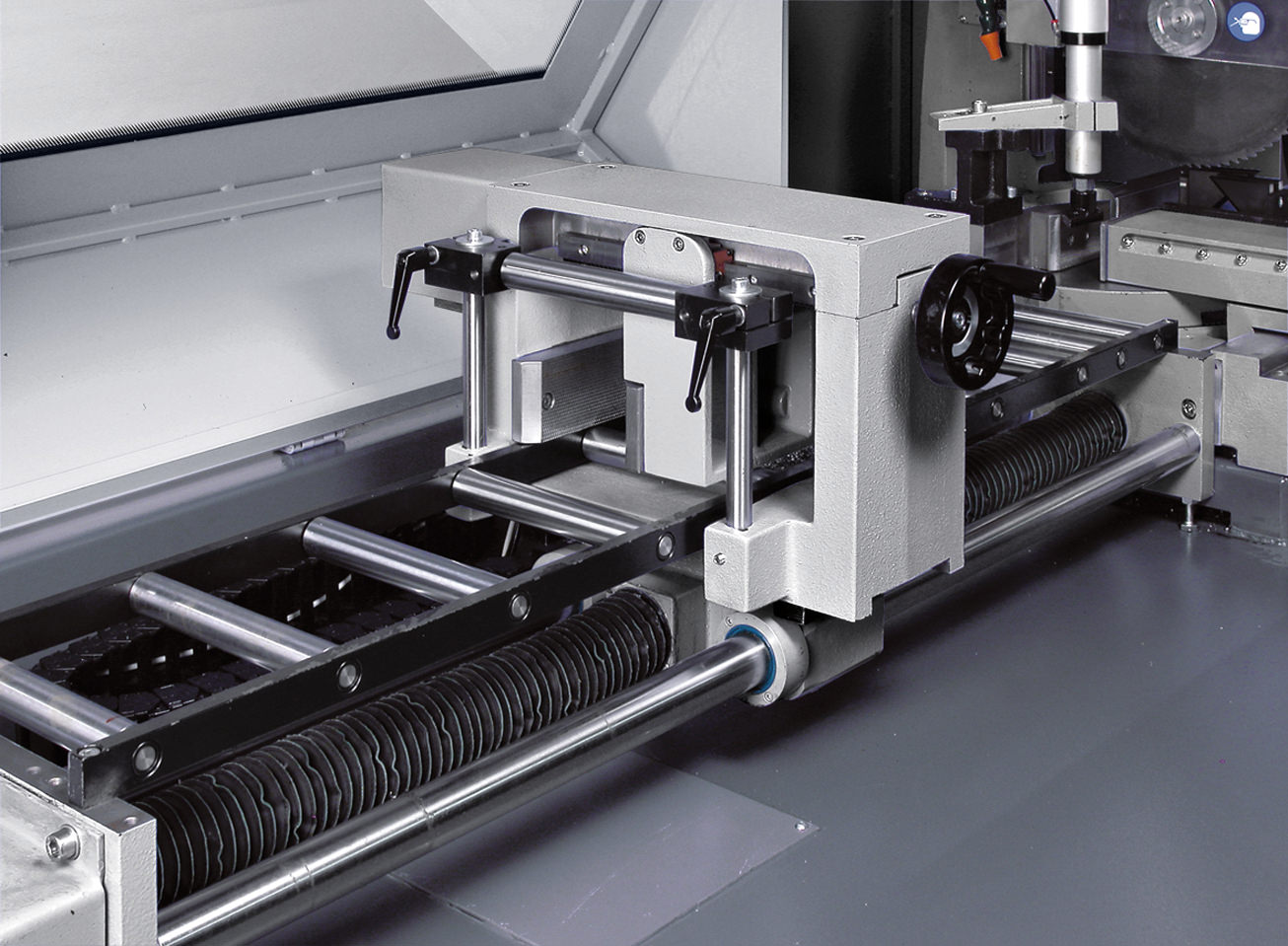

  • Shuttle features automatic multi-indexing up to 40” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.

  • Shuttle feed carriage designed with side movement to help feed and center deformed parts.

  • Variable speed drive from 15 to 150 rpm’s for the best cutting efficiency

  • Vertical pneumatic vise

  • Extended jaws allow for short remnant

  • Heavy duty sawing head movement controlled by electro mechanic cylinder. Head moves on adjustable dual precision linear rails

  • Robust sawing head miters 45° left and right, and 60° left

  • 7.5 HP blade drive coupled directly to saw head guarantees high rigidity and precision to obtain high chip removal rates.

  • Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position

  • Enclosed steel base with chip drawer and coolant tank

  • Replaceable blade brush

  • Ergonomically positioned control panel includes emergency stop, programming console, digital display for machine diagnostics, as well as cutting parameters: blade speed, cut time, and cut quantity. Store up to 32 jobs.

  • Flood coolant system with electrical coolant pump

  • One blade included

OPTIONAL FEATURES

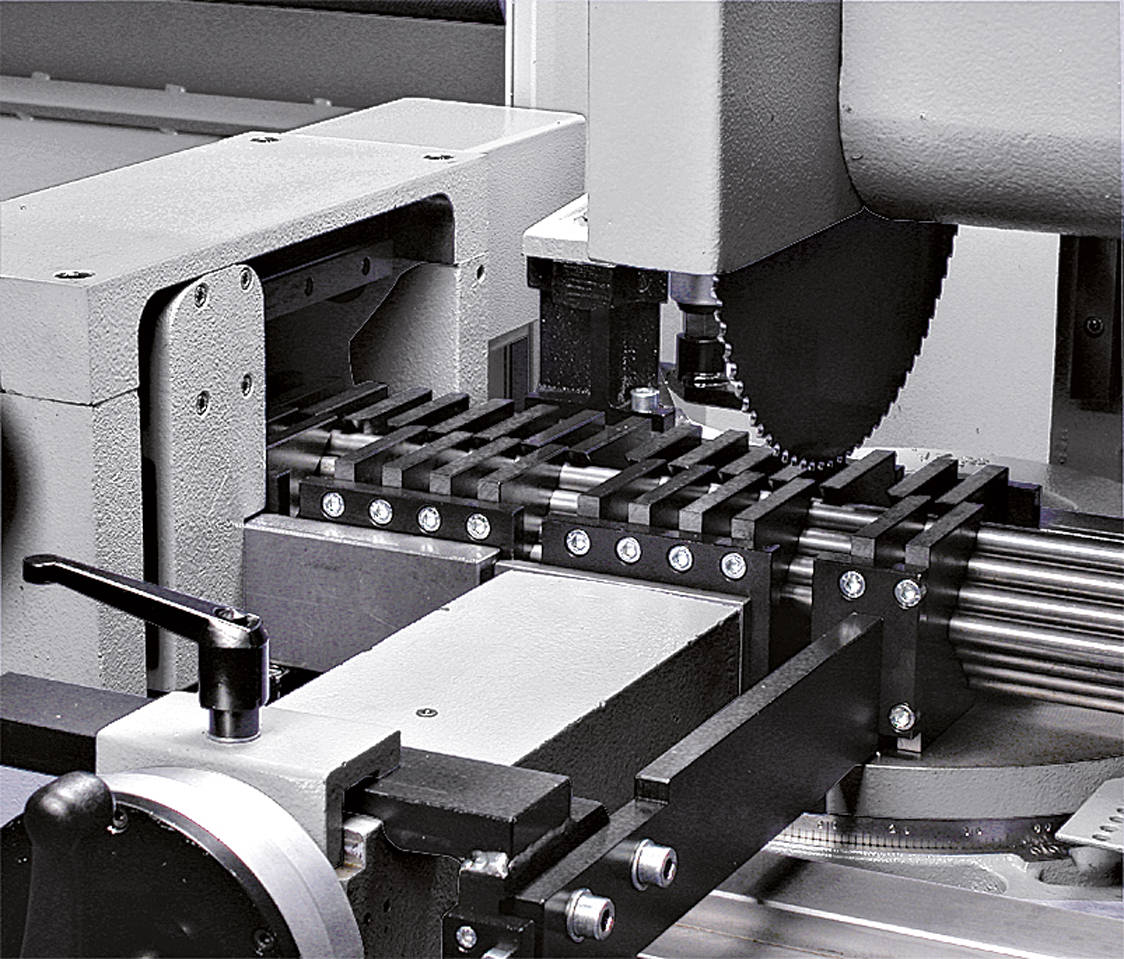

  • Bundle Jaws

  • CB6001 automatic incline loading table

  • Second pneumatic horizontal operating vise

  • Automatic chip conveyor

  • Mist lubrication system

Download Brochure
Download Layout Drawing
