CSNC-100 CARBIDE CIRCULAR SAW
Get the Close-cut Off, Length Tolerance, Squareness, and Finish of Cut That Your Customers Demand.
The CSNC-100 features advanced technology for high speed performance. With energy efficiency in mind, the hydraulics are designed to be highly efficient with low energy consumption.
The shuttle is powered by a ball screw and vector motor and features automatic multi-indexing up to 39” in a single stroke. This means accurate, fast cuts to get maximum productivity from your investment.
Featuring a 1” – 4” round capacity at 90°, 20 HP motor, and a 360 mm blade, the CSNC-100 is a versatile high-speed cutting machine.
MACHINE SPECIFICATIONS
| Cutting Capacity Round 90° | 1″- 4″ |
| Cutting Capacity Square 90° | 1″- 3.15″ |
| Blade Drive | 20 HP VFD |
| Blade Speed | 50-180 MPM |
| Blade Size | Carbide/ Cermet tipped: 360 mm x 2.6 mm kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.4′ or longer |
| Cut off Length | Min 0.4” up to 39” |
| Single Stroke | 39″ |
| Remnant Length | 3.94”/100 mm + cut length +cutter thickness |
| Hydraulic Motor | 3 HP VFD |
| Bar Loading Magazine | Inclined storage width of 42″ for rounds |
| Machine Capacity | 11,000 lbs. |
| Machine Weight | 8,818 lbs. |
| Dimensions (w x l x h) | 110” x 100” x 80” |
| Cutting Capacity Round 90° | 25-100 mm |
| Cutting Capacity Square 90° | 25-80 mm |
| Blade Drive | 15 kW |
| Blade Speed | 50-180 MPM |
| Blade Size | Carbide/ Cermet tipped: 360 mm x 2.6 mm kerf |
| Bar Stock Length | 3-6 m |
| Trim Cut | Zero or programmable from 10 mm or longer |
| Cut off Length | Min 10 mm up to 1000 mm, Higher length with multi indexing |
| Single Stroke | 1000 mm |
| Remnant Length | 100 mm + Cut Length + Cutter Thickness |
| Hydraulic Motor | 2.2 kW |
| Bar Loading Magazine | Inclined storage width of 1070 mm for rounds |
| Machine Capacity | 5000 kg |
| Machine Weight | 4000 kg |
| Dimensions (w x l x h) | 2800 x 2550 x 2050 mm |
STANDARD FEATURES
-
Mitsubishi PLC Controller allows for 200 programs to be saved
-
Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade.
-
Material library with US steel grades menu with ability to add custom material grades
-
Bar feed features a roller bed with a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 7.87” per second.
-
Heavy duty saw head is driven by ball screw and AC servo drive with a patent pending counterbalance feature
-
Mist exhaust system
- Patent pending blade cooling system
- Air moisture separator
-
Bar retracts automatically for contact free return stroke of the saw blade
-

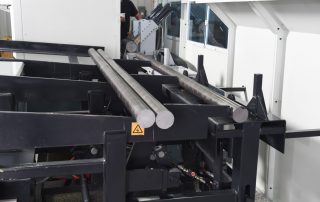

Universal Bar Loader for round and square material with hydraulic incline pitch adjustment and safety guard sheets provides inclined storage width of 42” (1070 mm) for rounds. Capacity: 4,700 kg.
-
PLC controlled automatic oil lubrication of all moving parts
-
Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
-
Variable vise pressure control with dial gauge – two stations
- Cooling nozzle
-
Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
-
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
-
Status light indicating tower
-
Chip auger
- Air cooled electric magnetic head break removes all backlash.
-
Built in hydraulic tank and power pack
-
Tool steel hardened saw guide plates
-
Power transformer
-
• Four blade starter package
• Blade specs: 360 mm x 2.6 kerf x 2.25 mm body x 40 mm bore
• Pin holes: 4/15/80 mm
• Bolt holes: 4/12/90 mm
OPTIONAL FEATURES
-
Auto bar loader for non-rounds
-
PLC program change
-
Bundle loaders – max weight 4 tons
-
Maintenance Kit
-
Long cut bar out feed motorized conveyor table in the following lengths – 1000 mm, 2000 mm, and 3000 mm
