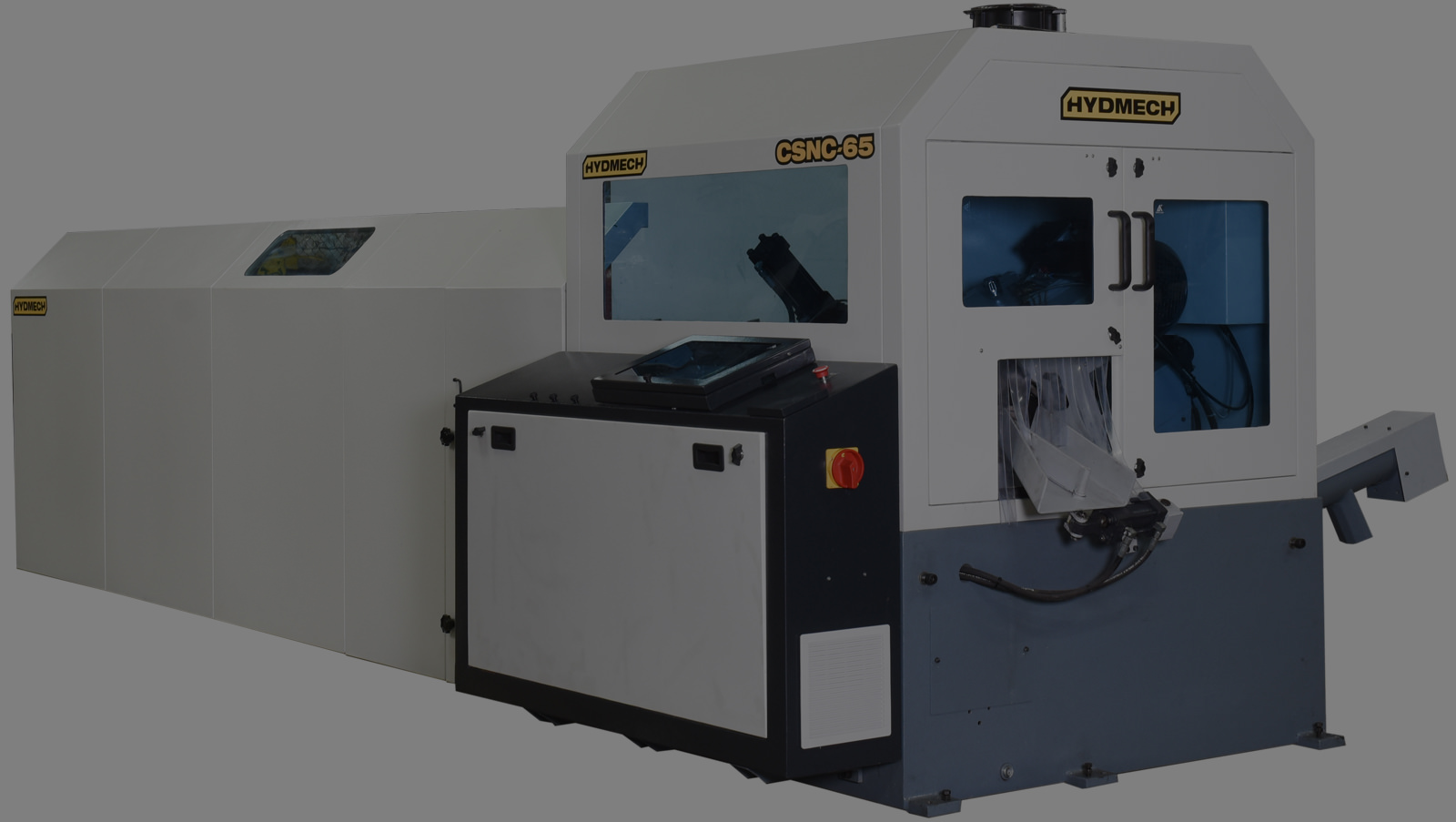

CSNC-65 CARBIDE CIRCULAR SAW
CSNC-65 CARBIDE CIRCULAR SAW
Does the Work of Five Conventional Band Saws!
A highly efficient and productive saw designed for use with a carbide tipped blade
A superior sawing solution supported by top-of-the-line service technicians and a well-stocked parts department to keep your production going strong!
Designed and built with off-the-shelf parts easily found at local suppliers and supply houses for quick repairs.
Featuring a 0.4” – 2.55” round capacity at 90°, 10 HP motor, and a 250 mm blade, the CSNC-65 is a versatile high-speed cutting machine.
MACHINE SPECIFICATIONS
| Cutting Capacity Round 90° | 0.4″-2.55″ |
| Cutting Capacity Square 90° | 0.4″-1.96″ |
| Blade Drive | 10 HP VFD |
| Blade Speed | 164-656 SFM |
| Blade Size | Carbide/Cermet tipped: 9.8″ x 0.08″ kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.4′ or longer |
| Cut off Length | Min 0.24” up to 39” |
| Single Stroke | 20″ |
| Remnant Length | 1.57” + cut length + blade thickness |
| Hydraulic Motor | 3 HP |
| Bar Loading Magazine | Inclined storage width of 27.9″ for rounds |
| Machine Capacity | 4400 lbs. |
| Machine Weight | 5500 lbs. |
| Dimensions (w x l x h) | 77” x 98” x 75” |
| Cutting Capacity Round 90° | 10-65 mm |
| Cutting Capacity Square 90° | 10-50 mm |
| Blade Drive | 7.5 kW |
| Blade Speed | 50-200 MPM |
| Blade Size | Carbide/Cermet tipped: 250 mm x 2.0 mm kerf |
| Bar Stock Length | 3-6 m |
| Trim Cut | Zero or programmable from 10 mm or longer |
| Cut off Length | Min 6 mm up to 990 mm |
| Single Stroke | 508 mm |
| Remnant Length | 40mm + cut length + blade thickness |
| Hydraulic Motor | 2.2 kW |
| Bar Loading Magazine | Inclined storage width of 710 mm for rounds |
| Machine Capacity | 2000 kg |
| Machine Weight | 2500 kg |
| Dimensions (w x l x h) | 1950 mm x 2500 mm x 1900 mm |
STANDARD FEATURES
-
Mitsubishi PLC Controller allows for 200 programs to be saved
-
Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade.
-
Material library with US steel grades menu with ability to add custom material grades
-
Bar feed and roller table with a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 7.87” per second
-
Heavy duty saw head is driven by ball screw and AC servo drive with horizontal and vertical clamping
-
Mist exhaust system
- Patent pending blade cooling system.
-
Bar retracts automatically for contact free return stroke of the saw blade
-

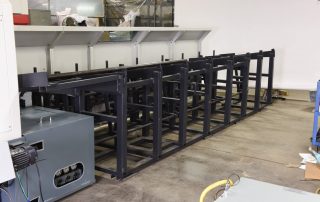

Universal Bar Loader for round and square material with safety guard sheets provides inclined storage width of 27.9” (710 mm) for rounds, manual incline setting. Capacity: 3,747 lbs.
-
PLC controller, automatic oil lubrication of all moving parts
-
Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
-
Variable vise pressure control with dial gauge – two stations
-
Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
-
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
-
Status light indicating tower
-
Chip auger
-
Air cooled electric magnetic head break removes all backlash.
-
Built in hydraulic tank and power pack
-
Tool steel hardened saw guide plates
-
Power transformer
-
Four blade starter package
• Blade specs: 250 mm x 2.0 kerf x 1.70 mm body x 32 mm bore
• Pin holes: 4/9/50 mm
• Bolt holes: 4/11/63 mm
OPTIONAL FEATURES
-
Universal hydraulic incline adjustment bar loader – 20′
-
PLC program modification
-
2 ton- chain and finger bundle unscrambler
-
Chain chip conveyor
-
Maintenance Kit
-
Motorized sliding out-feed conveyor table and guarding in the following lengths – 1000 mm, 2000 mm, and 3000mm
