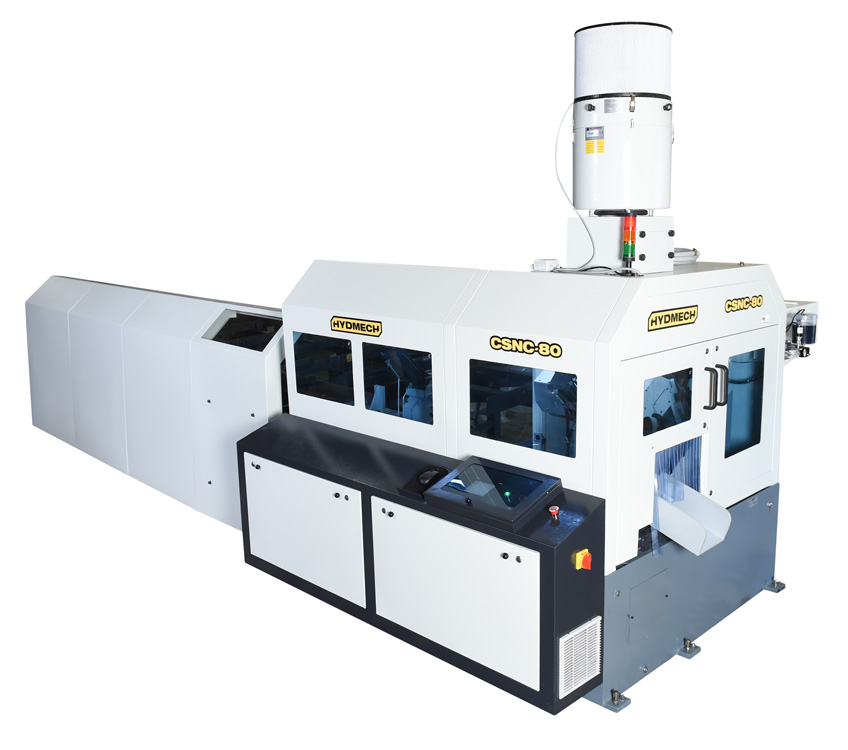

CSNC-80 CARBIDE CIRCULAR SAW
CSNC-80 CARBIDE CIRCULAR SAW
Increase Efficiency Without Sacrificing Quality!
Achieve consistent results with this carbide sawing machine that features a high level of productivity, length accuracy, and clean, burr free cuts.

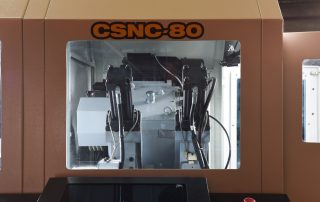

Trim cuts and remnants are separated from good parts automatically via a heavy-duty discharge sorting chute. Designed for operator safety, this machine is completely enclosed and features safety door interlocks which if a door opens during operation, the machine will shut off.
Featuring a 0.4” – 3.15” round capacity at 90°, 15 HP motor, and a 285 mm blade, the CSNC-80 is a versatile high-speed cutting machine.
MACHINE SPECIFICATIONS
| Cutting Capacity Round 90° | 0.4″-3.15″ |
| Cutting Capacity Square 90° | 0.4″-2.36″ |
| Blade Drive | 15 HP VFD |
| Blade Speed | 50-200 MPM |
| Blade Size | Carbide/ Cermet tipped: 285 mm x 1.7 mm kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.4′ or longer |
| Cut off Length | Min 0.24” up to 39” |
| Single Stroke | 40″ |
| Remnant Length | 3.35” + cut length + cutter thickness |
| Hydraulic Motor | 3 HP |
| Bar Loading Magazine | Inclined storage width of 27.9″ for rounds |
| Machine Capacity | 6,613 lbs. |
| Machine Weight | 6613 lbs. |
| Dimensions (w x l x h) | 85” x 102” x 88″ |
| Cutting Capacity Round 90° | 10-80 mm |
| Cutting Capacity Square 90° | 10-60 mm |
| Blade Drive | 11 kW |
| Blade Speed | 50-200 MPM |
| Blade Size | Carbide/ Cermet tipped: 285 mm x 1.7 mm kerf |
| Bar Stock Length | 3-6 m |
| Trim Cut | Zero or programmable from 10 mm or longer |
| Cut off Length | Min 6 mm up to 1000 mm |
| Single Stroke | 1000 mm |
| Remnant Length | 85 mm + Cut Length + Cutter Thickness |
| Hydraulic Motor | 2.2 kW |
| Bar Loading Magazine | Inclined type with storage width of 710 mm |
| Bar Loader Capacity | 1700 kg |
| Machine Weight | 3000 kg |
| Dimensions (w x l x h) | 2150 mm x 2585 mm x 2245 mm |
STANDARD FEATURES
-
Mitsubishi PLC Controller allows for 200 programs to be saved
- Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade.
-
Material library with US steel grades menu with ability to add custom material grades
-
Bar feed features a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 7.87” per second.
-
Heavy duty saw head is driven by ball screw and AC servo drive
-
Mist exhaust system
- Patent pending blade cooling system.
-
Bar retracts automatically for contact free return stroke of the saw blade
-

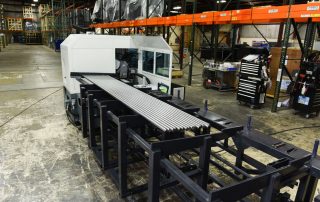

Universal Bar Loader for round and square material with safety guard sheets provides inclined storage width of 27.9” (710 mm) for rounds, manual incline setting. Capacity: 3,748 lbs.
- PLC controlled automatic oil lubrication of all moving parts
-
Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
-
Variable vise pressure control with dial gauge – two stations
-
Remote monitoring of PLC for trouble shooting.
- Cooling nozzle
-
Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
-
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
-
Status light indicating tower
-
Chip auger
-
Air cooled electric magnetic head break removes all backlash.
-
Built in hydraulic tank and power pack
-
Tool steel hardened saw guide plates
-
Power transformer
-
Four blade starter package
• Blade specs: 285 mm x 2.0 kerf x 1.70 mm body x 32 mm bore
• Pin holes: 4/9/50 mm
• Bolt holes: 4/11/63 mm
OPTIONAL FEATURES
-
PLC program modification
-
Chain chip conveyor
-
Universal Hydraulic incline adjustment bar loader
-
2 ton- chain and finger bundle unscrambler
-
Maintenance kit
-
Motorized sliding out-feed conveyor table and guarding in the following lengths – 1000 mm, 2000 mm, and 3000mm
