DM-1318P DOUBLE MITER BAND SAW

DM-1318P front cover

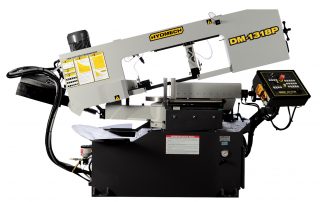

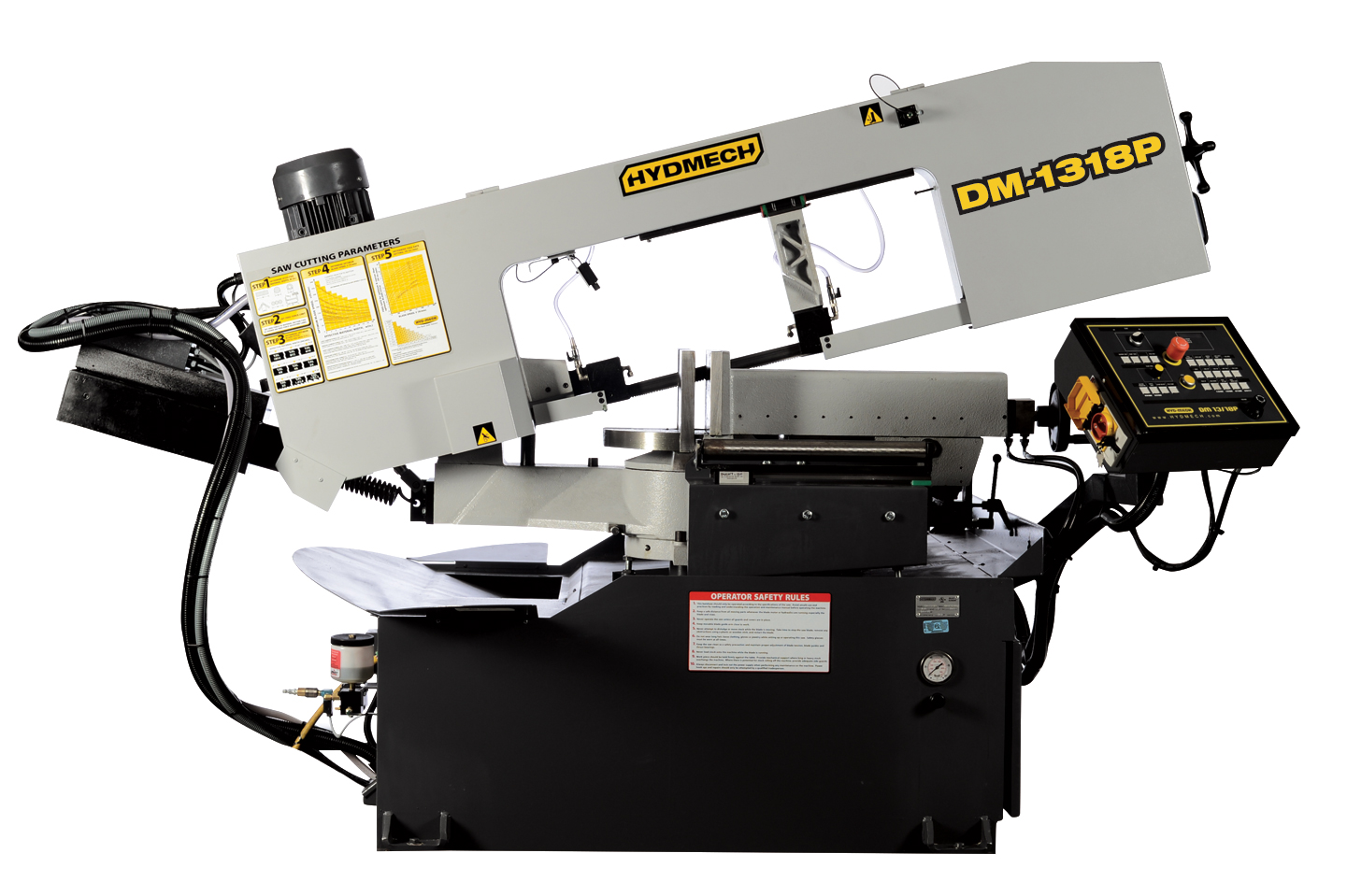

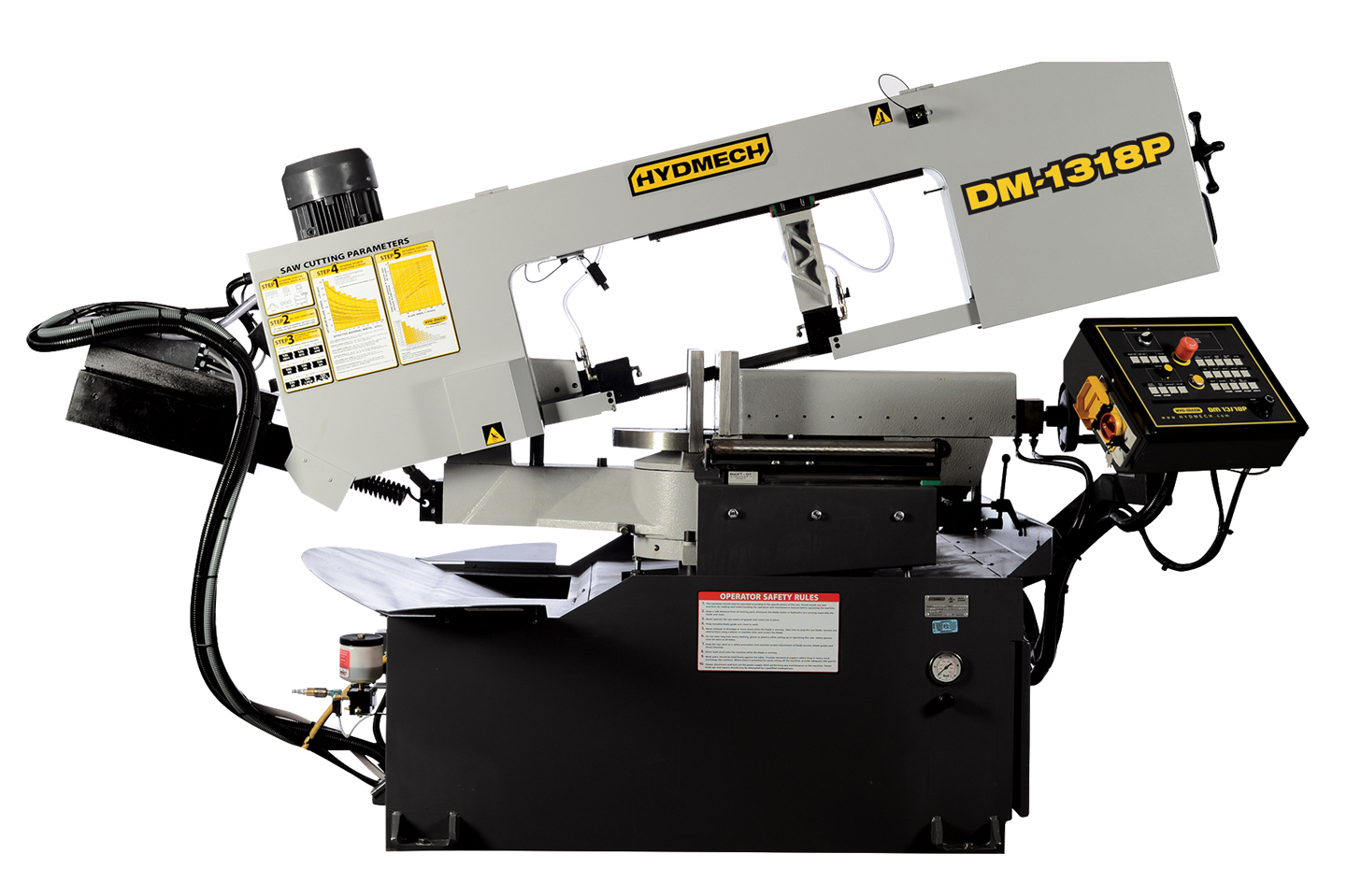

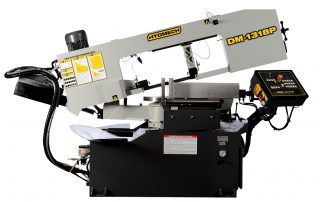

The DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications.

Its versatile swing head with easy to read angle scale saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and “quick” stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.

Featuring a 13″H x 17 3/4″ W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the DM-1318P is a versatile double miter band saw.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Heavy duty cast iron saw head that can swing up to 60 degrees both directions
  • 5.5 HP true direct blade drive – no belts/pulleys

  • On-demand hydraulics save energy and money

  • Quick release, hydraulic cast-iron material vise on linear ways

  • Rotating table with cut line moves in tandem with sawing head

  • Mechanical band tensioning with digital readout

  • Gravity feed sawing feed

  • Automatic hydraulic head lifting in semi-automatic mode

  • Swing away, semi-automatic operator control panel

  • Replaceable blade brush

  • Robust steel base

  • Easy to read angle scale

  • Digital readout angle display

  • Adjustable guide arm with linear guide adjustments

  • Pre-set, replaceable carbide guide inserts

  • Safety door interlocks

  • Flood coolant

  • Laser light

  • Variable vise pressure
DM-1318P Semi-Automatic Control

Semi-Automatic Operation

The DM-1318P’s semi-automatic control with digital angle display provides fast set up times and cut accuracy.

DM-1318P Flood Coolant System

Flood Coolant System

A recirculating flood coolant system with wash down hose provides better blade life.

DM-1318P Cast Construction

Cast Iron Construction

Heavy, cast iron head helps absorb vibrations when cutting structural material helping reduce cutting noise, increasing band life and providing better quality cuts.

S-20 Horizontal Pivot Band Saw Angle Measurement

Pivoting Saw Head

The saw head can be swung a full 60 degrees simplifying the process of cutting angles when needed.

OPTIONAL FEATURES

  • Mist lubrication (shop air required)

  • Work light

  • Idler conveyors
