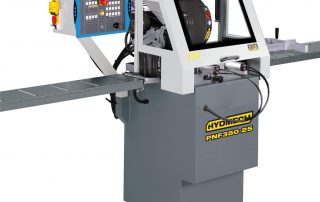

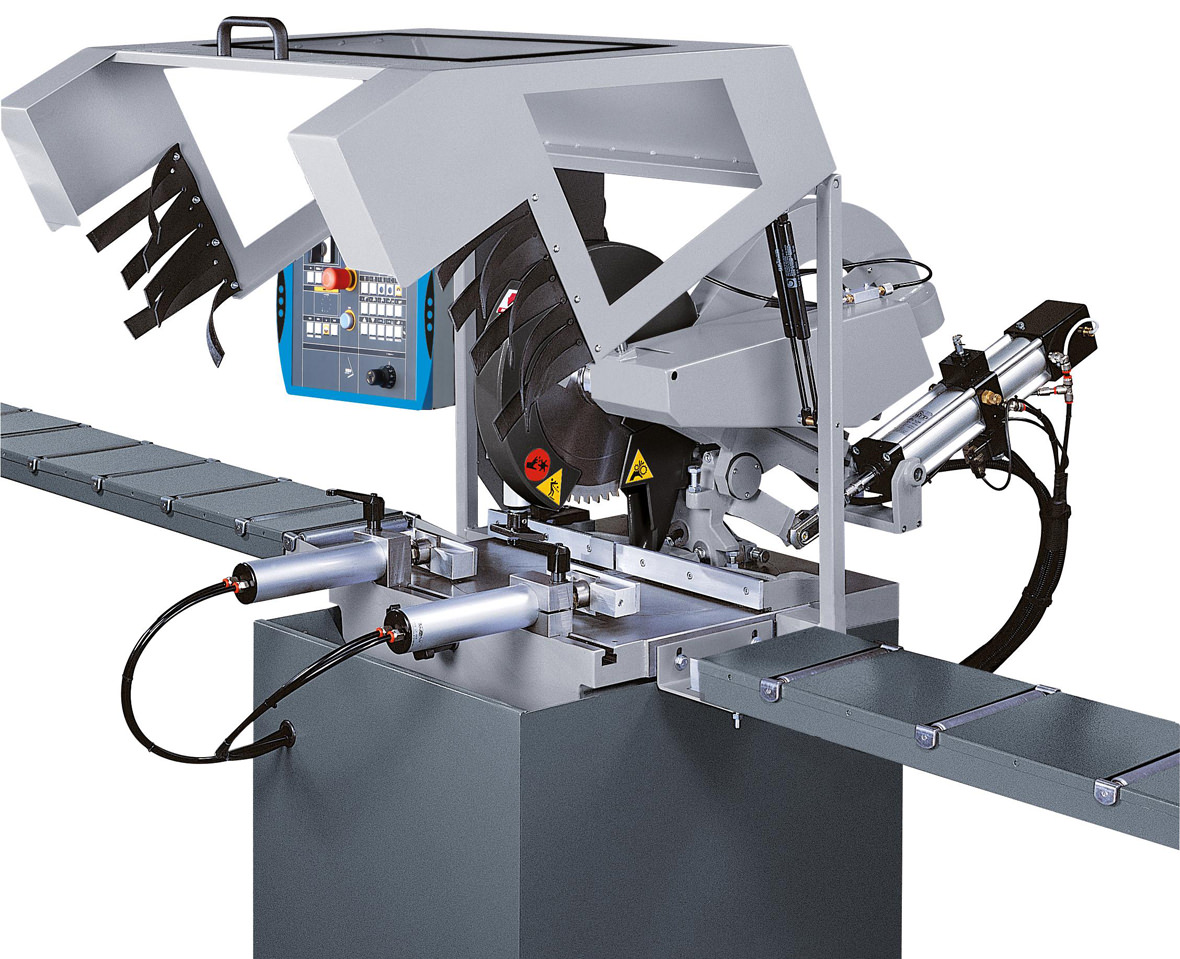

PNF350-2S CIRCULAR COLD SAW
The original, horizontal pivot band saw is designed to give you the best cost per cut on the market.

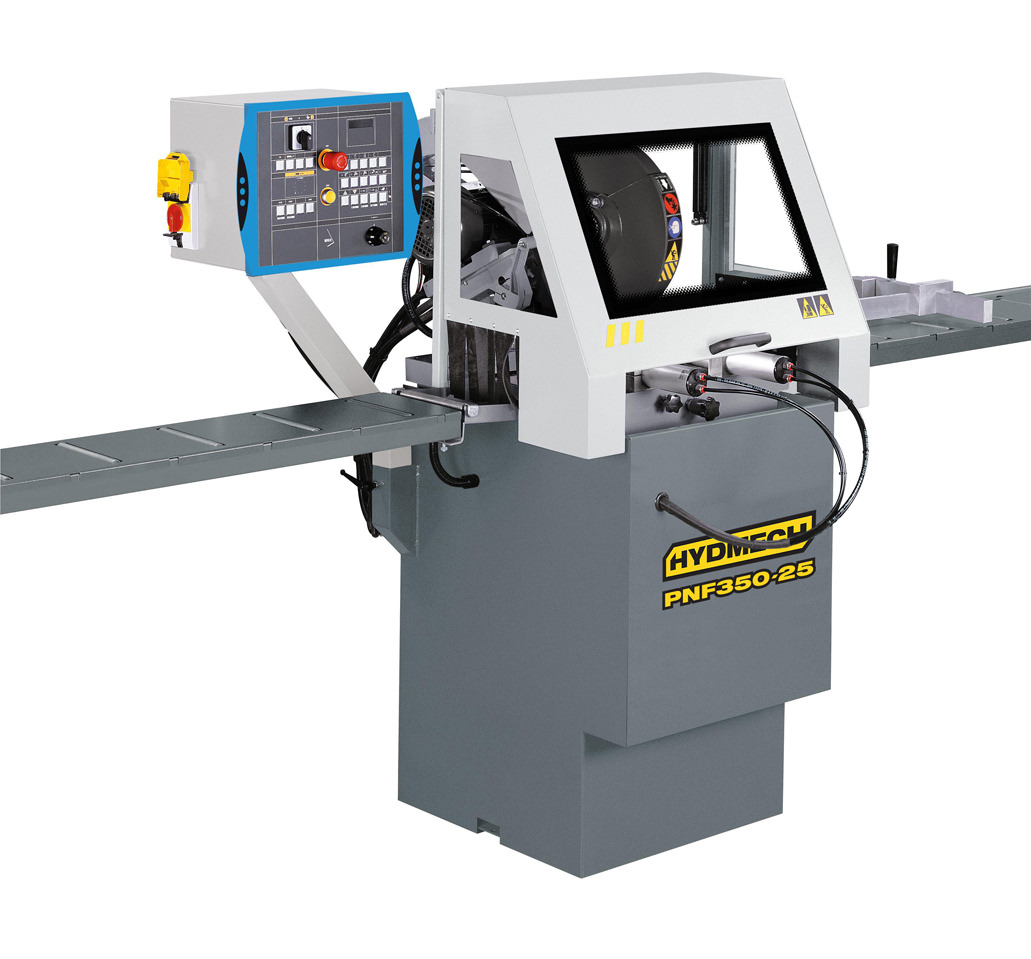

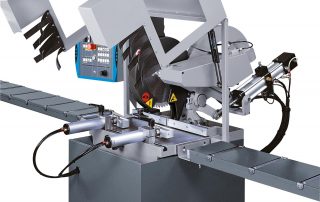

The PNF350-2S is a semi-automatic pivot arm cold saw that is used to cut non-ferrous metals.
The PNF350-2S miters from 45° left to 45° right. It also features a robust sawing head that can tilt 45° for compound miter cutting. This model is equipped with a programmable head stroke.
Featuring a 4 3/4″ round hollow capacity at 90°, 2.5/5 HP motor, and a 14″ blade, the PNF350-2S is the ideal choice for quick, clean, accurate cutting of non-ferrous metals.
MACHINE SPECIFICATIONS
Round Hollow 90° | 4 3/4” |
Square Hollow 90° | 4” |
Rectangular Hollow (hxl) 90° | 7” x 2 3/4” |
Blade Size | Max. 14″ |
Blade Drive | 3.5/5 HP VFD |
Blade Speed | 1700 and 3400 rpm |
Machine Weight | 615 lbs. |
Dimensions (w x l x h) | 44” x 59” x 60” |
Round Hollow 90° | 120 mm |
Square Hollow 90° | 101 mm |
Rectangular Hollow (hxl) 90° | 178 mm x 50 mm |
Blade Size | Max. 355 mm |
Blade Drive | 2.6/3.7 KW |
Blade Speed | 102,000 and 204,000 rph |
Machine Weight | 279 kg |
Dimensions (w x l x h) | 1117 mm x 1498 mm x 1524 mm |
STANDARD FEATURES
-
Semi-automatic operation
-
Pneumatic operating saw head and vises, activated by push button control panel
-

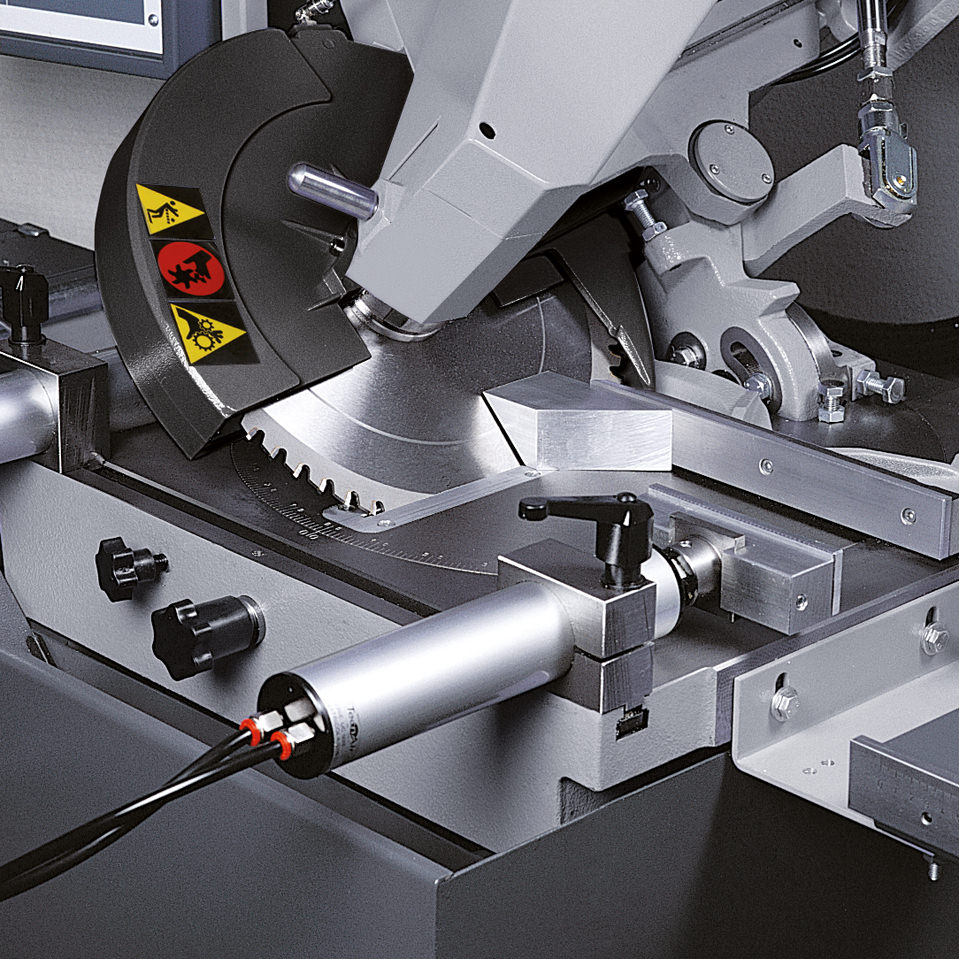

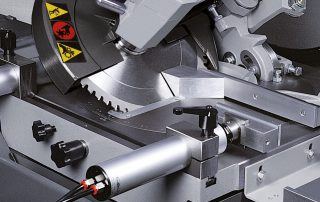

Robust sawing head can tilt 45° left for compound miter cutting
-
Two blade speeds achieve speeds of 1700 or 3400 rpm
-

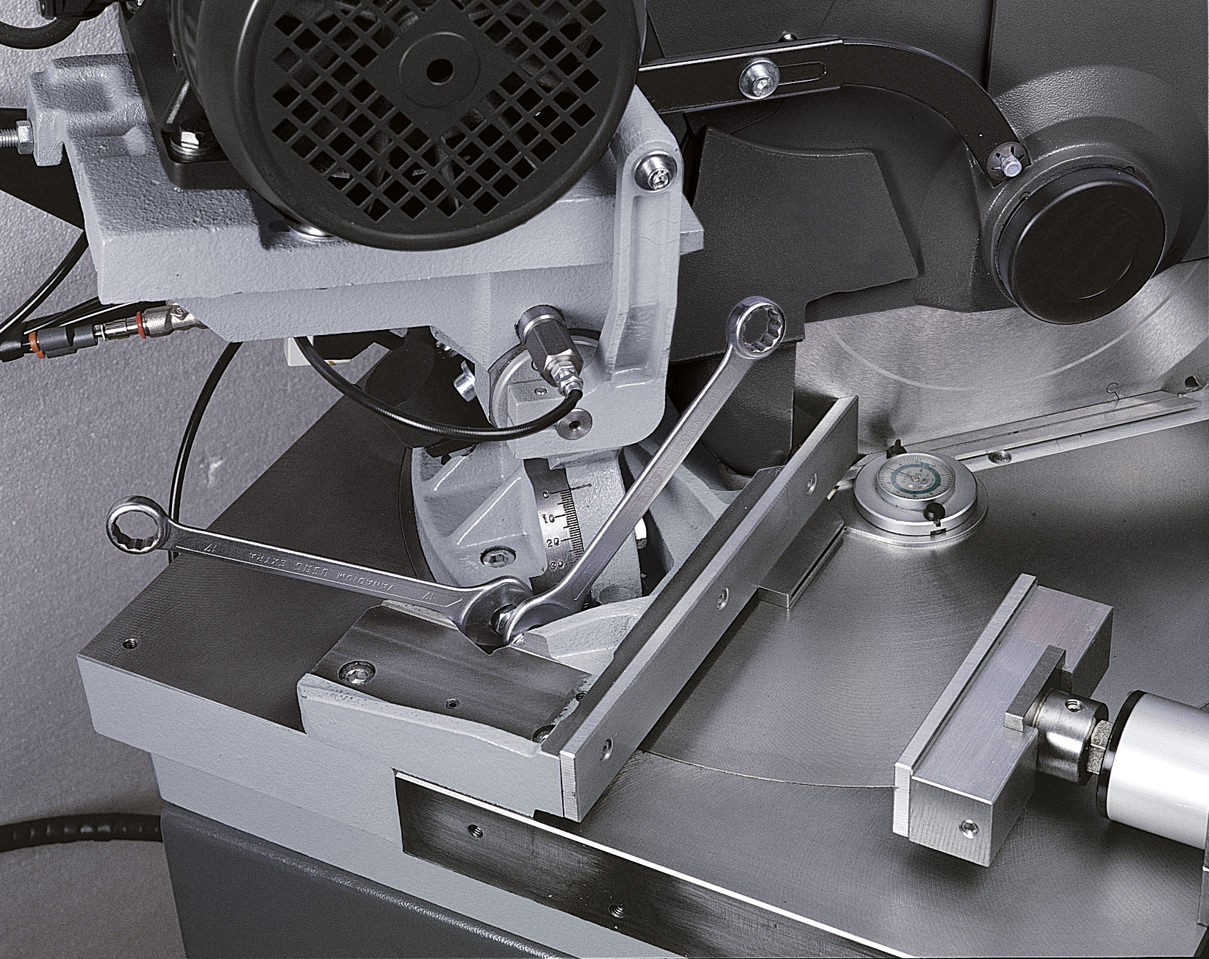

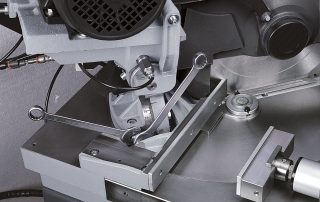

Rotating table mounted on large roller bearings. Features stops at 90° and 45°.
-

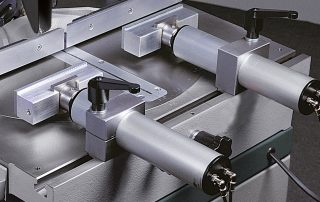

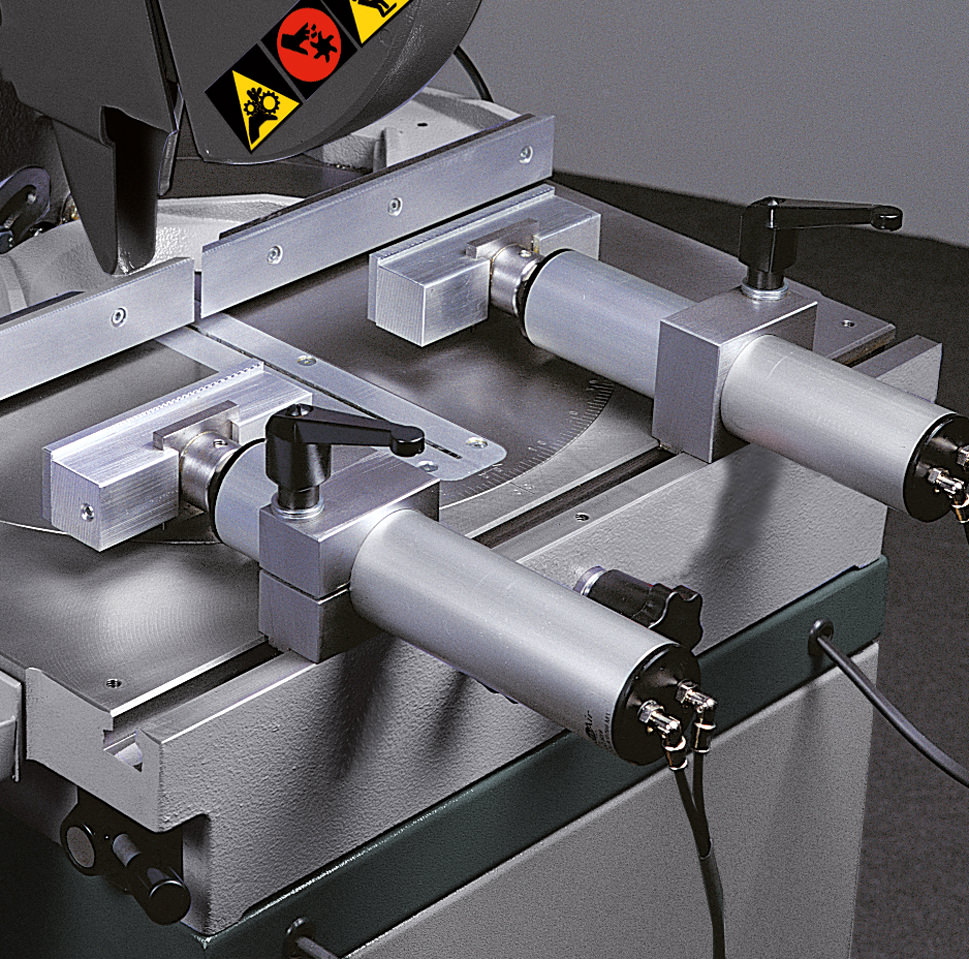

Two pneumatic operating vises, capable of sliding in or away from the blade to adjust saw head in mitered position
-

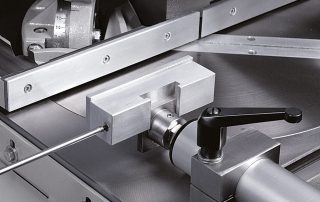

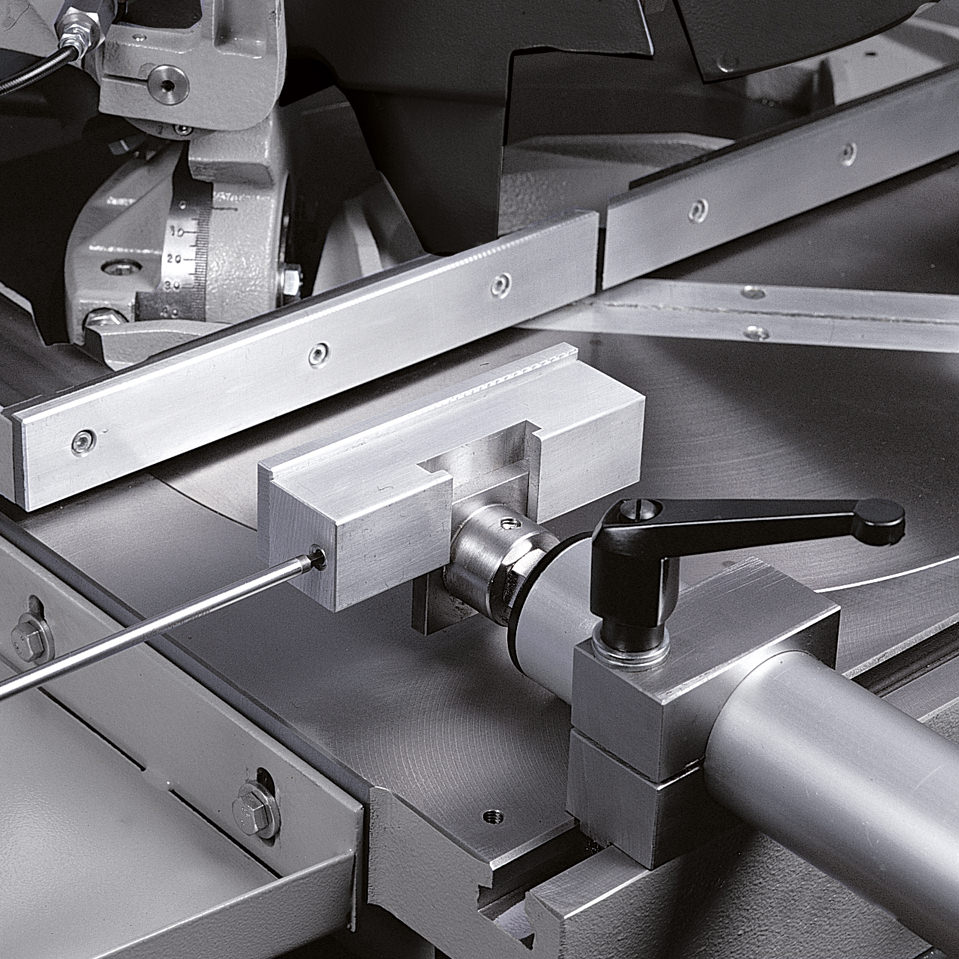

Vises are equipped with moveable aluminum jaws which can be adjusted vertically
-
3.5/5 Hp blade drive coupled directly to saw head guarantees high rigidity and precision to obtain high chip removal rates.
-
Cutting area enclosed behind protective cover which swings up for loading material
-

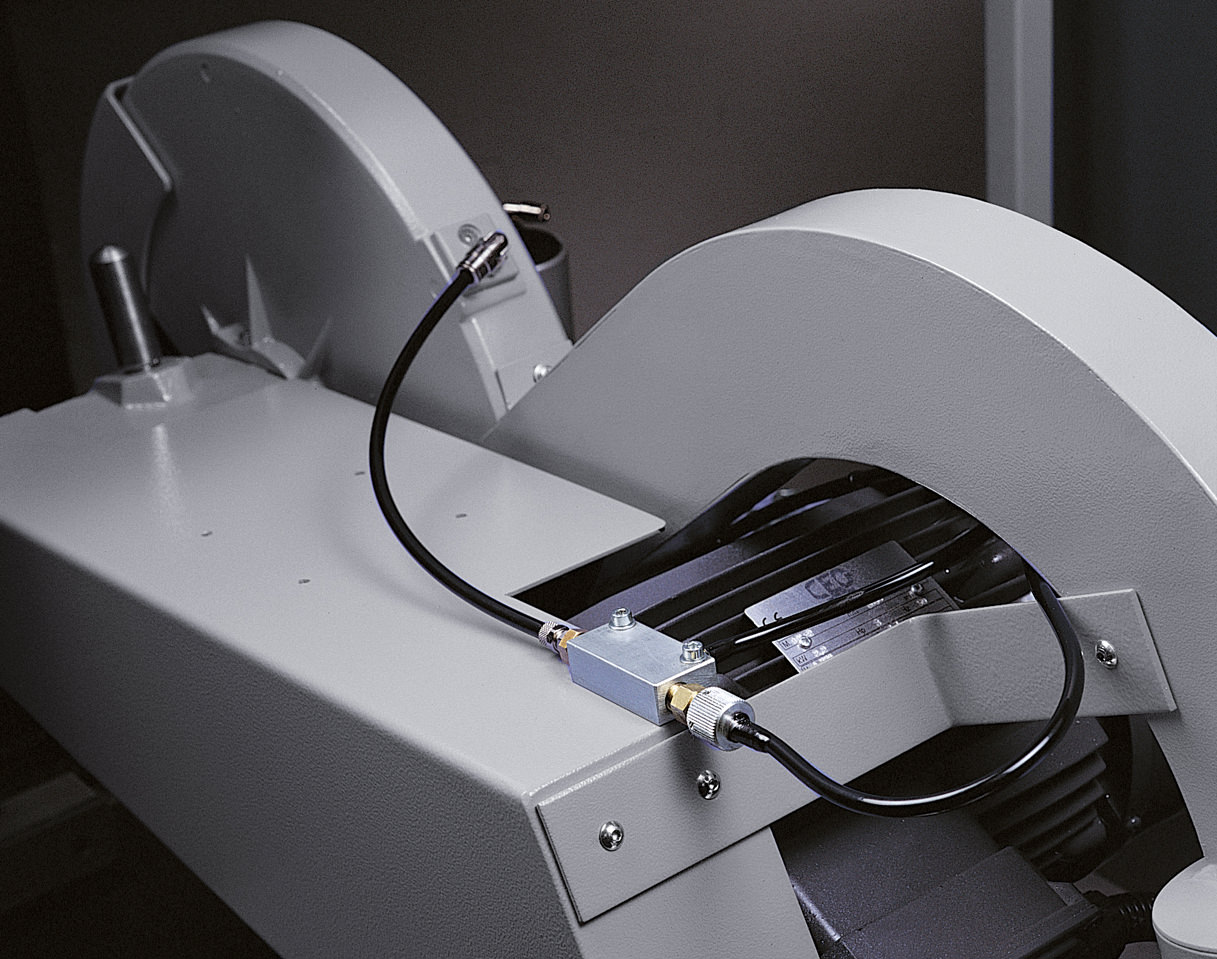

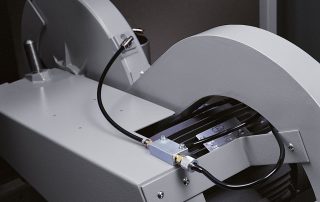

Automatic coolant lubrication activates during the cut
-
One carbide tipped blade included
OPTIONAL FEATURES
-

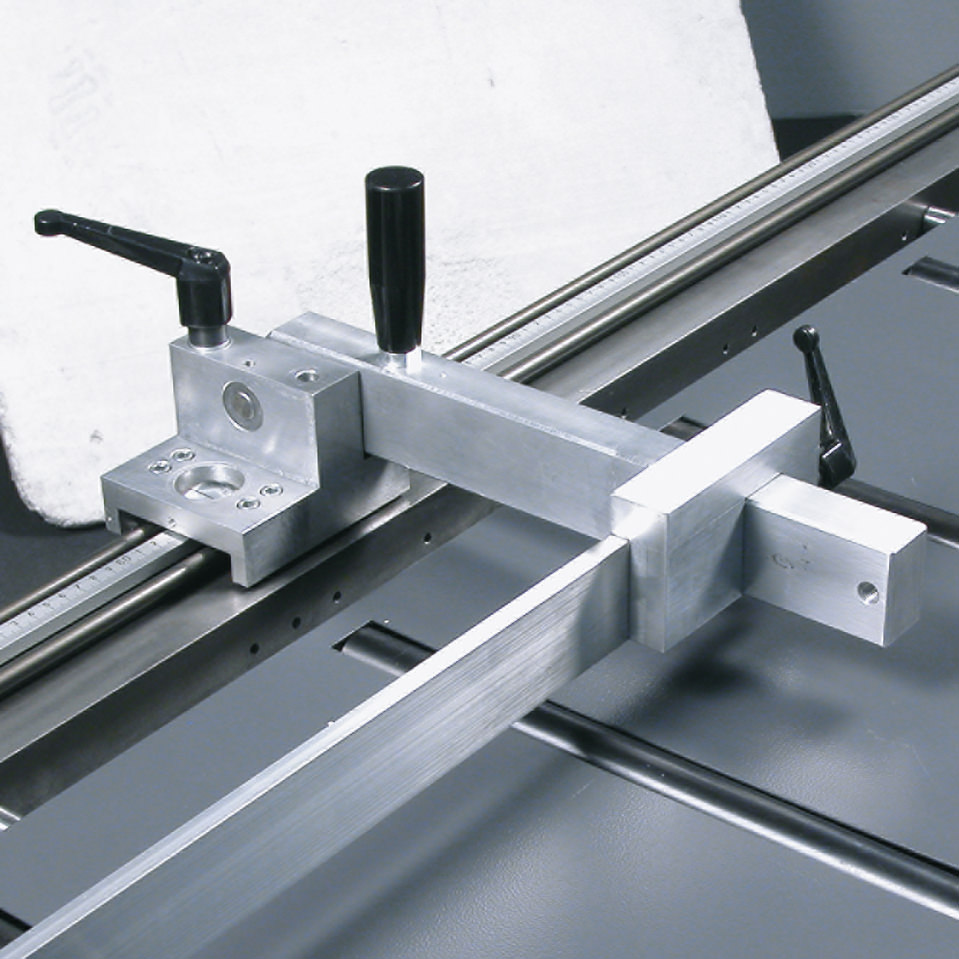

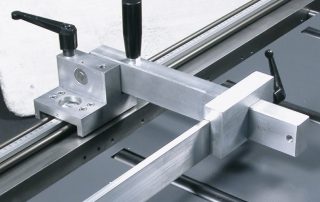

Material stop with ruler
-

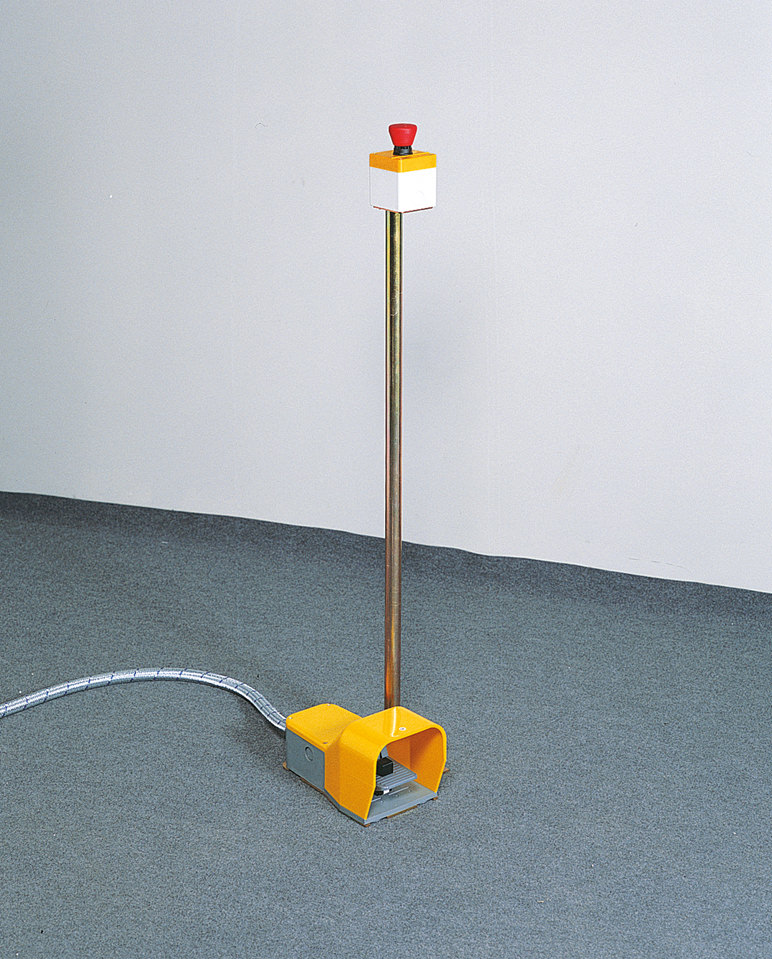

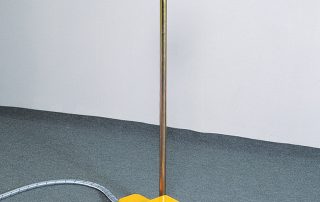

Foot pedal with e- stop
-

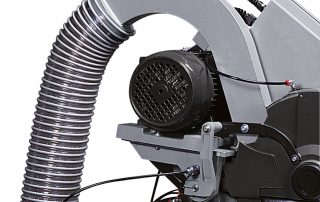

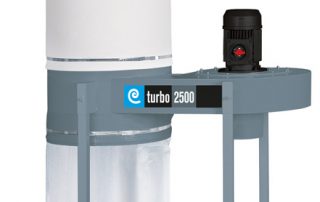

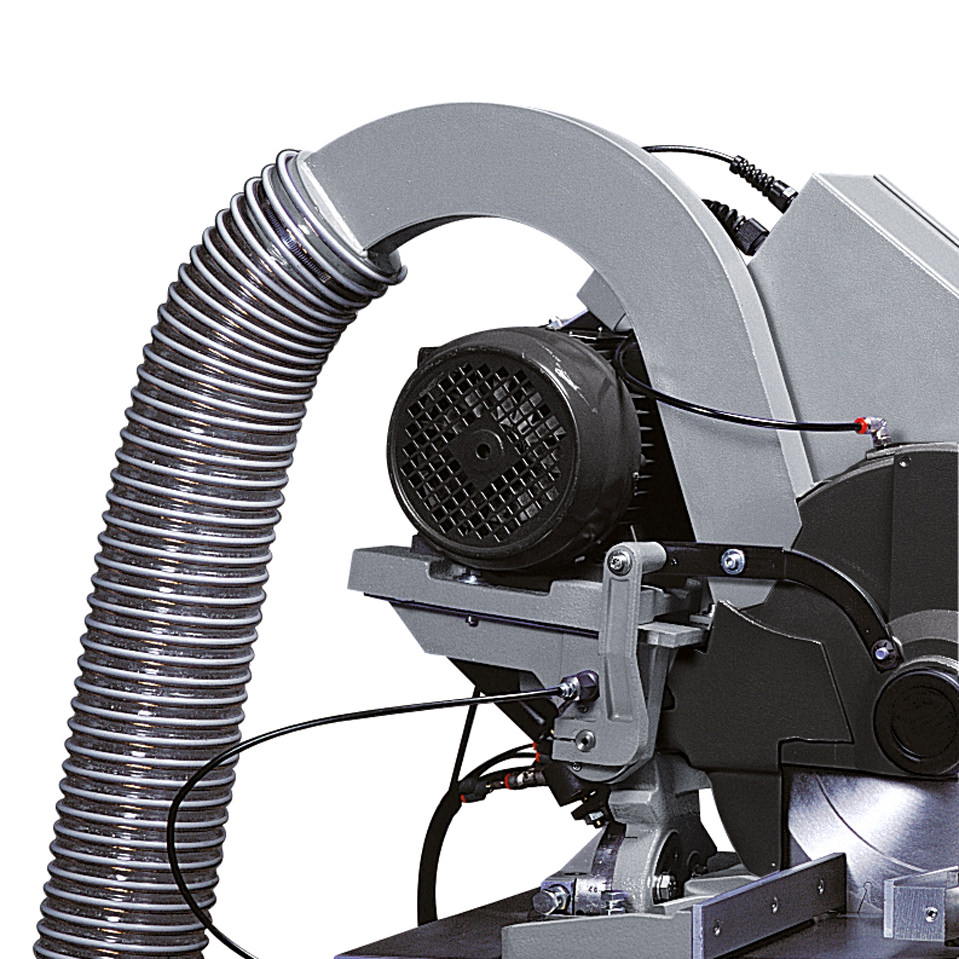

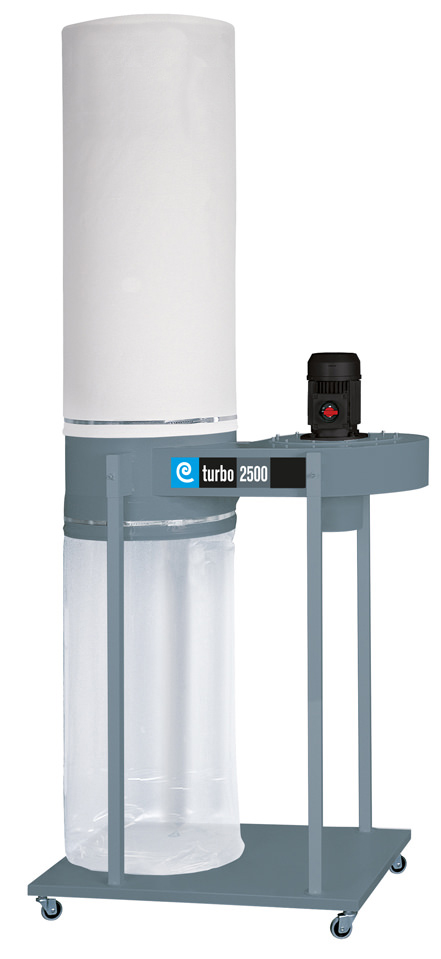

T2500 chip collector
-

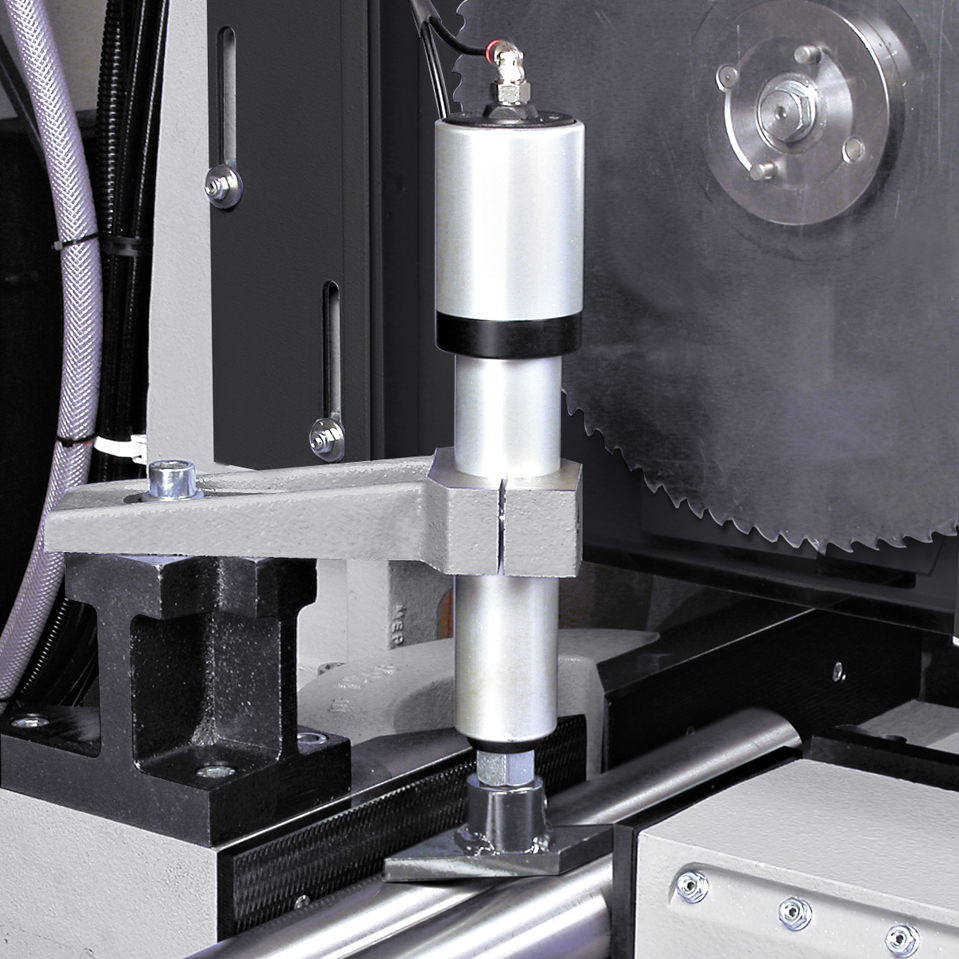

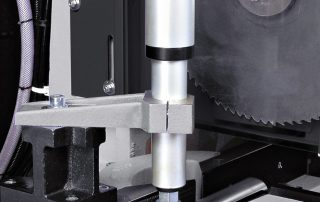

Pneumatic vertical vise
-

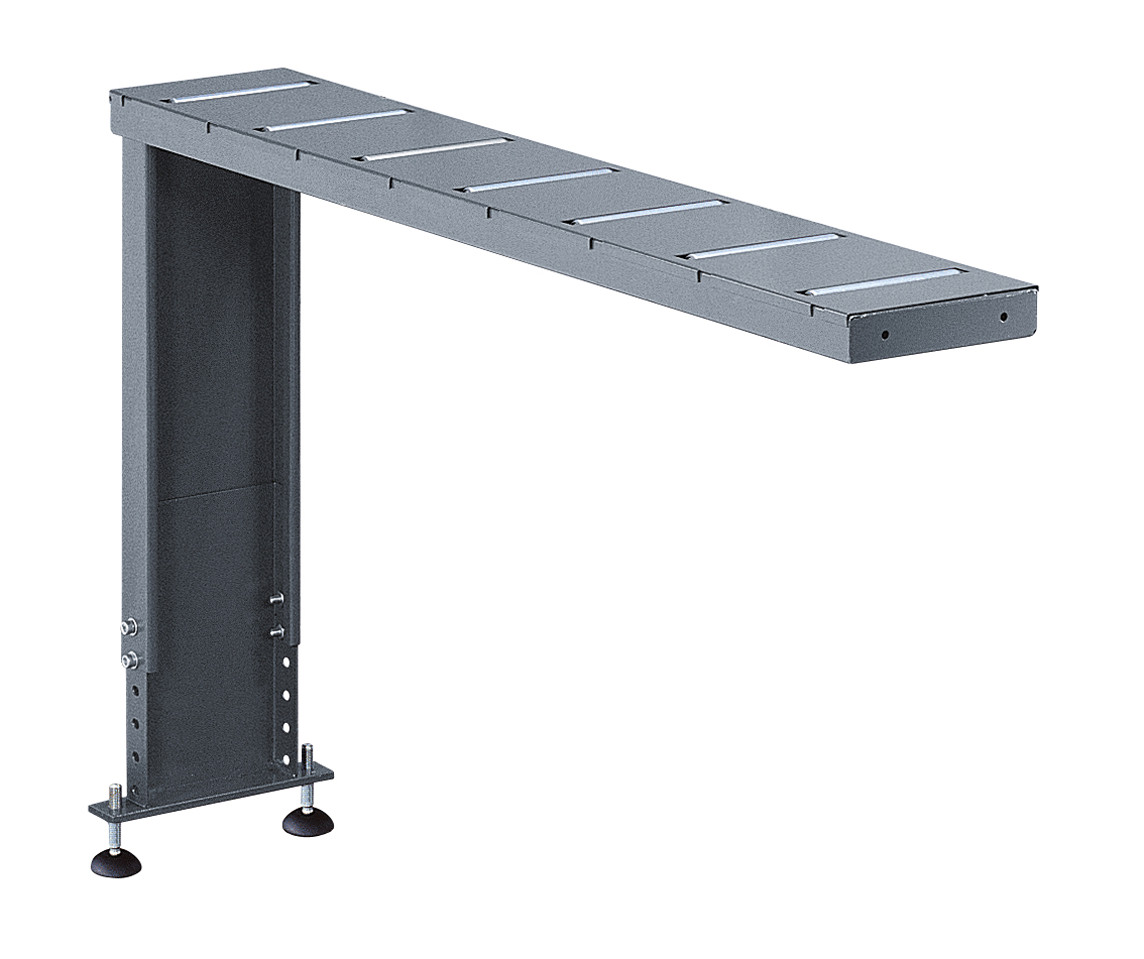

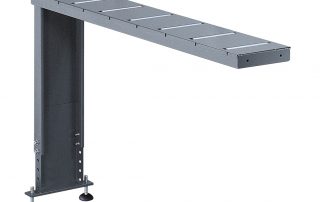

Roller table & accessories
