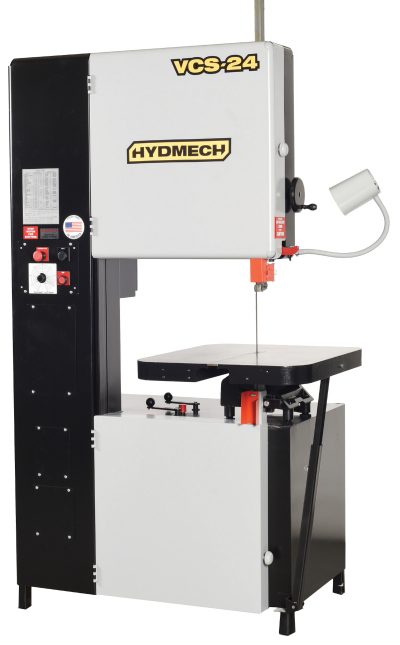

VCS-24 VERTICAL CONTOUR BAND SAW

VCS-24 VERTICAL CONTOUR BAND SAW

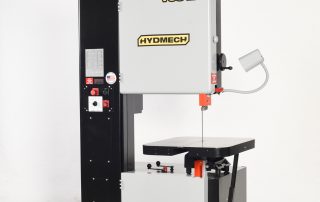

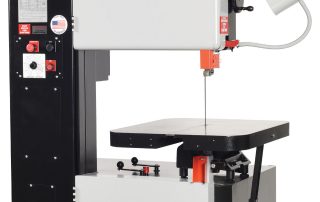

VCS-24

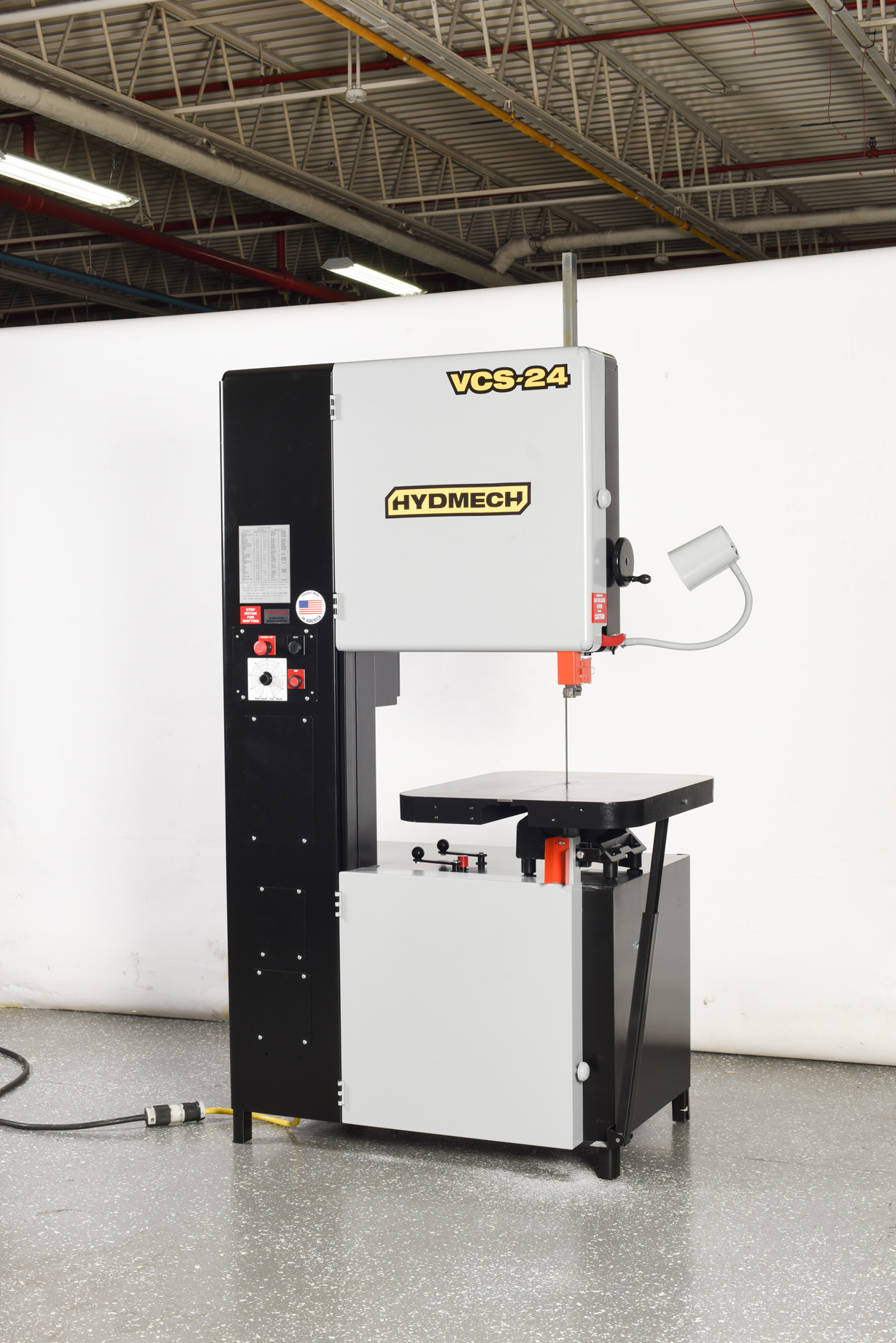

Heavy-duty, vertical contour-style saw

The VCS-24 is a multi-purpose machine that can cut  a large range of materials – from steel to aluminum, to wood, plastics, rubber, and everything in between! This versatile machine is designed with the flexibility to cut tight radius sections or larger cut-off sections.

With a throat (band to column)  of 24″ and work height of 12″, 3 Hp motor, and the ability to utilize blades from 1/18″ to 1″, the HYDMECH VCC-24 is the ideal choice for all your vertical contour cutting needs.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

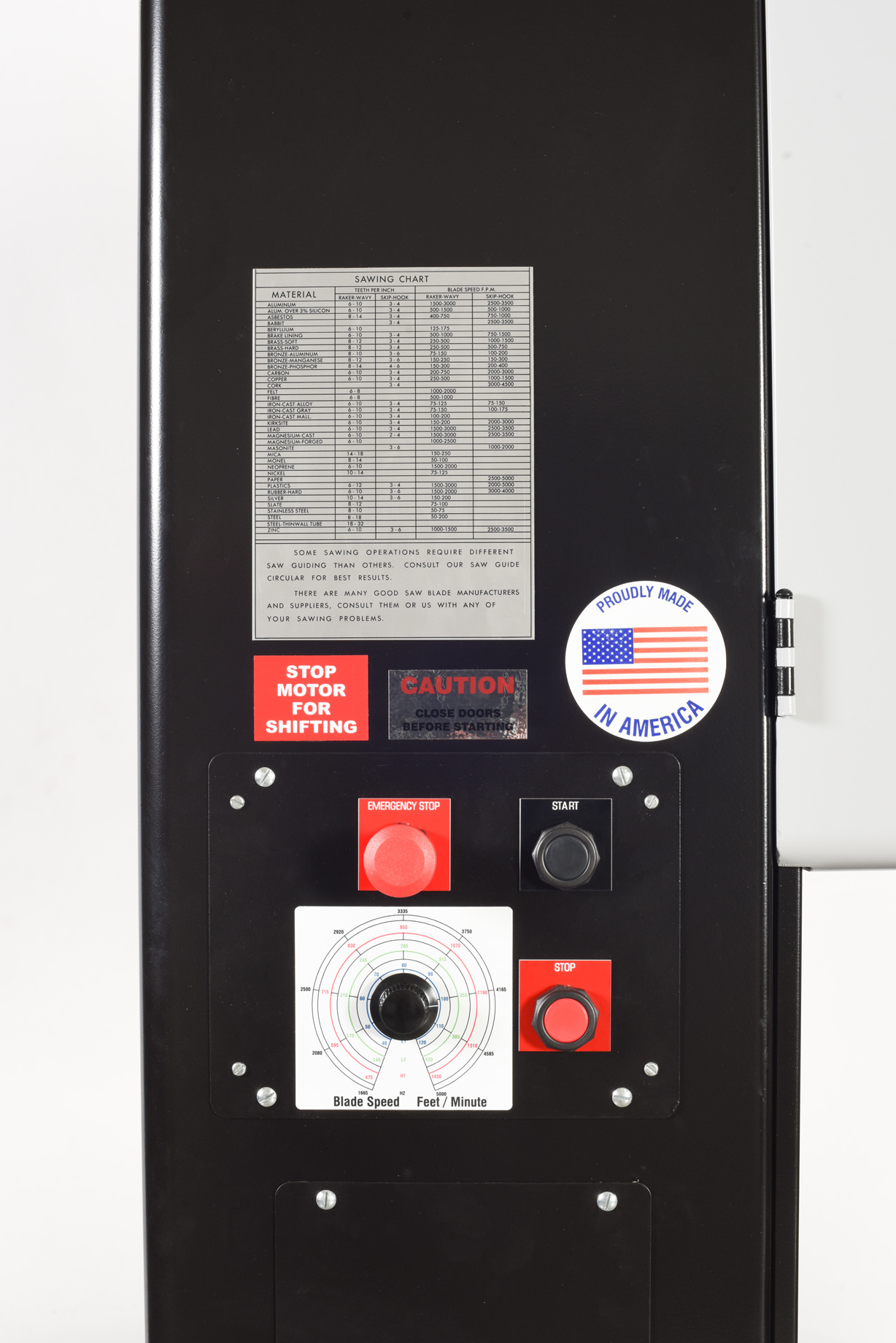

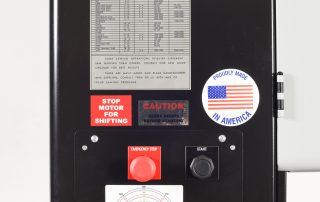

  • Blade speed indicator

  • Blade tension indicator

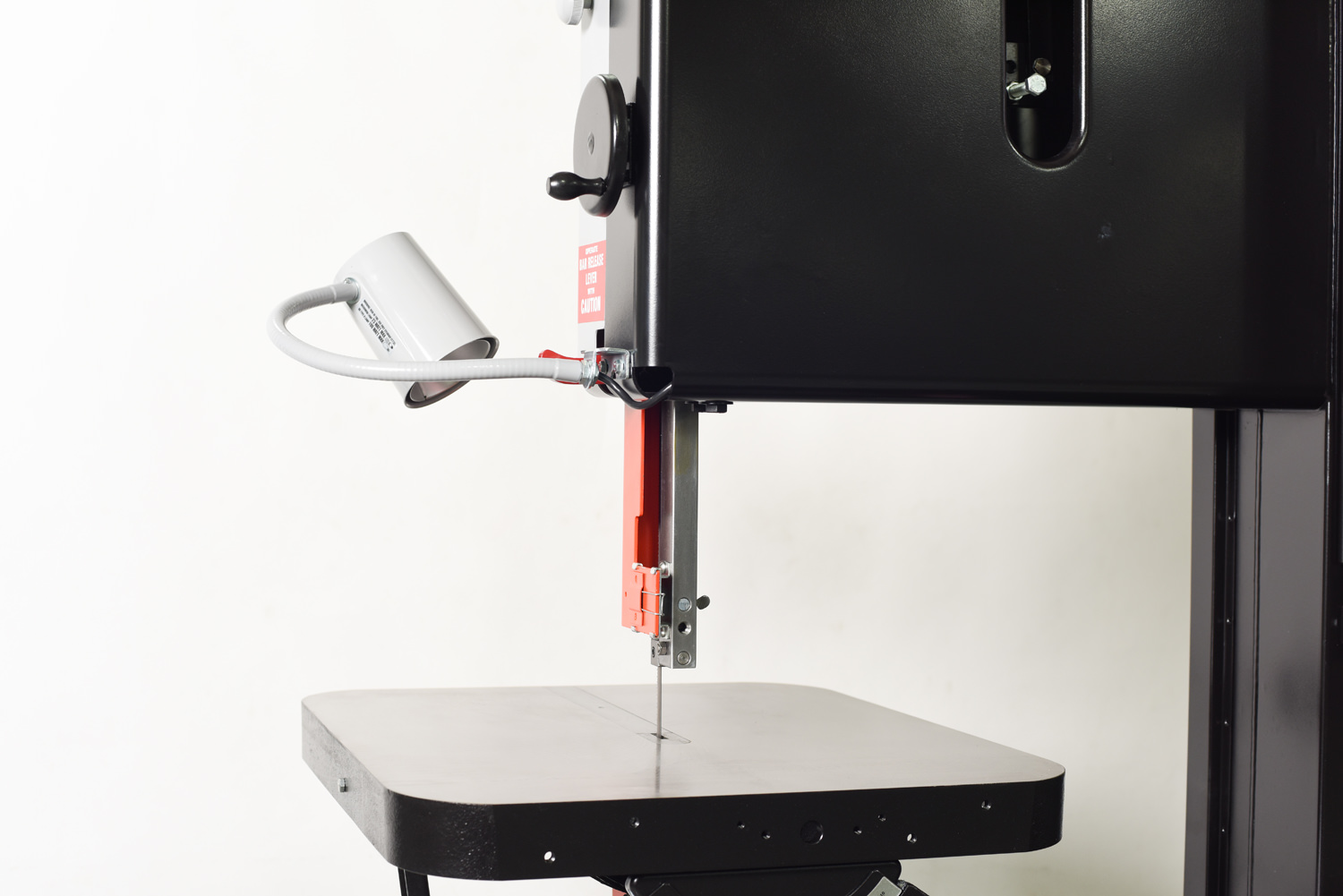

  • Work light

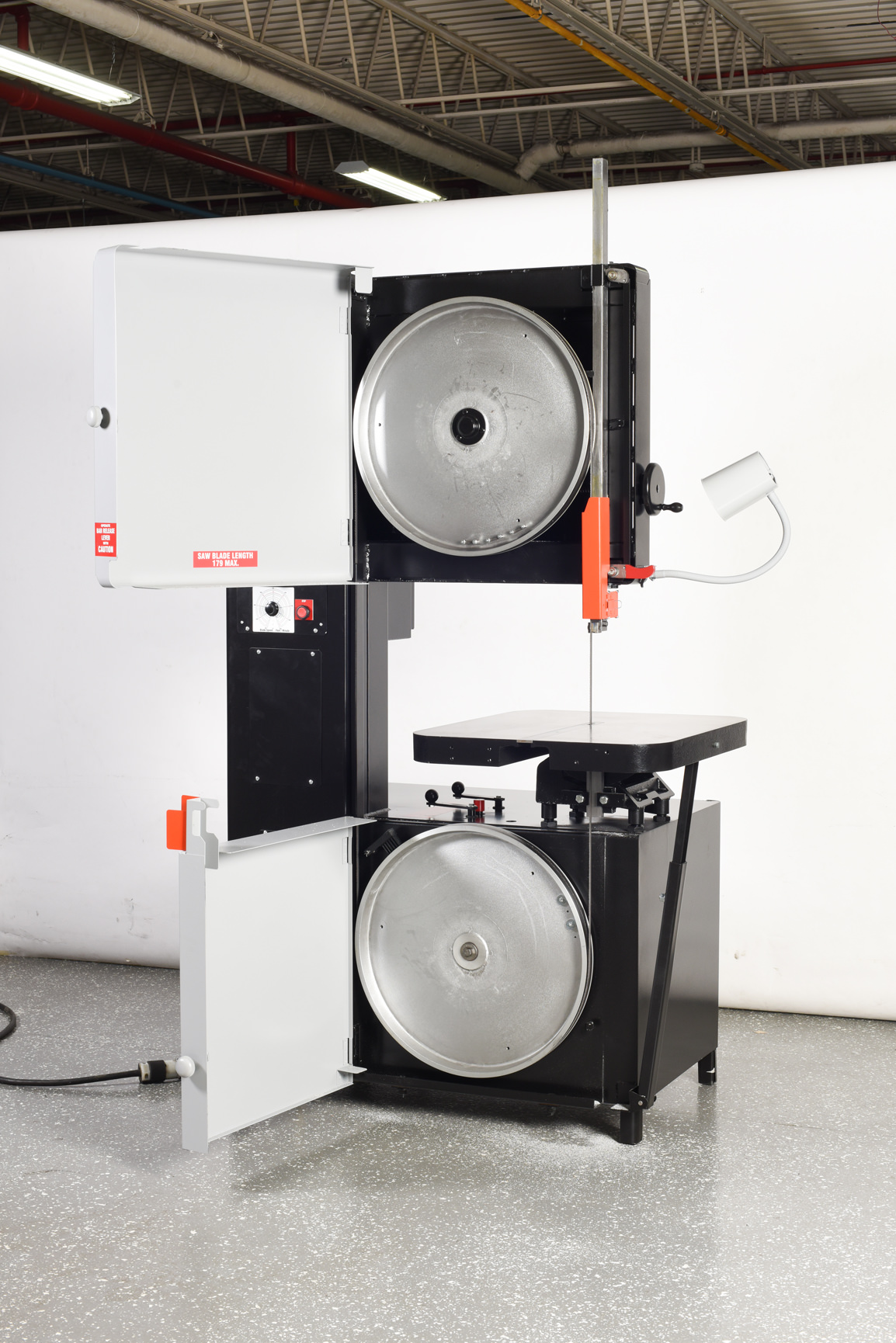

  • Safety Door Interlocks

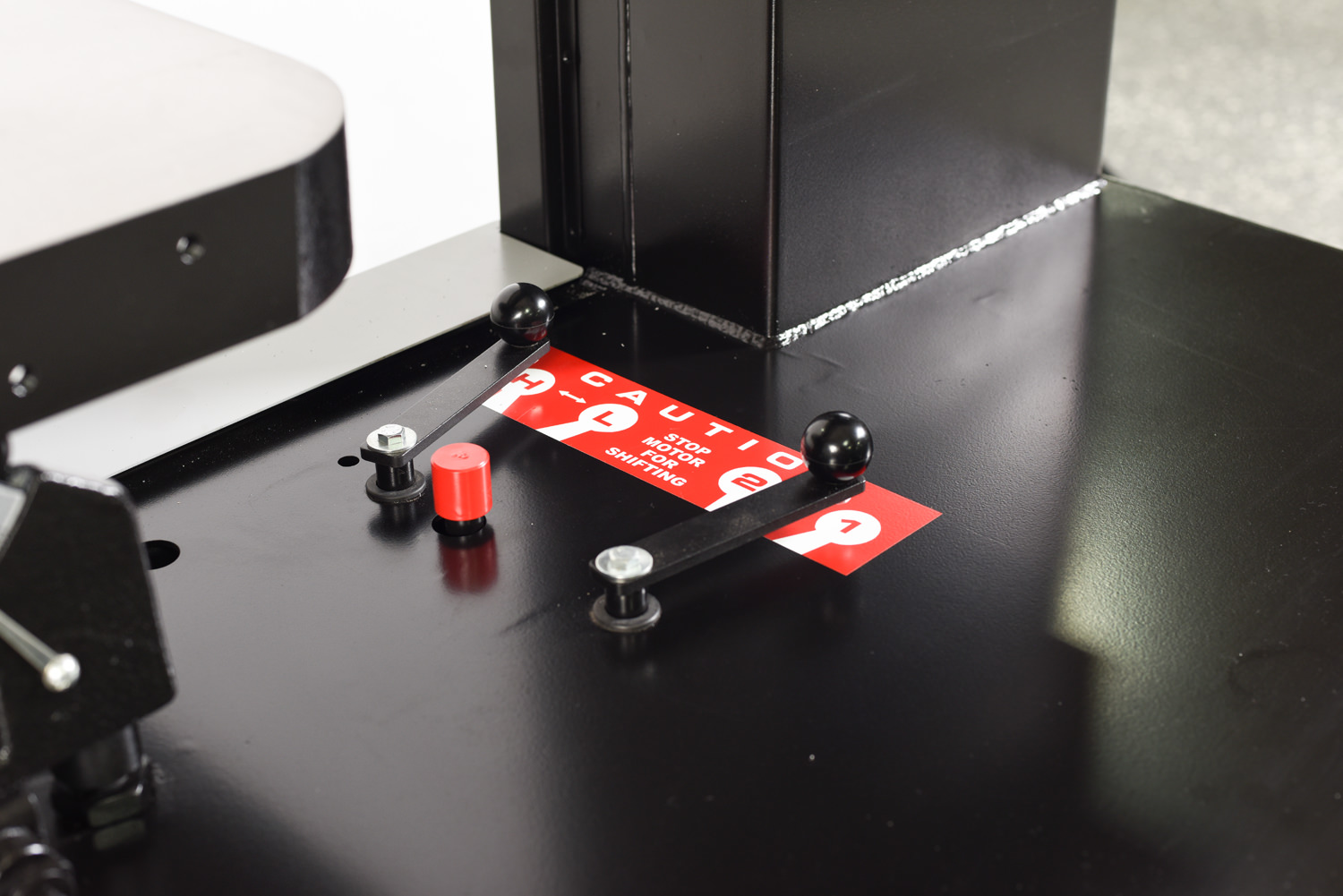

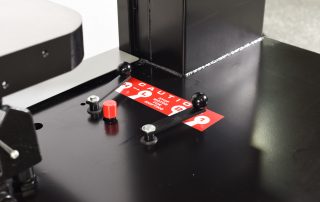

  • Quad range transmission

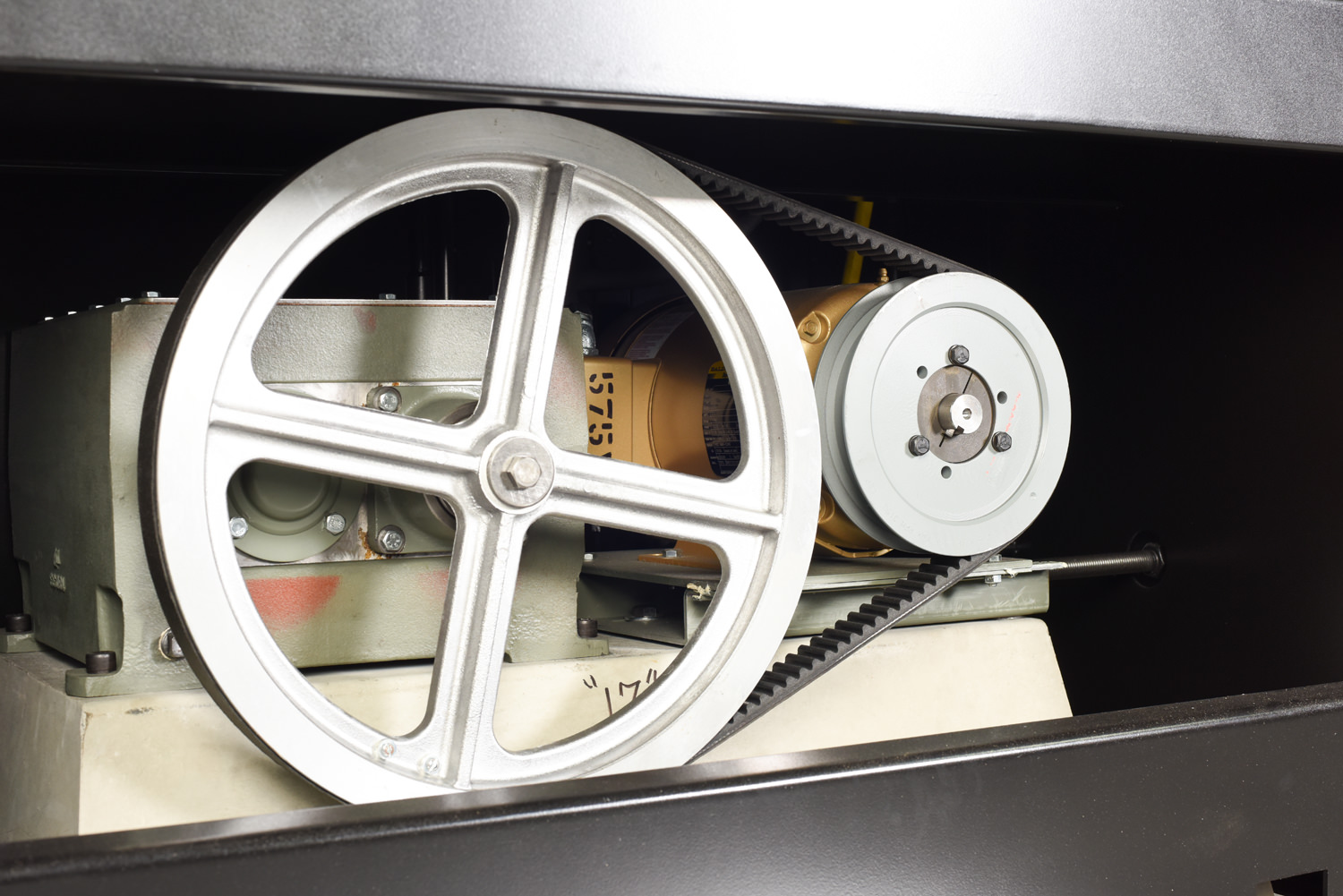

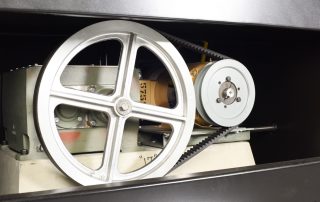

  • Inverter drive control

  • Dynamic braking

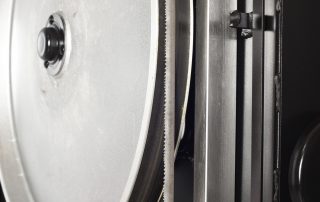

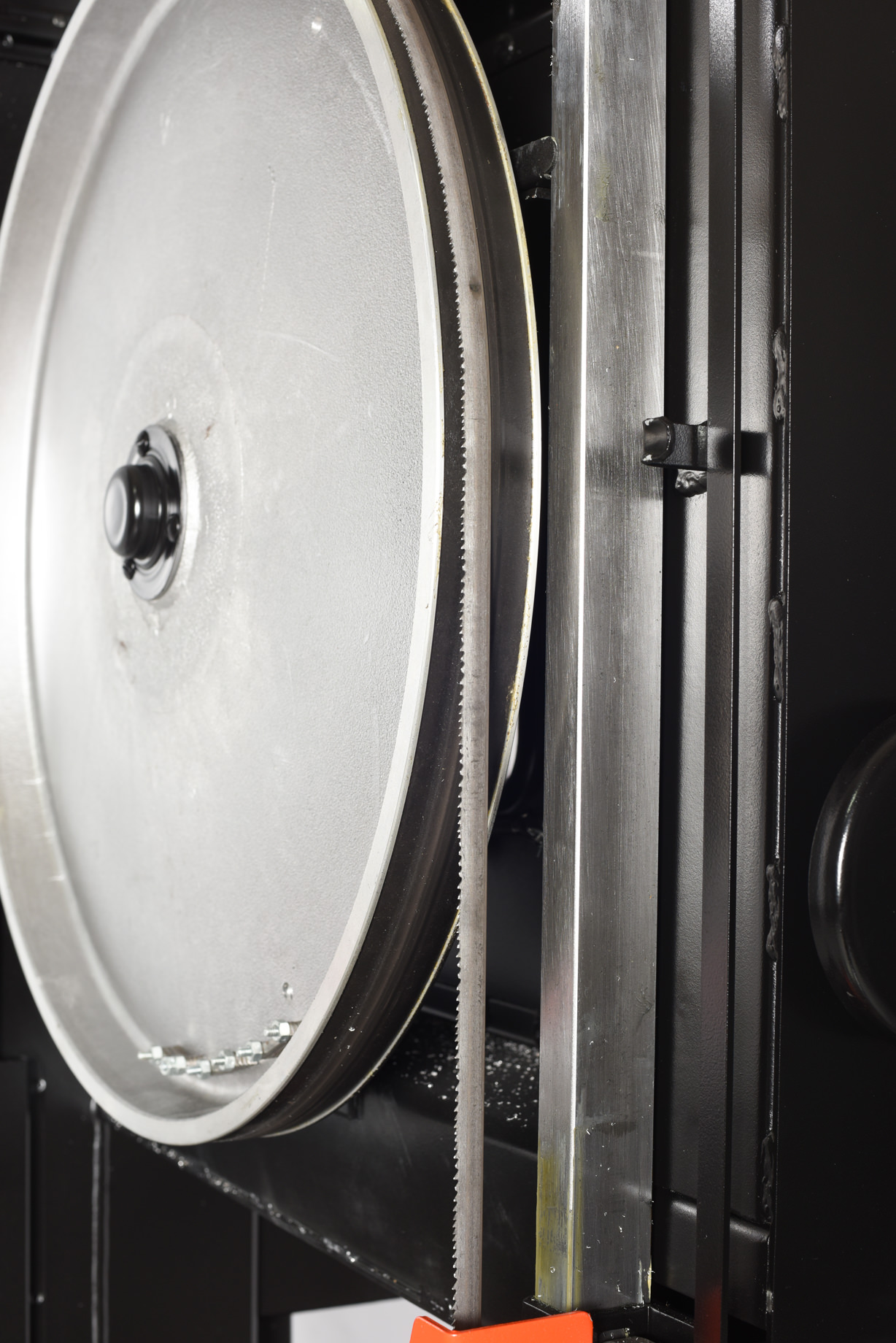

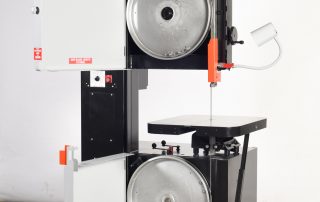

  • Wheels with crowned rubber tires

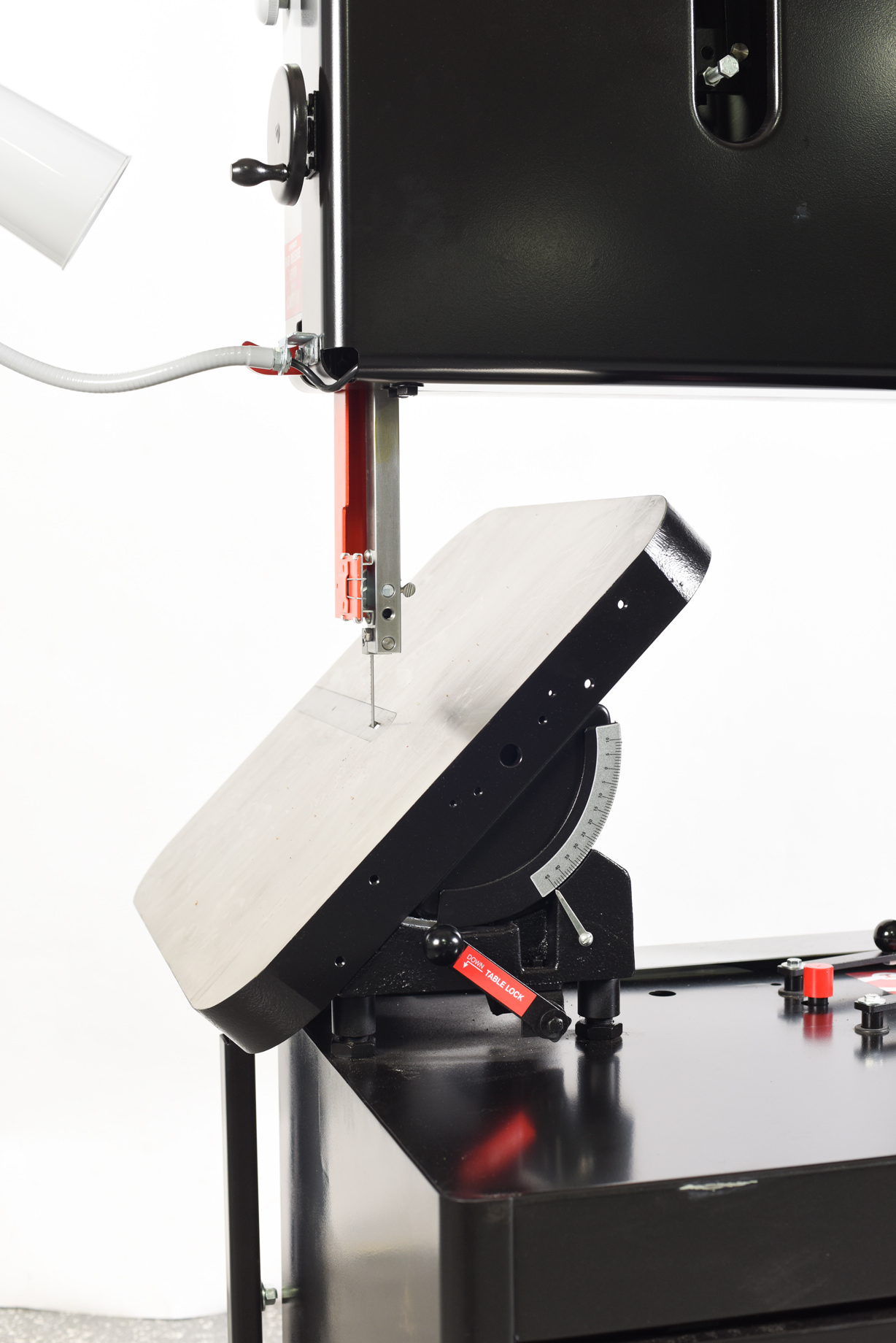

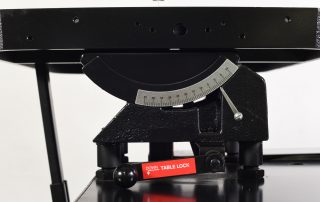

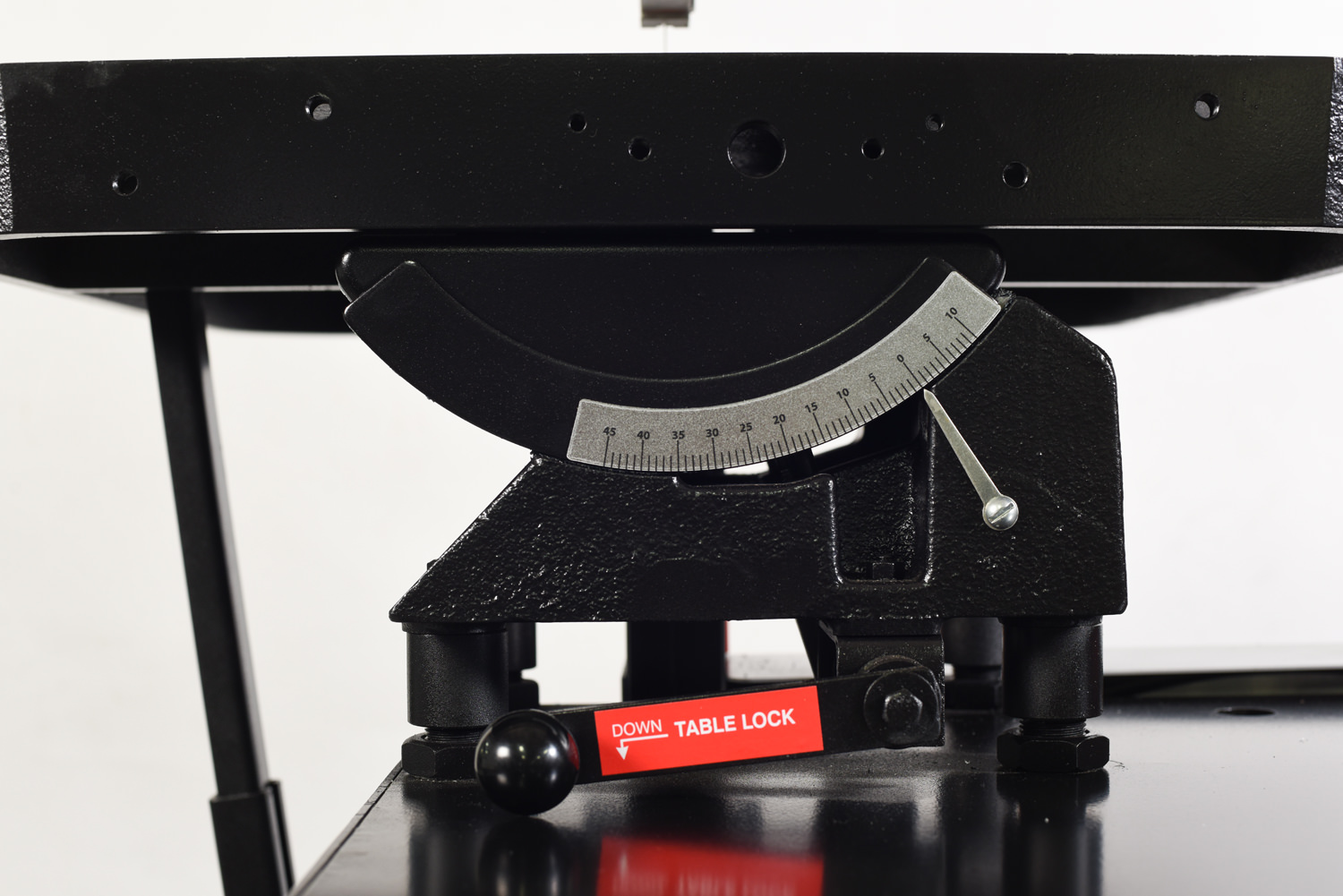

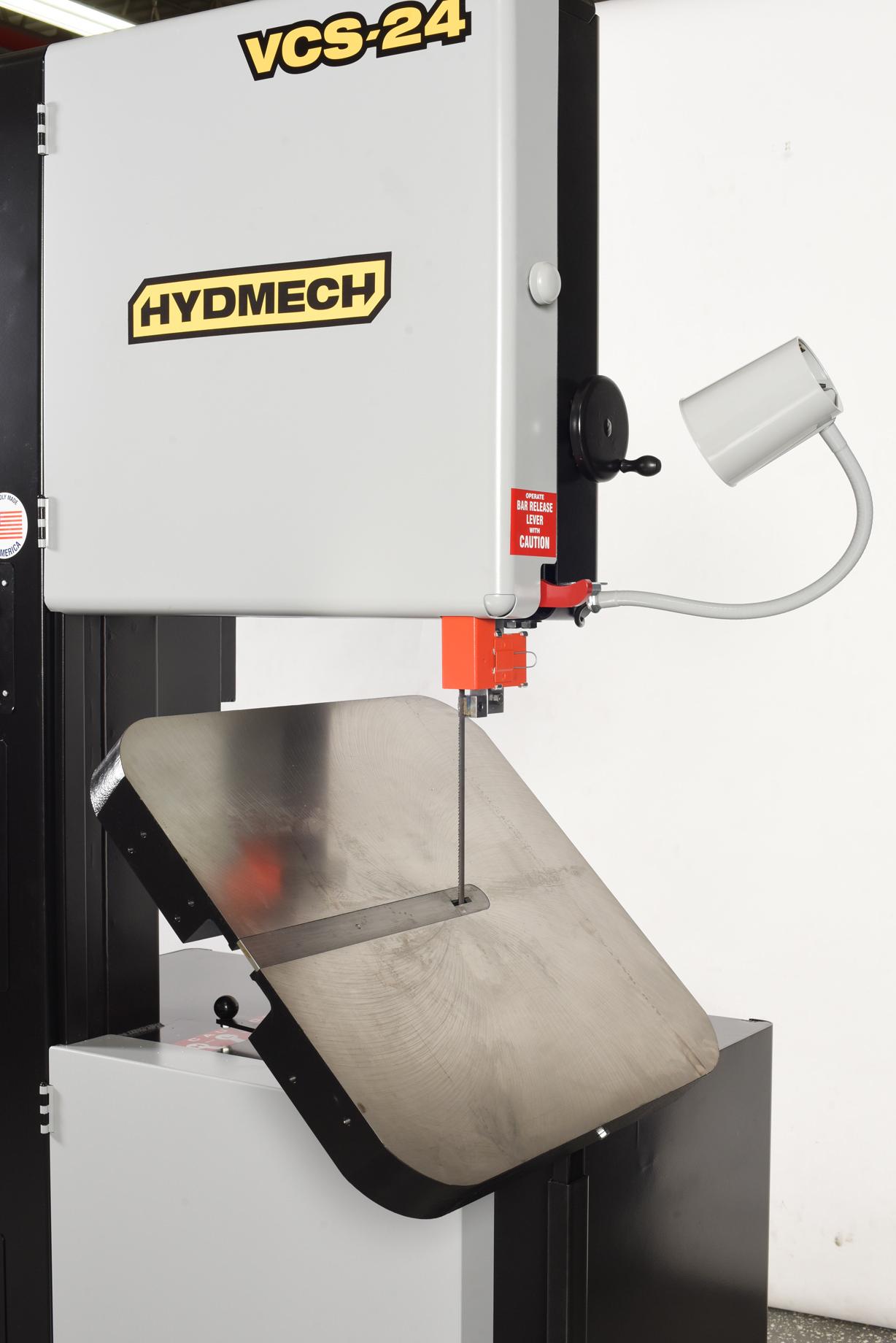

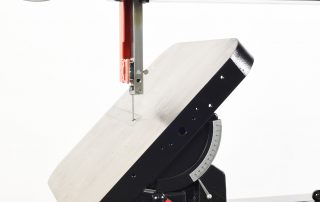

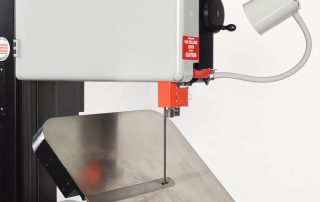

  • Tilting cast table – 10° L / 45° R

  • One set of single piece guide blocks

  • One set of steel guide inserts for 3/8”, and 1/2” blades

OPTIONAL FEATURES

  • Fused disconnect

  • Air blower

  • Rip fence

  • Air/Hydraulic power feed

  • Mitering attachment

  • Band mist lubricator

  • Portable blade welder w/grinder

  • Stand and casters for welder

  • Extended work height – 20″
