M-20A-120 HORIZONTAL PIVOT BAND SAW

M-20A-120 HORIZONTAL PIVOT BAND SAW

M-20A-120 front cover

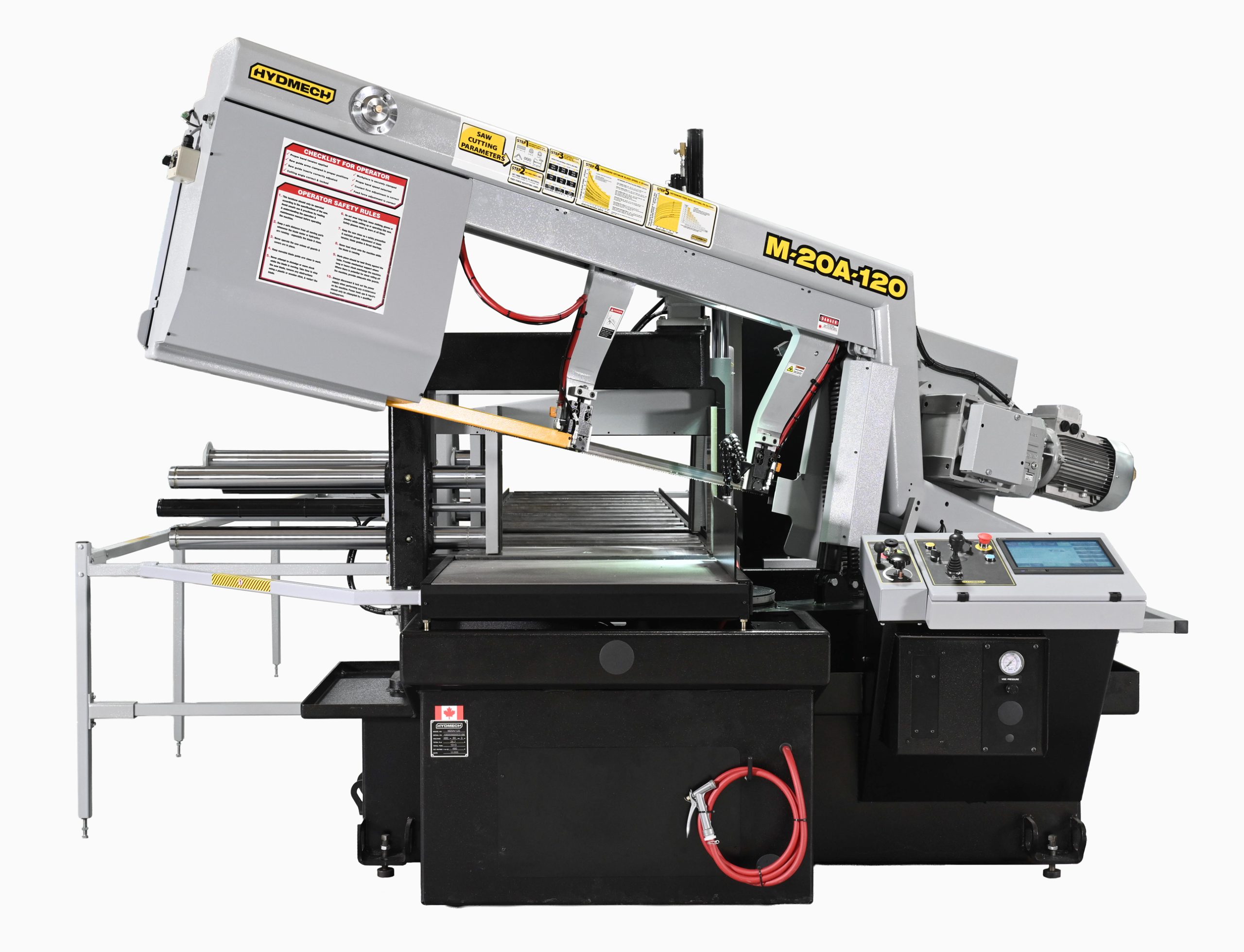

The M-20A-120 is a heavy-duty automatic horizontal pivot band saw, its ability to miter cut from 90 to 60 degrees makes it an excellent machine for large fabrication jobs.

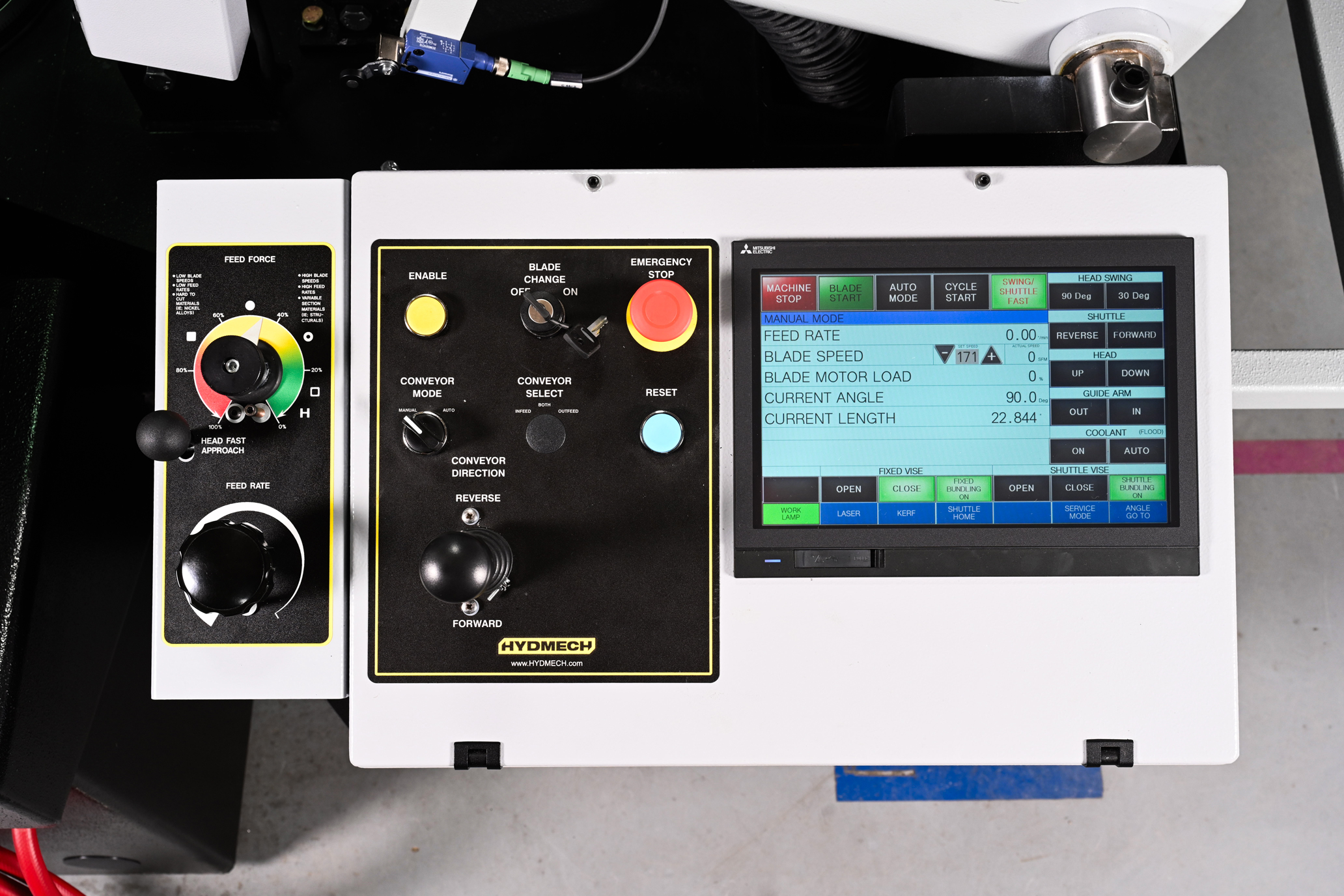

The machines PLC controller can be easily programmed, storing up to 99 different cutting jobs and includes a Job Queue function. The simple programming and user-friendly controls switches minimize set up time and provides cost-effective production.

Equipped with a 120″ bar feed, its shuttle vise assembly capable of indexing up to 120” in a single stroke.

Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A-120 is a reliable choice for your heavy-duty metal cutting applications.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Automatic programmable mitering with “go to” angle from 90° to 30°

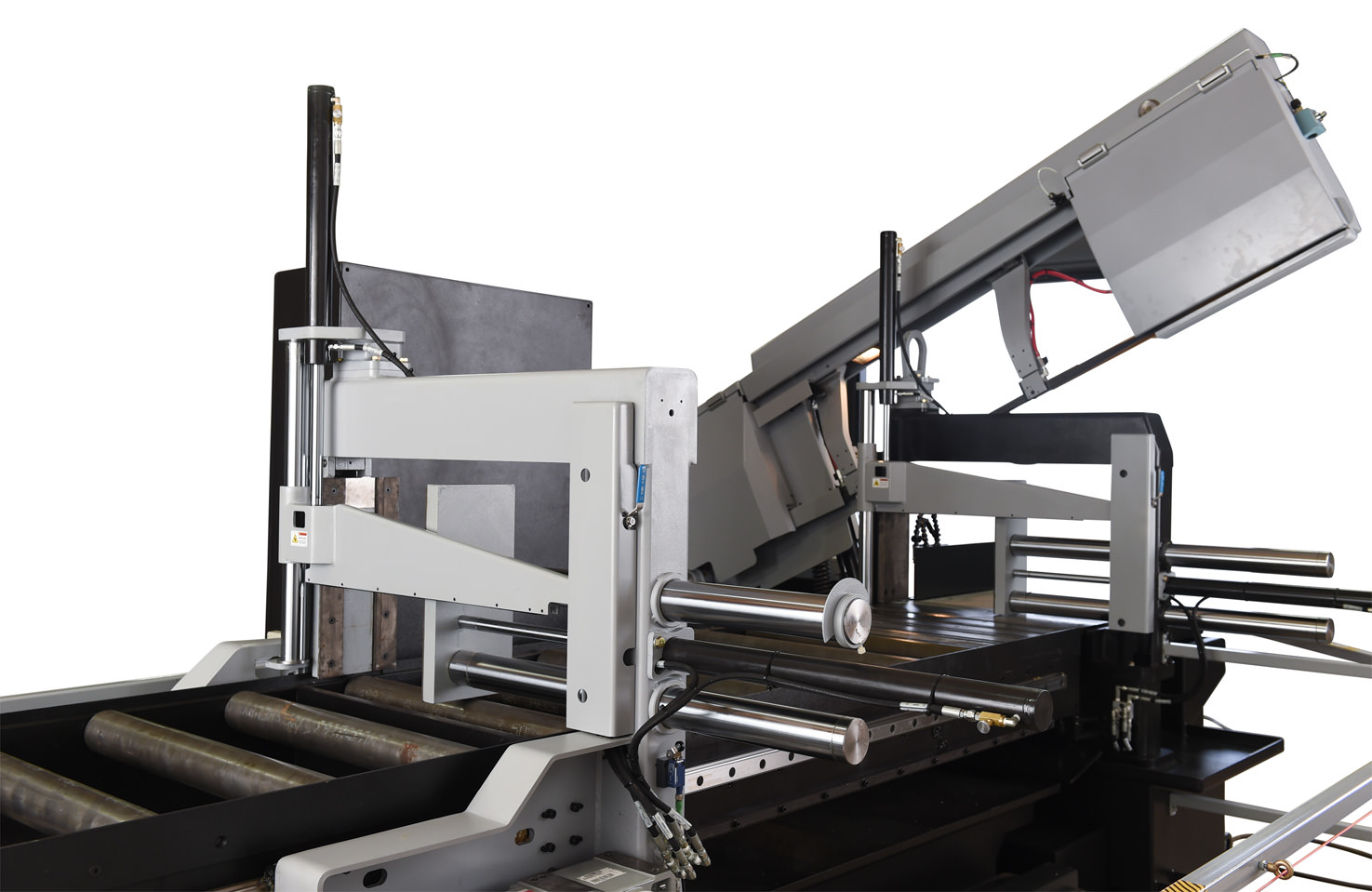

  • Full capacity hydraulic overhead bundling

  • 10’ bar feed

  • Automatic multi-indexing up to 120” in a single stroke.

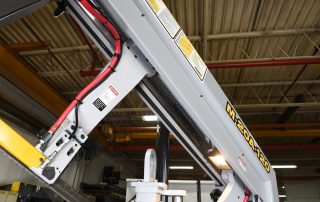

  • Guide arms are mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

  • 10 HP VFD. True direct blade drive – no belts/pulleys

  • Full capacity, full stroking hydraulic material vises

  • Hydraulic positive down feed

  • Blade chamber separates material from cut part

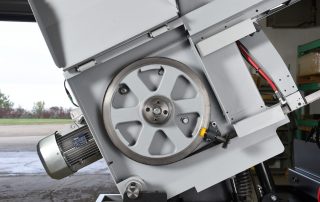

  • Cast iron band wheels

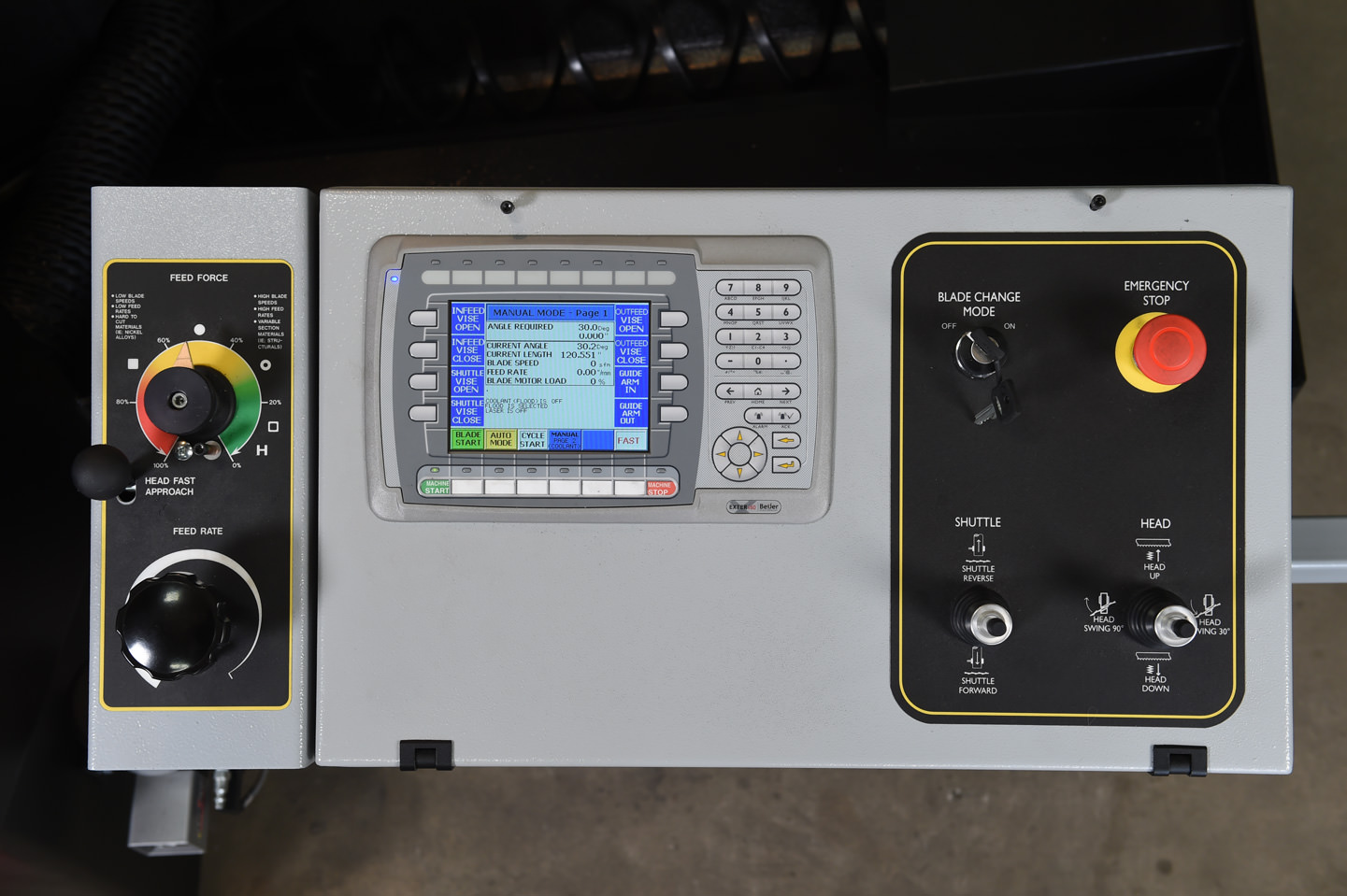

  • Automatic PLC, touch screen control programmable up to 1000 jobs with 20 in queue.

  • Replaceable blade brush

  • Automatic chip removal auger

  • Easy access electrical panel and hydraulics

  • Blade breakage switch

  • Hardened replaceable wear plates on material vises

  • Hydraulic band and carbide guide tensioning

  • Safety door interlocks

  • Flood coolant with wash down hose

  • Laser light

  • Work Light

  • Out of stock switch

  • Variable vise pressure

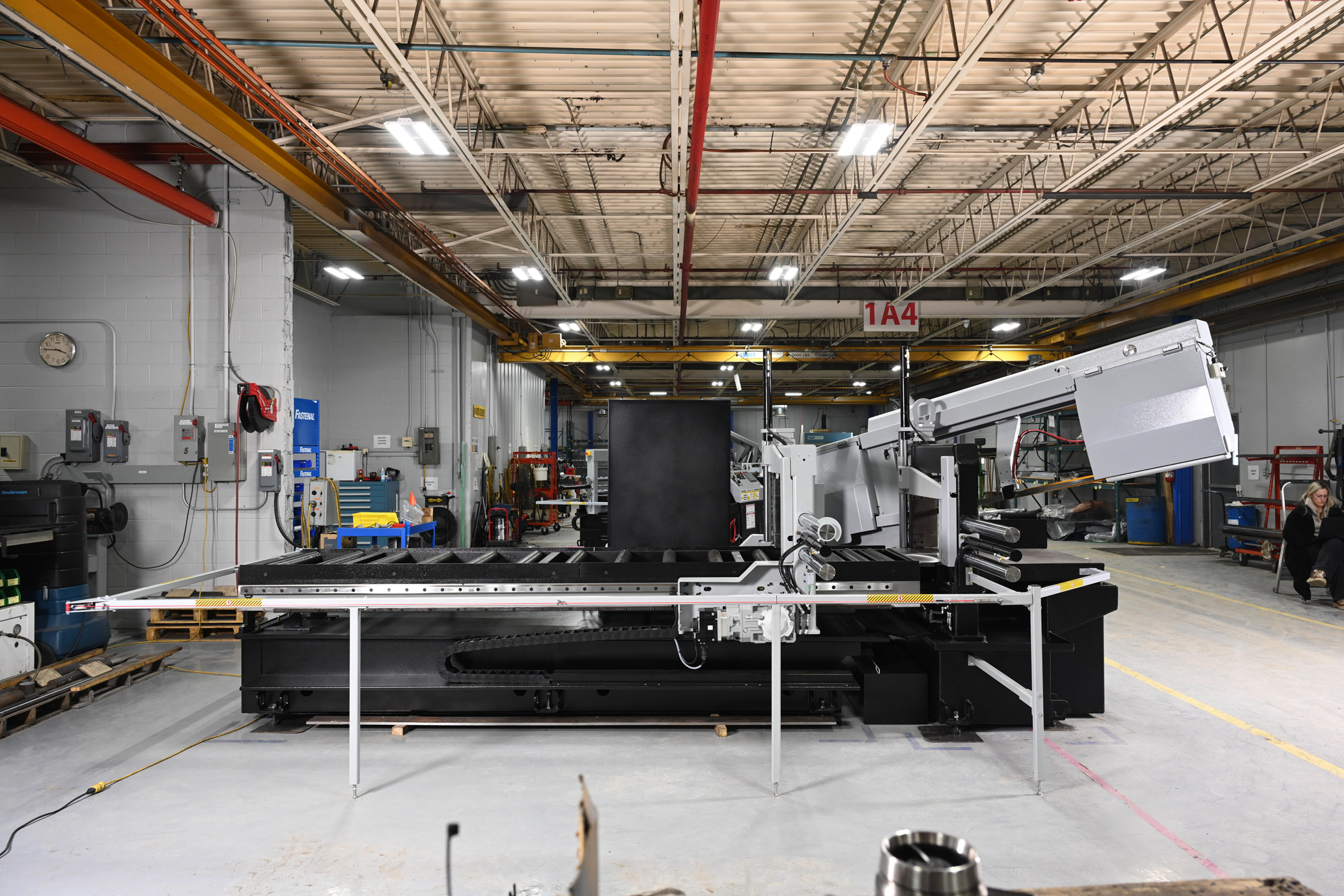

M-20A-120 Longer Single Index Stroke

Longer 120″ Single Index Stroke

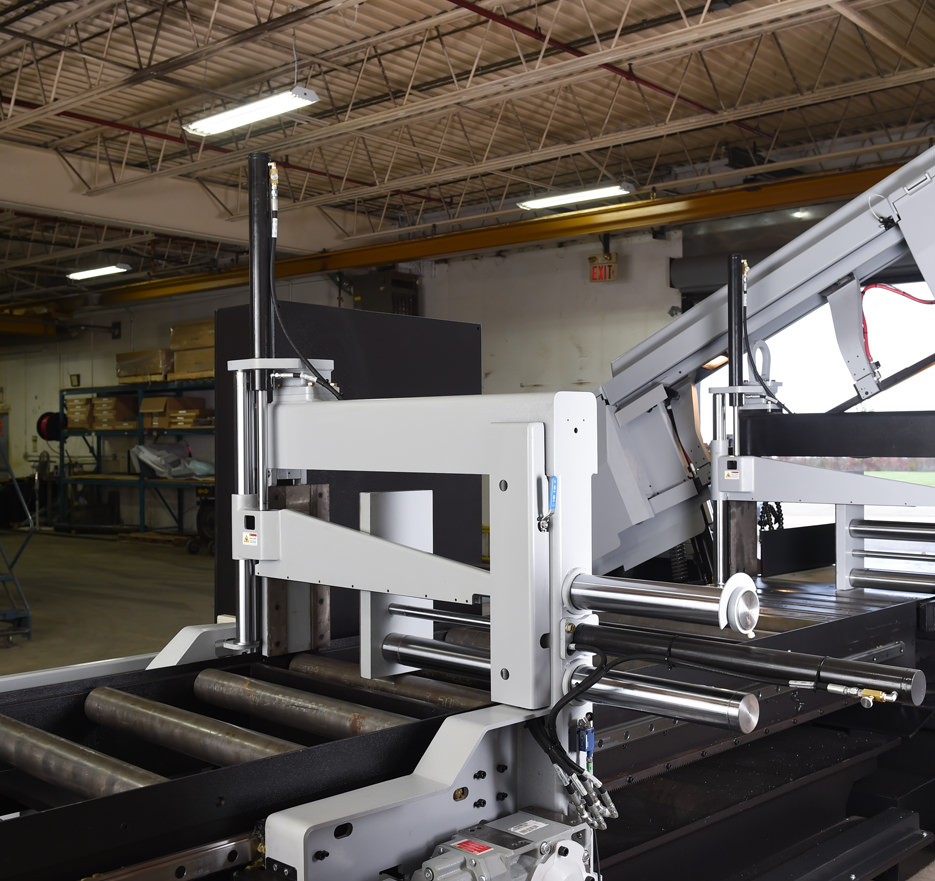

Anything 120” and under can be cut in one single index. All programming is done at the operator control. This means no walking around the machine to set stops. Auto kerf compensation is standard. A 5 Hp shuttle drive rack and pinion will allow for faster shuttling of heavy bundles.

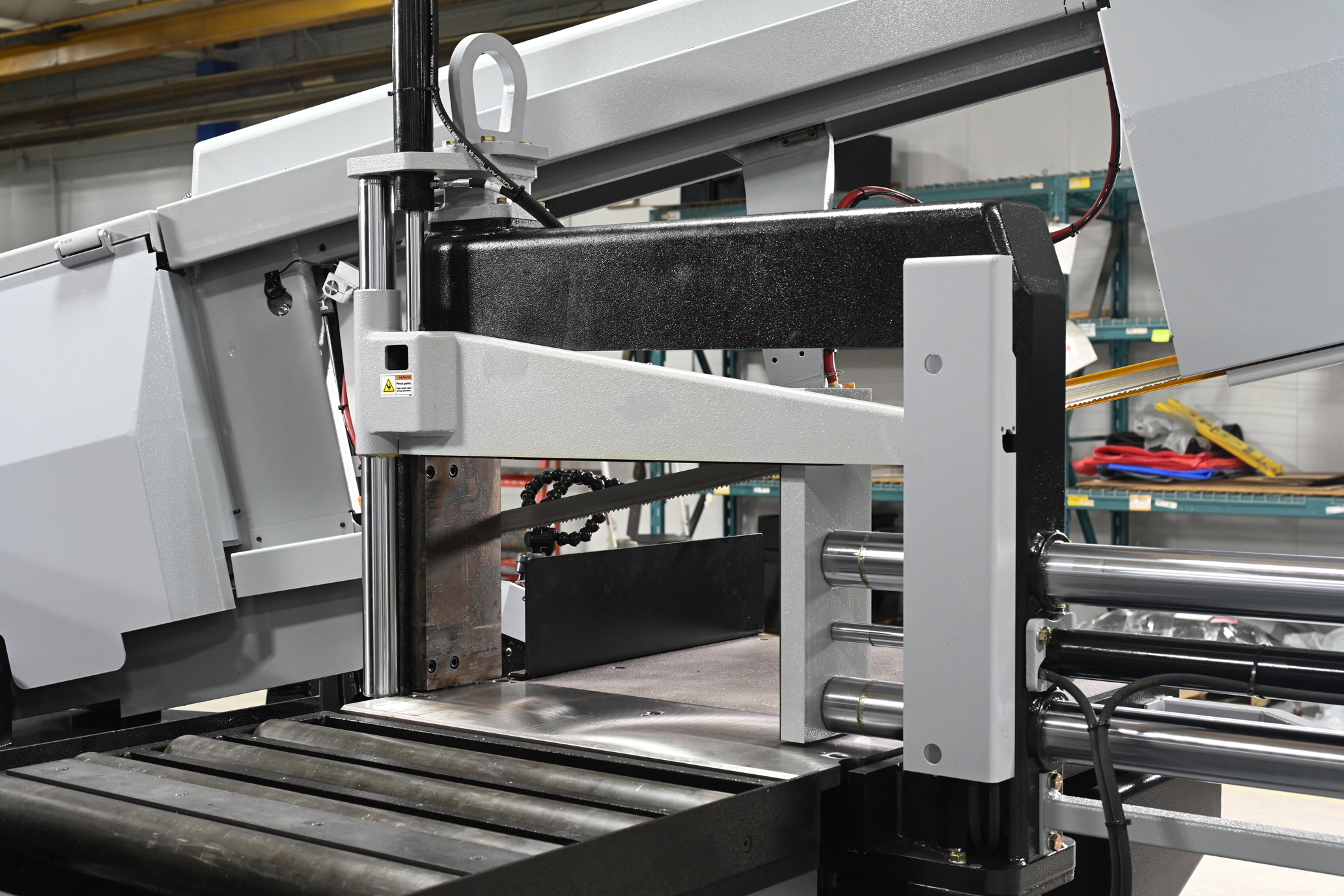

M-20A-120 Full Capacity Overhead Bundling

Full Capacity Bundling

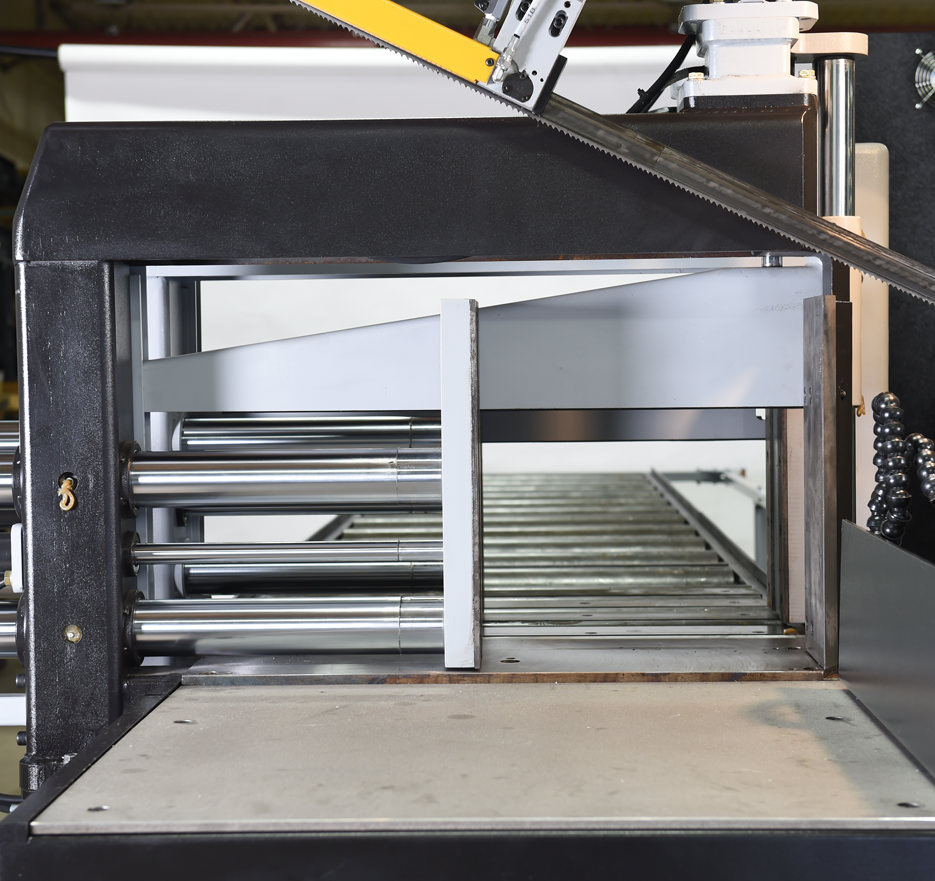

Full Capacity bundling on both vises provides full capacity clamping for bundle cutting.

M-20A-120 Automatic Programming

Automatic Programming

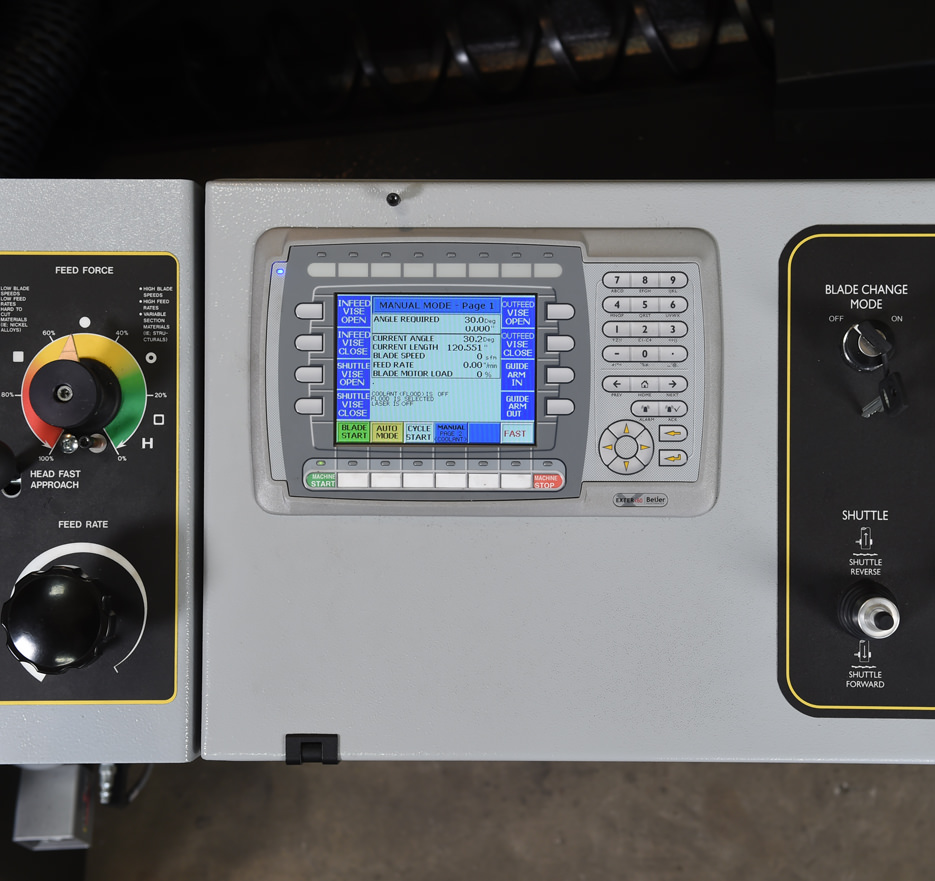

Automatic programming with auto angle positioning for faster accurate cycle times. The machine will automatically index and miter material.

S-20 Horizontal Pivot Band Saw Angle Measurement

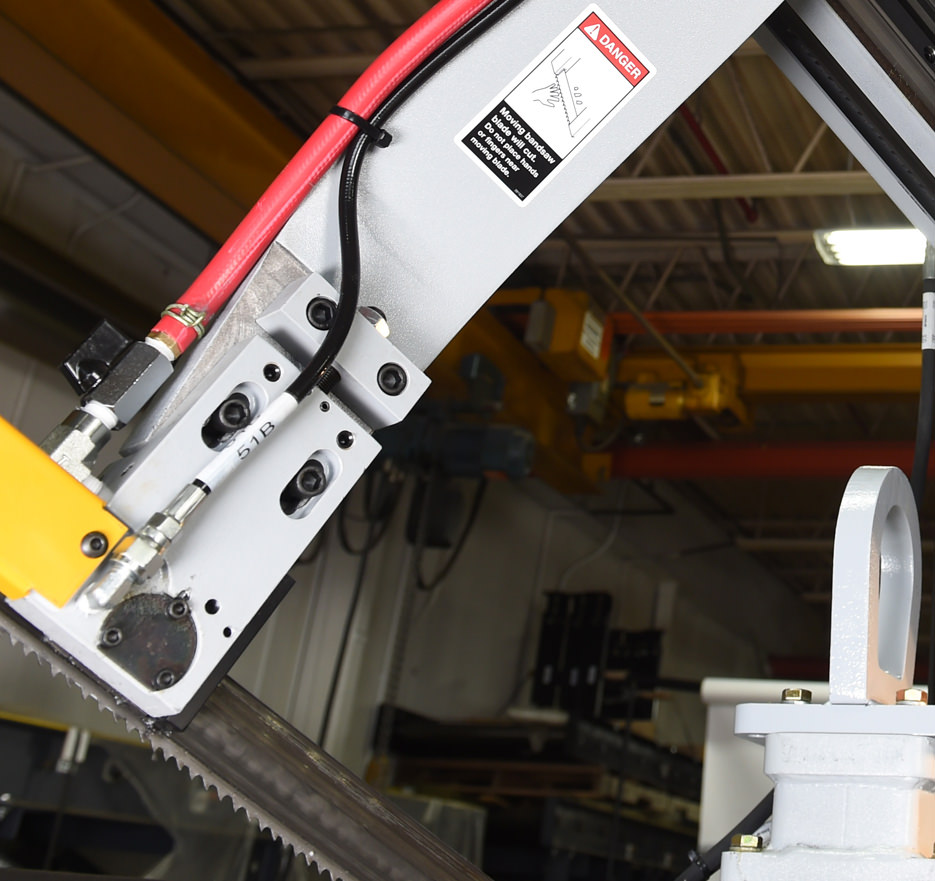

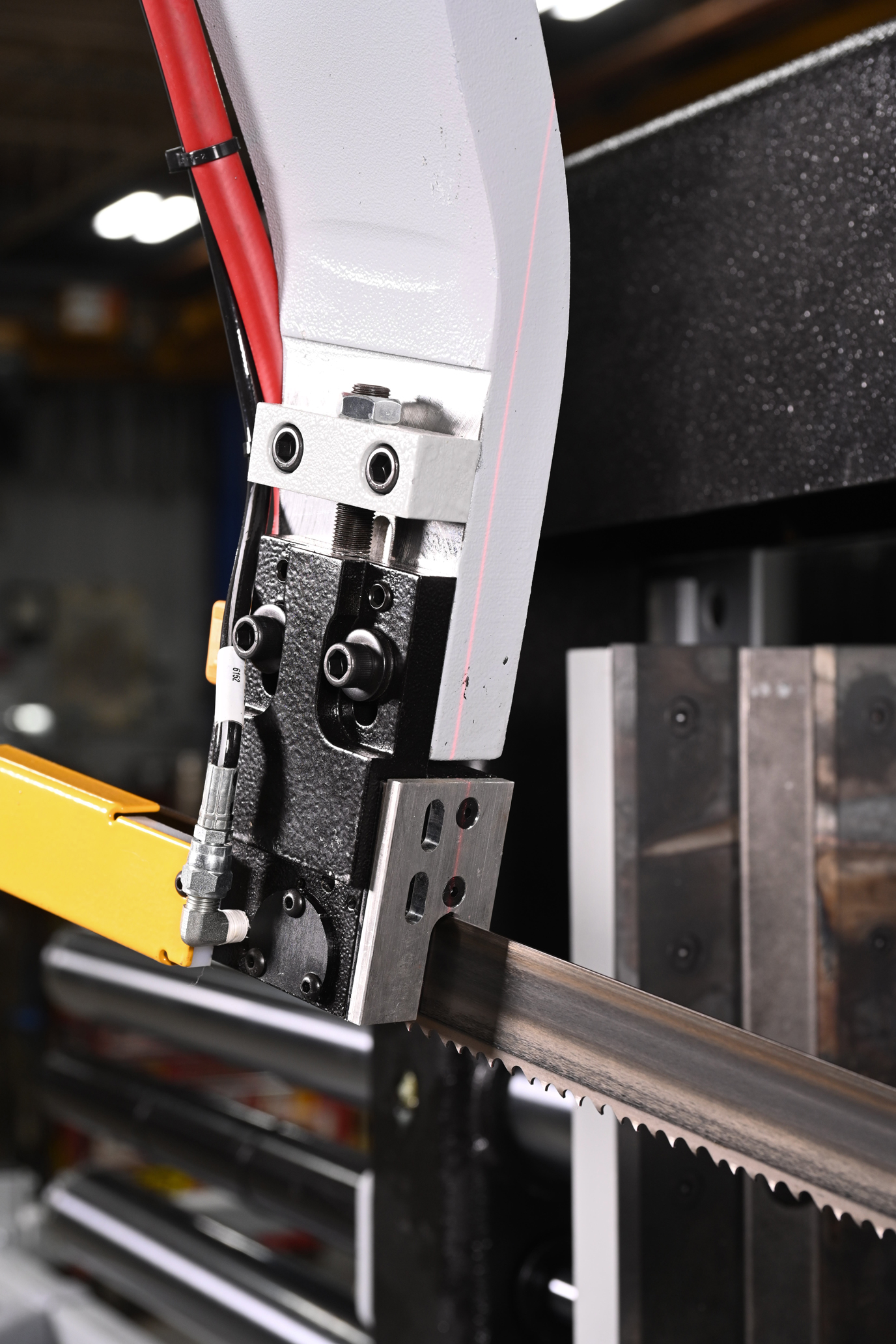

Hydraulic Solid Carbide Guides

Hydraulic solid carbide saw guides allow for faster blade changes and increased cut accuracy.

OPTIONAL FEATURES

  • Blade deviation monitor

  • Chip bucket

  • Remote console

  • Mist lubrication

  • Outboard vise

  • Outboard vise with bundling

  • Vertical rollers

  • Idler conveyors and accessories

  • Powered conveyors and accessories
Download Brochure
Download Layout Drawing

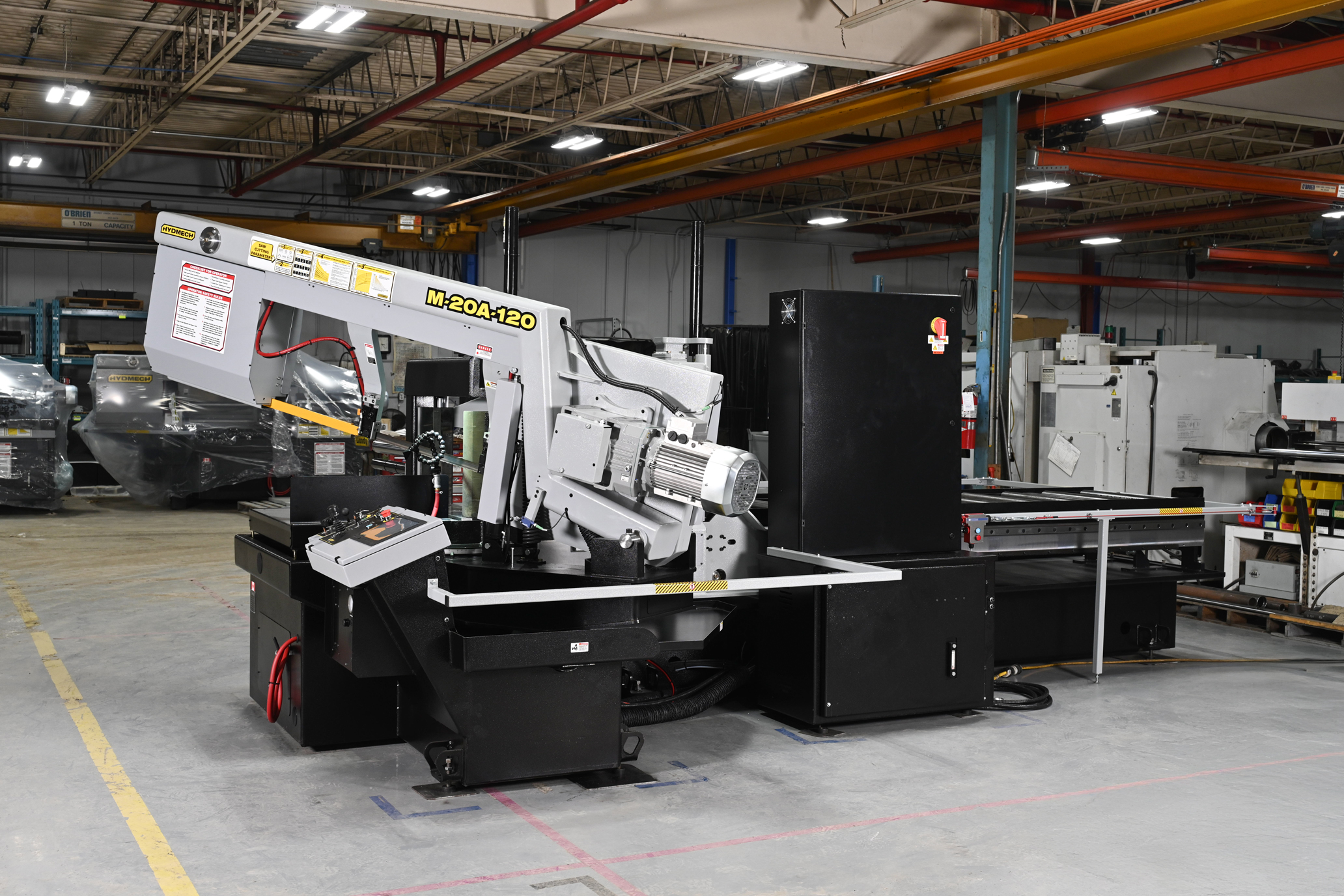

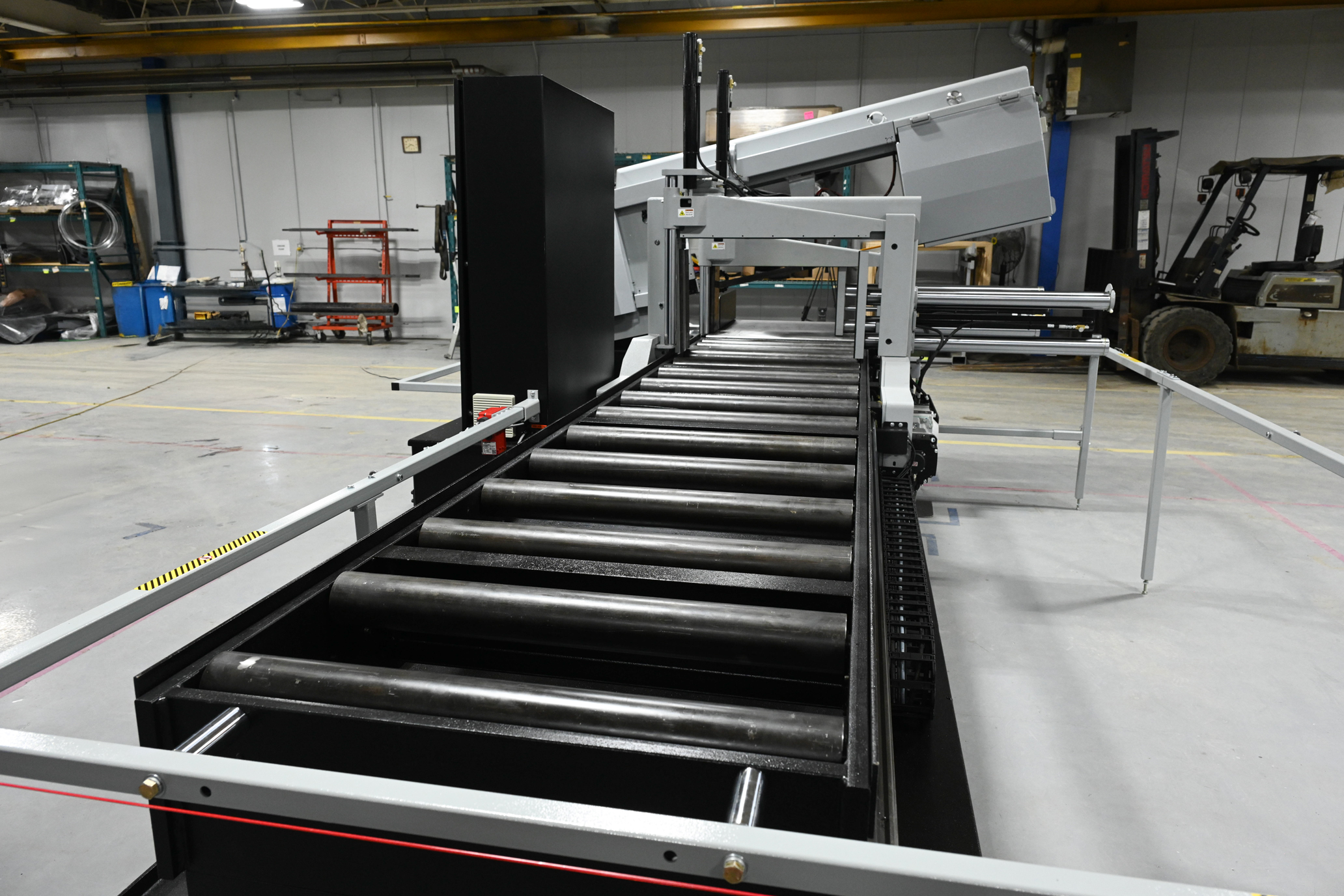

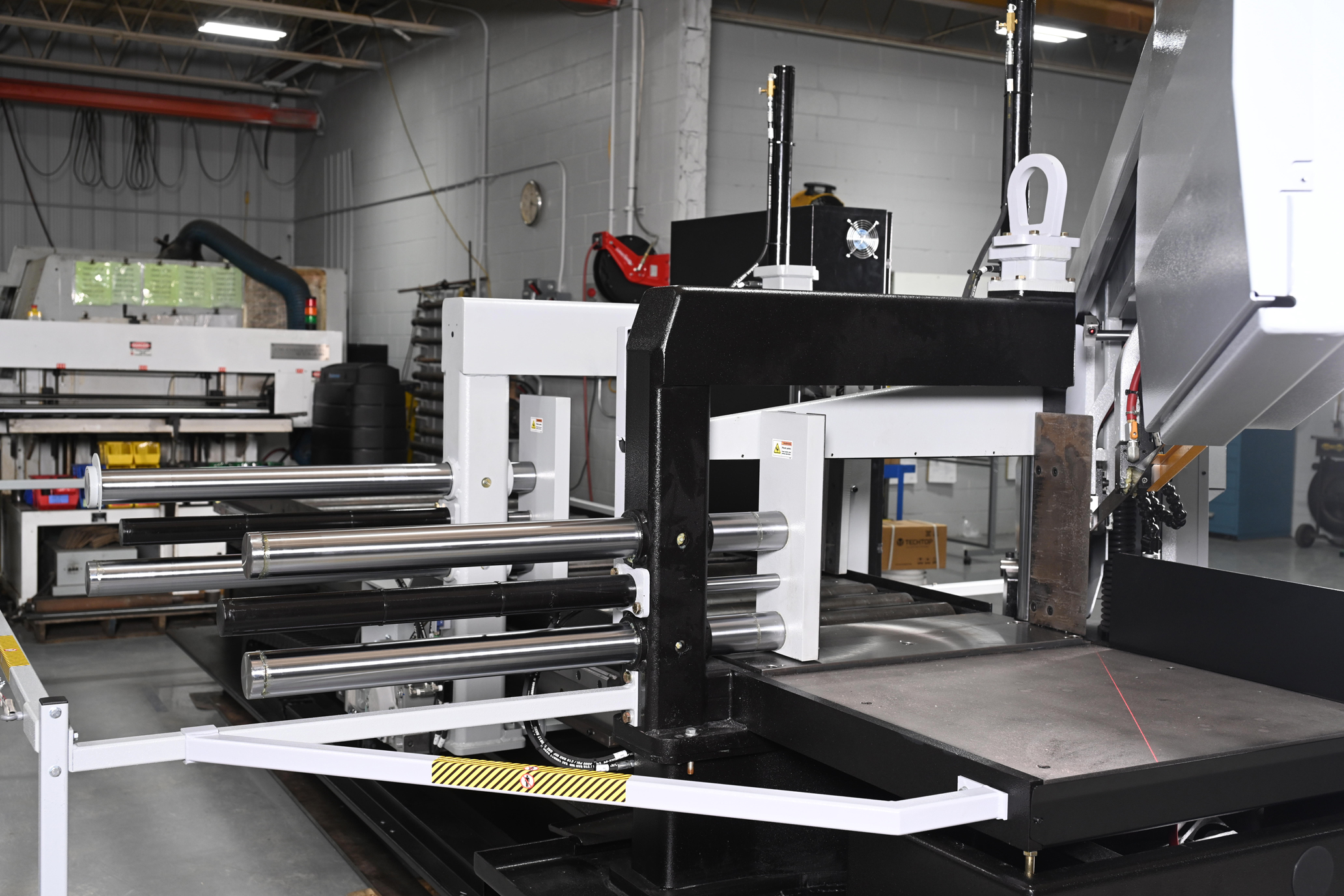

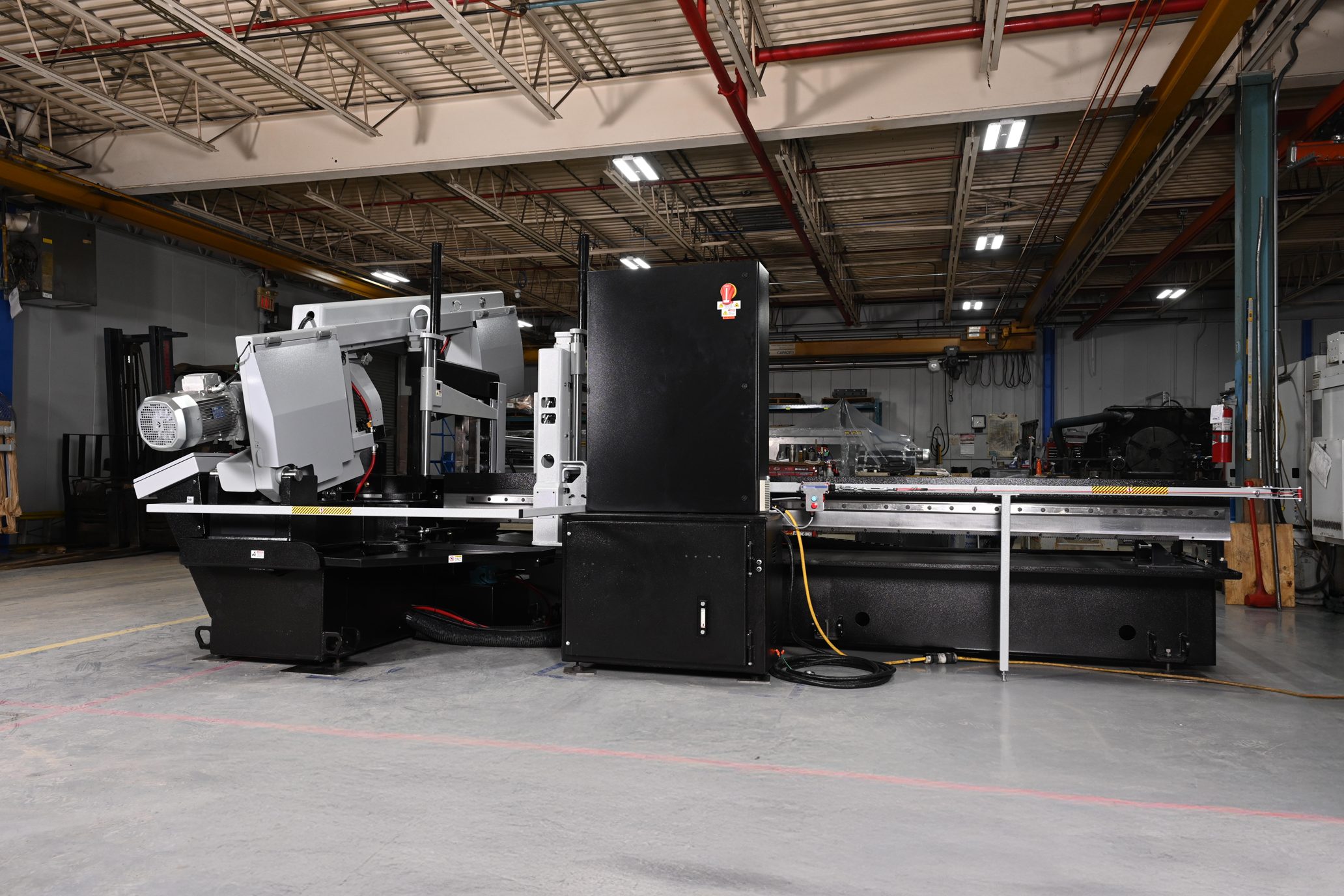

PHOTO GALLERY

NEED HELP SELECTING THE RIGHT SAW? LAUNCH HYDMECH SAW SELECTOR
