H-14A HORIZONTAL BAND SAW

H-14A HORIZONTAL BAND SAW

H-14A

Designed for high production cutting with a carbide tipped blade, the H-14A is unlike anything on the market.

With an enclosed design for superior safety, this machine uses 66% less energy than competing models due to on-demand hydraulics which only operates when needed. Its 25 mm remnant length option reduce material waste saving you money!

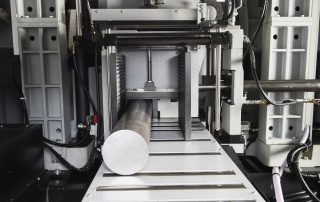

Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 24” in a single stroke with multi-indexing capability.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Heavy-duty cast iron saw head

  • Spilt front vise allows for short 4.7” remnant length

  • Cast iron shuttle features automatic multi-indexing up to 19” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor

  • On-demand hydraulics save energy

  • Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing

  • 8.8 HP VFD. True direct blade drive – no belts/pulleys

  • Full capacity, full stroking hydraulic vises

  • Hydraulic positive down feed

  • Blade chamber separates material from cut part

  • Cast iron band wheels

  • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

  • Replaceable blade brush

  • Robust steel base

  • Automatic chip removal conveyor

  • Easy access electrical panel and hydraulics

  • Blade breakage switch

  • Blade deviation monitor

  • Variable vise pressure

  • Out of stock switch

  • Designed for safety with saw-in-the-box style

  • Electronic band tensioning with digital readout

  • Replaceable carbide guide inserts

  • Safety door interlocks

  • Flood coolant with wash down hose

  • Laser light

  • Work light

H-14A Consistent Band Tension and Monitoring

Band Tension Monitoring

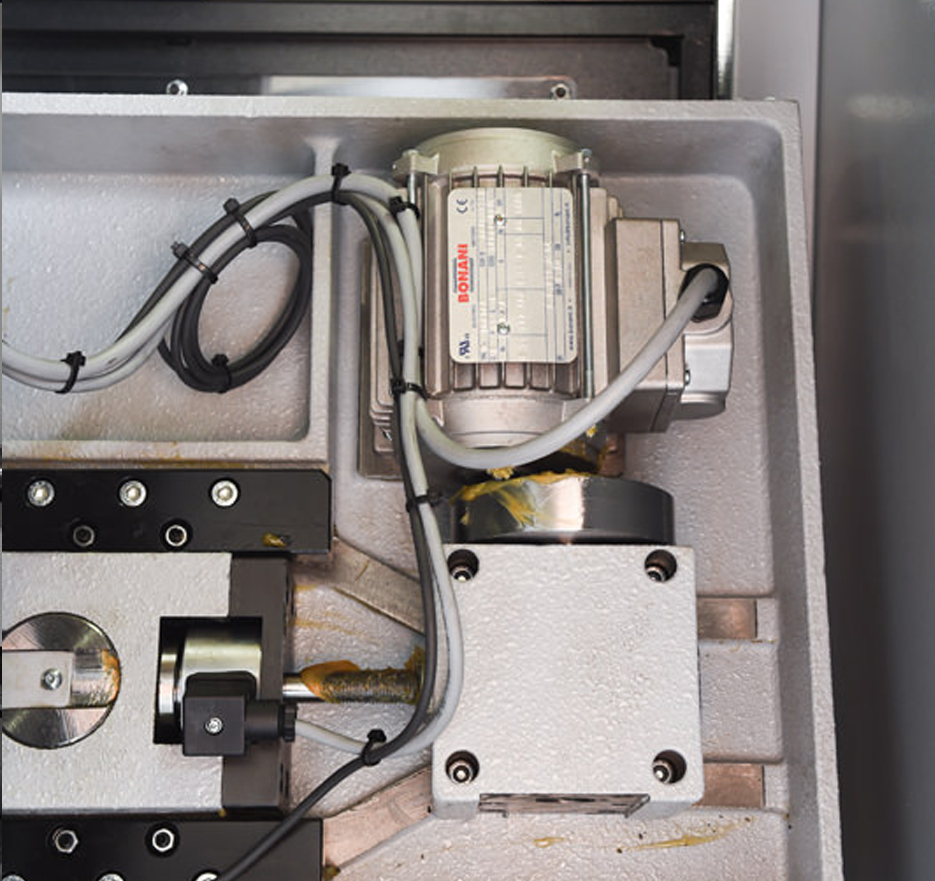

Electronic Band tensioning with band tension monitoring during cutting. The blade tension is monitored during the cutting process. It will automatically adjust to maintain blade tension.

H-14A Touch Screen Control

Windows Touch Screen Control

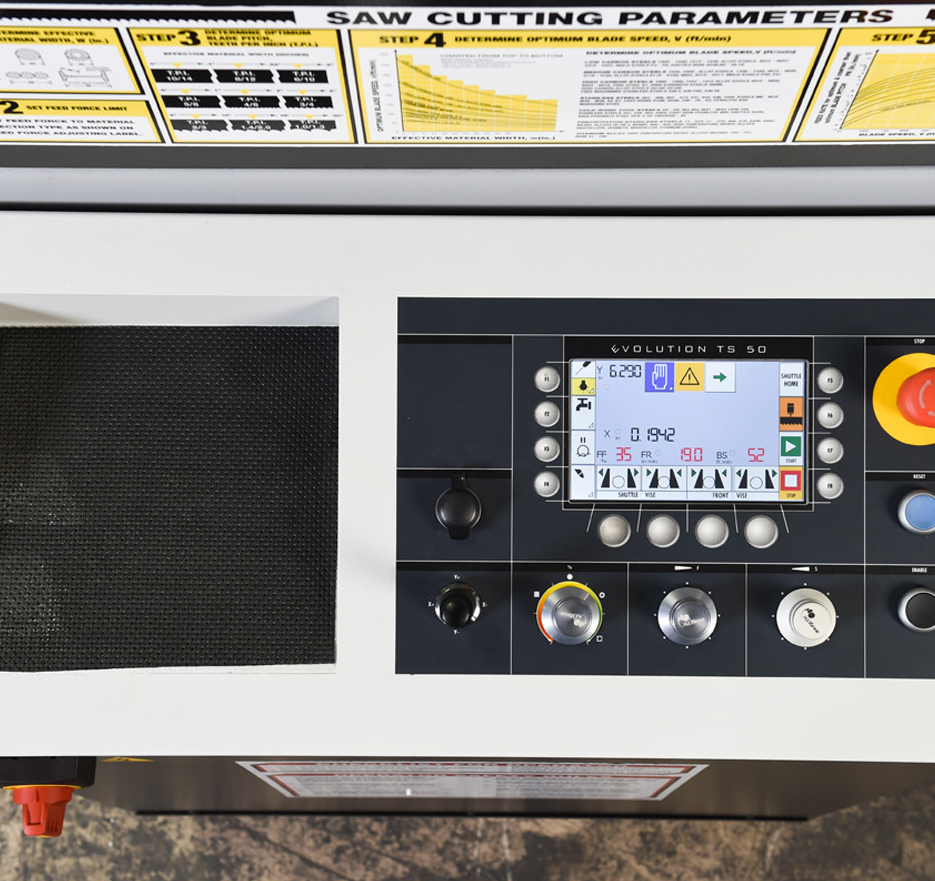

Very intuitive and easy to program. Most programming is done on a single page. Most machine operation function keys are outside of the touch screen area so the operator only has to use the touch screen while programming a job.

H-14A Blade Chamber

Unique Blade Chamber Feature

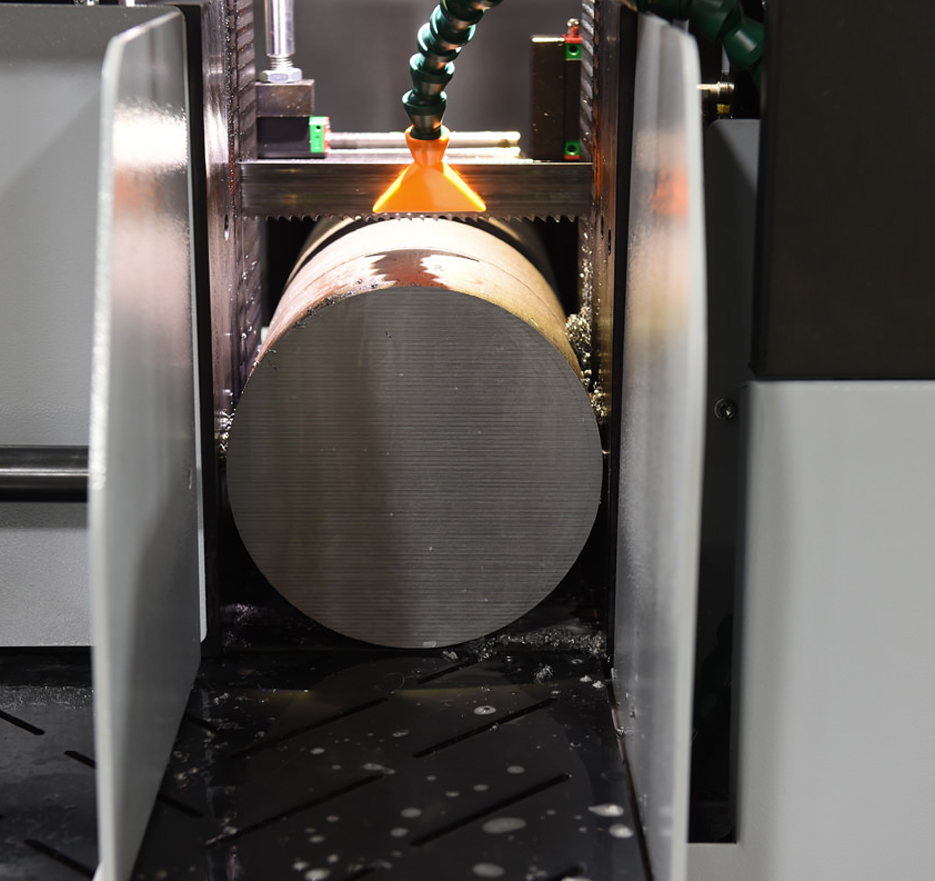

Blade chamber automatically separates the cut pieces to allow for clearance. The blade does not rub cut material while raising which is an essential feature for running carbide blades.

S-20 Horizontal Pivot Band Saw Angle Measurement

Split Front Vise

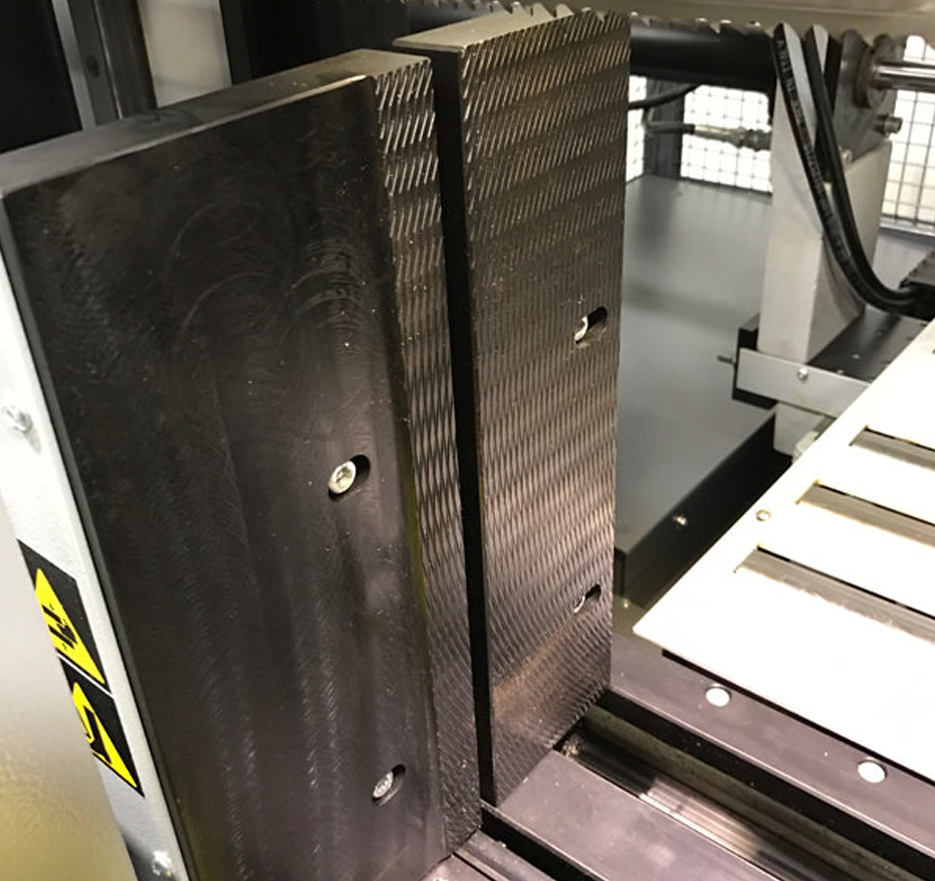

Split front vise design will allow for shorter 4.7” remnant for less wasted material in automatic. A shorter rem option is available to get the rem down to 1”.

OPTIONAL FEATURES

  • Full capacity hydraulic OH bundling

  • Mist lubrication

  • Vertical rollers

  • High blade speed

  • Short remnant of 0.98”

  • Power transformers

  • Idler conveyors and accessories

  • Power conveyors and accessories

Download Brochure
Download Layout Drawing

PHOTO GALLERY

NEED HELP SELECTING THE RIGHT SAW? LAUNCH HYDMECH SAW SELECTOR
