DM-10 DOUBLE MITER BAND SAW

DM-10

This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.

Exceptional cutting capability. Its cast iron head and vises are designed for rigidity – absorbing vibrations and ensuring accuracy during cutting. A rotating table with a single cut line allows head and blade groove to move together for smooth, accurate mitering.

From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Manually operated, double miter, easy swing, cast saw head
  • Quick release cast-iron material vise with dovetail ways

  • Rotating table with cut slot that moves in tandem with sawing head

  • Band tension indicator

  • Infinitely adjustable, gravity feeding, sawing head

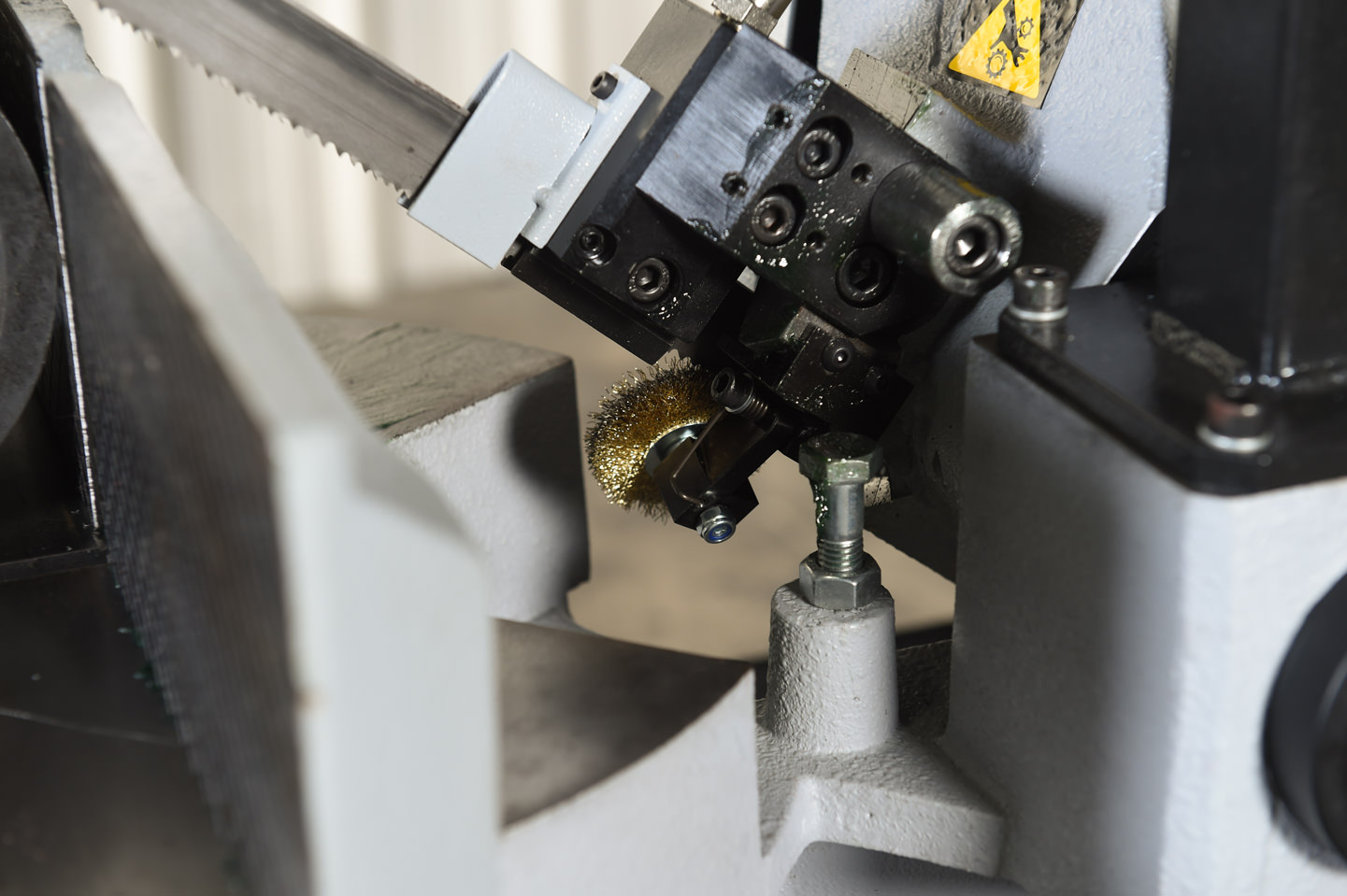

  • Replaceable blade brush
  • Small footprint

  • Robust steel base

  • Easy to read angle scale

  • Adjustable guide arm

  • Pre-set, replaceable carbide guide inserts

  • True-direct drive – no belts or pulleys
  • Mechanical blade tensioning

  • Safety door interlocks

  • Flood coolant

  • Adjustable work stop

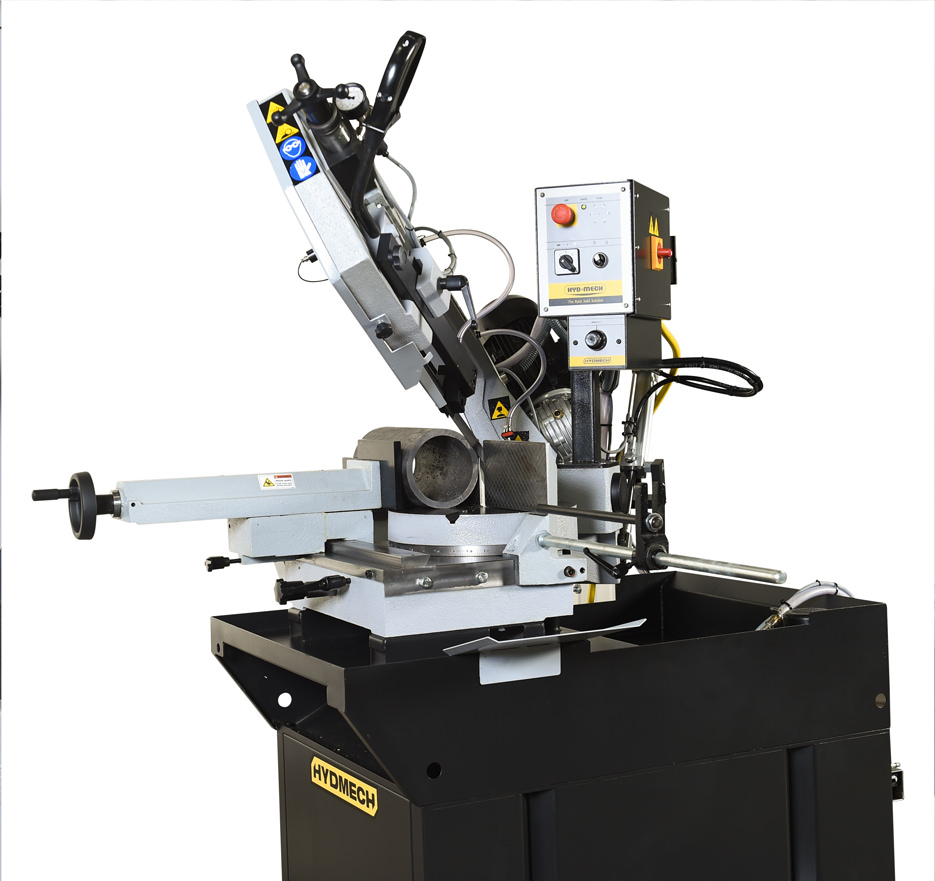

DM-10 Cast Iron Construction

Cast Iron Construction

The DM-10 cast iron construction provides less vibration and longer blade life.

DM-10 Quick Release Vise

Quick Release Vise

A quick release vise allows for easier setup times between jobs or cuts.

DM-10 Dual Feed System

Dual Feed System

A dual feed system allows the operator to choose between a metered feed or pull down feed.

S-20 Horizontal Pivot Band Saw Angle Measurement

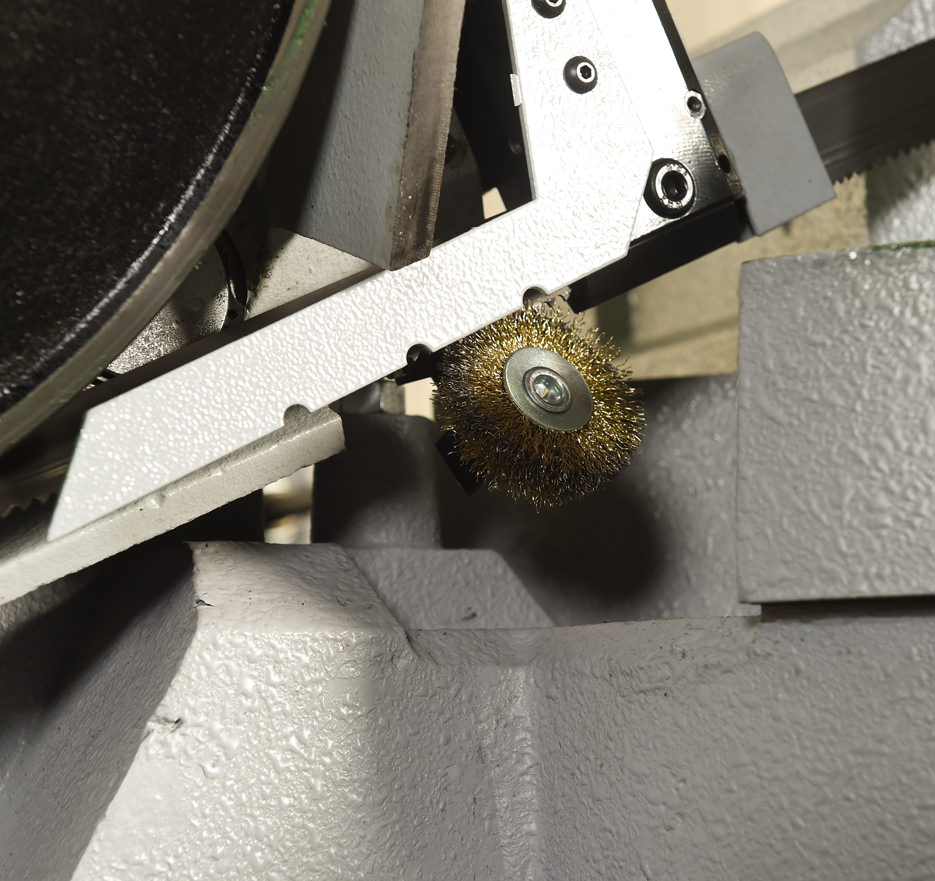

Driven Chip Brush

The DM-10 features a blade driven chip brush ensuring proper chip removal and increasing blade life.

OPTIONAL FEATURES

  • Mist lubrication

  • Pneumatic material vise with foot pedal

  • Single phase (Note: limits user to high blade speed only)

  • K110 5’ infeed/out feed roller

  • 59″ R2 work stop for K110 table

  • Adaptor plate for K110 table

Download Brochure
Download Layout Drawing
