M-20A HORIZONTAL PIVOT BAND SAW

M-20A HORIZONTAL PIVOT BAND SAW

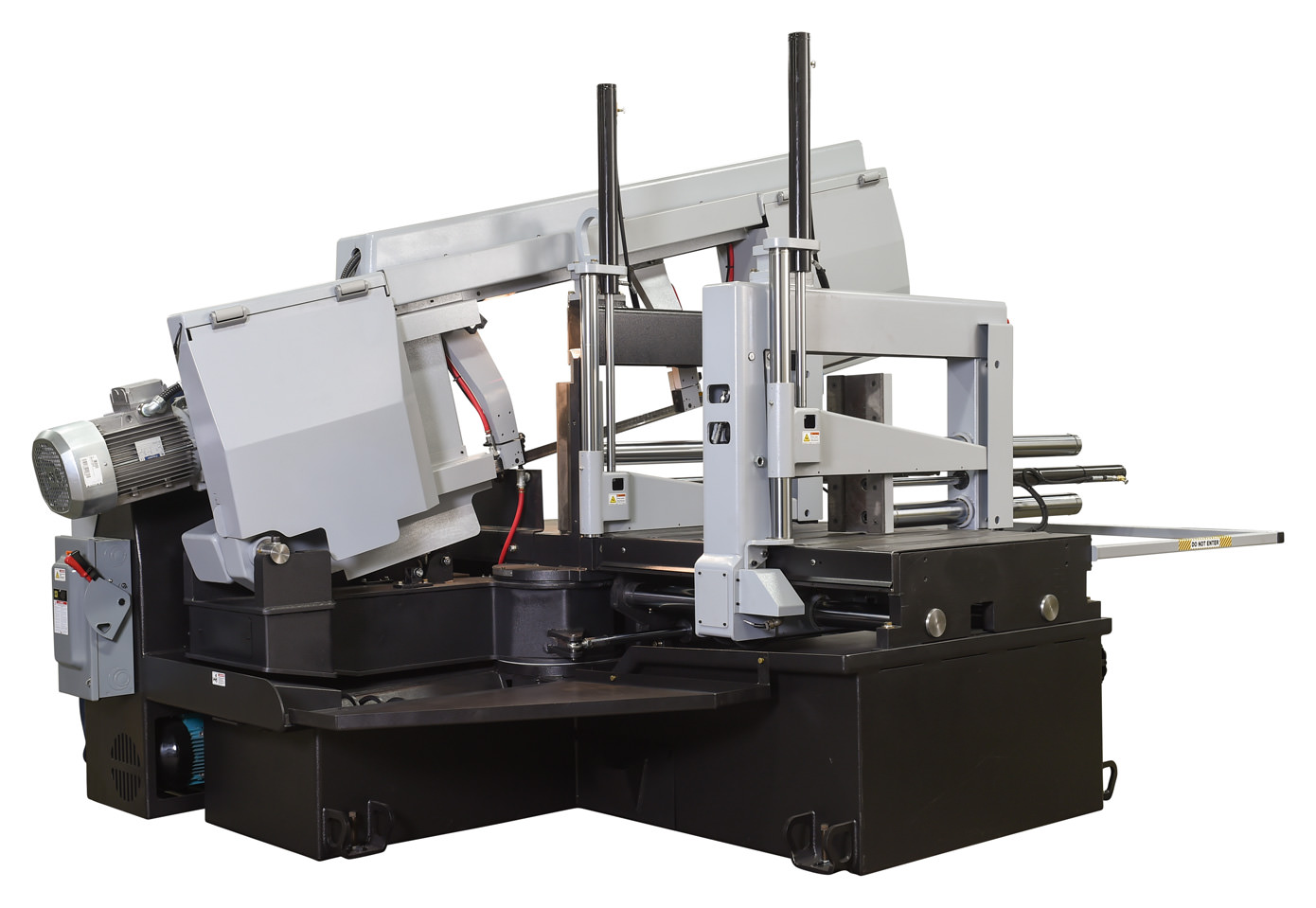

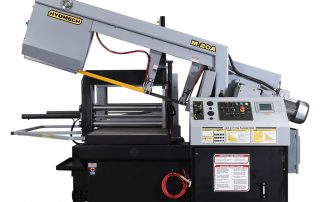

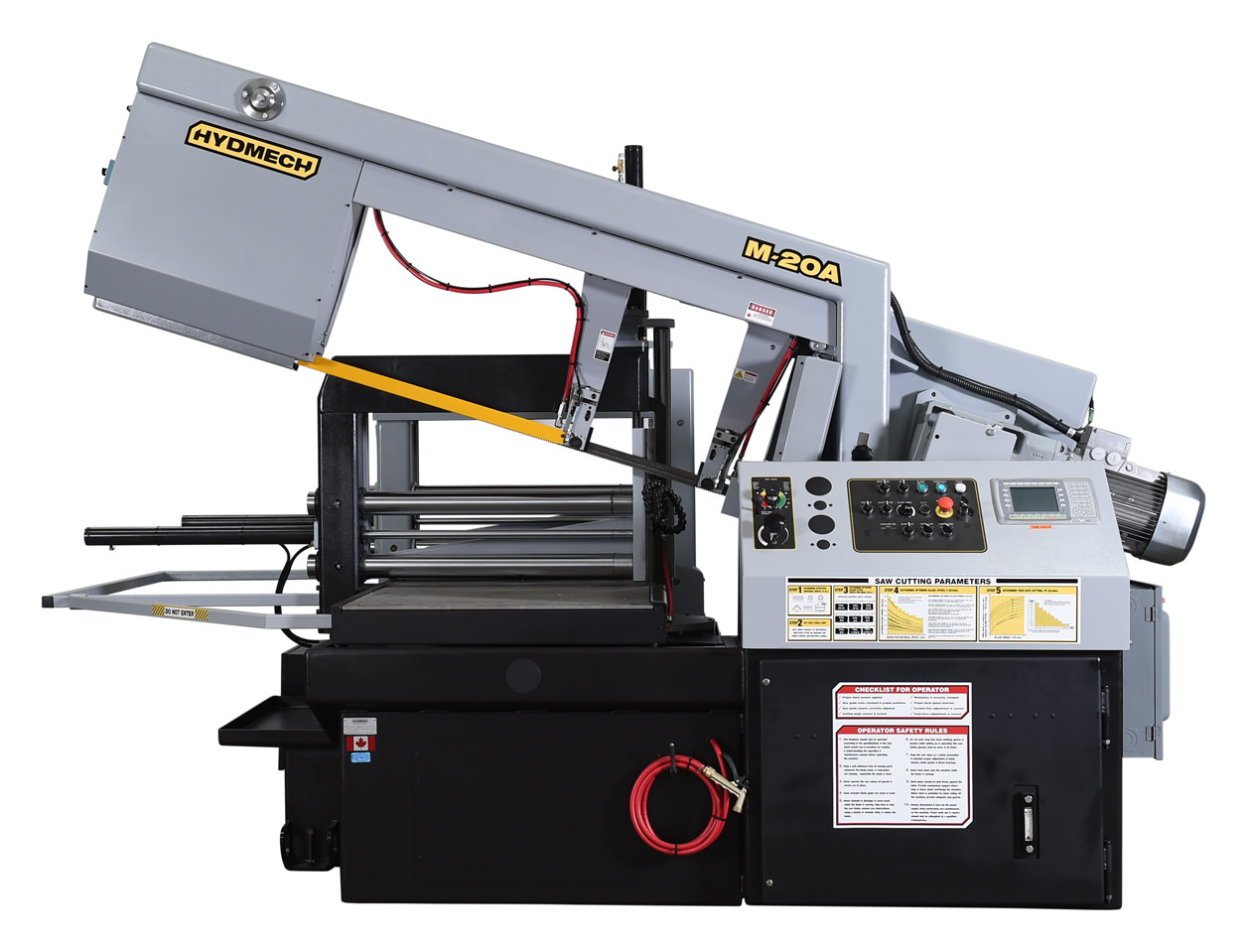

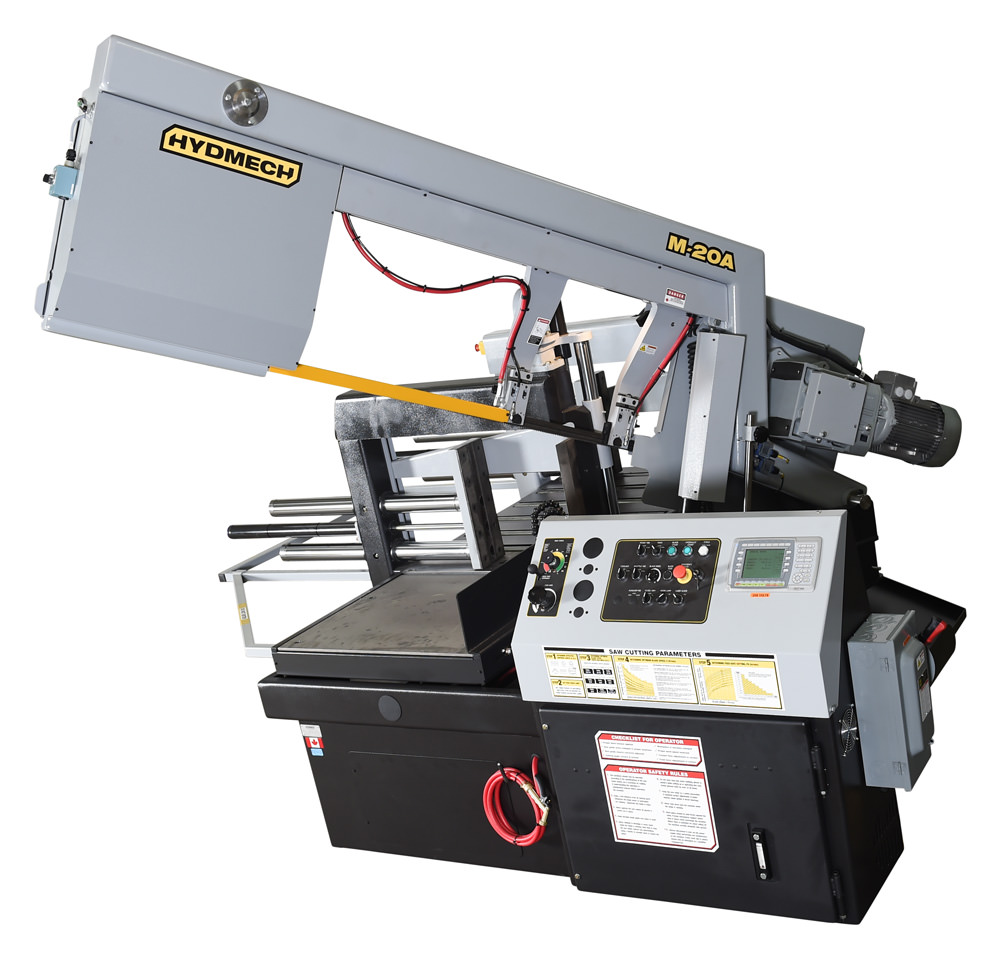

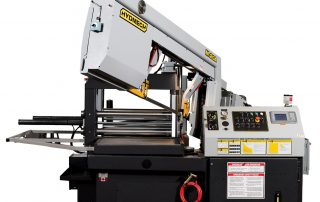

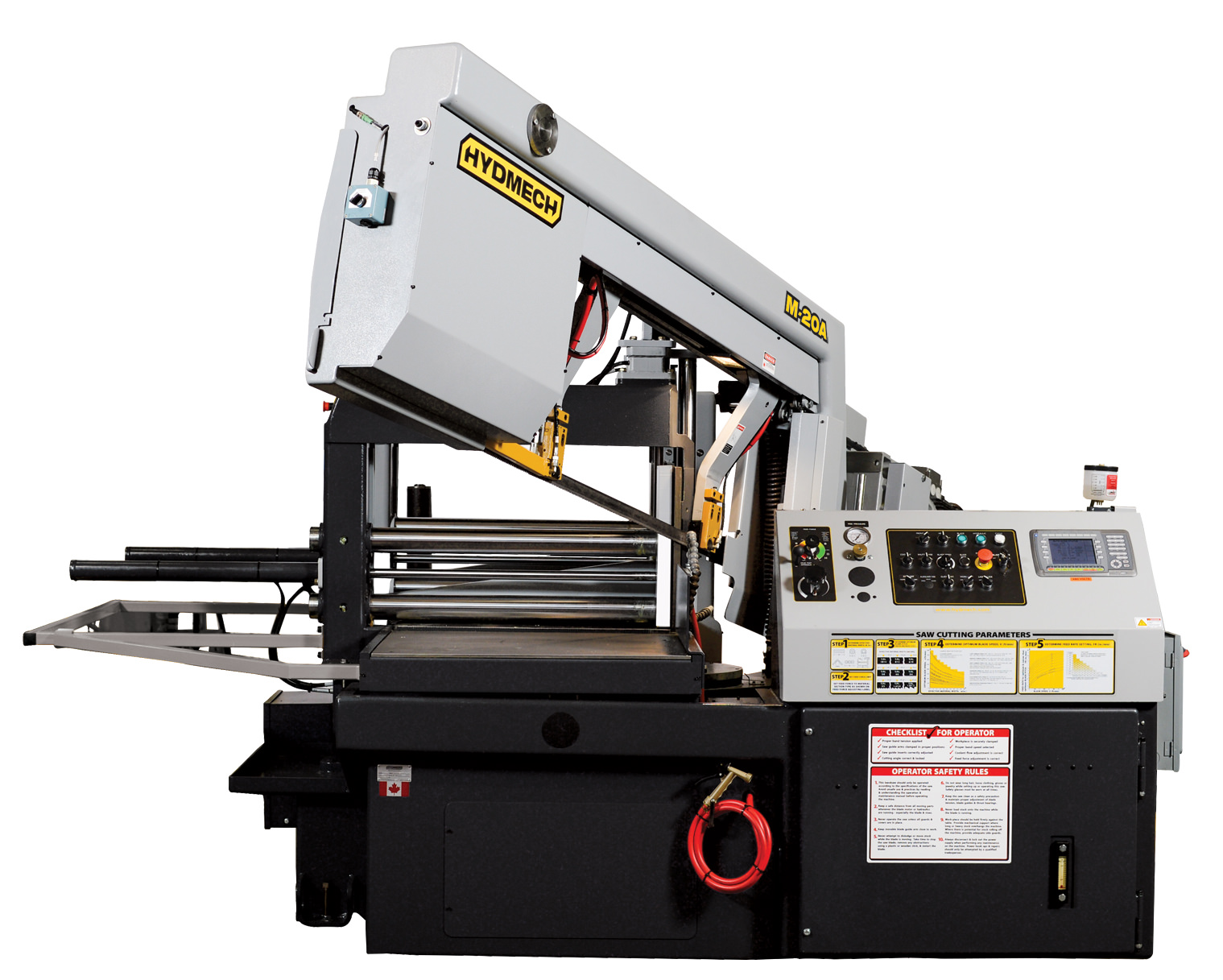

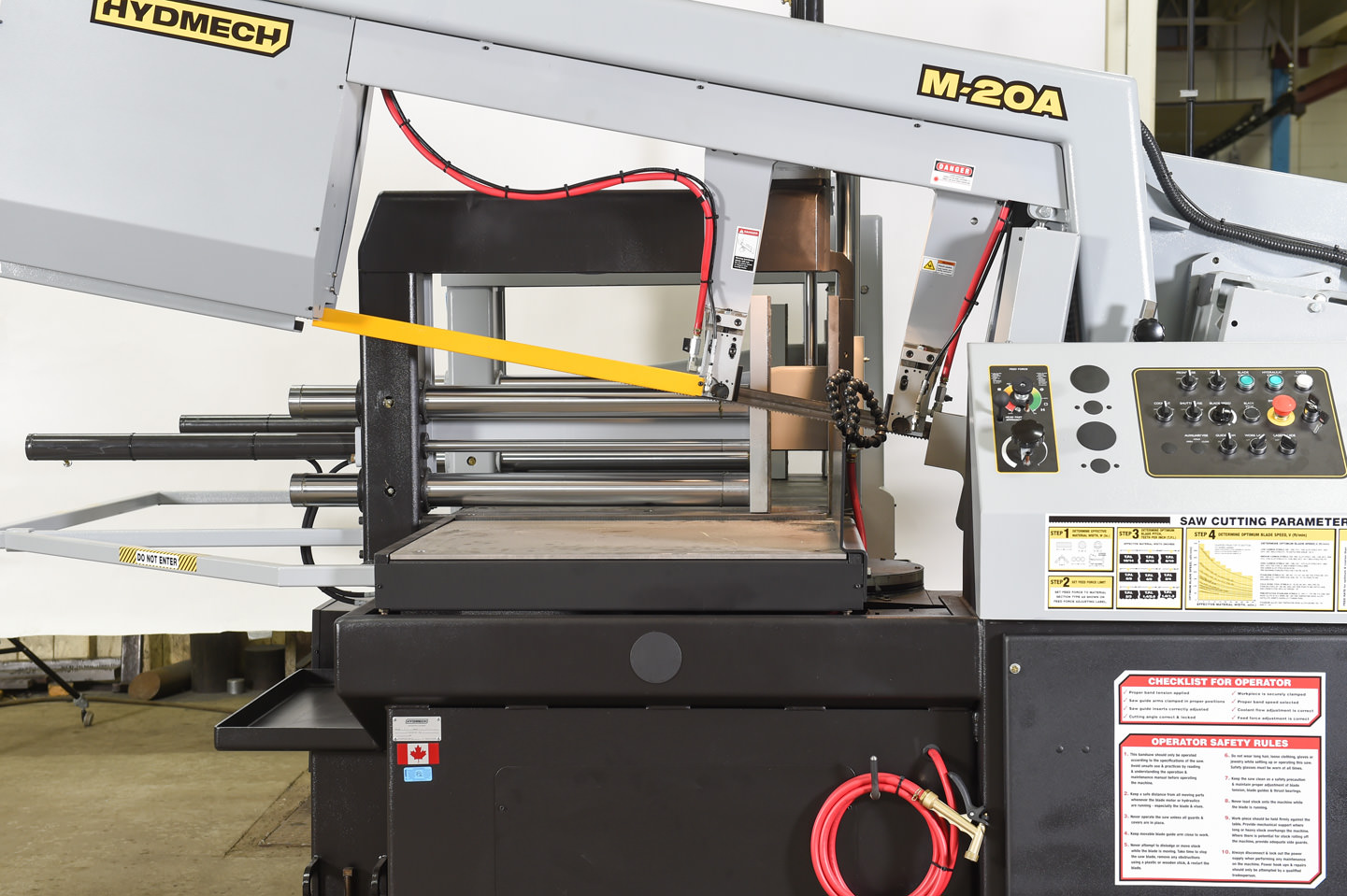

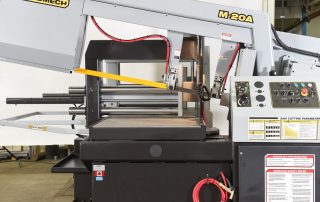

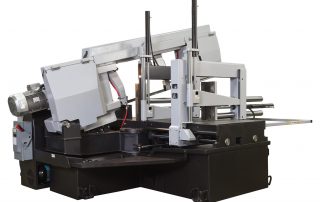

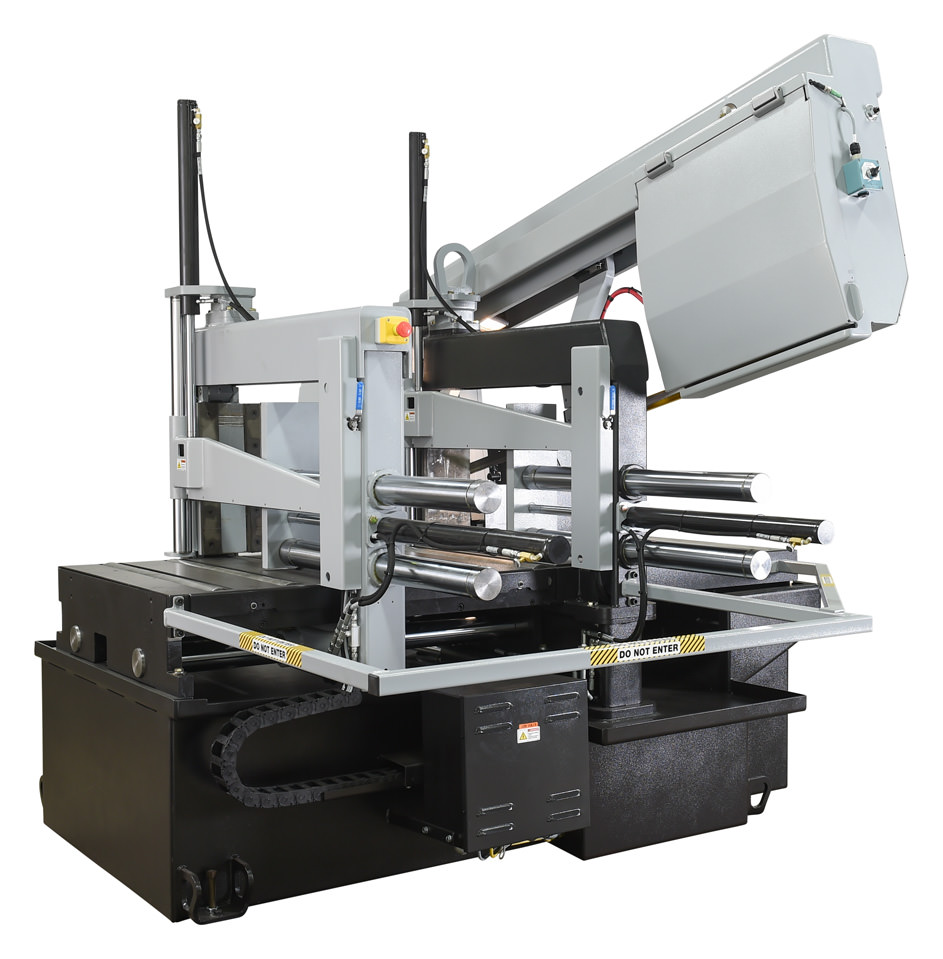

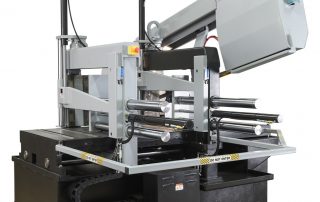

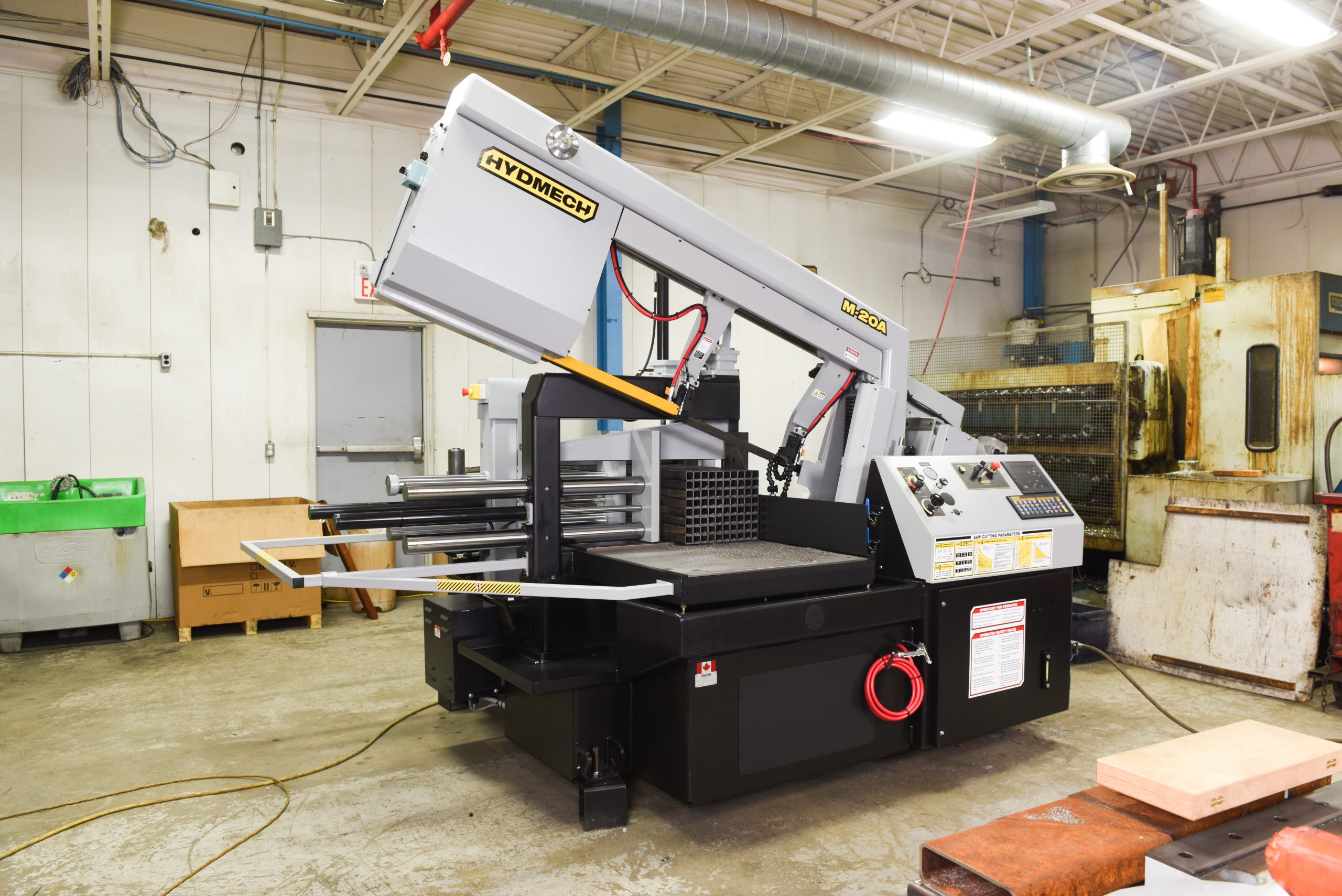

M-20A machine shot

The M-20A is an automatic horizontal pivot band saw providing exceptional miter cutting capability for heavy-duty applications.

It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material.

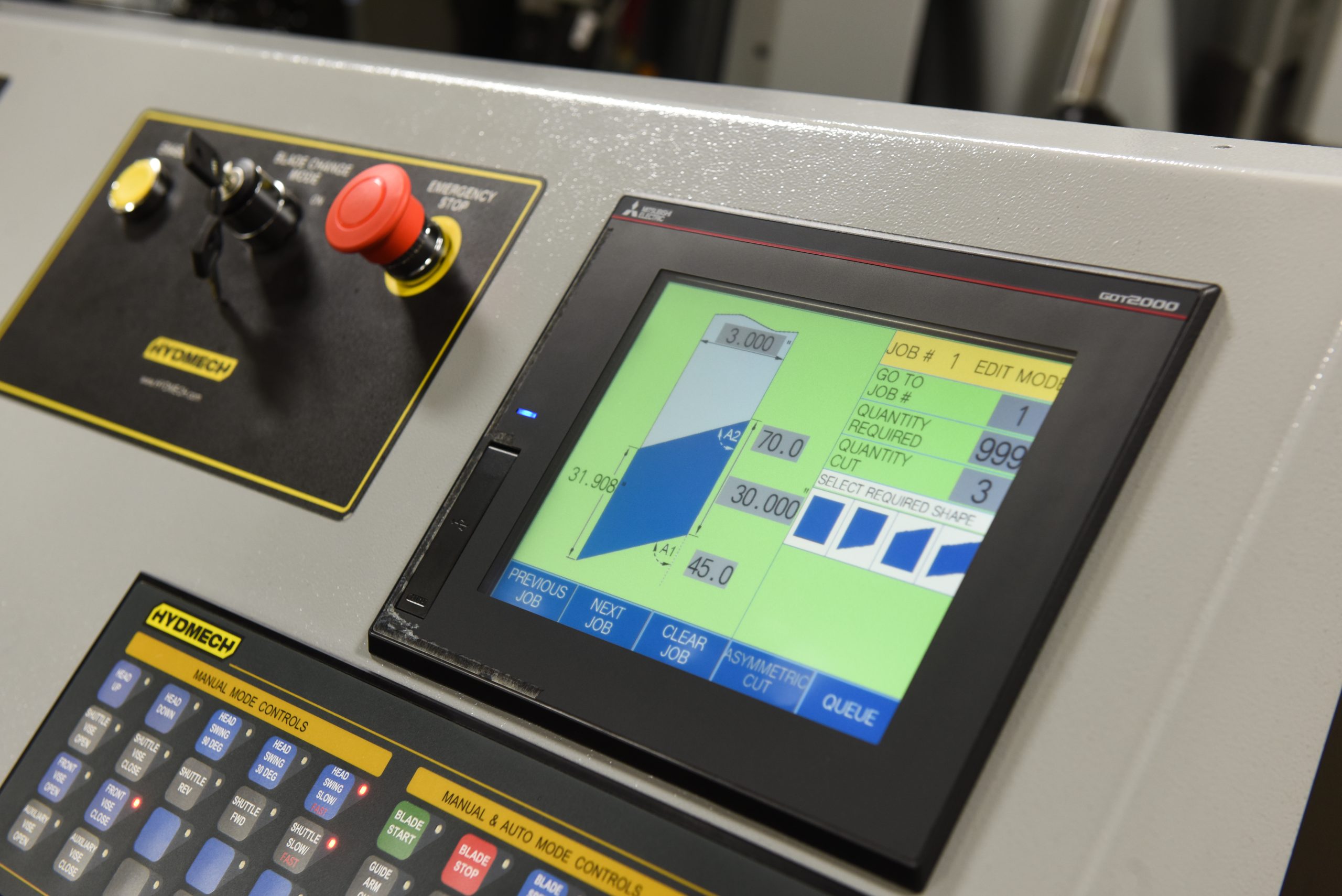

The M-20A band saws standard PLC 500 control features a “go to” function which allows for automatic alternating between programmed angles. The M-20A miters from 90° to 60°.

Featuring a 20″H x 30″W capacity at 90°, 10 HP motor, and 1 1/2″ blade, the M-20A is a reliable choice for your heavy-duty metal cutting applications.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

STANDARD FEATURES

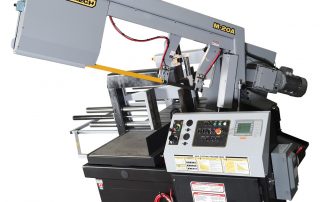

  • Automatic programmable mitering with “go to” angle from 90° to 30°

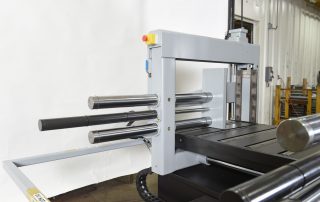

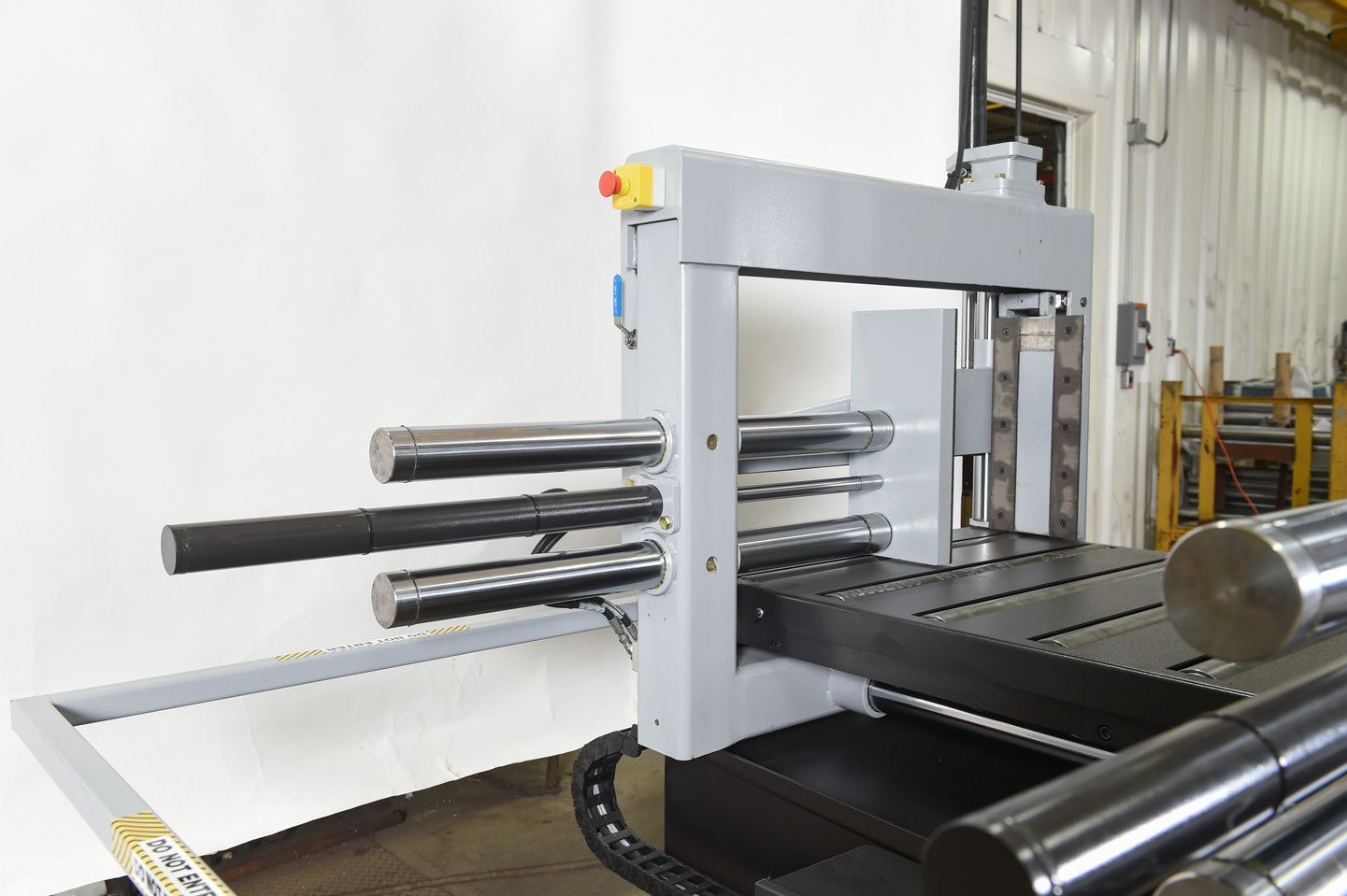

  • Automatic multi-indexing up to 33” in a single stroke.

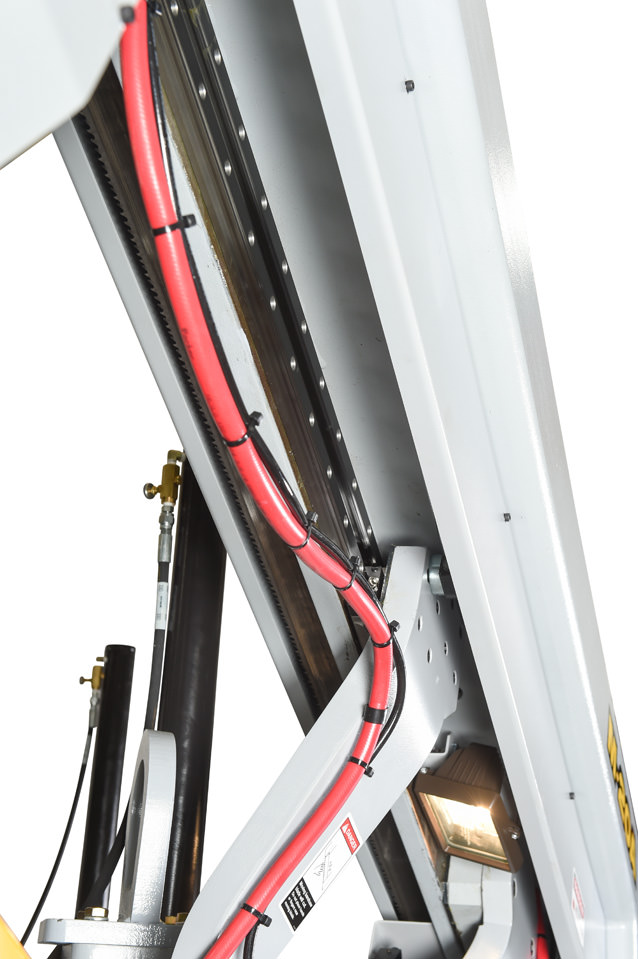

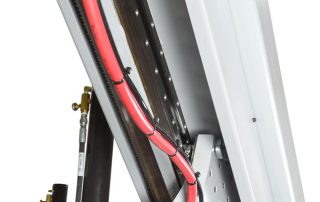

  • Guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

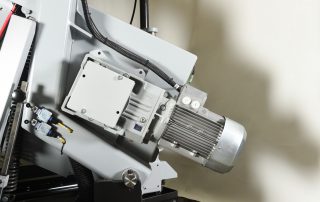

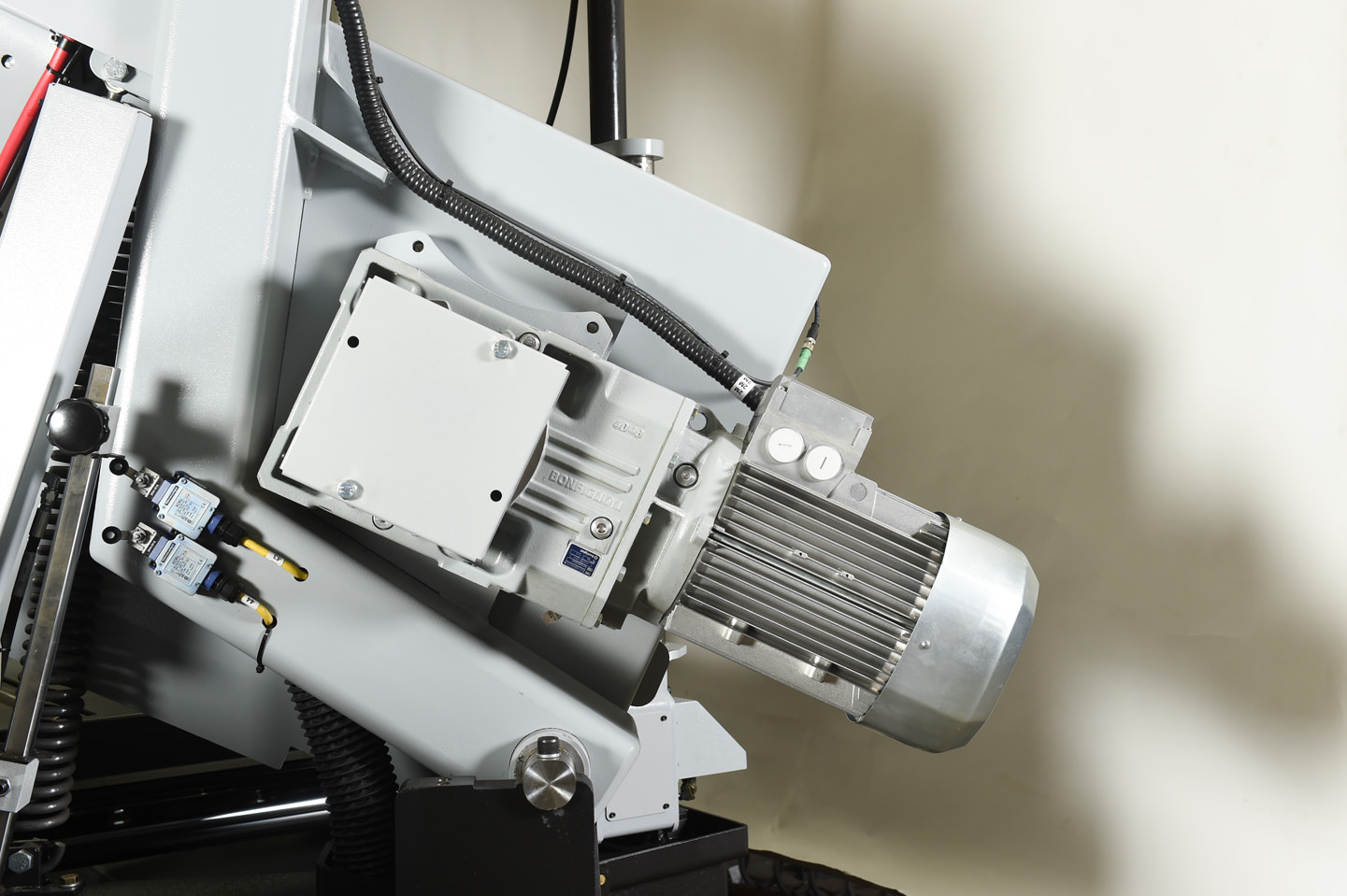

  • 10 HP VFD. True direct blade drive – no belts/pulleys

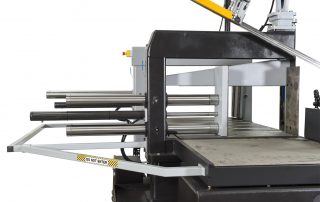

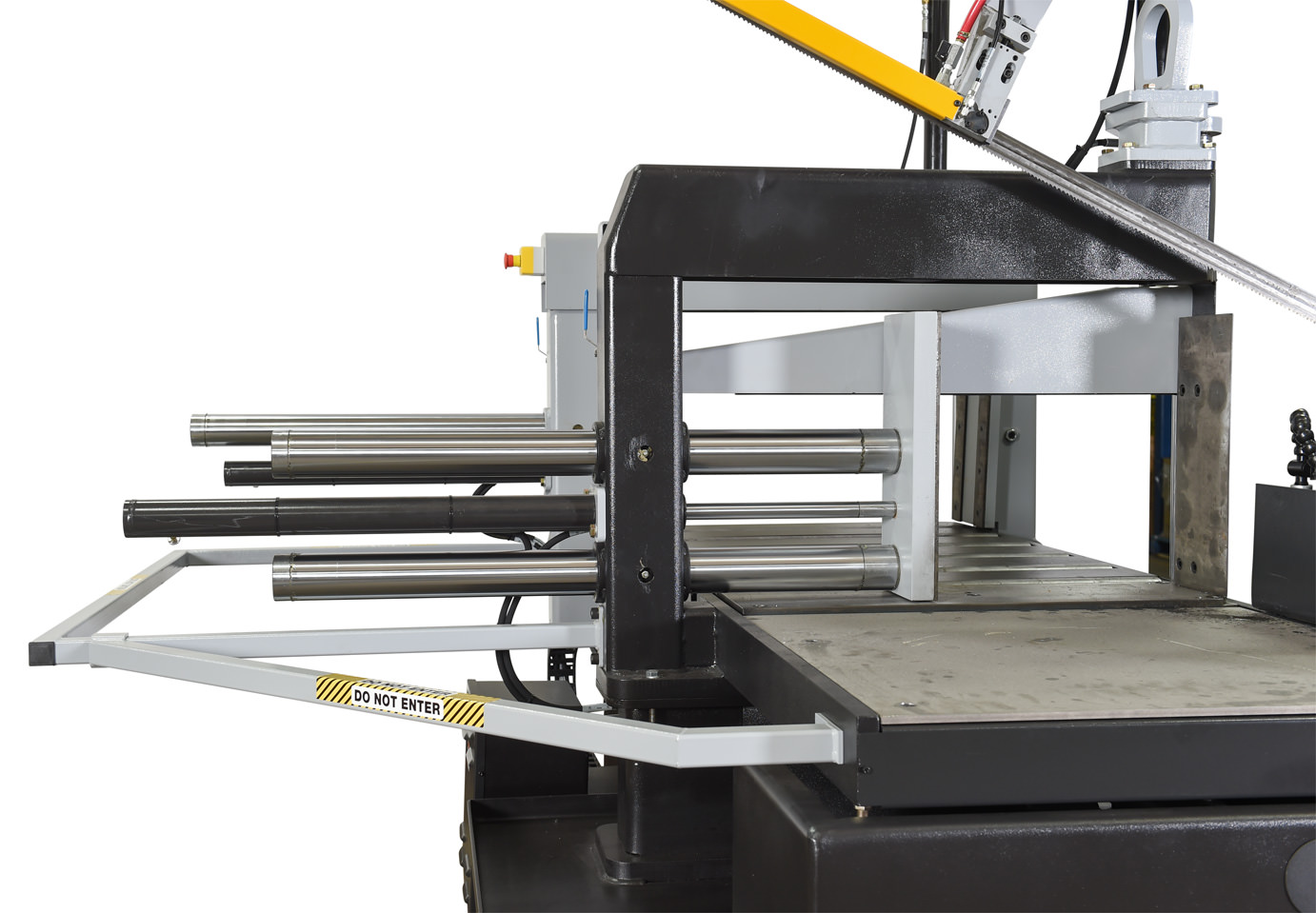

  • Full capacity, full stroking hydraulic vises

  • Hydraulic positive down feed

  • Blade chamber separates material from cut part

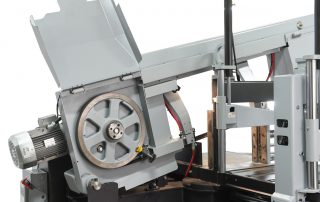

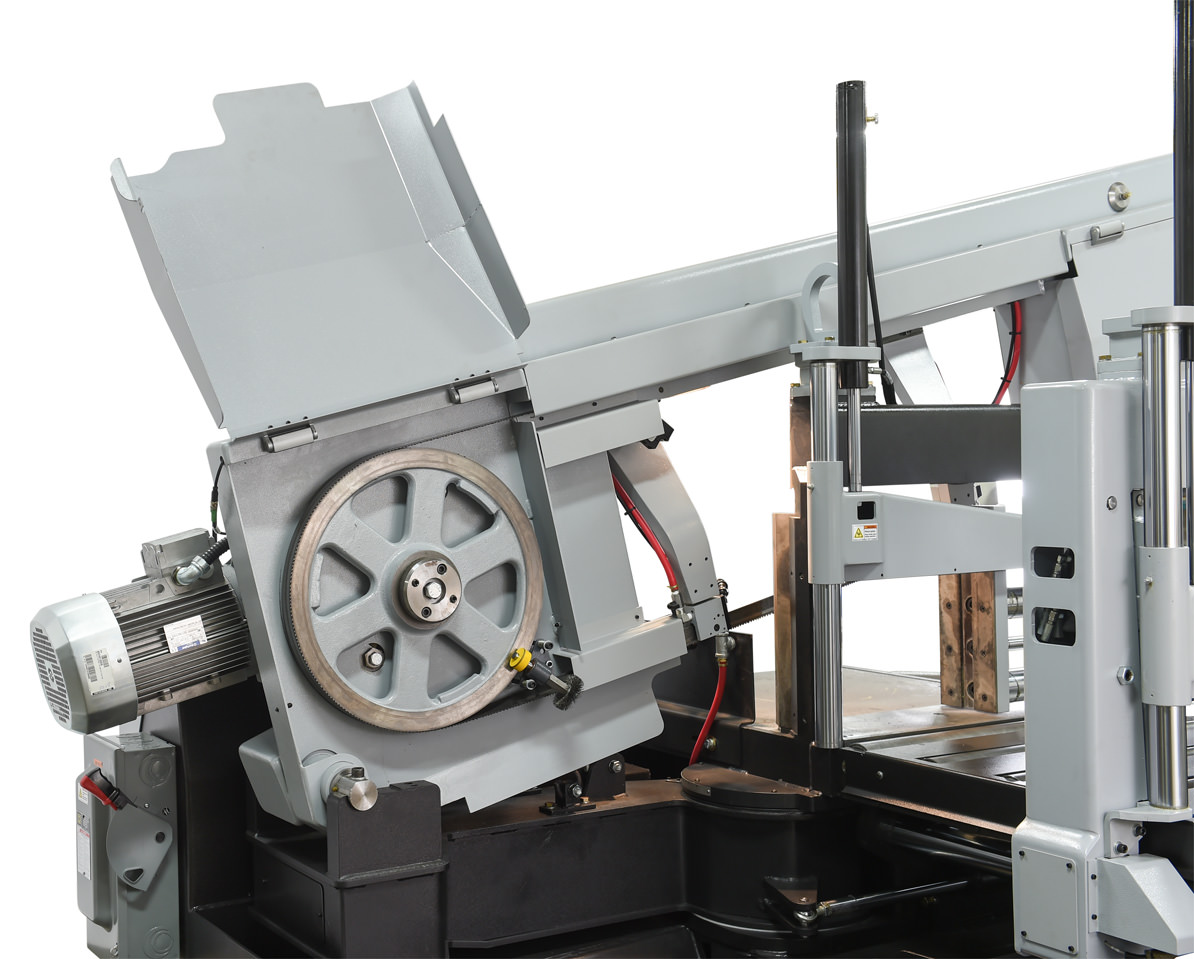

  • Cast iron band wheels

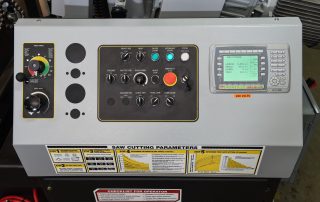

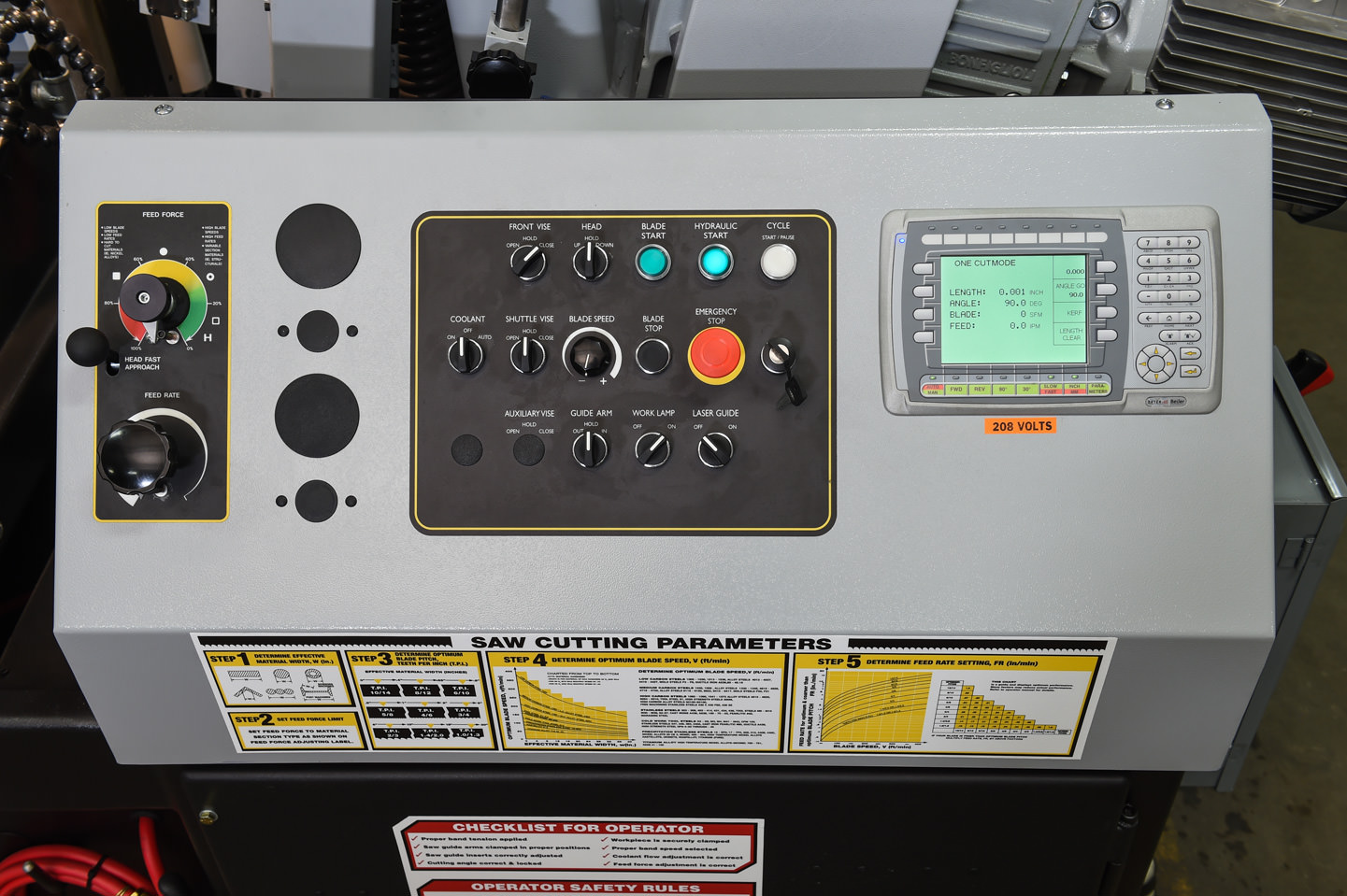

  • Automatic PLC control programmable up to 99 jobs with 5 in queue.

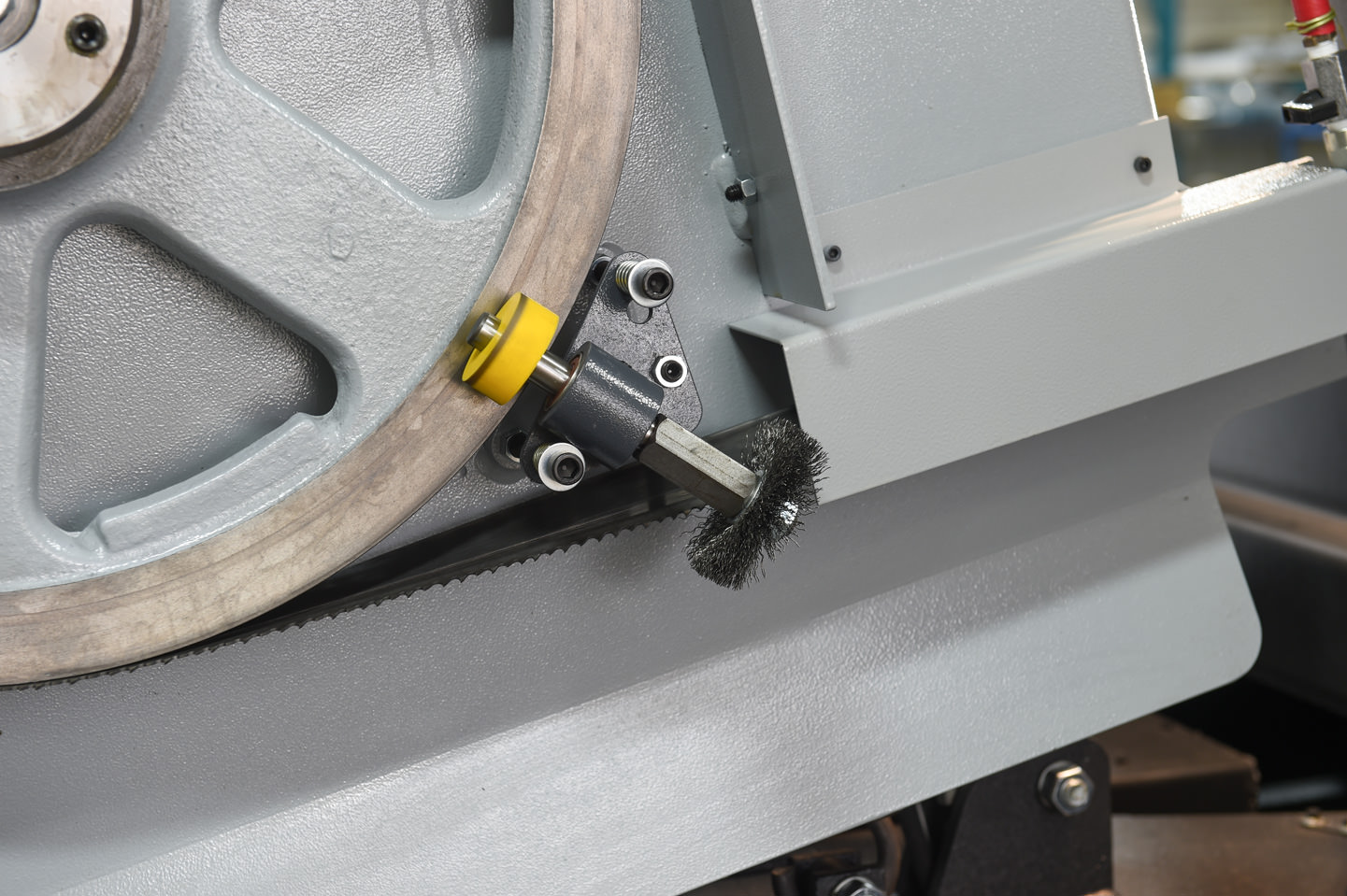

  • Replaceable blade brush

  • Robust steel base

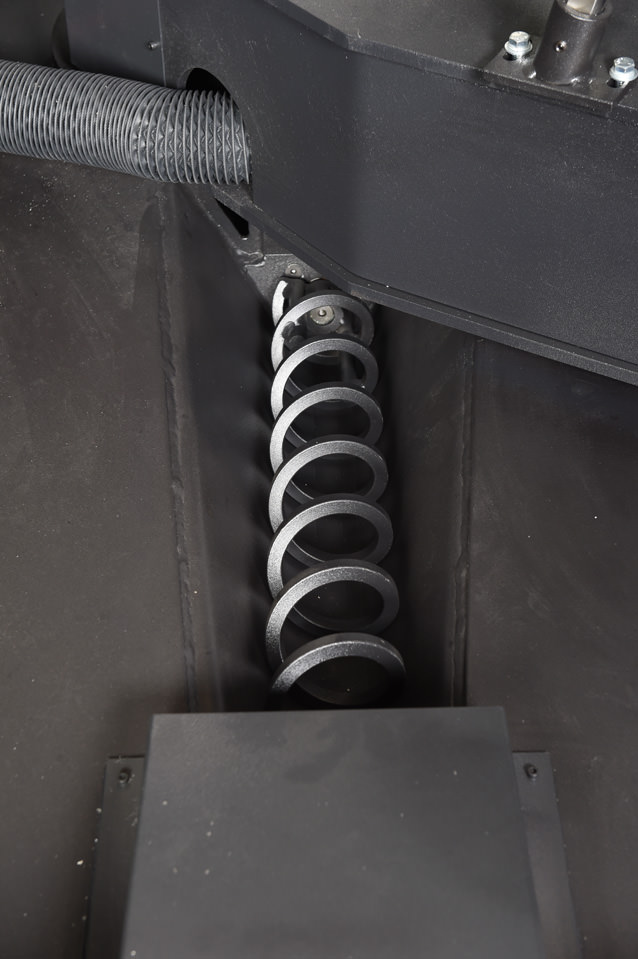

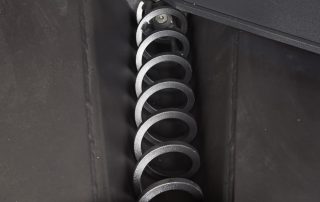

  • Automatic chip removal auger

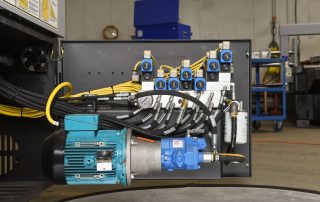

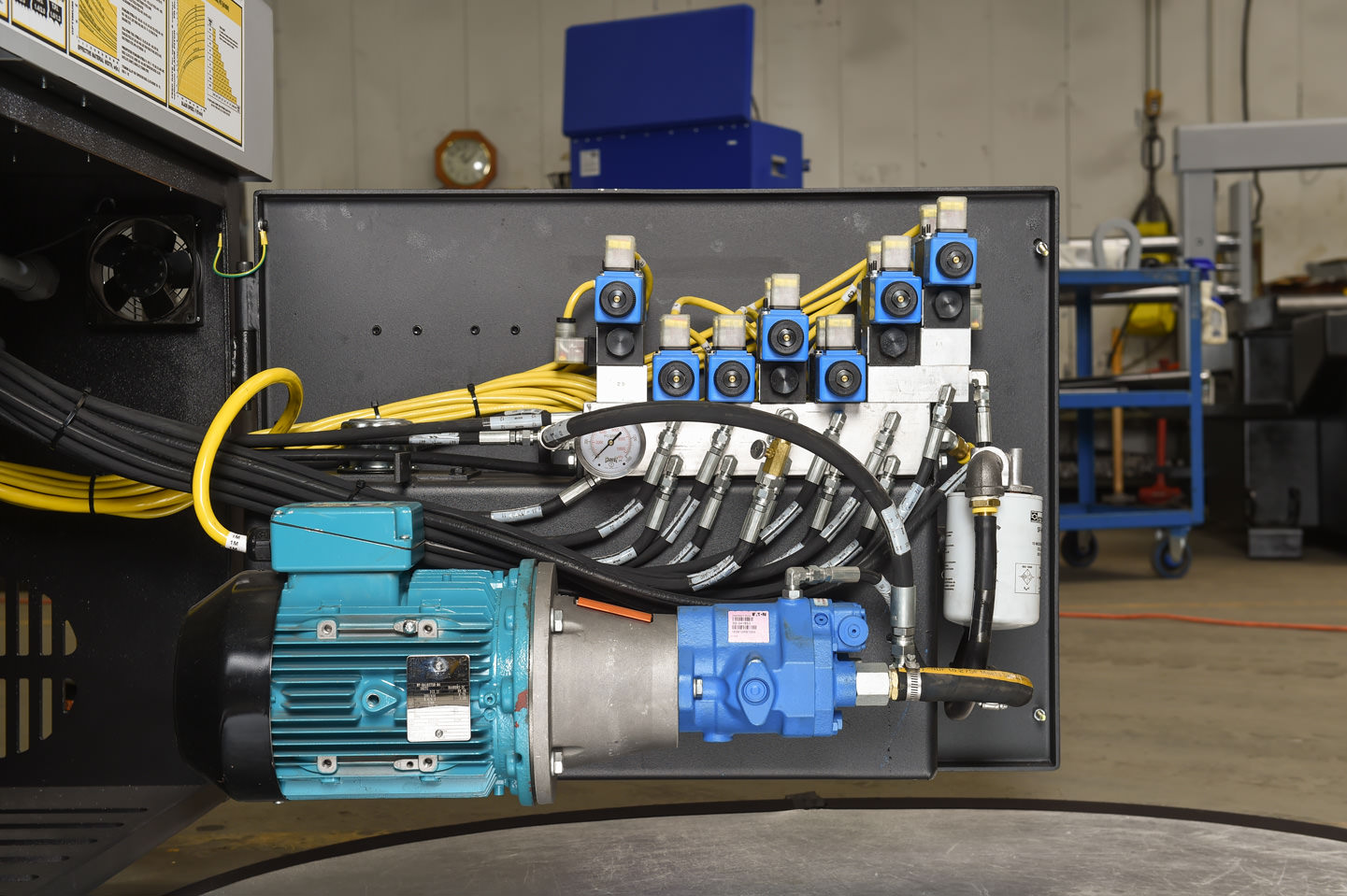

  • Easy access electrical panel and hydraulics

  • Blade breakage switch

  • Hardened replaceable wear plates on material vises

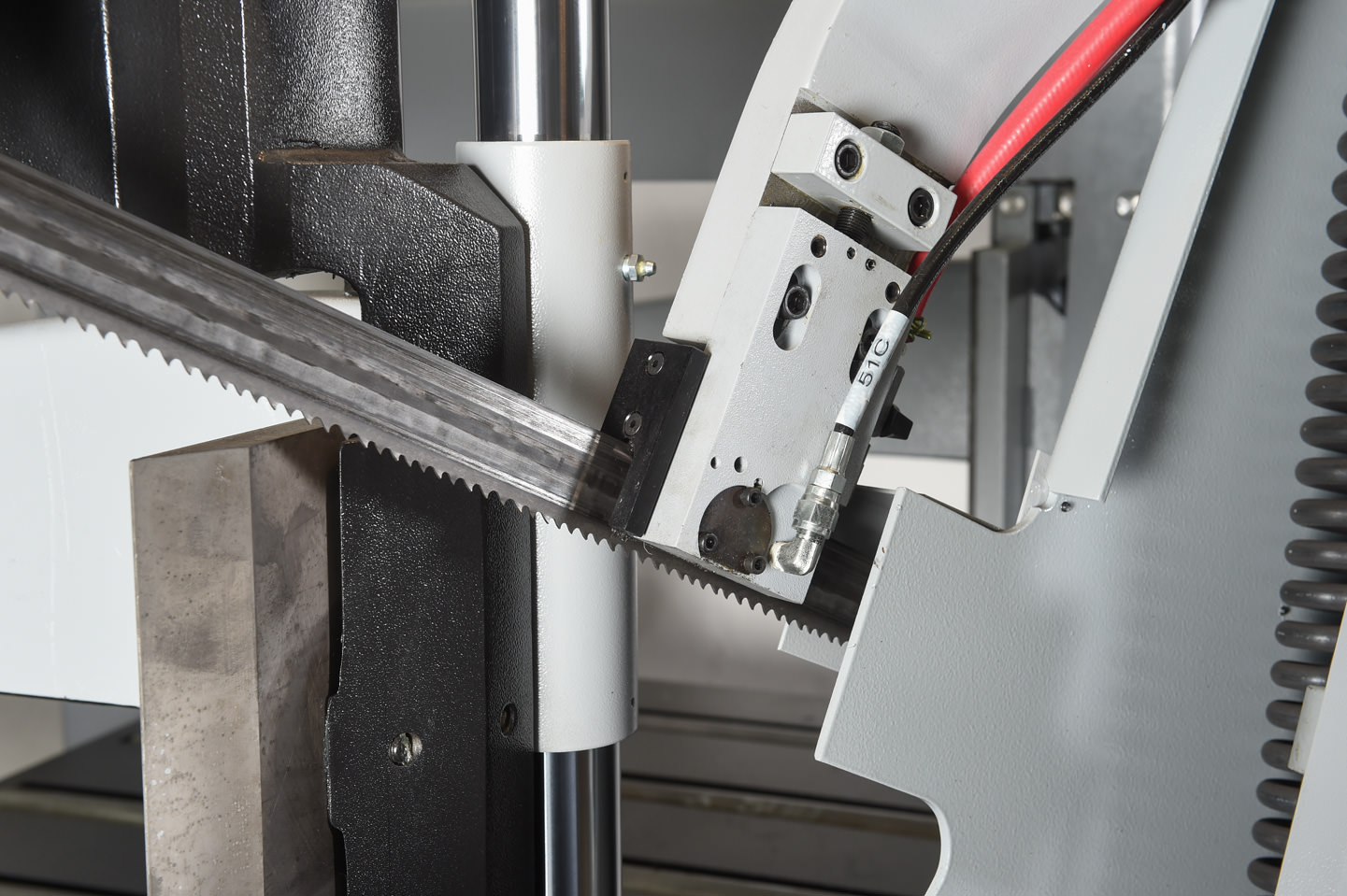

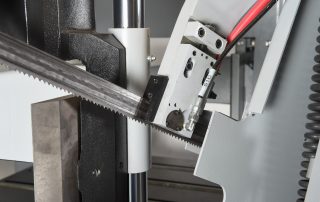

  • Hydraulic band and carbide guide tensioning

  • Safety door interlocks

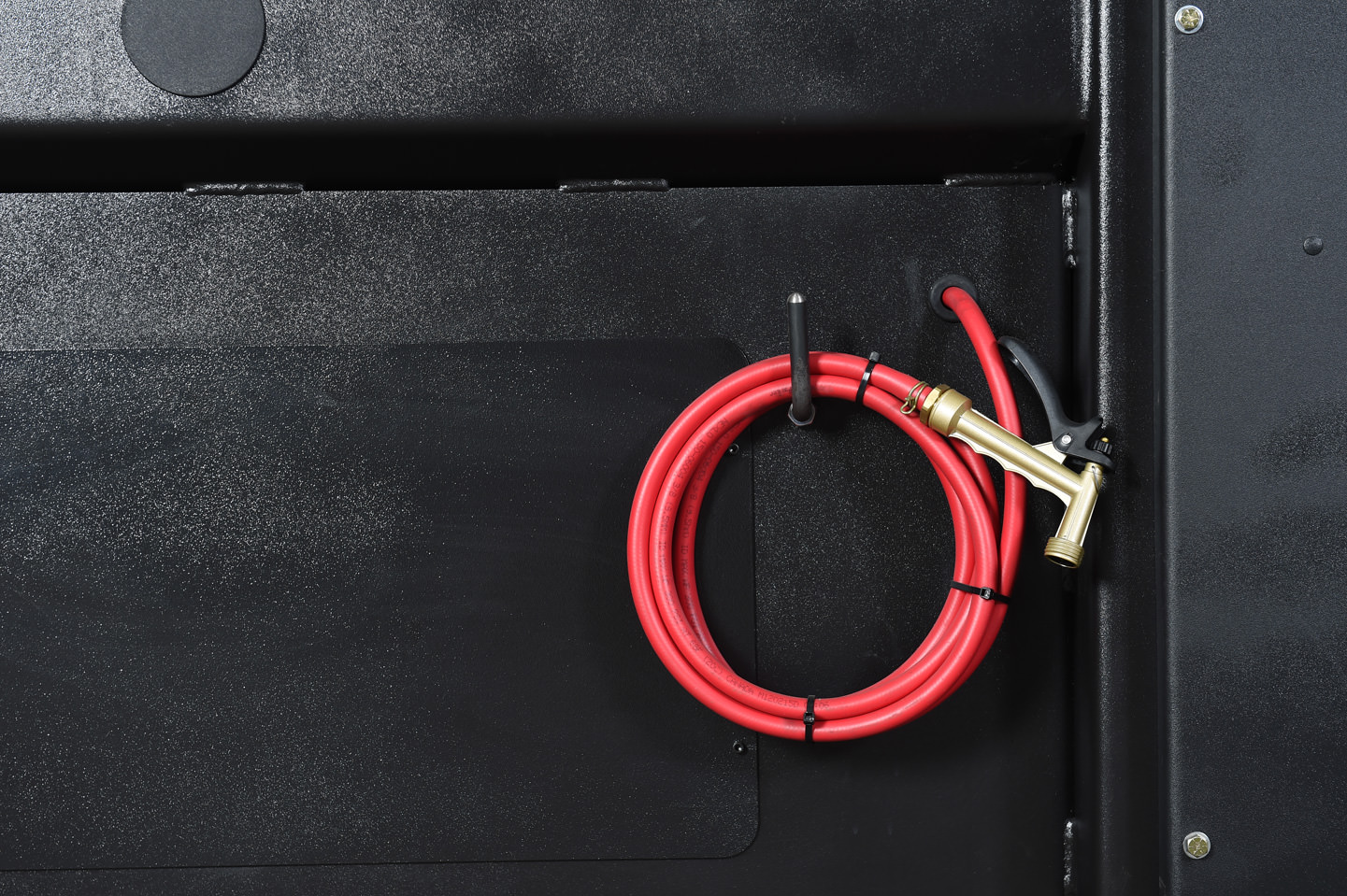

  • Flood coolant with wash down hose

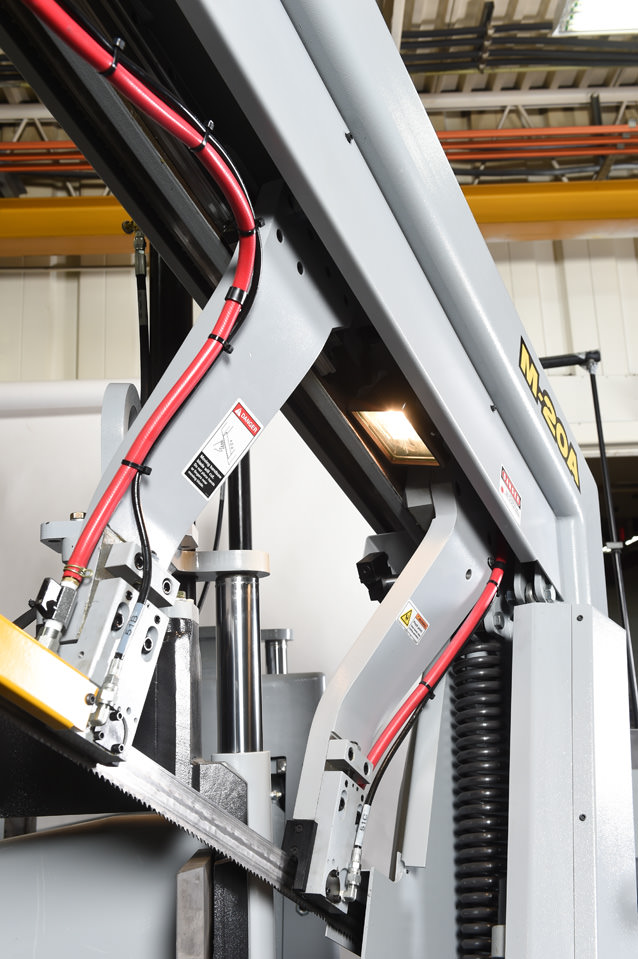

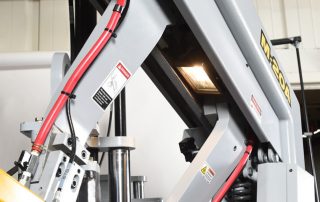

  • Laser light

  • Work Light

  • Out of stock switch

  • Variable vise pressure

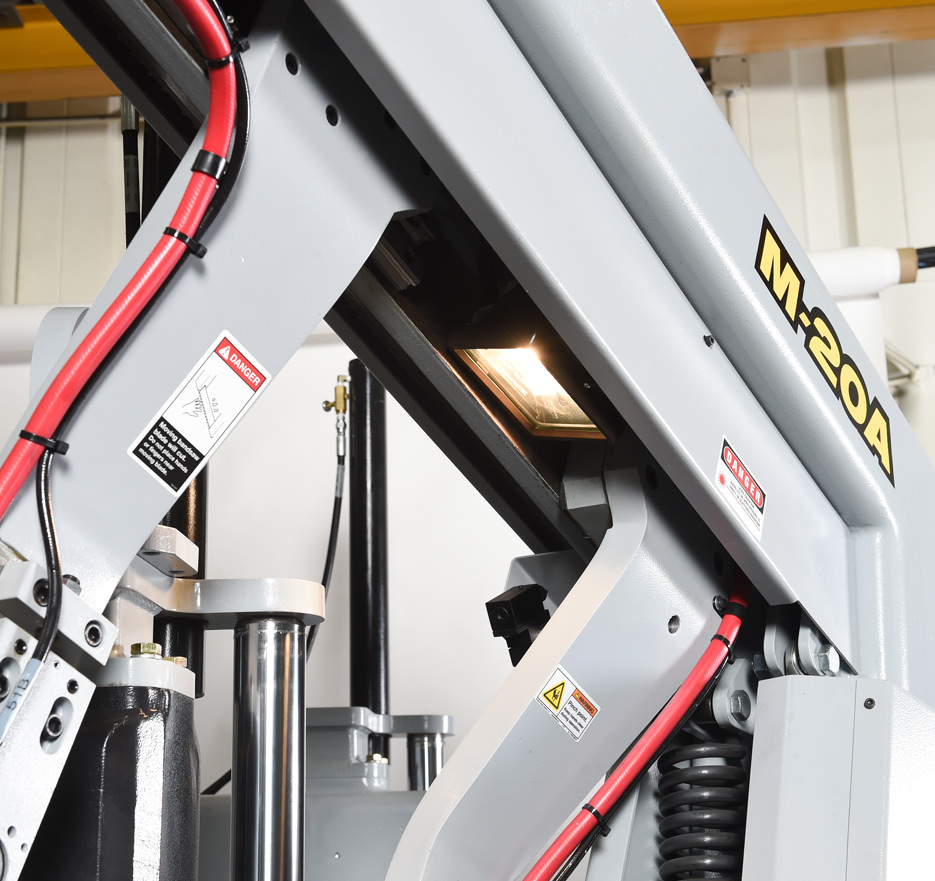

M-20A Hydraulic Guide Arm Positioning

Hydraulic Guide Arm Positioning

Hydraulic guide arm positioning for faster set up times operator doesn’t have to manually position.

M-20A Auto Angle Positioning

Auto Angle Positioning

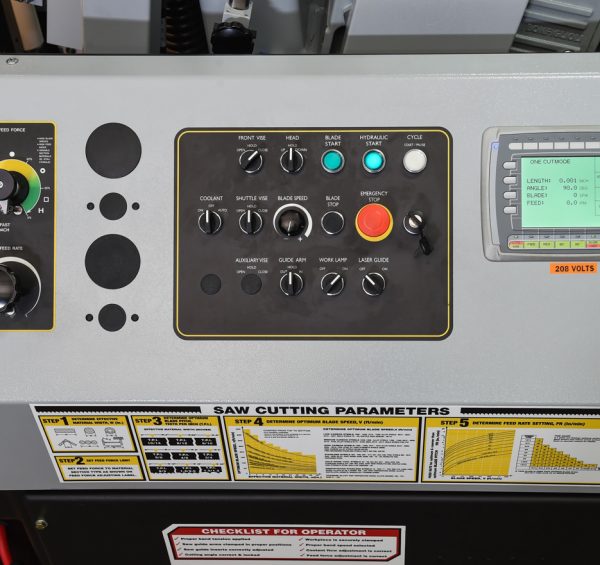

Automatic programming with auto angle positioning for faster accurate cycle times. The machine will automatically index and miter material.

M-20A Dual Down Feed

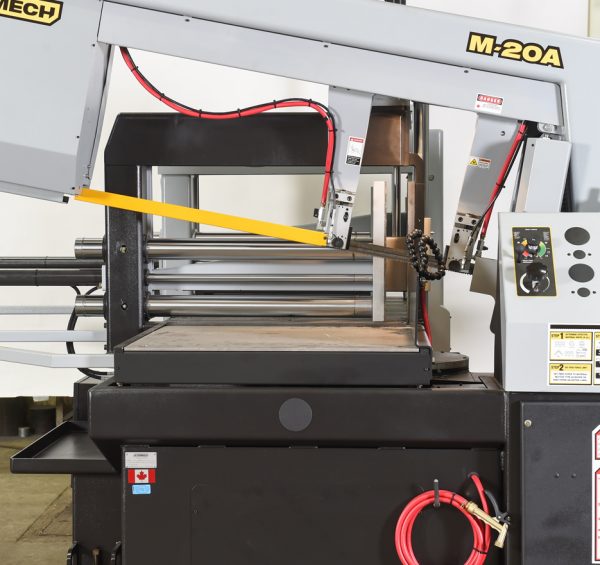

Dual Down Feed

Efficient dual hydraulic down feed rate and force controlled. The feed will automatically adjust based on cross-section of the material. This allows for better cutting rates and longer tool life.

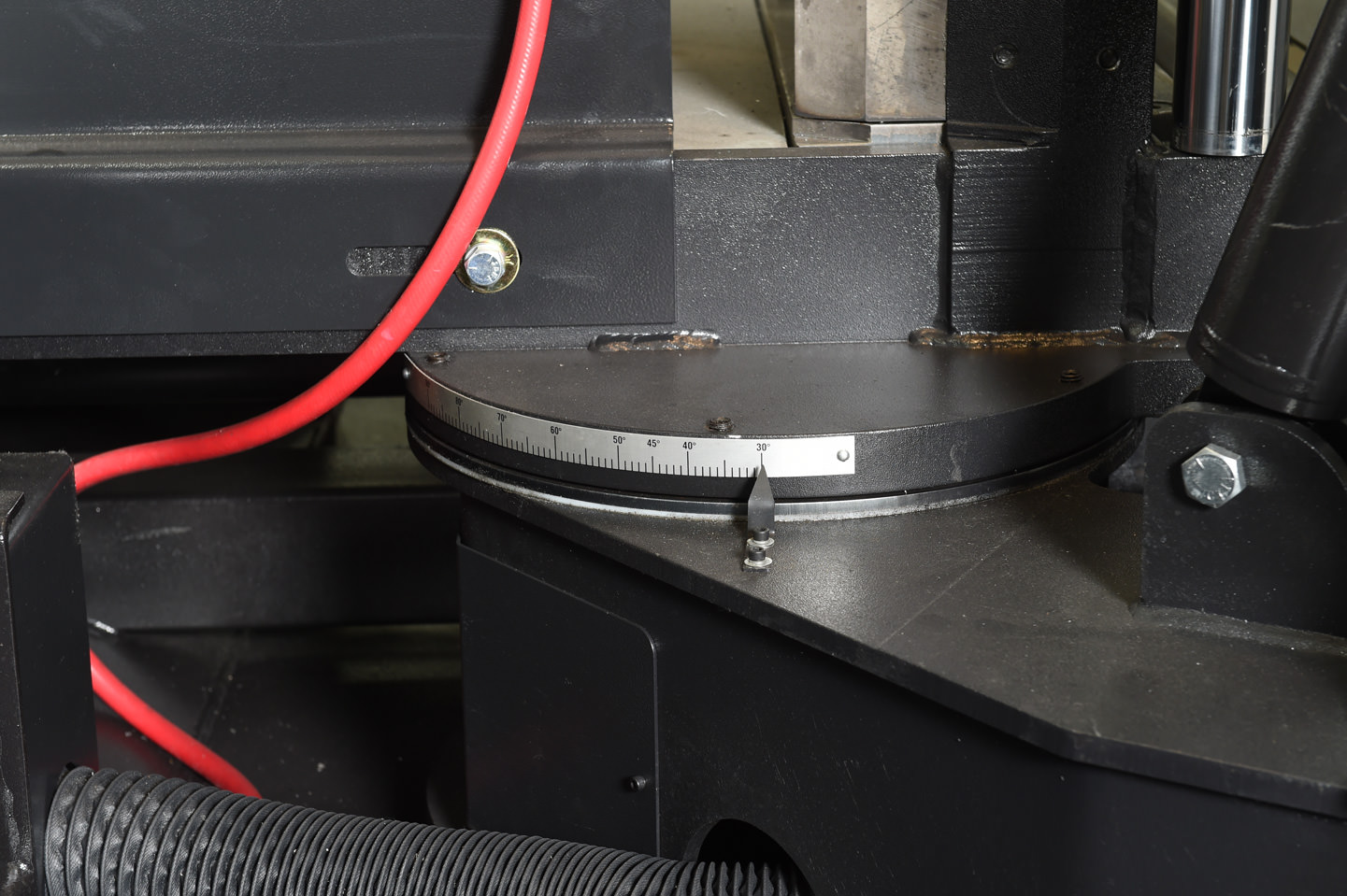

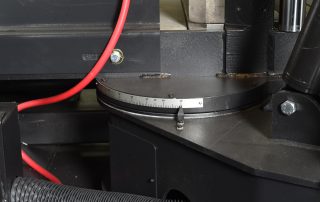

S-20 Horizontal Pivot Band Saw Angle Measurement

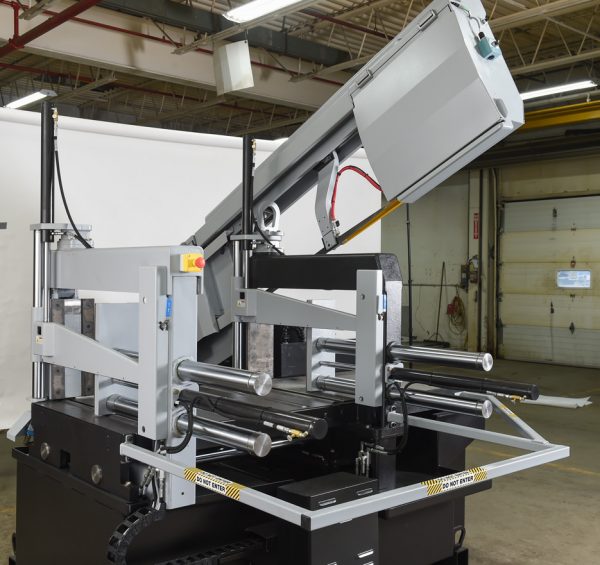

33″ Single Index Stroke

Anything 33” and under can be cut in one single index. All programming is done at the operator control with no walking around the machine to set stops. Automatic kerf compensation is standard.

OPTIONAL FEATURES

  • Blade deviation monitor

  • Full capacity hydraulic overhead bundling

  • Chip bucket

  • Remote console

  • Mist lubrication

  • Outboard vise

  • Outboard vise with bundling

  • Vertical rollers

  • Idler conveyors and accessories

  • Powered conveyors and accessories
Download Brochure
Download Layout Drawing
