CNF400CNC CIRCULAR COLD SAW

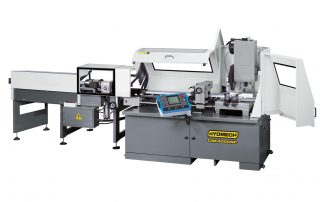

CNF400CNC machine shot

Automatic Vertical Column Cold Saw

The CNF400CNC is an automatic vertical column cold saw that miters from 60° left to 45° right.

The CNF400CNC has a standard 40″ single stroke, multi-indexing material feed system.

Featuring a 5″ round hollow capacity at 90°, 6 HP motor, and 15 3/4″ blade, the CNF400CNC automatic cold saw is the ideal choice for quick, clean, accurate cutting of non-ferrous metals.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

  • Automatic operation

  • Shuttle features automatic multi-indexing up to 40” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.

  • Head stroke is set directly from control panel

  • Two blade speeds achieve speeds of 1700 or 3400 rpm

  • Warning indicator with flashing light in case cycle stops

  • Pneumatic vertical vise

  • Robust sawing head miters 45° left and right, and 60° left

  • Heavy duty sawing head movement controlled by pneumatic cylinder. Head moves on adjustable dual precision linear rails

  • 6 HP blade drive coupled directly to saw head guarantees high rigidity and precision to obtain high chip removal rates.

  • Pneumatic horizontal operating vise capable of sliding on dovetail to adjust with saw head mitered position

  • Enclosed steel base coolant tank

  • Replaceable blade brush

  • Ergonomically positioned MEP 40 control panel includes emergency stop, programming console, digital display for machine diagnostics, as well as cutting parameters: blade speed, cut time, and cut quantity. Store up to 32 jobs.

  • Automatic mist lubrication activates during the cut

OPTIONAL FEATURES

  • Second pneumatic vise

  • CB6001 automatic incline loading table

  • Foot pedal with e- stop

  • T2500 chip collector

  • Double suction system

  • Short remnant
