The H-40/80 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-40/80 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.

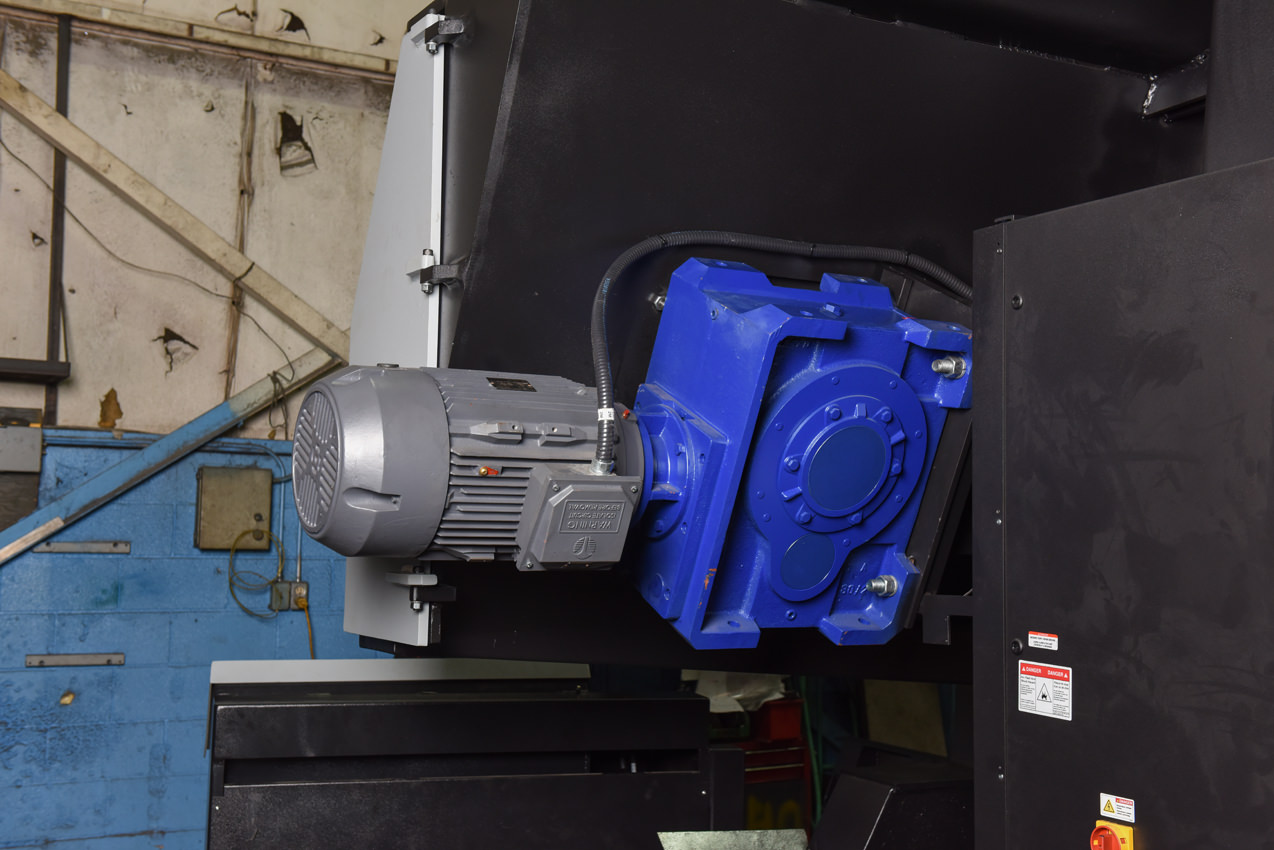

Featuring a 40″H x 80″W capacity, 20 HP motor, and 3″ blade, the H-40/80 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
