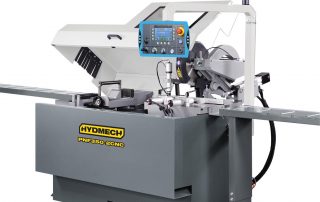

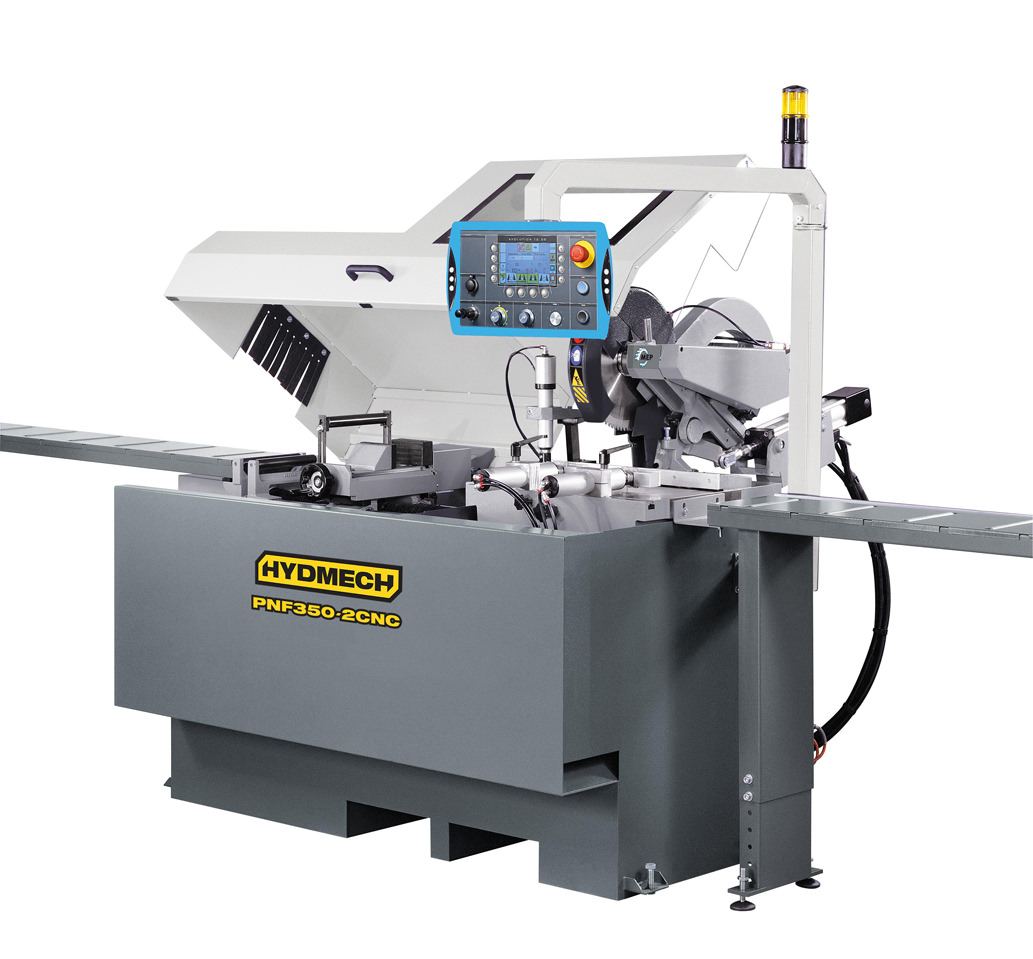

PNF350-2CNC CIRCULAR COLD SAW
Automatic Programmable, Pivot Arm Cold Saw
The PNF350-2CNC is an automatic programmable, pivot arm cold saw that is used to cut non-ferrous metals.
The PNF350-2CNC miters from 45° left to 45° right. It also features a robust sawing head that can tilt 45° for compound miter cutting. This model has an automatic shuttle system capable of indexing 23″ in a single stroke.
Featuring a 4 3/4″ round hollow capacity at 90°, 2.5/5 HP motor, and a 14″ blade, the PNF350-2CNC is the ideal choice for quick, clean, accurate cutting of non-ferrous metals.
|Round Hollow 90°||4 3/4”|
|Square Hollow 90°||4”|
|Rectangular Hollow (hxl) 90°||7” x 2 3/4”|
|Blade Size||Max. 14″|
|Blade Drive||3.5/5 HP VFD|
|Blade Speed||1700 and 3400 rpm|
|Machine Weight||1267 lbs.|
|Dimensions (w x l x h)||93” x 67” x 69”|
|Round Hollow 90°||120 mm|
|Square Hollow 90°||101 mm|
|Rectangular Hollow (hxl) 90°||178 mm x 70 mm|
|Blade Size||Max. 355 mm|
|Blade Drive||2.6/3.7 KW|
|Blade Speed||102,000 and 204,000 rph|
|Machine Weight||575 kg|
|Dimensions (w x l x h)||2362 mm x 1702 mm x 1752 mm|
Automatic and semi-automatic operation
Shuttle features automatic multi-indexing up 23” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
Pneumatic operating saw head feed with regulating dial for feed rate on control panel

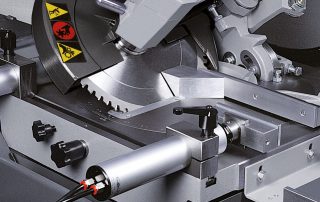

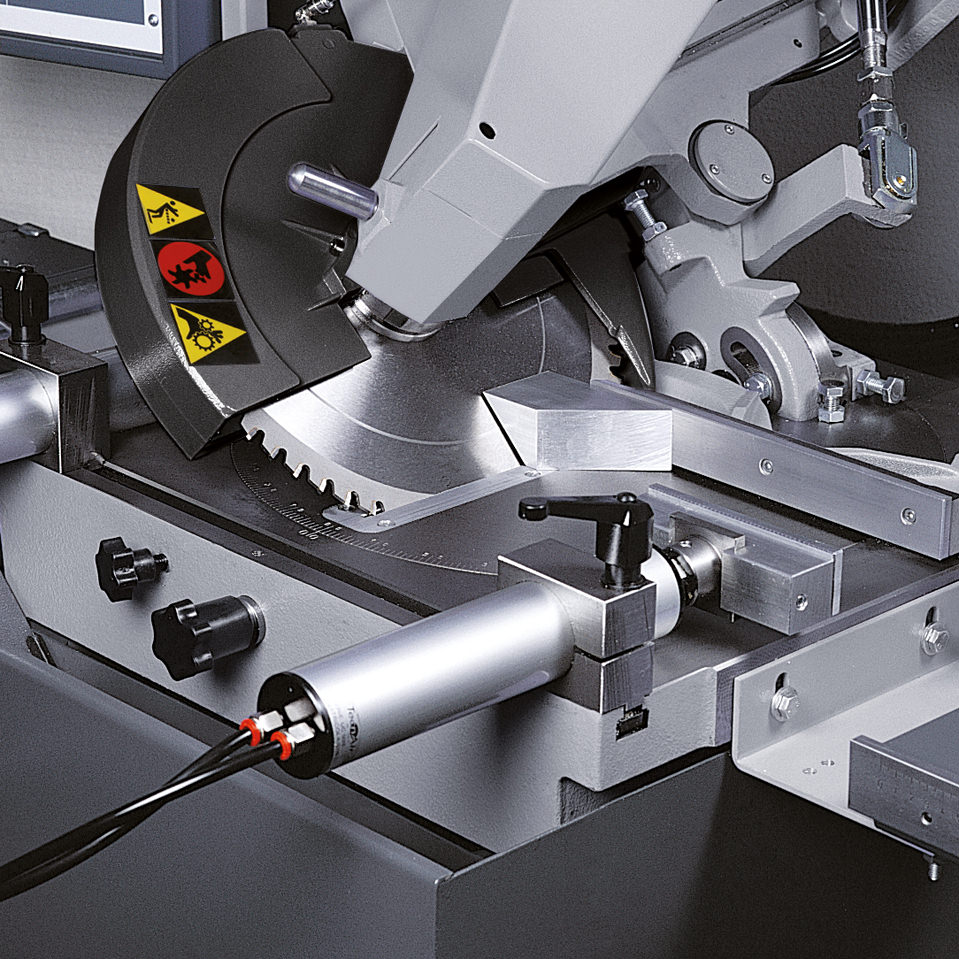

Robust sawing head can tilt 45° for compound miter cutting
Two blade speeds achieve speeds of 1700 or 3400 rpm
Vises are equipped with moveable aluminum jaws which can be adjusted vertically
Rotating table mounted on large roller bearing to achieve smooth and precise miter cutting. Features stops at 90° and 45° plus screw locking system to lock head at desired degree.

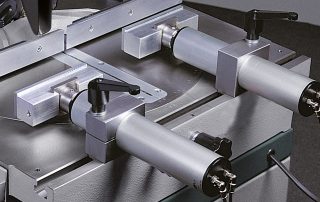

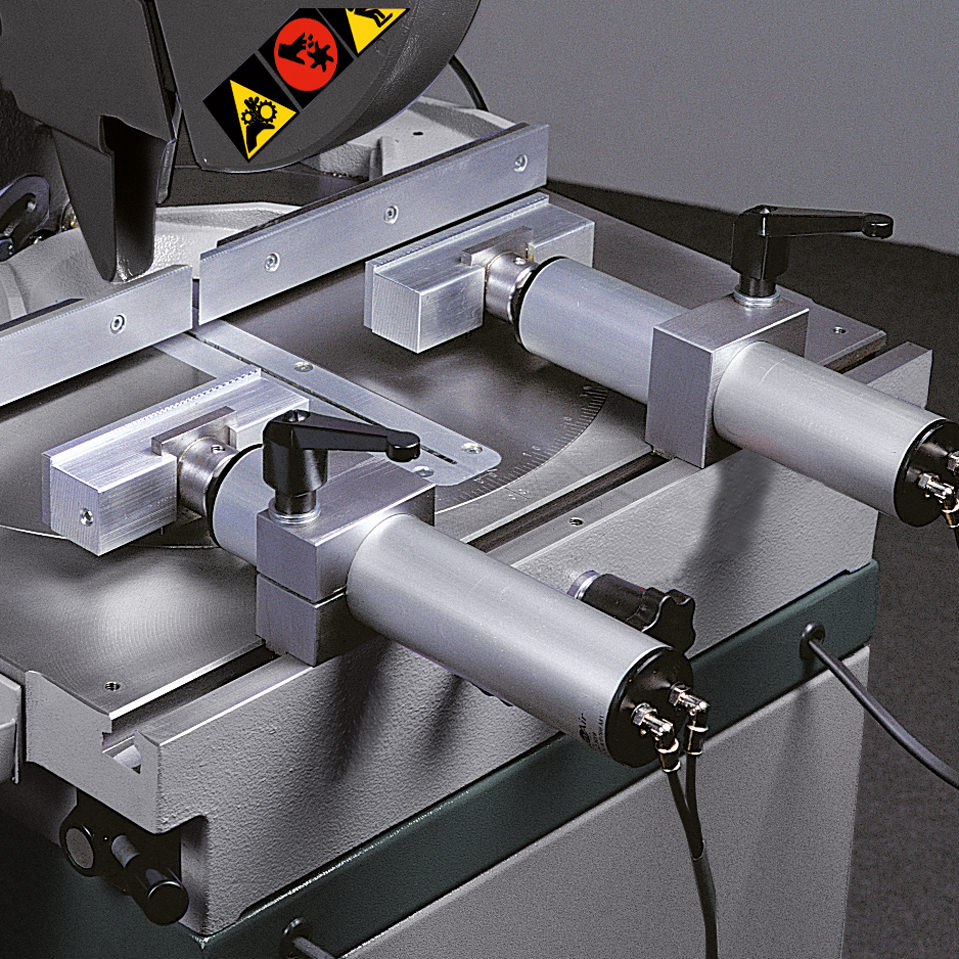

Two pneumatic operating vises, capable of sliding in or away from the blade to adjust saw head in mitered position
3.5/5 Hp blade drive coupled directly to saw head guarantees high rigidity and precision to obtain high chip removal rates.
Cutting area enclosed behind protective cover which swings up for loading material

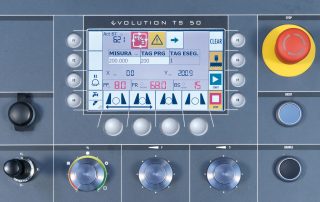

Ergonomically positioned control panel mounted on an articulating arm, with protected membrane buttons for operation control. Includes emergency stop, set or view machine diagnostics and operations such as saw stroke limits and speed, cutting programs, digital display of programs, blade speed, cycle time along with 40 different machine diagnostics and warnings. Store up to 99 jobs.
One carbide tipped blade included

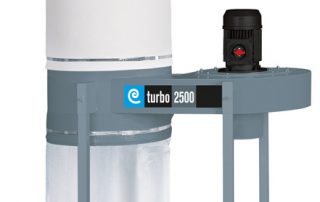

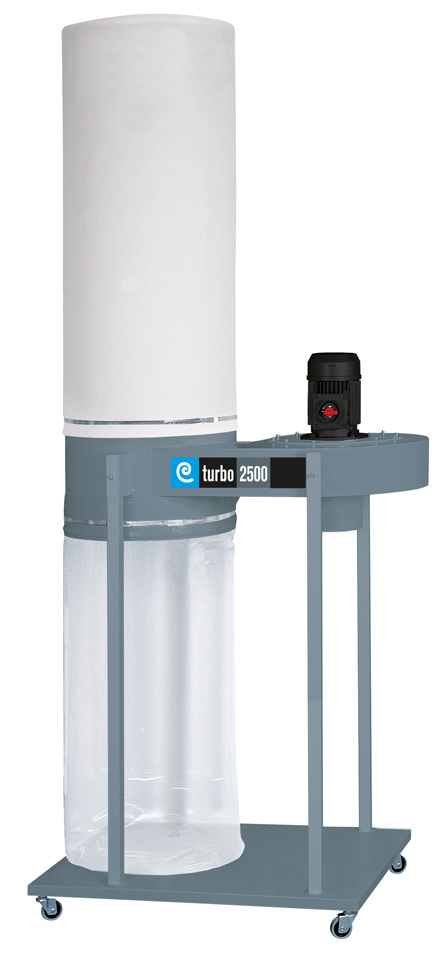

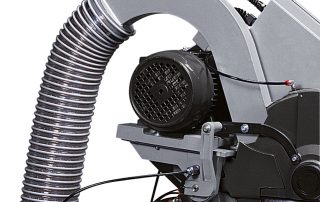

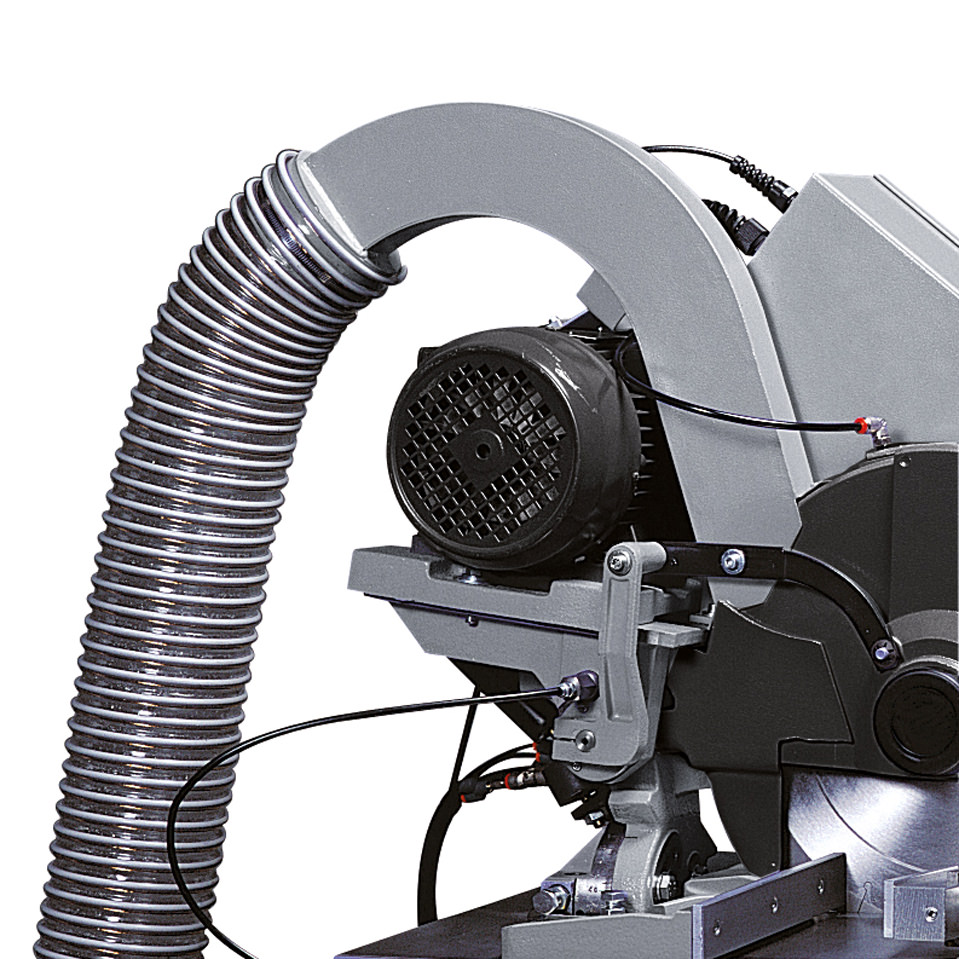

T2500 chip collector

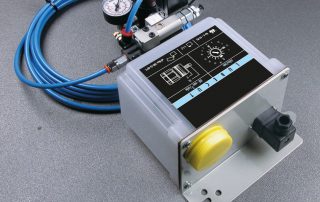

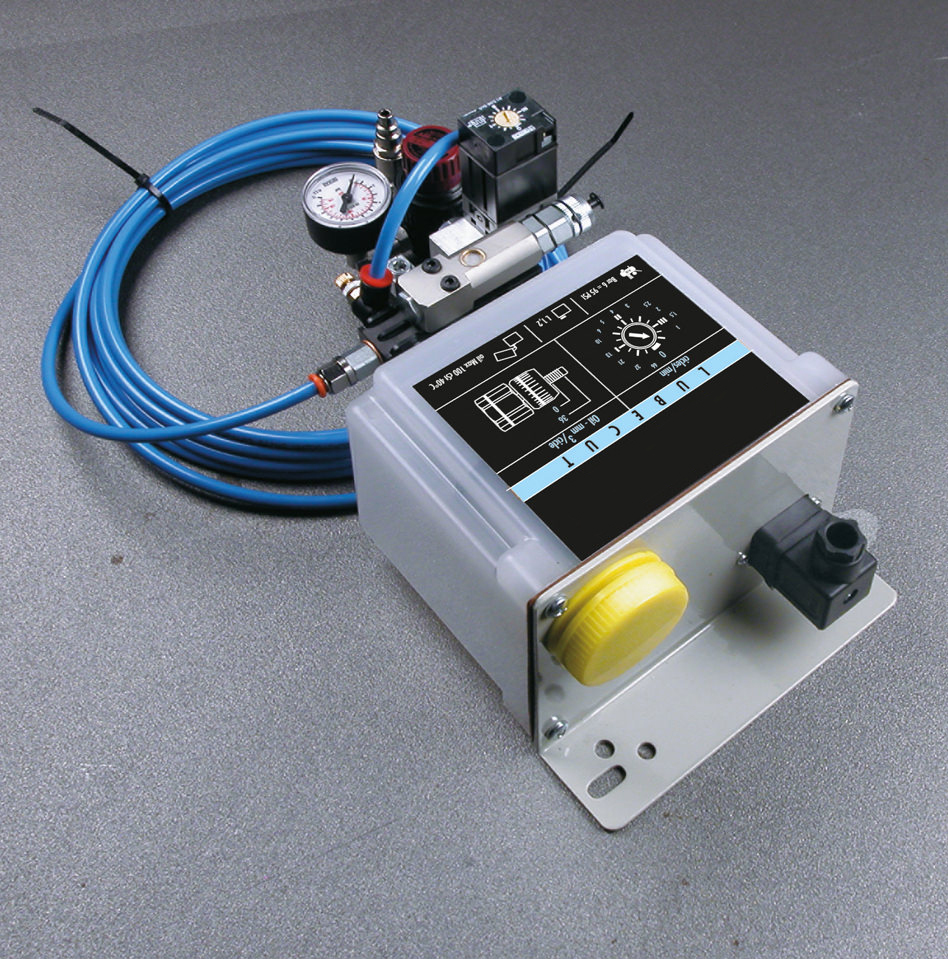

Mist lubrication system

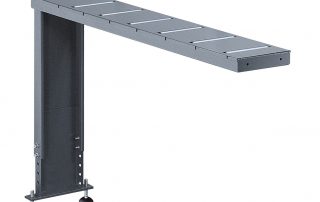

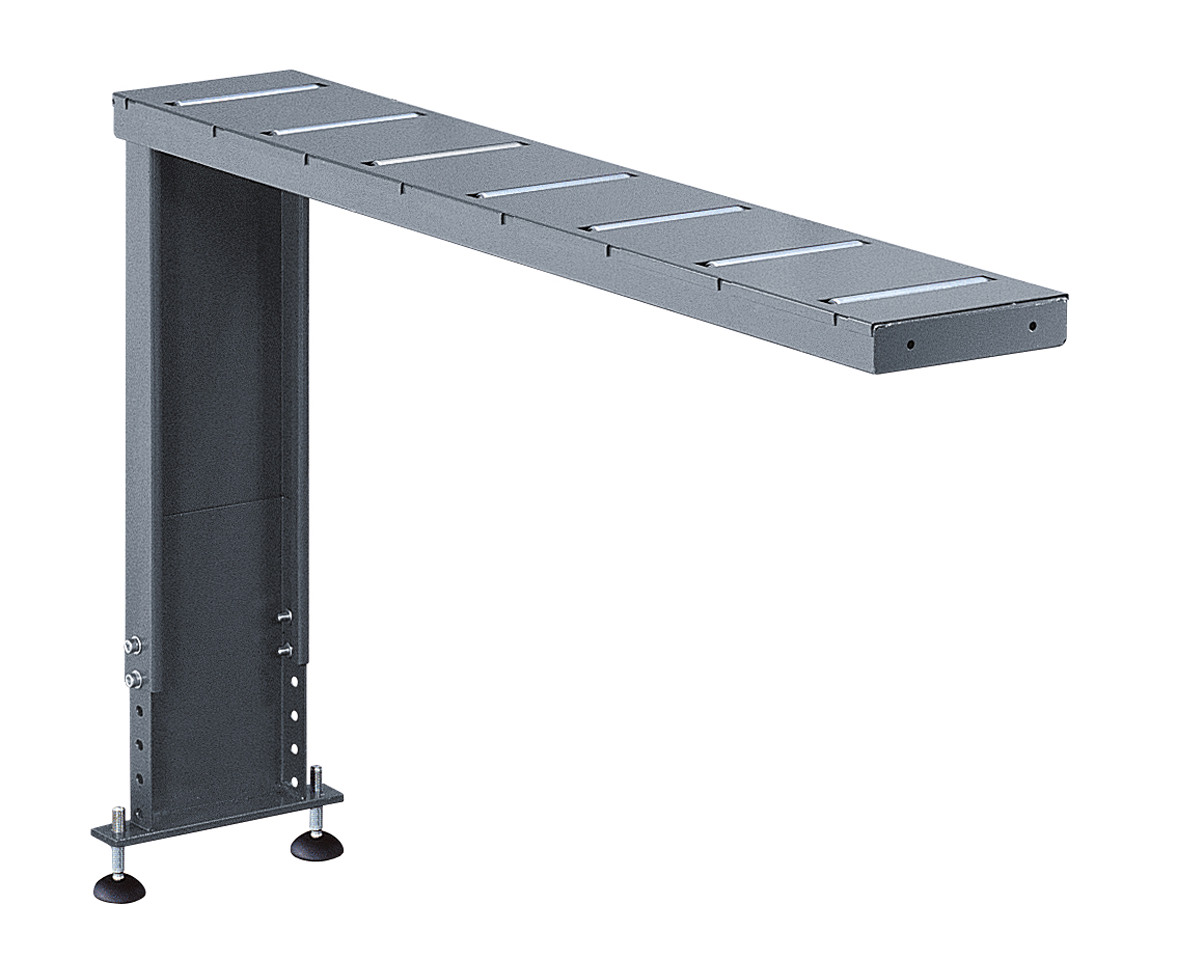

Roller table & accessories
