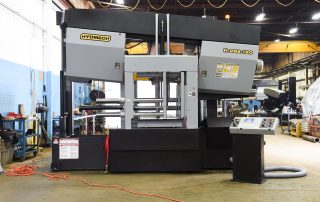

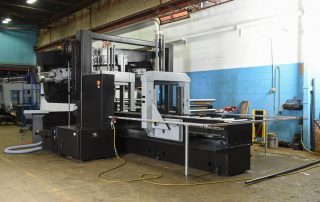

H-28A-120 HORIZONTAL BAND SAW

The H-28A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-28A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement with weight capacities up to 15,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 120″ bar feed, 24″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	24″ x 28″	25″
Blade Size	2″ x 25′
Blade Drive	10 HP
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	40-300 SFM
Automatic Multi-Indexing	0-120″
Machine Weight	25,700 lbs
Table Height	37″
Dimensions (w x l x h)	161″ x 230″ x 120″

METRIC

Capacity	Rectangular (h x w)	Round
90°	609 mm x 711 mm	609 mm
Blade Size	54 mm x 7620 mm
Blade Drive	7.5 kW
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	12-91 m/min
Automatic Multi-Indexing	0-3000 mm
Machine Weight	11,681 kg
Table Height	939 mm
Dimensions (w x l x h)	4089 mm x 5842 mm x 3048 mm

STANDARD FEATURES

6 degree canted head
Spilt front vise. Can be replaced by request with retractable datum vise at no charge

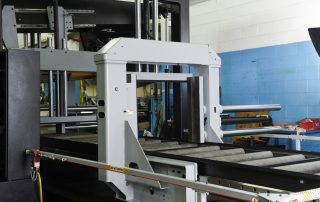

Shuttle features automatic multi-indexing up to 120” in a single stroke with automatic kerf compensation. Powered by a rack and pinion servo drive.
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
Hydraulic positive down feed

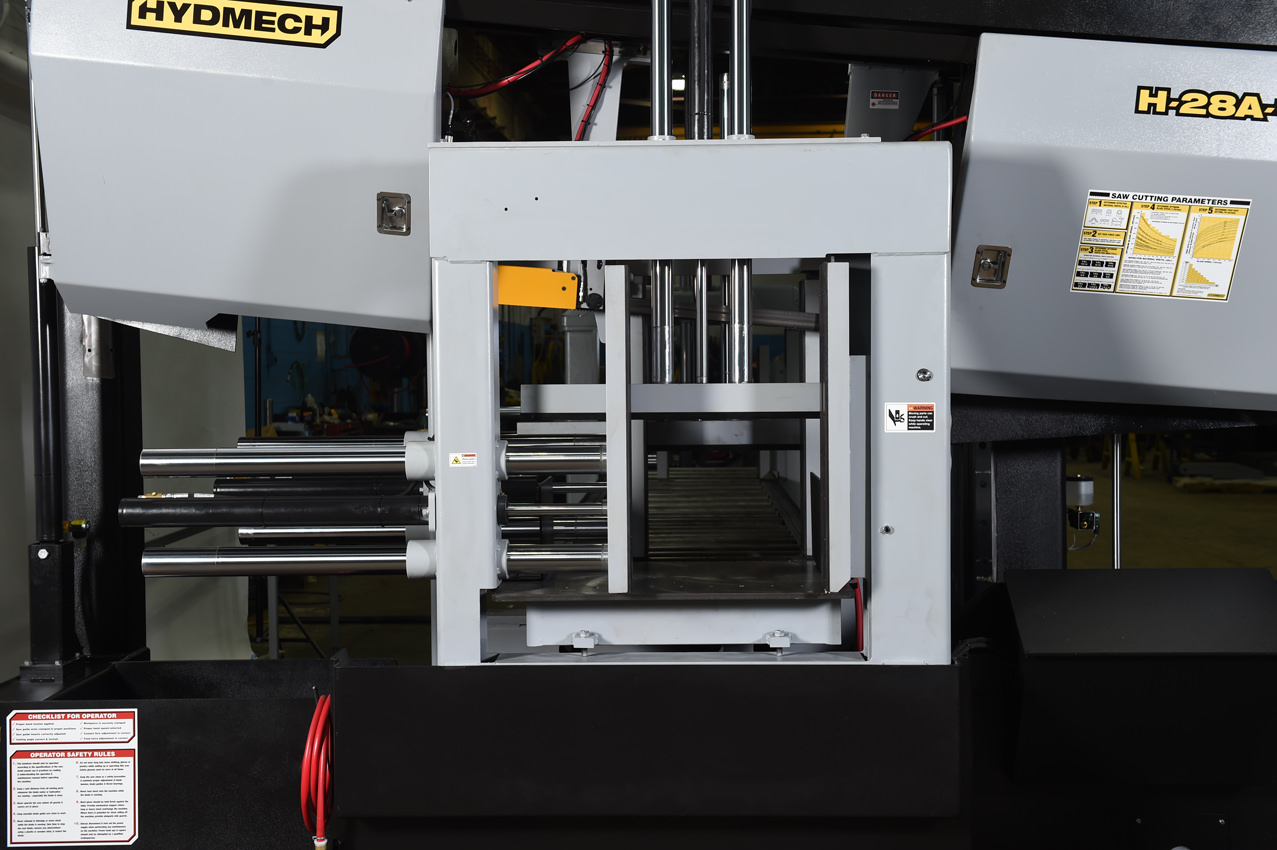

Full capacity hydraulic overhead bundling
10 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
7” color touch screen HMI. Mitsubishi FX5U PLC. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Out of stock switch
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
5 HP hydraulic pump provides system pressure
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Laser light
Variable vise pressure

10’ Bar Feed

10’ bar feed with servo drive processes longer pieces with less cycle time. Its high speed shuttle feed indexes up to 120″ in a single movement.

Full Capacity, Full Stroking Vises

Allow you to operate the vises faster and hold large pieces better. Full height vises allow you to hold large objects more efficiently, like I beams. Full stroking vises mean you don’t have to manually change the position of the vise operator.

Chip Conveyor

The chip conveyor makes cleaning the machine easier. It removes the chips from the machine while it is running, which is safe for the operator and clean.

Two Hand Control

Designed for safety, the two button control on the head and the vises, insures that the operators hands are not in the cutting and vising area during saw operation.
