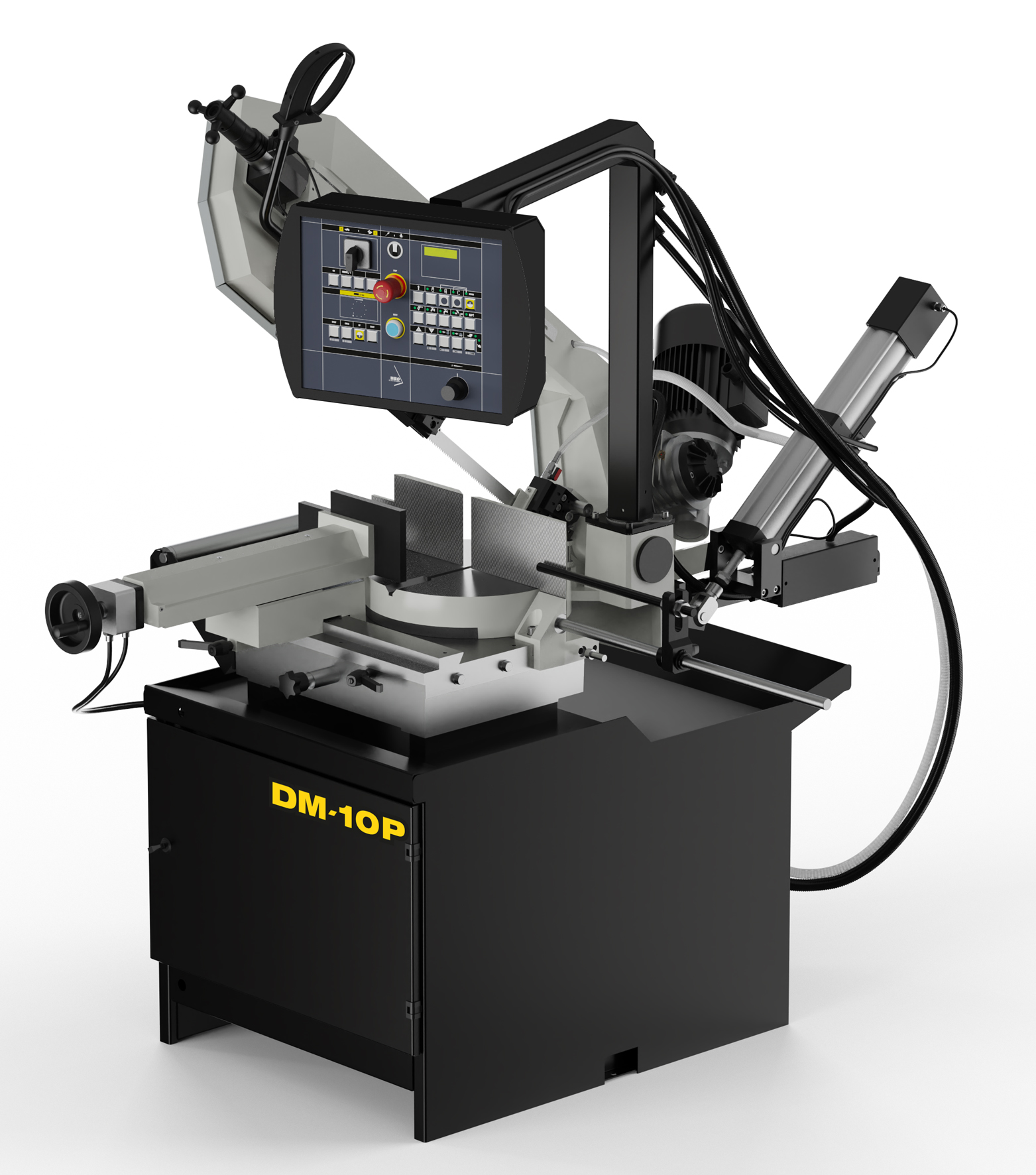

DM-10P DOUBLE MITER BAND SAW
Efficient, Compact, and Built for Precision
The DM-10P double miter band saw combines exceptional cutting performance with the added convenience of semi-automatic functionality—automatically raising the saw head after each cut to reduce operator fatigue and boost productivity.
Its cast iron head and vises deliver superior rigidity to minimize vibration and enhance cutting accuracy. A rotating table with a single cut line ensures the head and blade groove move in unison for smooth, precise mitering.
Compact and user-friendly, the DM-10P is ideal for tight workspaces, with intuitive operator controls and easily accessible electrical components—all designed to keep your workflow moving.
MACHINE SPECIFICATIONS
| Capacity | Rectangular (h x w) | Round |
| 90° | 9 1/2″ x 11″ | 10″ |
| 45° Left | 6 1/4″ x 4 1/2″ | 5 3/4″ |
| 45° Right | 8 1/4″ x 7″ | 7 1/4″ |
| 30° Right | 5″ x 4 1/2″ | 4″ |
| Blade Size | 1” x 9’ 8” | |
| Blade Drive | 2/2.4 HP VFD | |
| Machine Voltage | 480 v (all other voltages require optional transformer) | |
| Blade Speed | two speed 118-236 SFM | |
| Coolant Tank Capacity | 3.5 Gallons | |
| Machine Weight | 970 lbs. | |
| Table Height | 34” | |
| Dimensions (w x l x h) | 39” x 68” x 73” | |
| Capacity | Rectangular (h x w) | Round |
| 90° | 241 mm x 279 mm | 254 mm |
| 45° Left | 159 mm x 114 mm | 146 mm |
| 45° Right | 210 mm x 179 mm | 184 mm |
| 30° Right | 127 mm x 114 mm | 102 mm |
| Blade Size | 25 mm x 2946 mm | |
| Blade Drive | 1.5/1.8 kW VFD | |
| Machine Voltage | 480 v (all other voltages require optional transformer) | |
| Blade Speed | 36-72 m/min | |
| Coolant Tank Capacity | 13 Liters | |
| Machine Weight | 483 kg | |
| Table Height | 864 mm | |
| Dimensions (w x l x h) | 991 x 1727 x 1854 mm | |
STANDARD FEATURES
- Semi-automatic, double miter, electro-hydraulic, easy swing, cast saw head
- Quick release cast-iron material vise with dovetail ways
- Rotating table with cut slot that moves in tandem with sawing head
- Band tension indicator
- Saw head movement via control handle with safety spring-loaded trigger switch to start or stop blade or feed mode (depending on selection)
- Remote foot pedal starts semi-automatic cutting cycle
- Operator control box houses switches for selecting head feed option; (manual pull-down, powered feed or semi-automatic operation), and semi-automatic operation push buttons for head positioning. Blade speed selection switch, coolant on/off/wash hose and E-Stop button are also found on the control box.
- Replaceable blade brush
- Small footprint
- Robust steel base
- Easy-to-read angle scale
- Adjustable guide arm
- Pre-set, replaceable carbide guide inserts
- True-direct drive – no belts or pulleys
- Mechanical blade tensioning
- Safety door interlocks
- Flood coolant system
- Adjustable work stop
Cast Iron Construction
The DM-10 cast iron construction provides less vibration and longer blade life.
Quick Release Vise
A quick release vise allows for easier setup times between jobs or cuts.

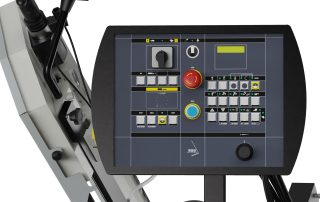

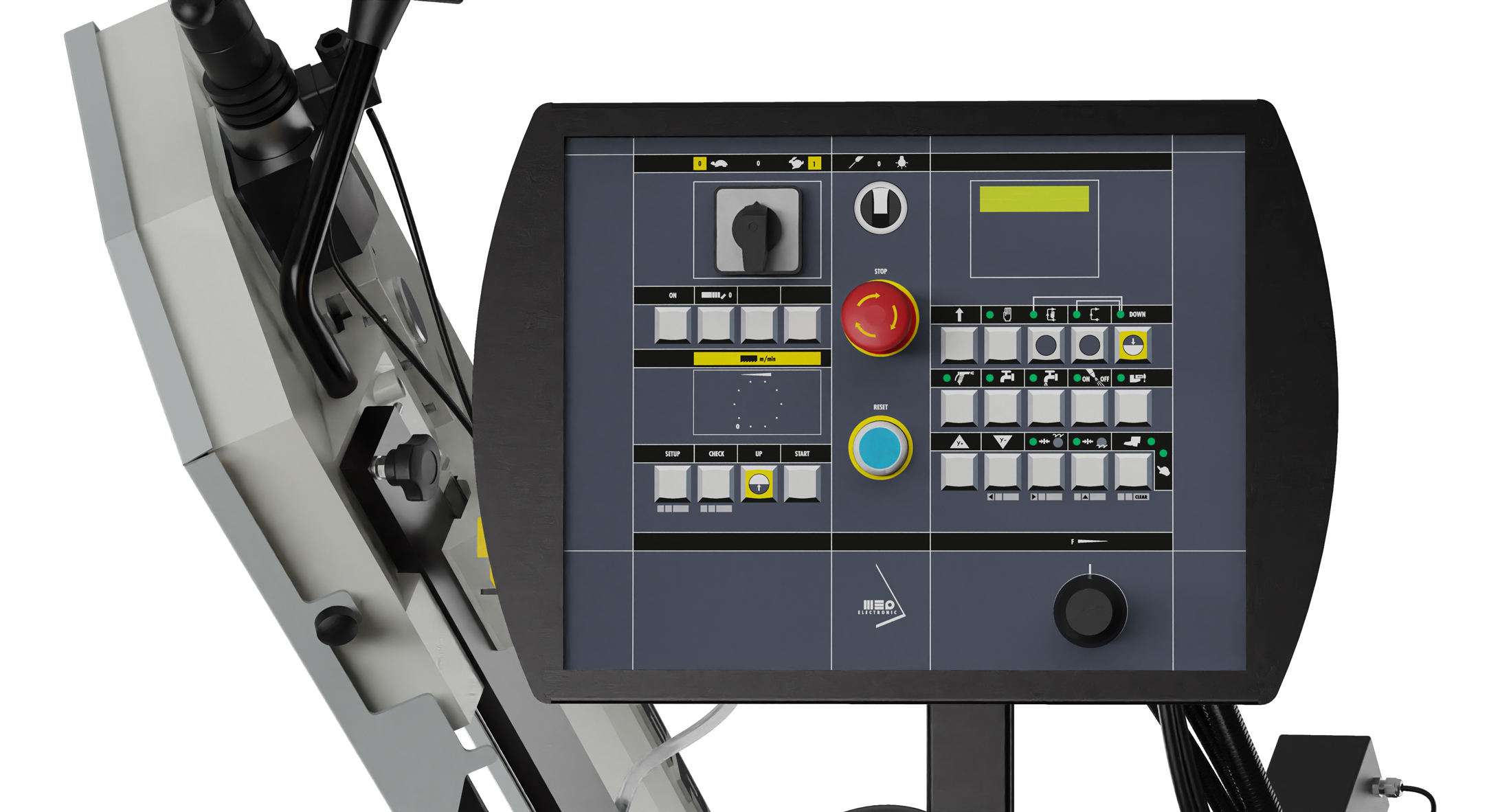

Controller
Operator control box with head feed mode selector (manual, powered, semi-automatic)
Driven Chip Brush
The DM-10 features a blade driven chip brush ensuring proper chip removal and increasing blade life.
OPTIONAL FEATURES
-
Mist lubrication system (shop air required)
-
K330 5’ infeed/out feed roller table
-
59″ R2 work stop for K330 roller table
-
Adapter plate for K330 table (required for outfeed side mounting)
-
Power transformer for 208 V, 240 V, or 575 V operation

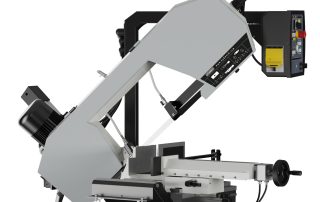

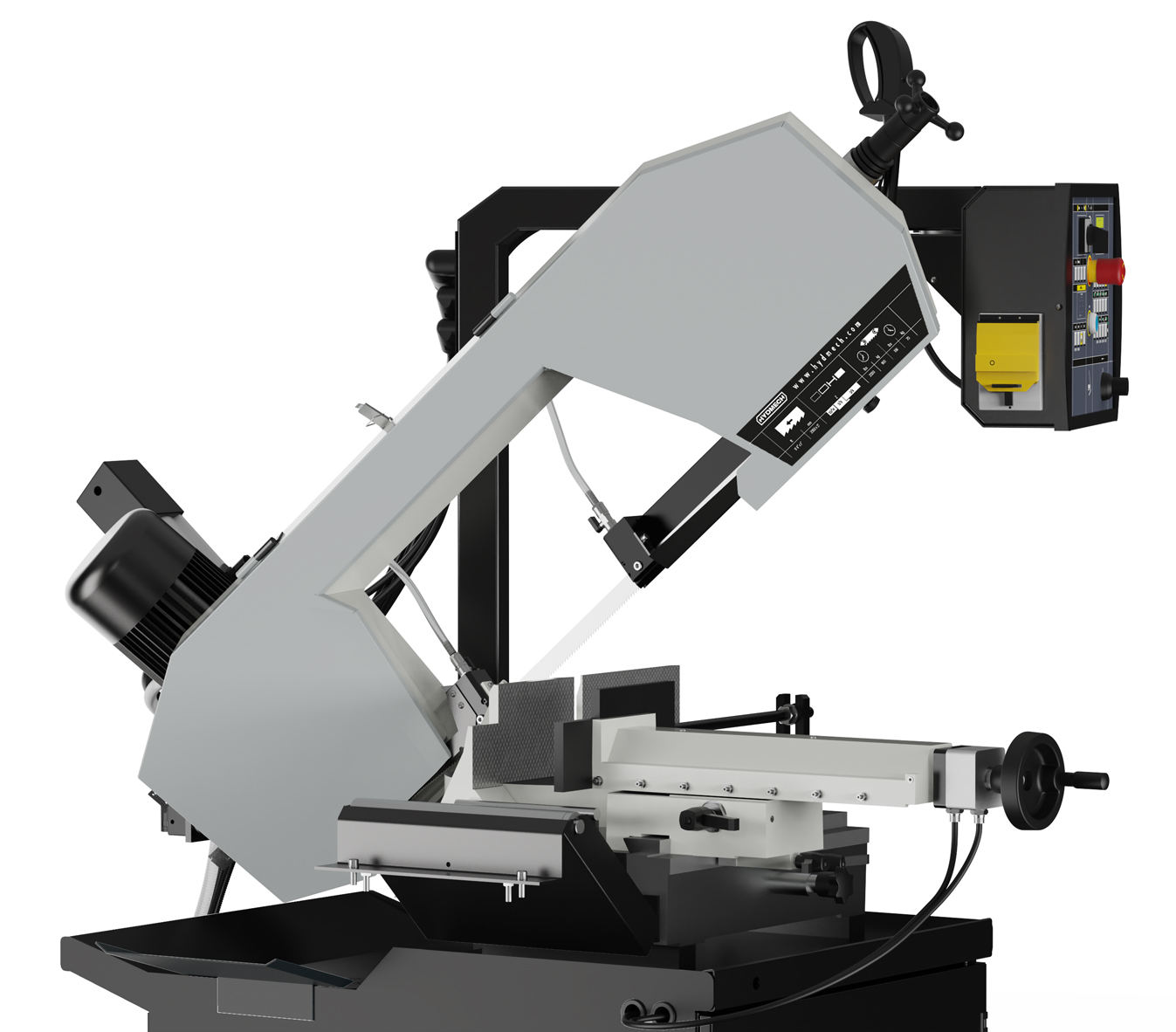

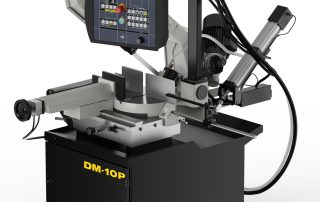

PHOTO GALLERY
