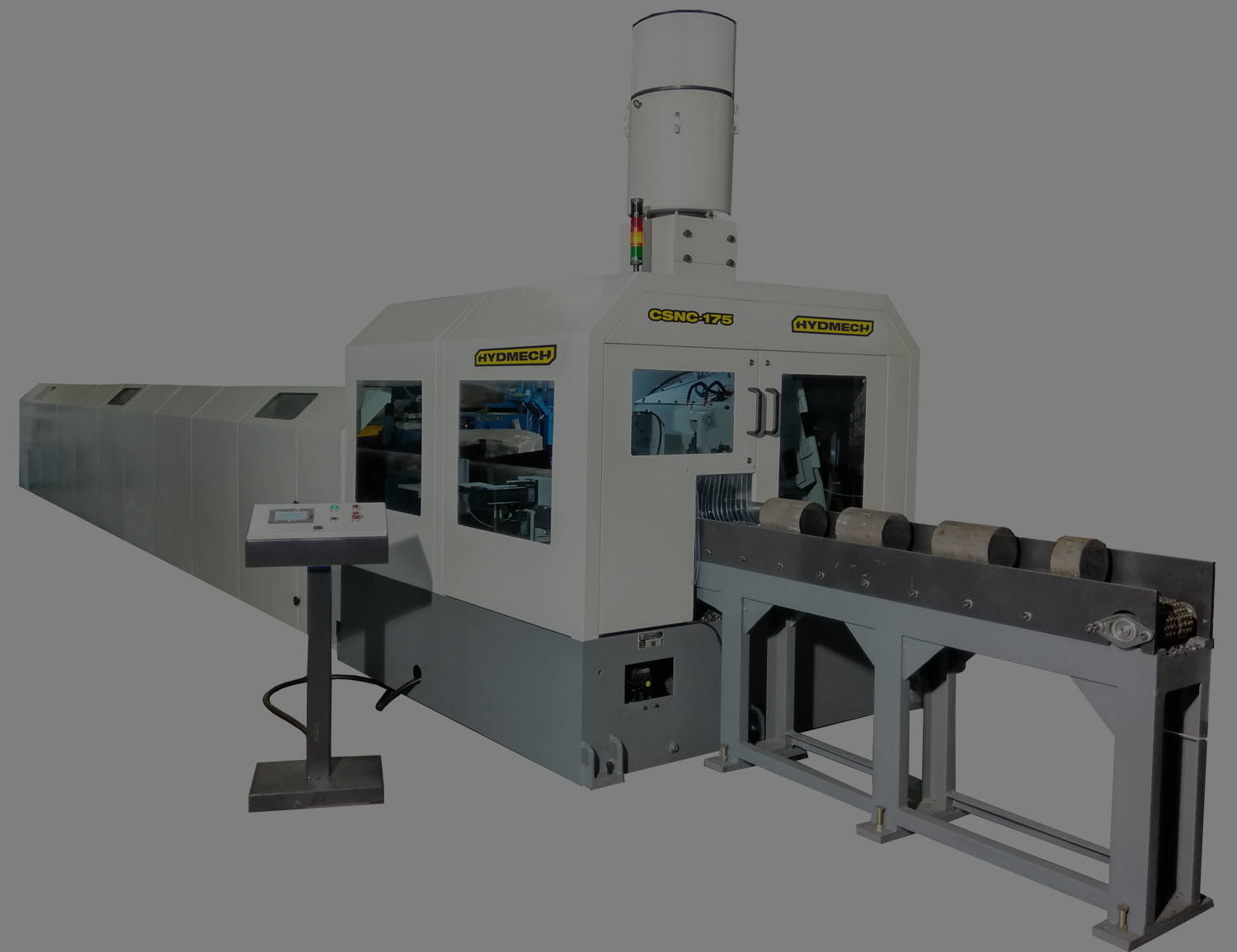

CSNC-175 CARBIDE CIRCULAR SAW
Designed for Operator Safety
Designed for operator safety, this machine is completely enclosed and features safety door interlocks which if a door opens during operation, the machine will shut off.
Achieve consistent results with this carbide sawing machine that features a high level of productivity, length accuracy, and clean, burr free cuts.
Featuring a 1.97” – 6.9” round capacity at 90°, 40 HP motor, and a 560 mm blade, the CSNC-175 is a versatile high-speed cutting machine.
MACHINE SPECIFICATIONS
| Cutting Capacity Round 90° | 1.96″- 7″ |
| Cutting Capacity Square 90° | 1.96″-5.11″ |
| Blade Drive | 40 HP VFD |
| Blade Speed | 164-656 SFM |
| Blade Size | Carbide/Cermet tipped: 22″ x 0.12″ kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.4′ or longer |
| Cut off Length | Min 0.4″ up to full bar length |
| Single Stroke | 40″ |
| Remnant Length | 4.72″ + cut length |
| Hydraulic Motor | 3 HP VFD |
| Bar Loading Magazine | Inclined storage width of 55″ for rounds |
| Machine Capacity | 19,800 lbs. |
| Machine Weight | 12,100 lbs. |
| Dimensions (w x l x h) | 97” x 104” x 70” |
| Cutting Capacity Round 90° | 50-175 mm |
| Cutting Capacity Square 90° | 50-130 mm |
| Blade Drive | 29.4 kW |
| Blade Speed | 50-200 MPM |
| Blade Size | Carbide/Cermet tipped: 560 mm x 3 mm kerf |
| Bar Stock Length | 3-6 m |
| Trim Cut | Zero or programmable from 20 mm or longer |
| Cut off Length | Min 20 mm up to full bar length |
| Single Stroke | 1016 mm |
| Remnant Length | 120 mm + cut length |
| Hydraulic Motor | 2.2 kW |
| Bar Loading Magazine | Inclined storage width of 1400 mm for rounds |
| Machine Capacity | 9000 kg |
| Machine Weight | 5500 kg |
| Dimensions (w x l x h) | 2475 mm x 2650 mm x 1800 mm |
STANDARD FEATURES
-
Mitsubishi PLC Controller allows for 200 programs to be saved.
-
Job monitoring with cycle time, job duration, parts count, and tool life
-
Comprehensive US steel grades menu with ability to add custom material grades
-
Bar feed features a material gripper feed carriage indexing via ball screw and AC servo drive
-
Heavy duty saw head is driven by ball screw and AC servo drive
-
Mist exhaust
-
Bar retracts automatically for contact free return stroke of the saw blade
-
Bar Loader with safety guard sheets provides inclined storage width of 55” (1400mm) for rounds
-
PLC controller, automatic oil lubrication of all moving parts
-
Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
-
Variable vise pressure control with dial gauge – two stations
-
Blade lubrication features triple jet system to lubricate blade tip and sides
-
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
-
Status indicating tower
-
Chip auger
-
Air cooled electric magnetic particle clutch
-
Built in hydraulic tank and power pack
-
Tool steel hardened saw guide plates
-
Power transformer
-
Air moisture separator
-
Cooling nozzle
-
Four blade starter package
OPTIONAL FEATURES
-
Auto bar loader for non-rounds
-
PLC program change
-
Bundle loaders – max weight 4 tons
-
Track chip conveyor
-
Maintenance kit
-
Long cut bar out feed motorized conveyor table in the following lengths – 1000 mm, 2000 mm, and 3000 mm
