VW-18 VERTICAL BAND SAW
VW-18 VERTICAL BAND SAW
One of a kind in the HYDMECH line up, with its saw head that can cut at 90° and its adjustable 3 degree canted head.

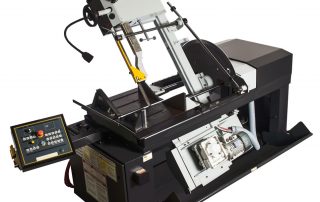

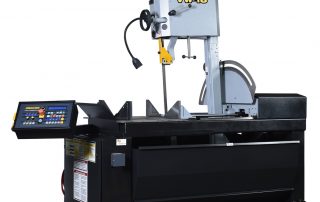

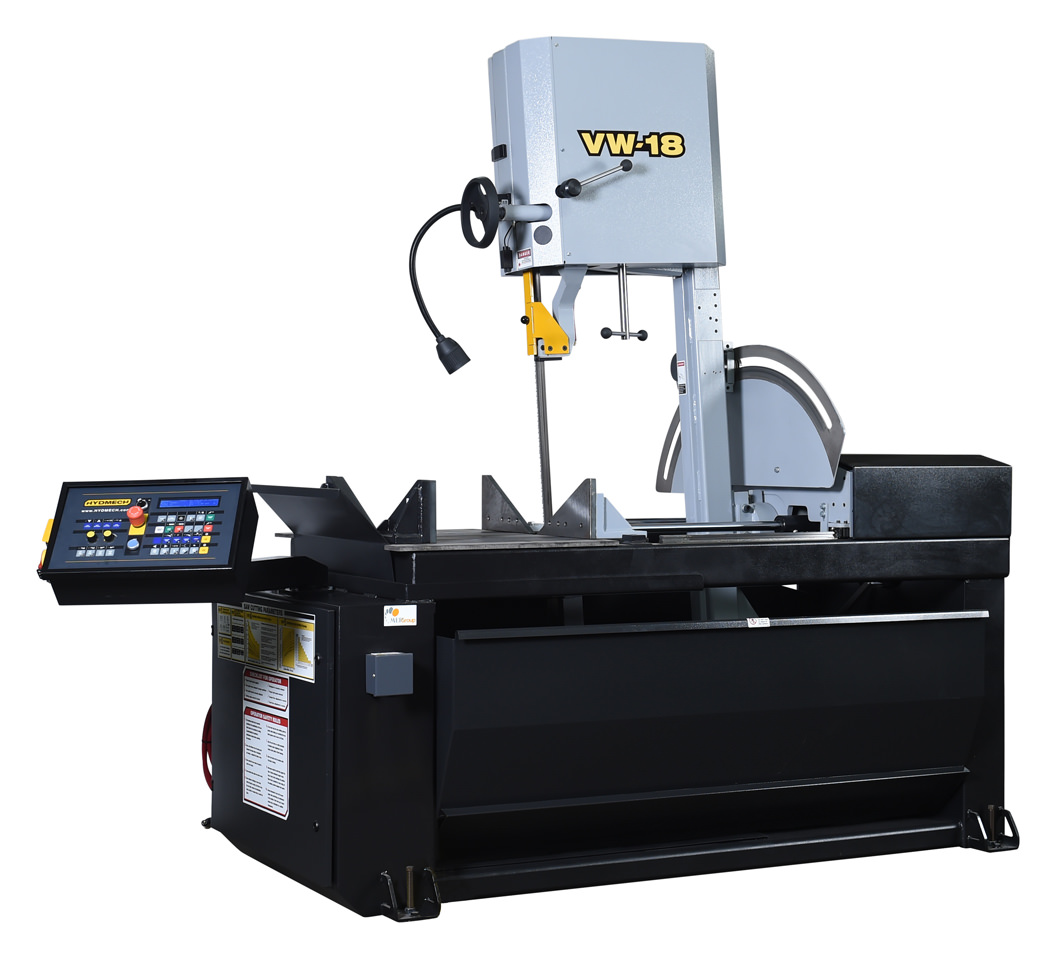

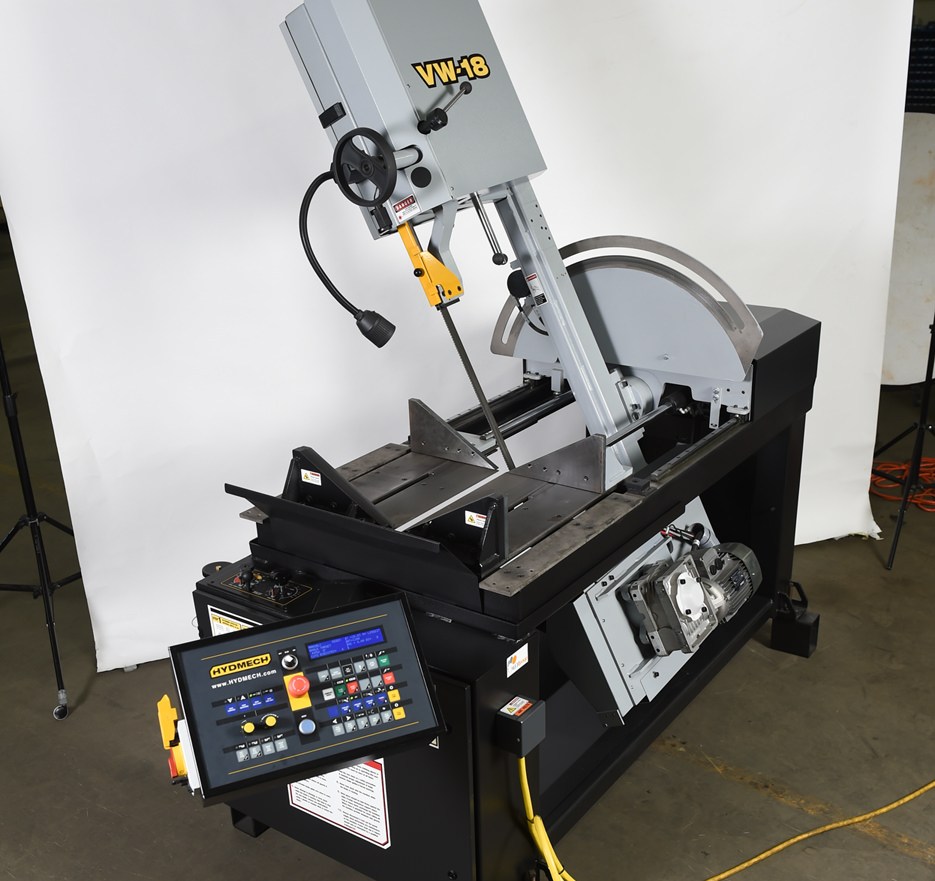

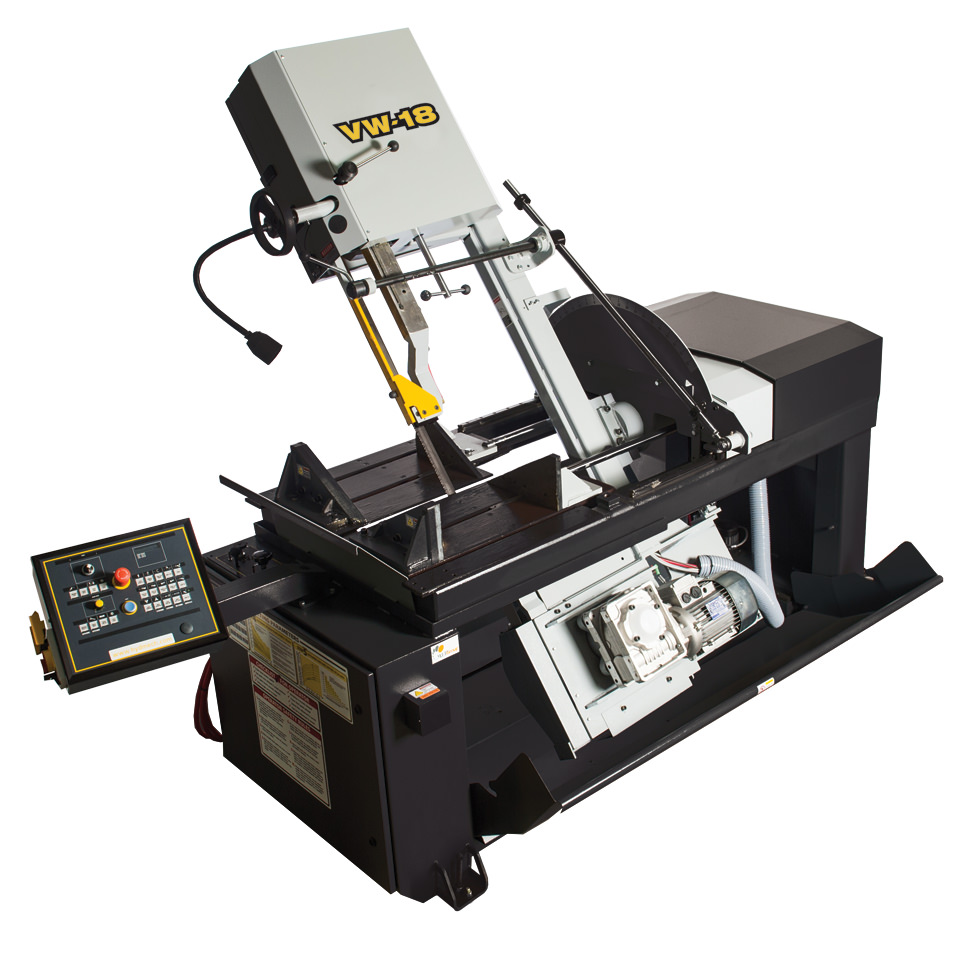

The VW-18 is a semi-automatic, vertical band saw with the ability to miter from 60° left to 60° right. Featuring a 22″H x 18″W capacity, 5 HP motor, and 1 1/4″ blade, the VW18 is a reliable choice for all your light to medium-duty, vertical metal cutting applications.

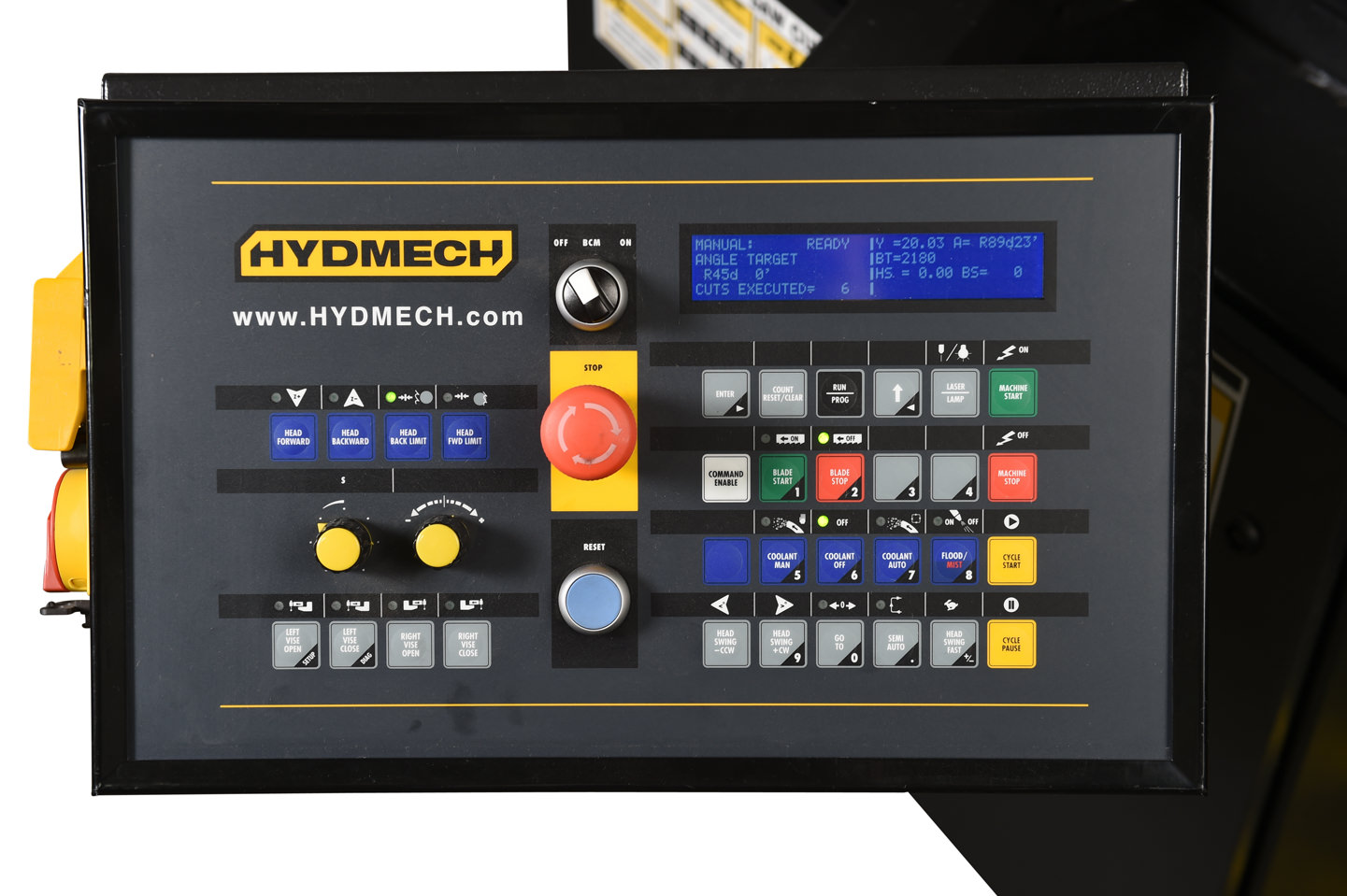

The VW-18 features a semi-automatic control that can be positioned to either side of the saw.
WATCH TO LEARN MORE
MACHINE SPECIFICATIONS
| Capacity | Rectangular (h x w) | Round |
| 90° | 22″ x 18″ 20 3/4″ x 18″ cant. head |
17 1/2″ |
| 45° | 15″ x 18″ 14″ x 18″ cant. head |
12 1/2″ |
| 60° Right | 10 1/4″ x 18″ 9 1/2″ x 18″ cant. head |
10 1/4″ 9 1/2″ cant. head |
| Blade Size | 1 1/4” x 16’ 3” | |
| Blade Drive | 5 HP VFD | |
| Machine Voltage | 240 or 480 v (208, 575 optional) | |
| Blade Speed | 65-385 SFM | |
| Coolant Tank Capacity | 12 Gal. | |
| Machine Weight | 2,700 lbs. | |
| Table Height | 36 1/2” | |
| Dimensions (w x l x h) | 36” x 95” x 96” | |
| Capacity | Rectangular (h x w) | Round |
| 90° | 558 mm x 457 mm 527 mm x 457 mm cant. head |
444 mm |
| 45° | 381 mm x 457 mm 355 mm x 457 mm cant. head |
317 mm |
| 60° Left | 260 mm x 457 mm 241 mm x 457 mm cant. head |
260 mm 241 mm cant. head |
| Blade Size | 34 mm x 4953 mm | |
| Blade Drive | 3.7 kW VFD | |
| Machine Voltage | 240 or 480 v (208, 575 optional) | |
| Blade Speed | 19-117 m/min | |
| Coolant Tank Capacity | 45 ltr | |
| Machine Weight | 1,227 kg | |
| Table Height | 927 mm | |
| Dimensions (w x l x h) | 914 x 2413 x 2438 mm | |
STANDARD FEATURES
-

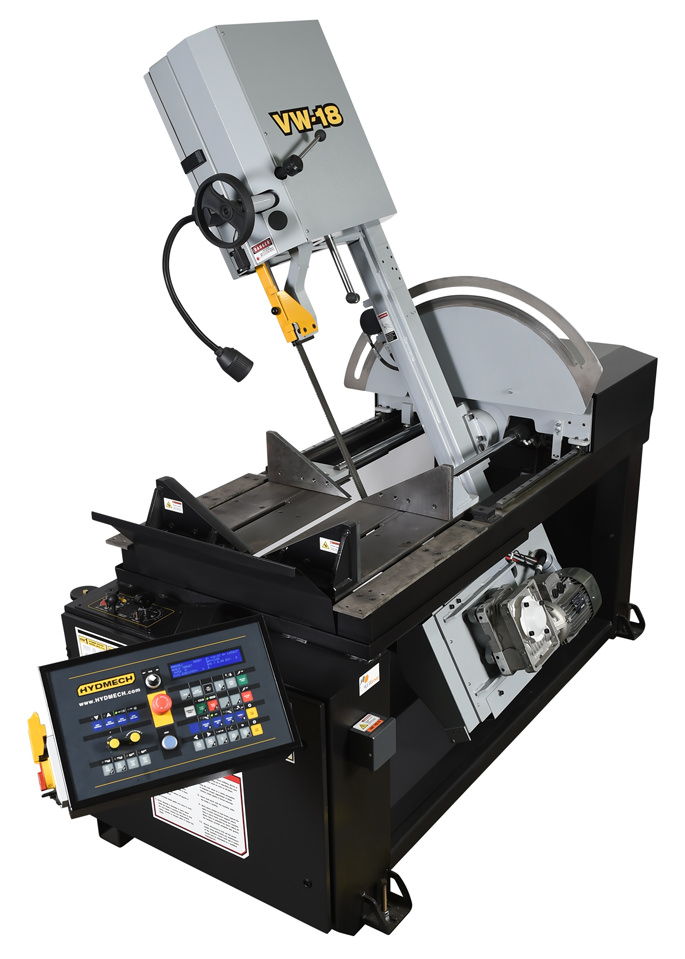

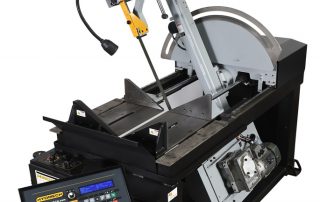

Adjustable 3° canted head
-

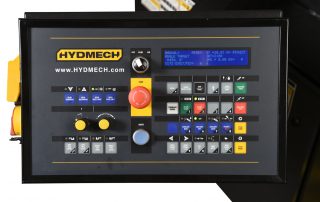

Doub le articulating, semi-automatic control
-
Two full stroking hydraulic vises
-

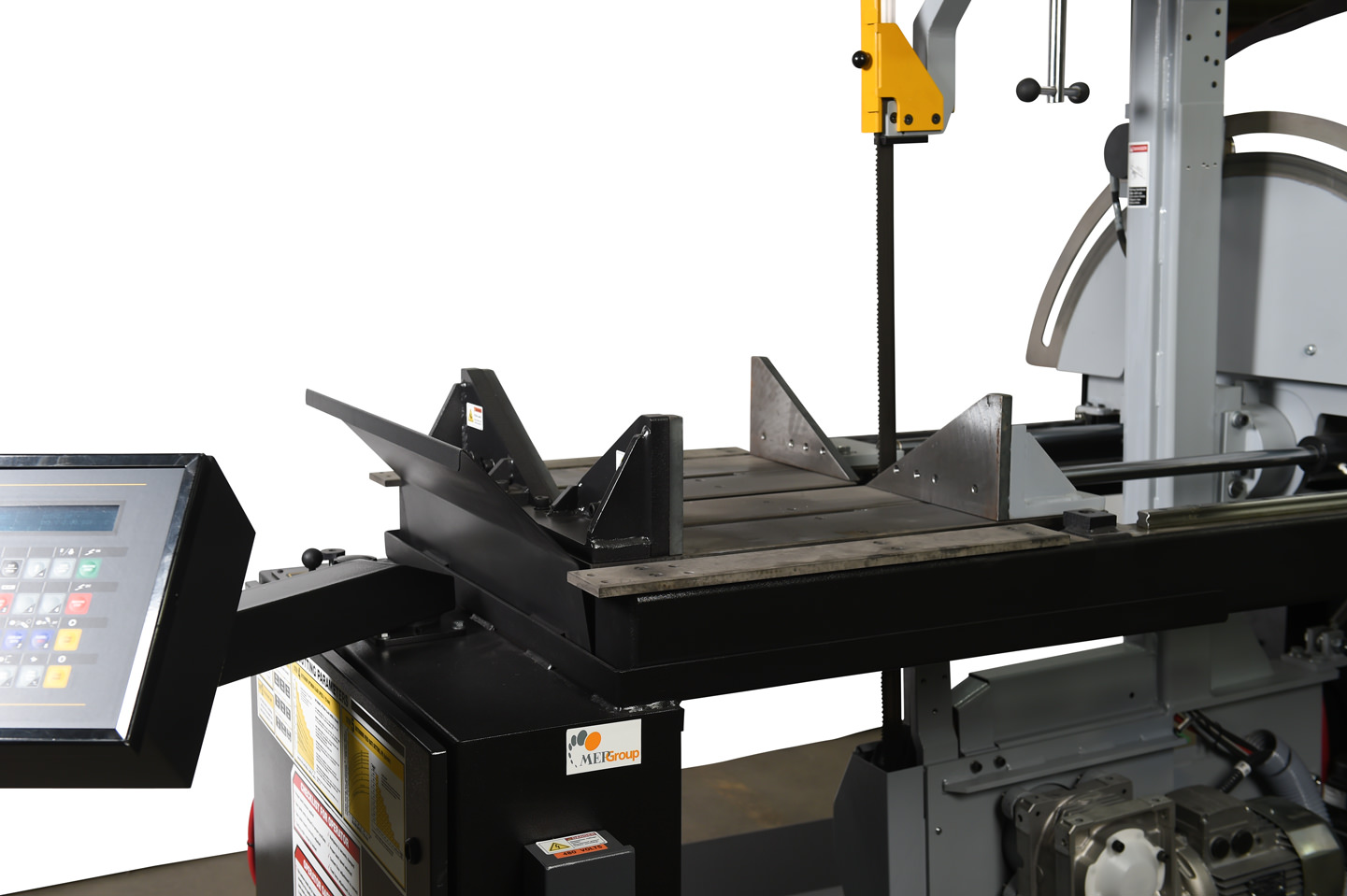

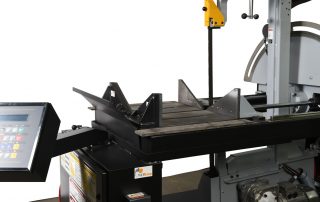

Manual precise head positioning from 60° left to 60° right
-
Digital angle display with a protractor
-

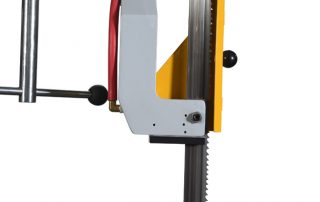

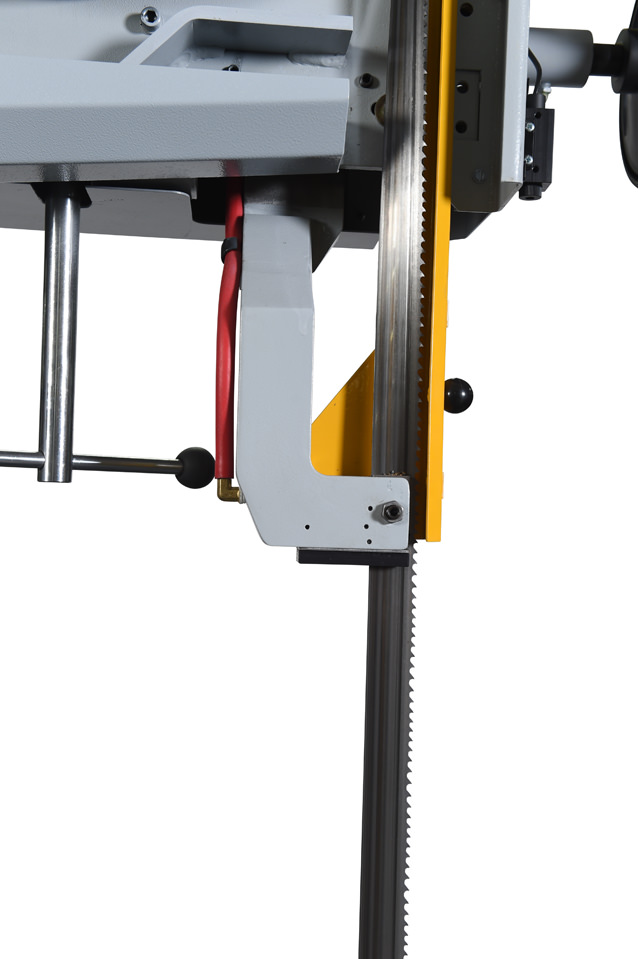

Mechanically adjustable guide arm
-
On-demand hydraulics save energy
-

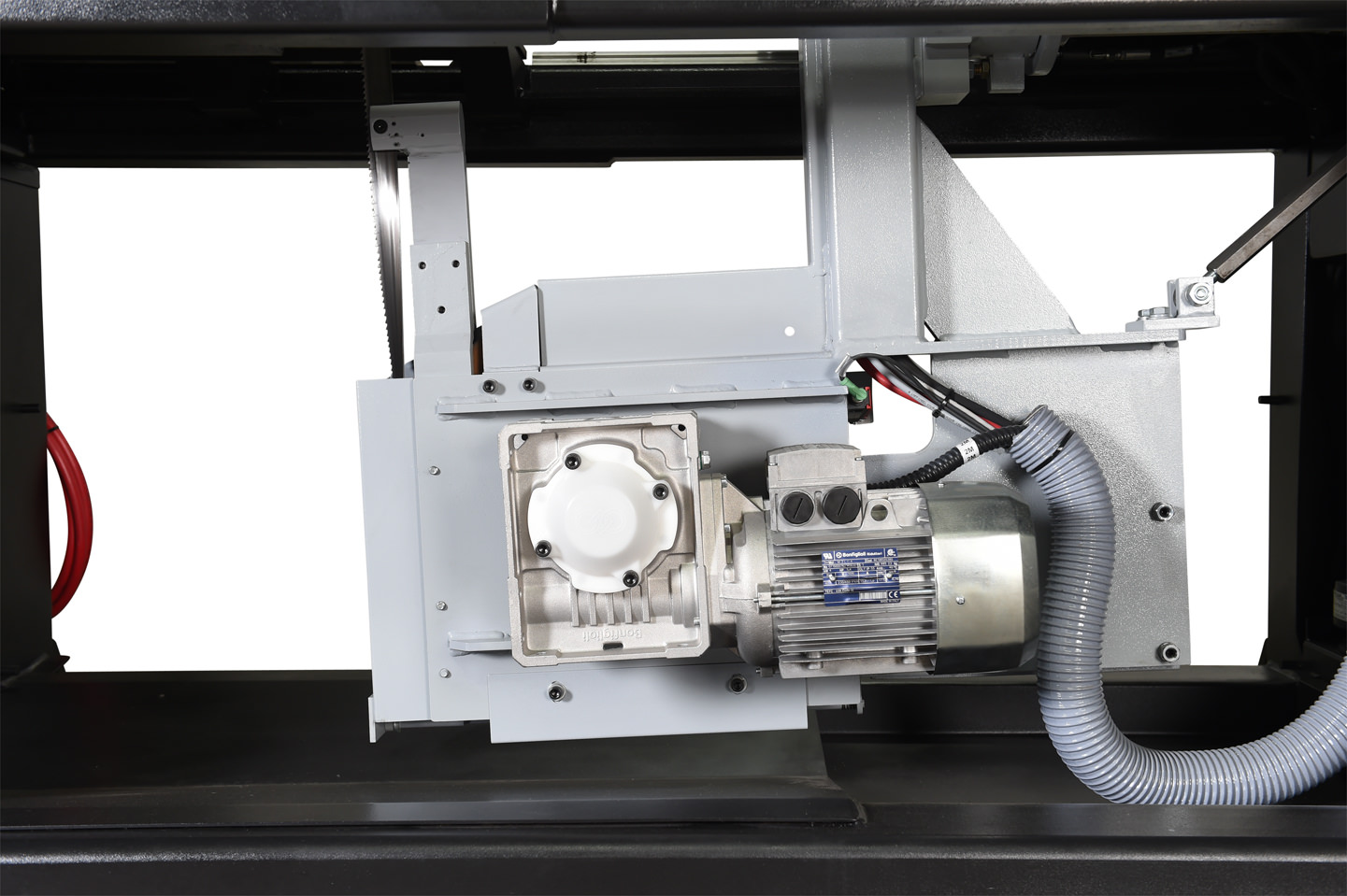

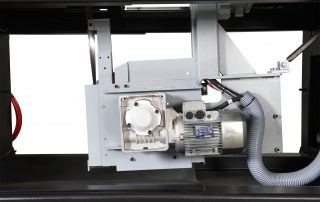

5 HP VFD. True direct blade drive – no belts/pulleys
-
Hydraulic positive down feed
-

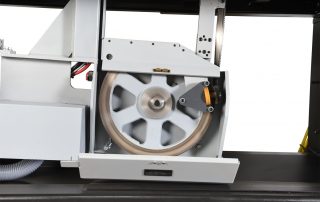

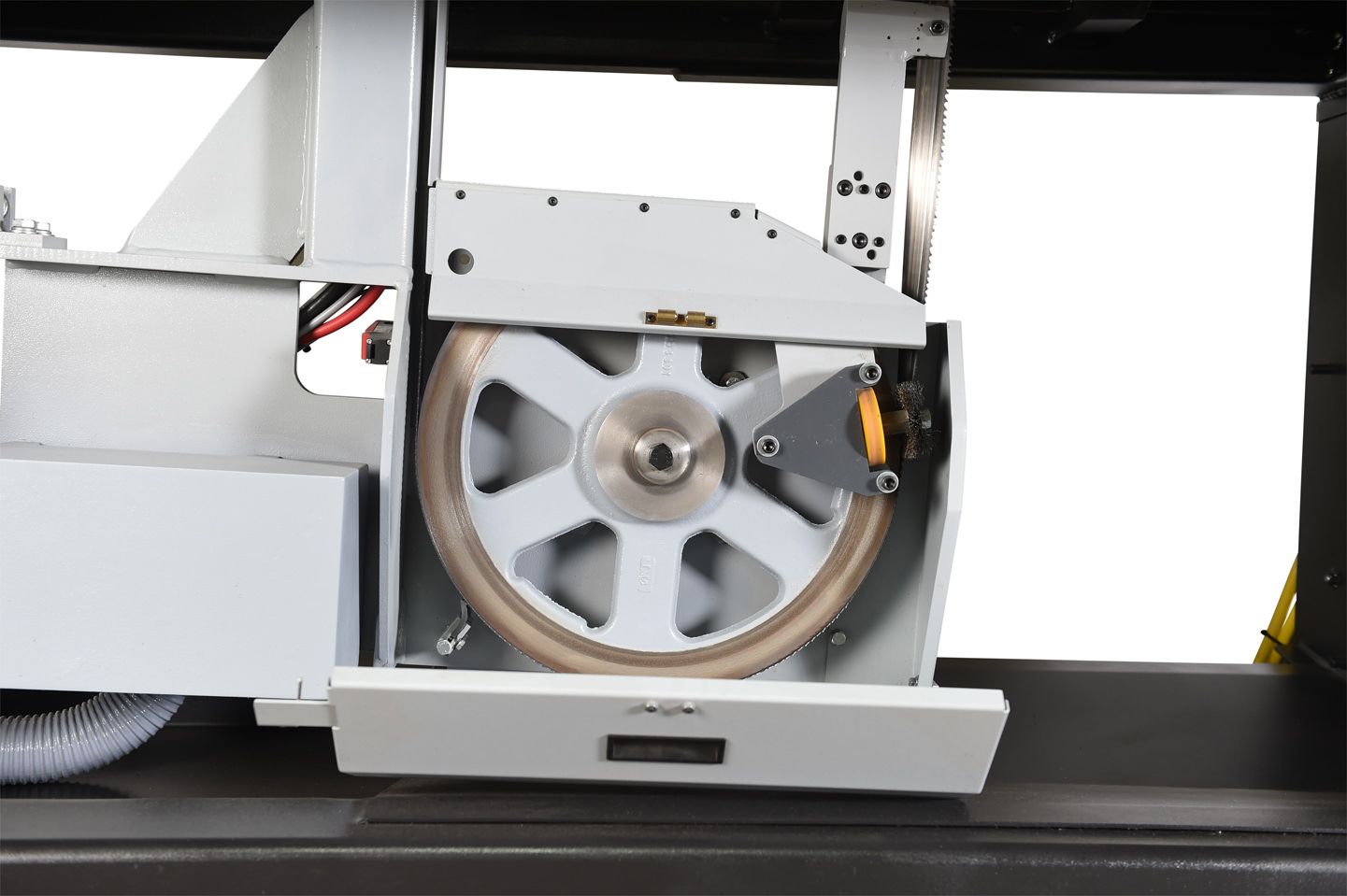

Cast iron band wheels
-
Replaceable blade brush
-
Robust steel base
-

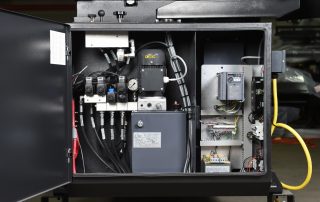

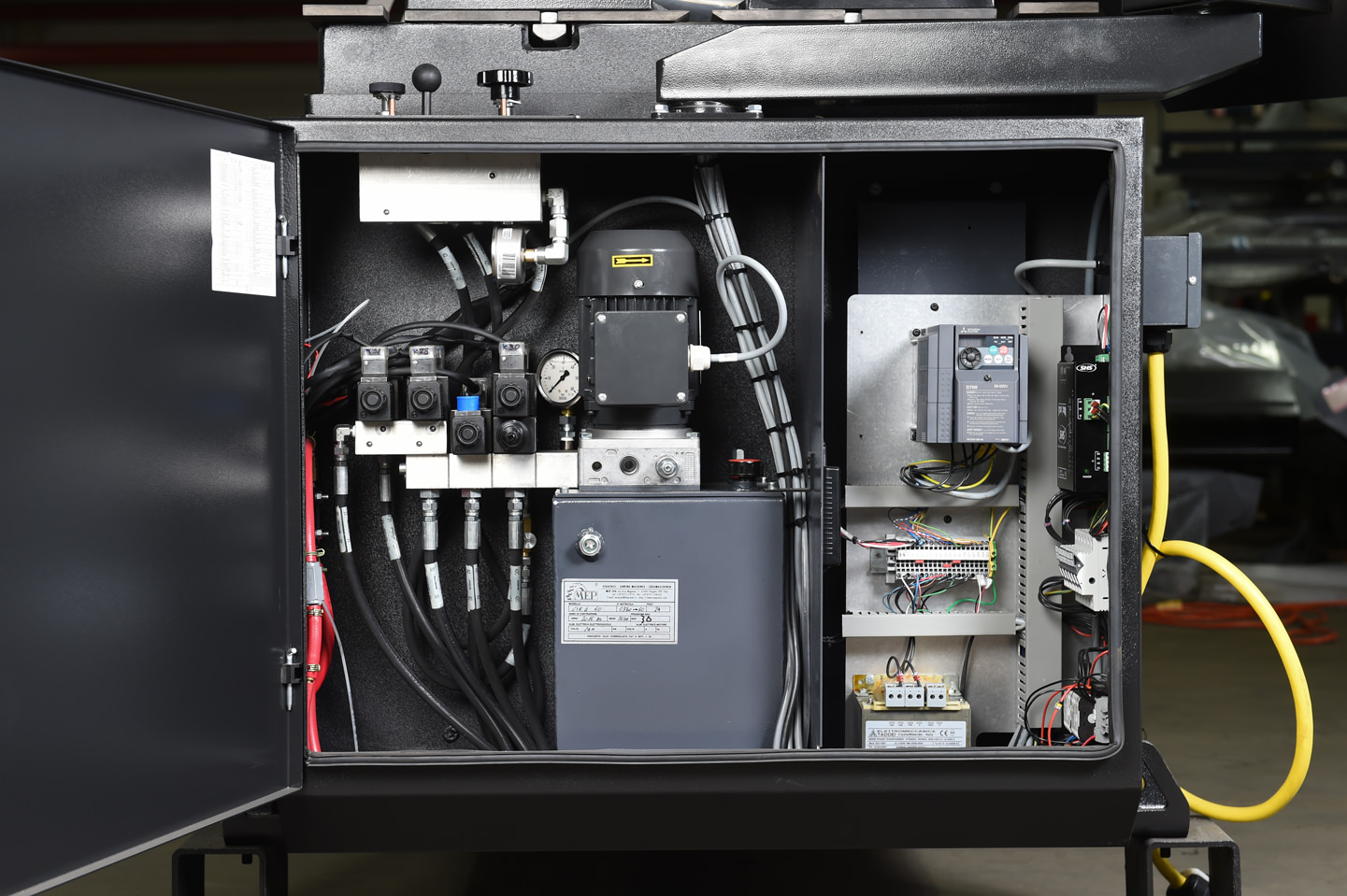

Easy access electrical panel and hydraulics
-
Blade breakage switch
-
Mechanical band tensioning with digital readout
-
Replaceable carbide guide inserts
-
0.5 HP hydraulic pump provides system pressure
-
Safety door interlocks
-

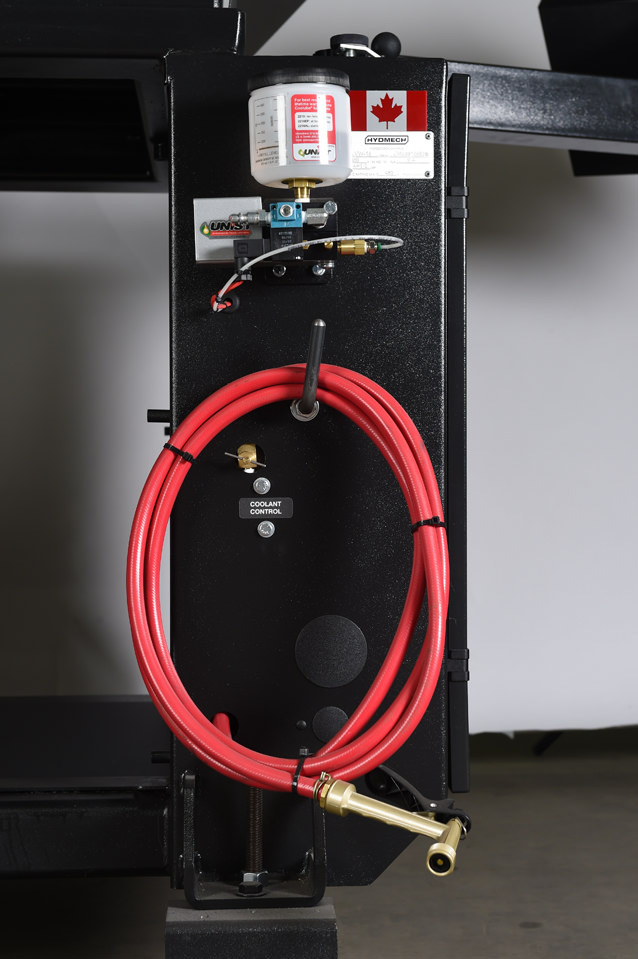

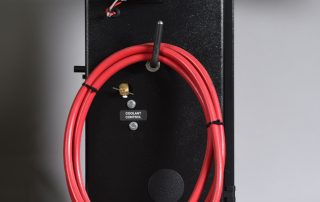

Flood coolant with wash down hose
-
Laser light and work light
- Variable vise pressure

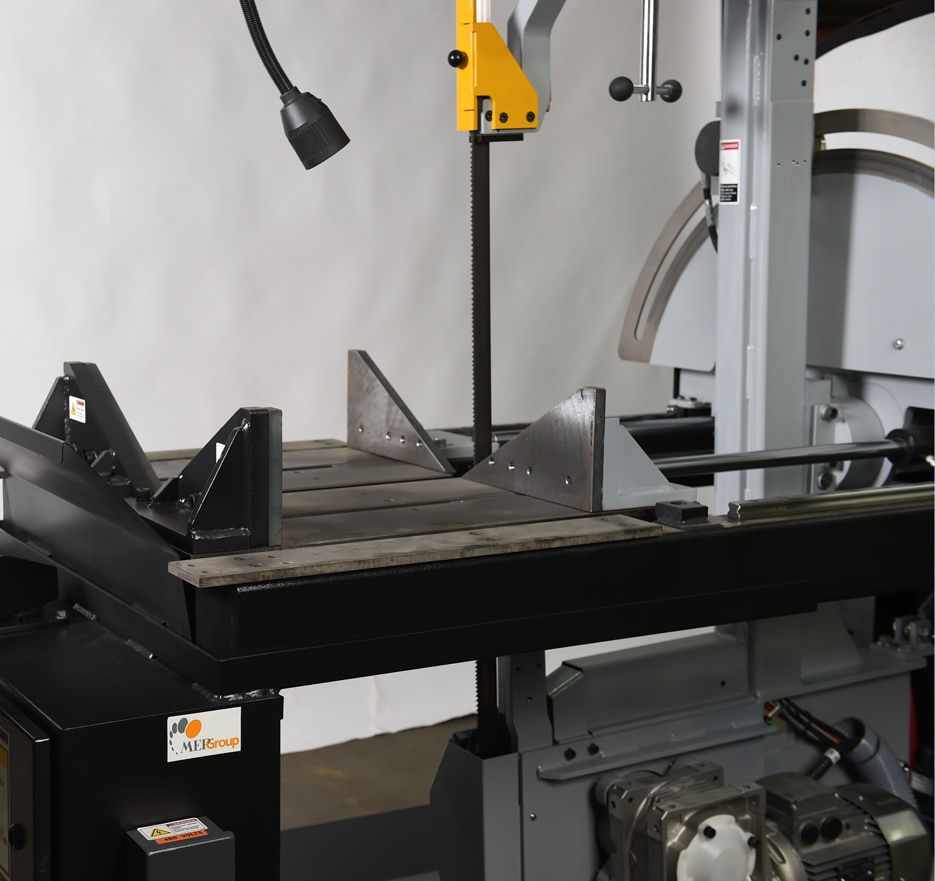

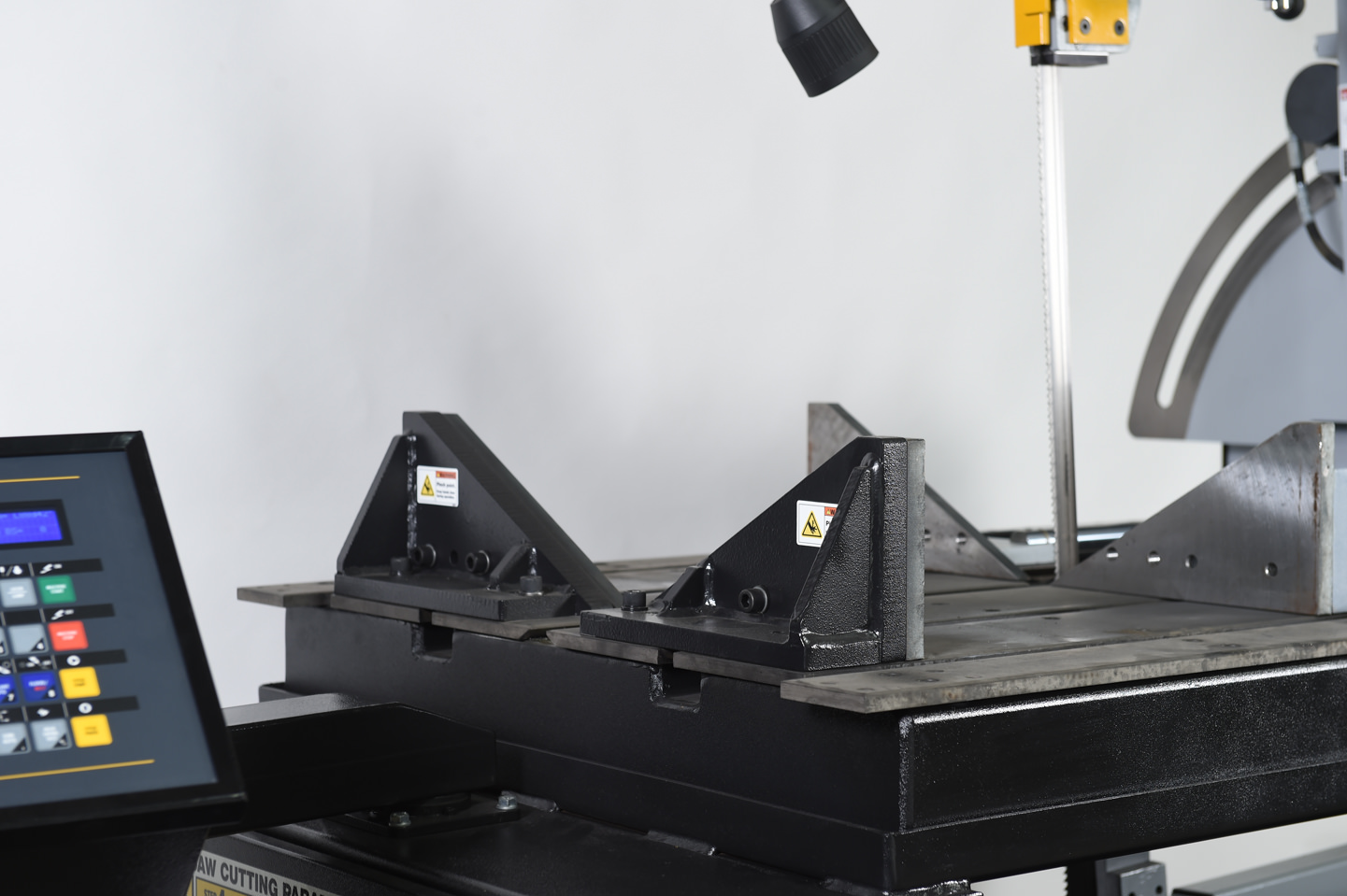

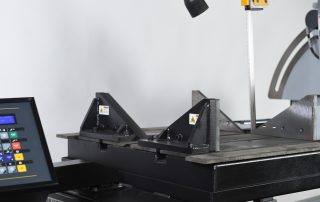

Two Full Stroking Hydraulic Vises
Securing the material with hydraulic pressure results in better blade life, increased operator safety and a decreased risk of the material moving during the cut. Keeping the material secure reduces the chance of stripping the teeth on the saw blade.

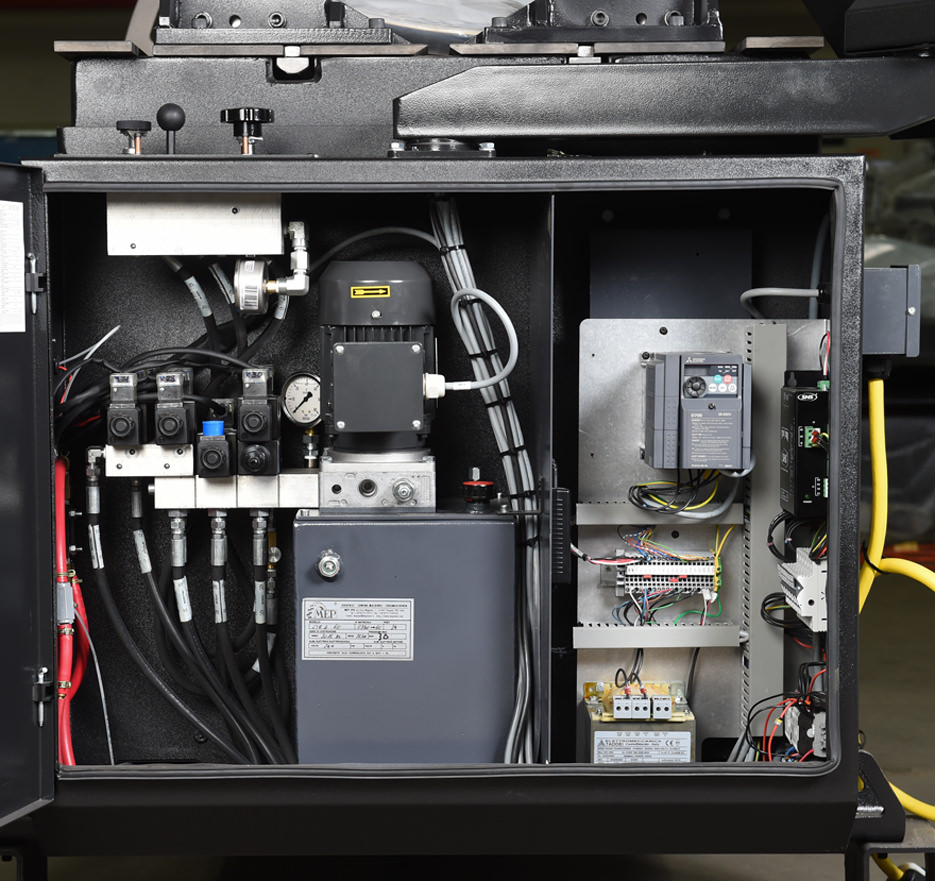

On-Demand Hydraulics
Reduces power consumption and results in less noise. It’s better for the environment with reduced ware on hydraulic components.

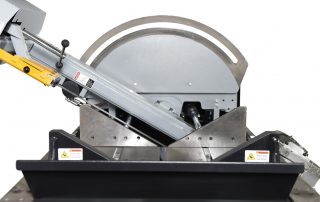

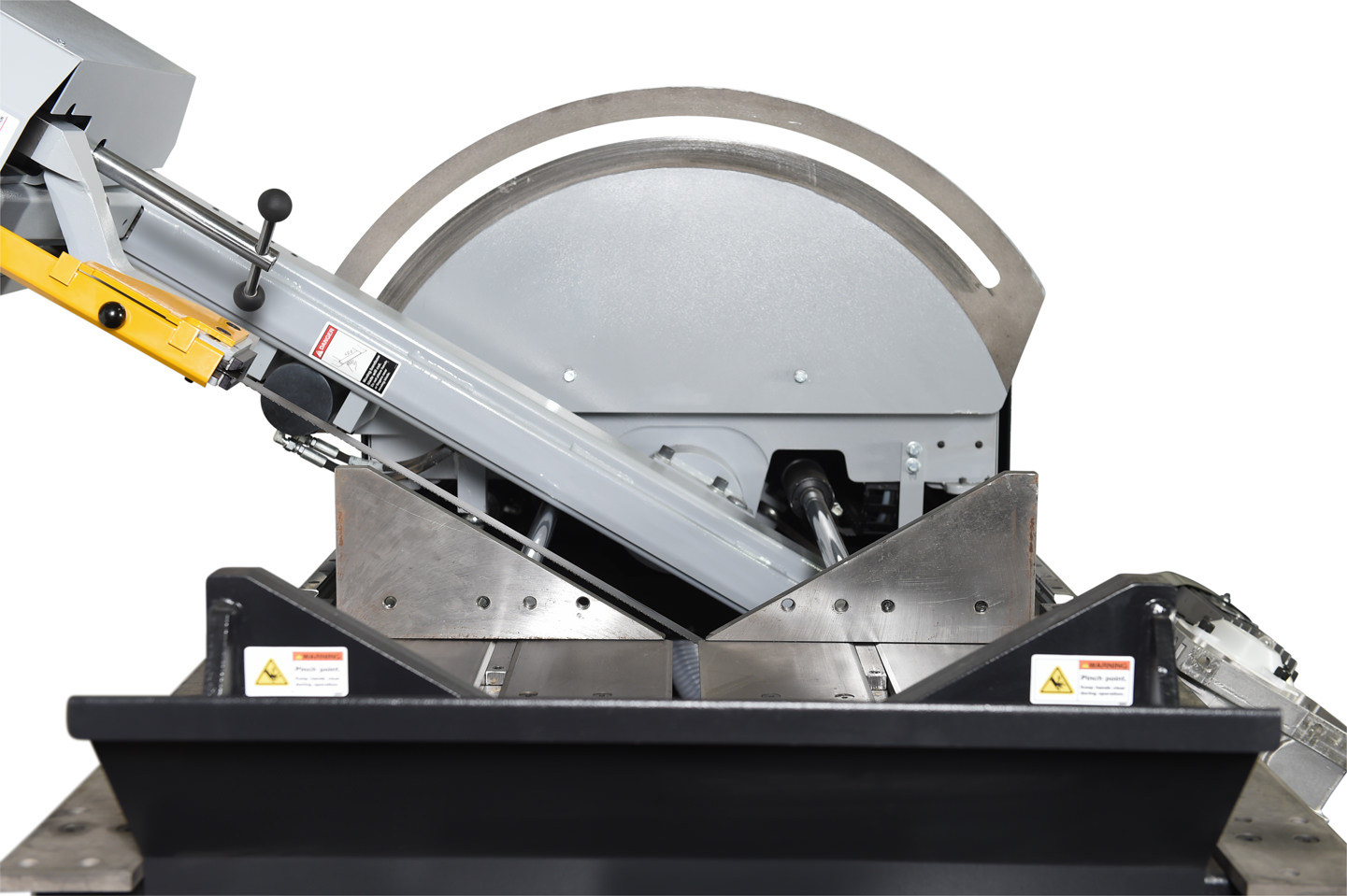

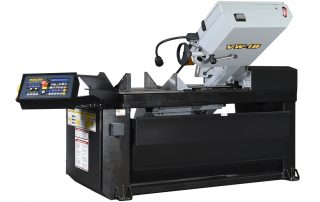

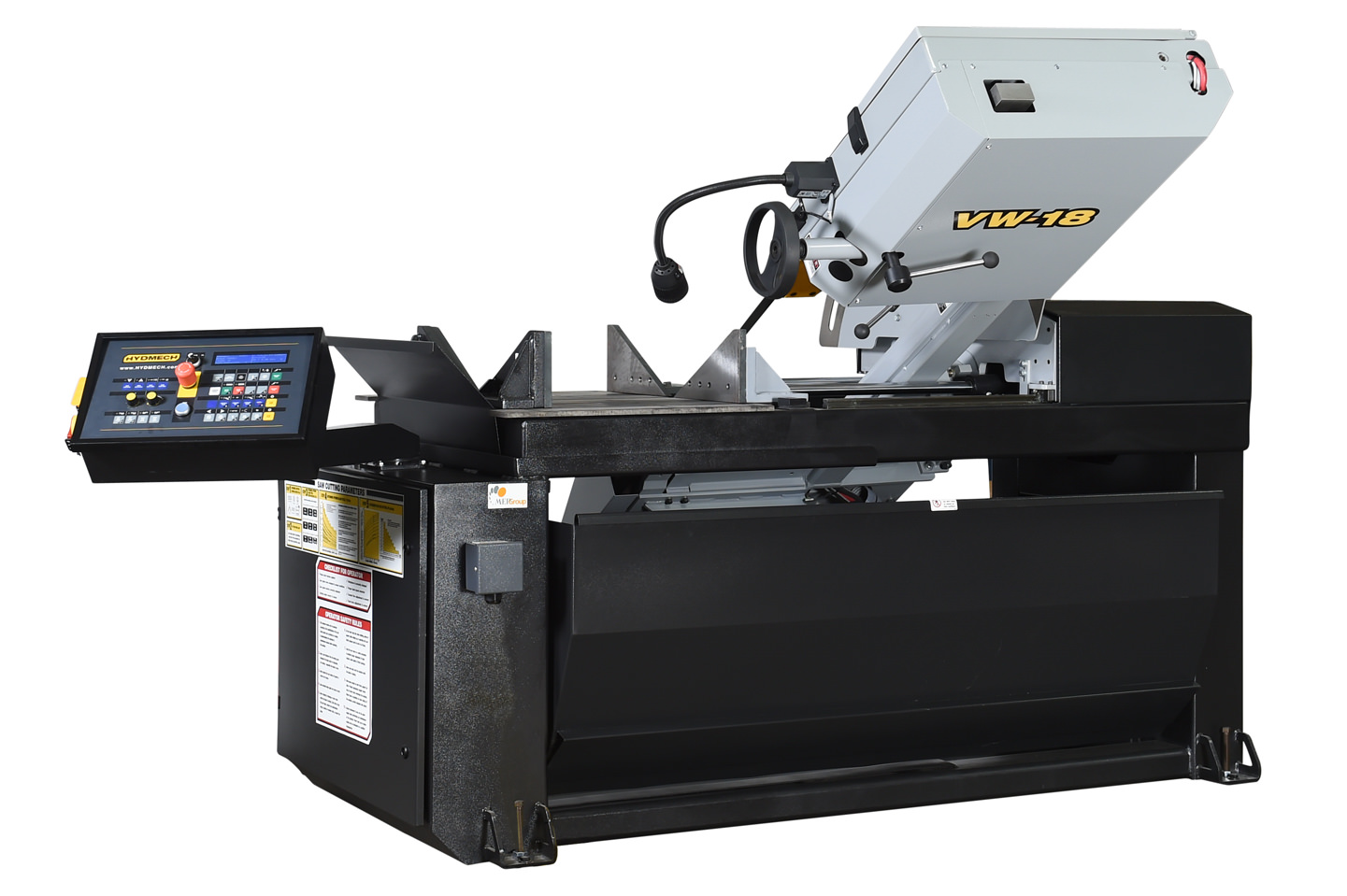

Manual Head Positioning
Located on the control panel, the VW-18 angle can be set via use of the protractor and confirmed with digital angle display on the control panel.

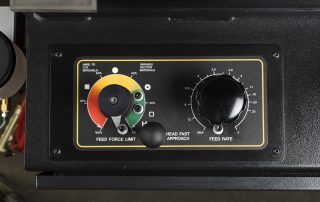

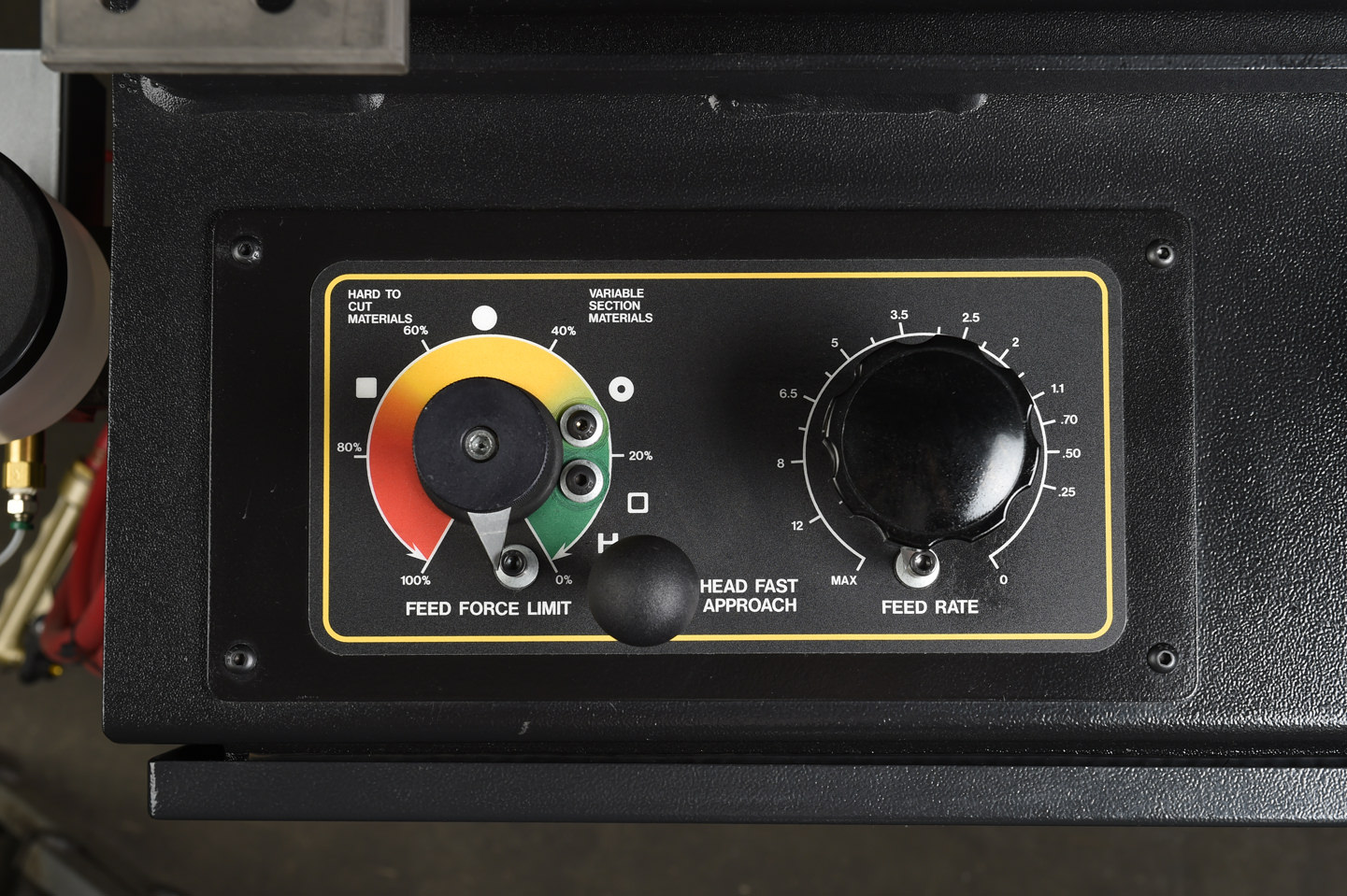

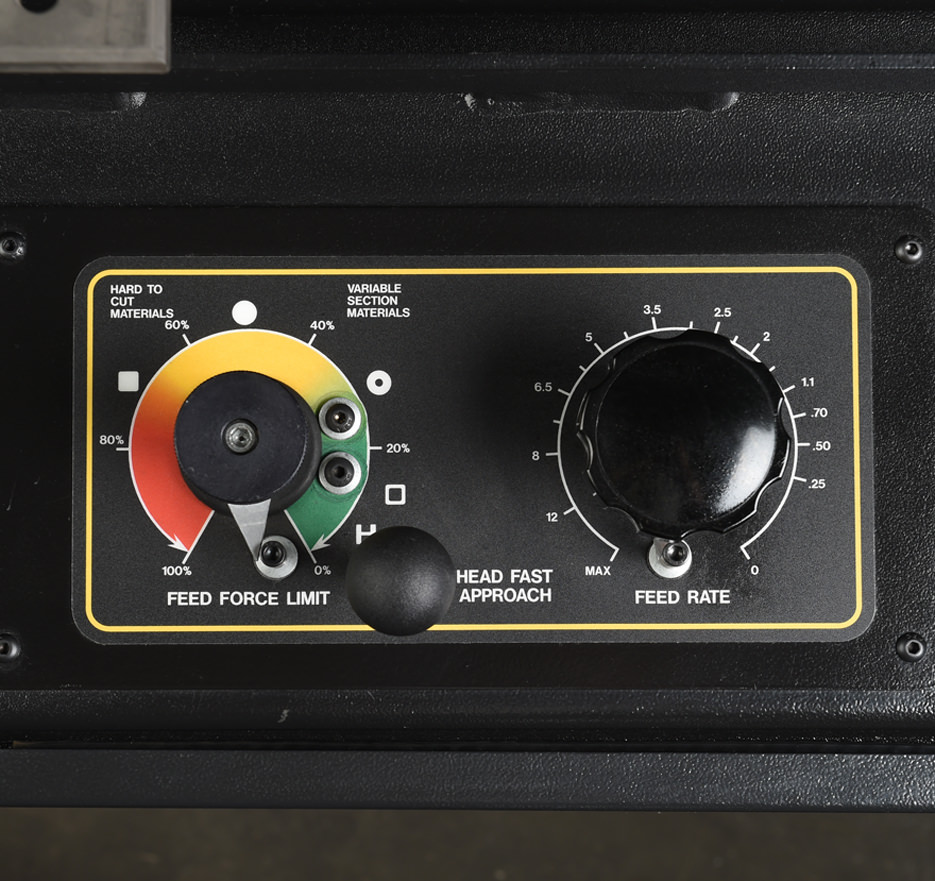

Direct Down Feed (DDF)
Allows the operator to control both feed rate and feed force, for more efficient cutting.
OPTIONAL FEATURES
-

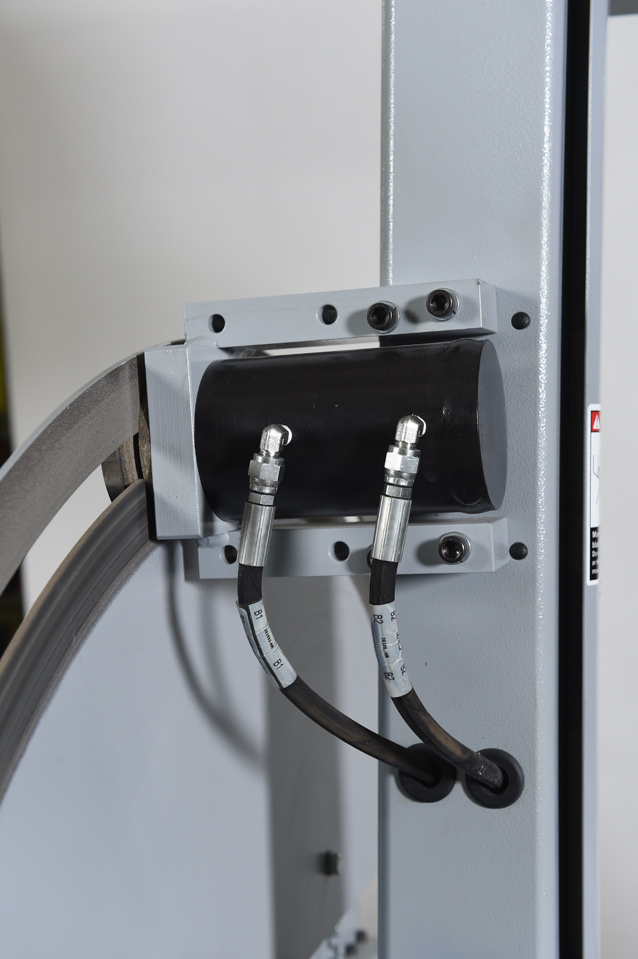

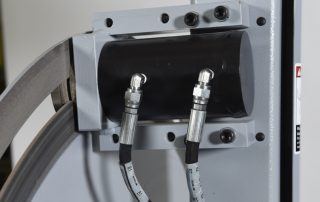

Power tilt
-
Chip bucket
-
Hydraulic overhead bundling
-

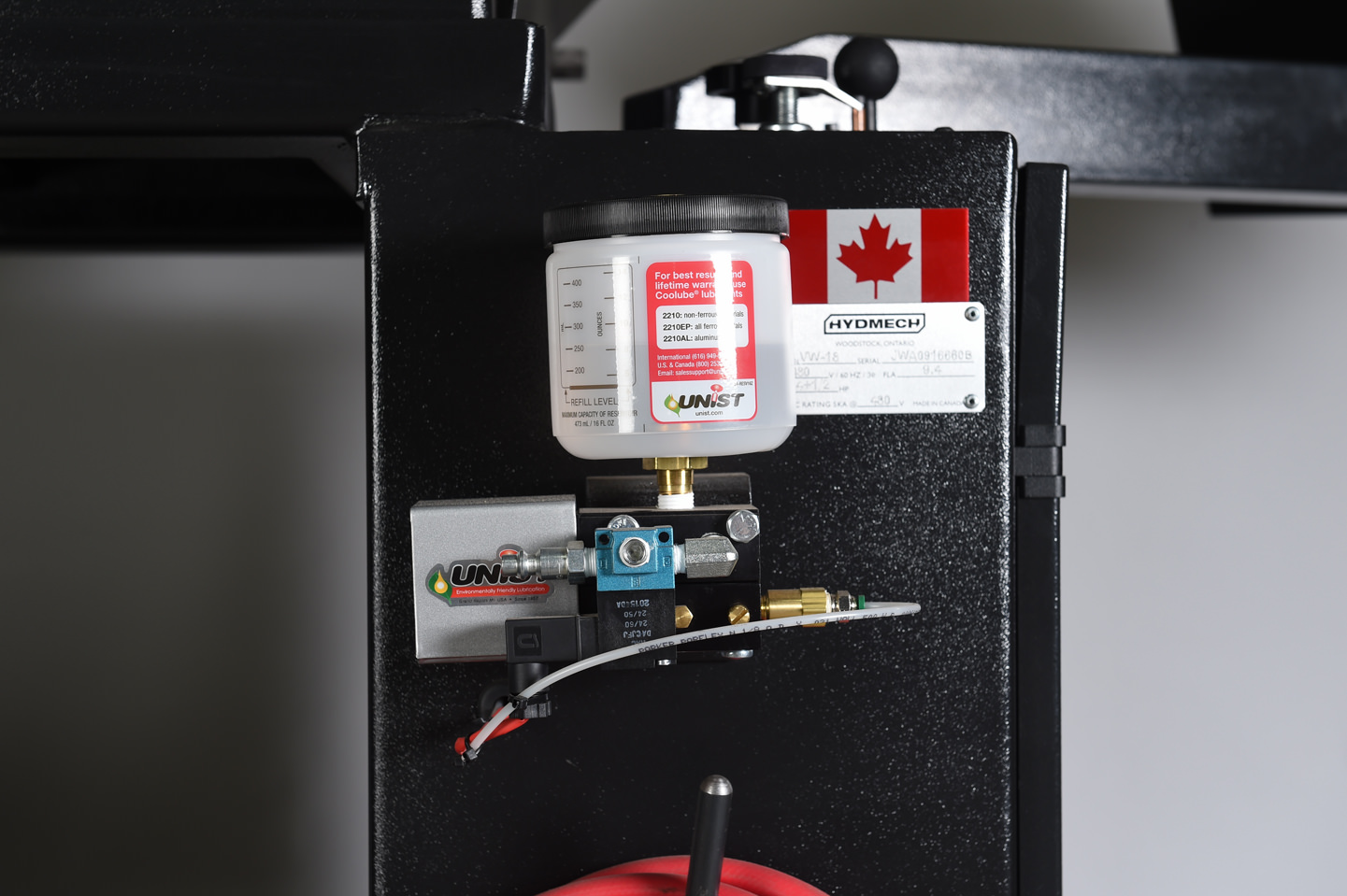

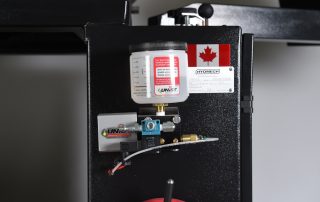

Mist lubrication
-
Work stop
-

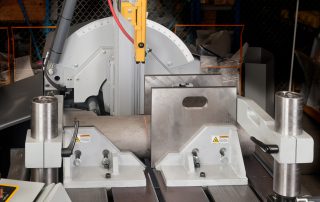

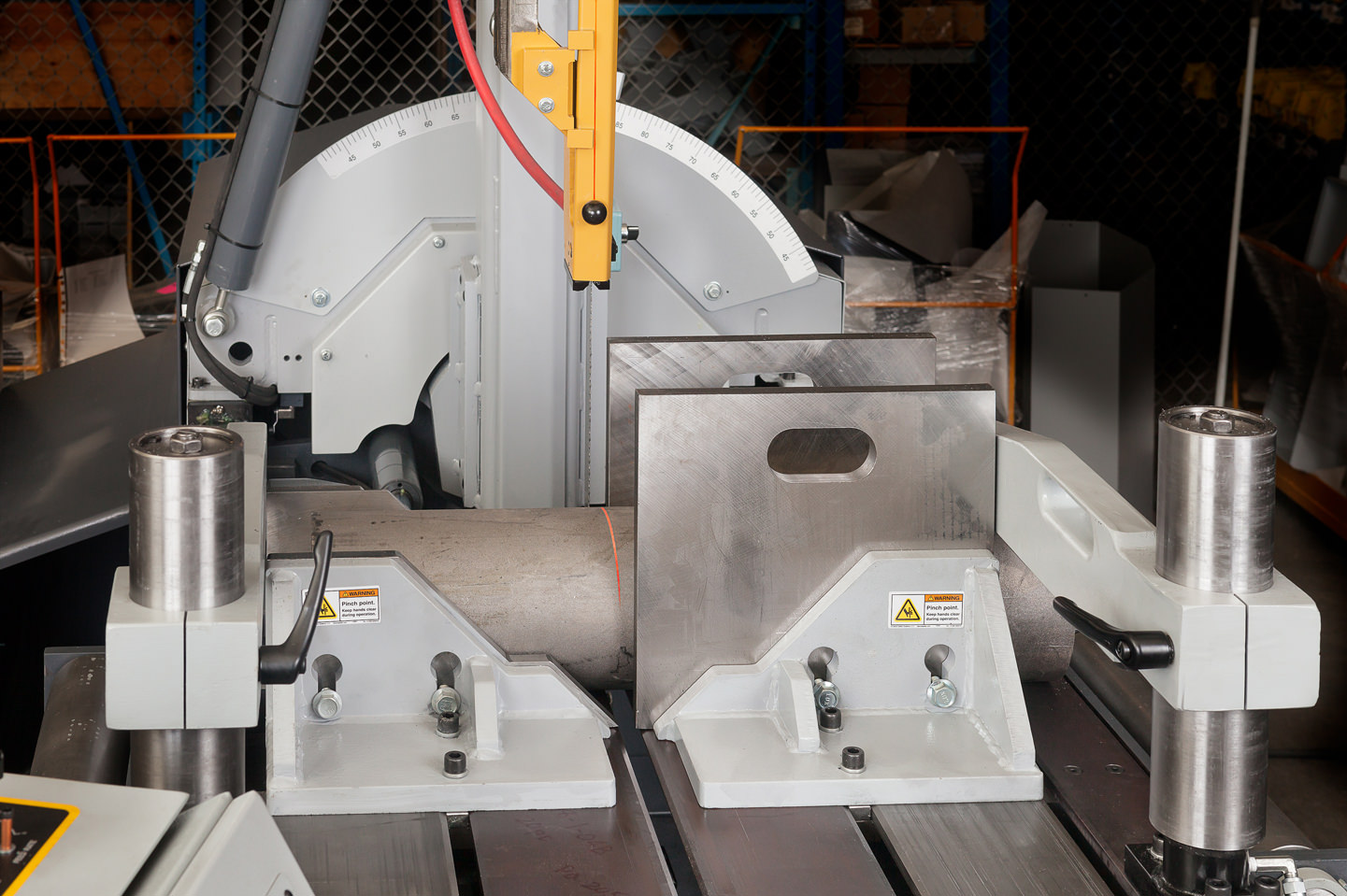

Tall square vise inserts
-
Power transformer
-
Idler conveyors
