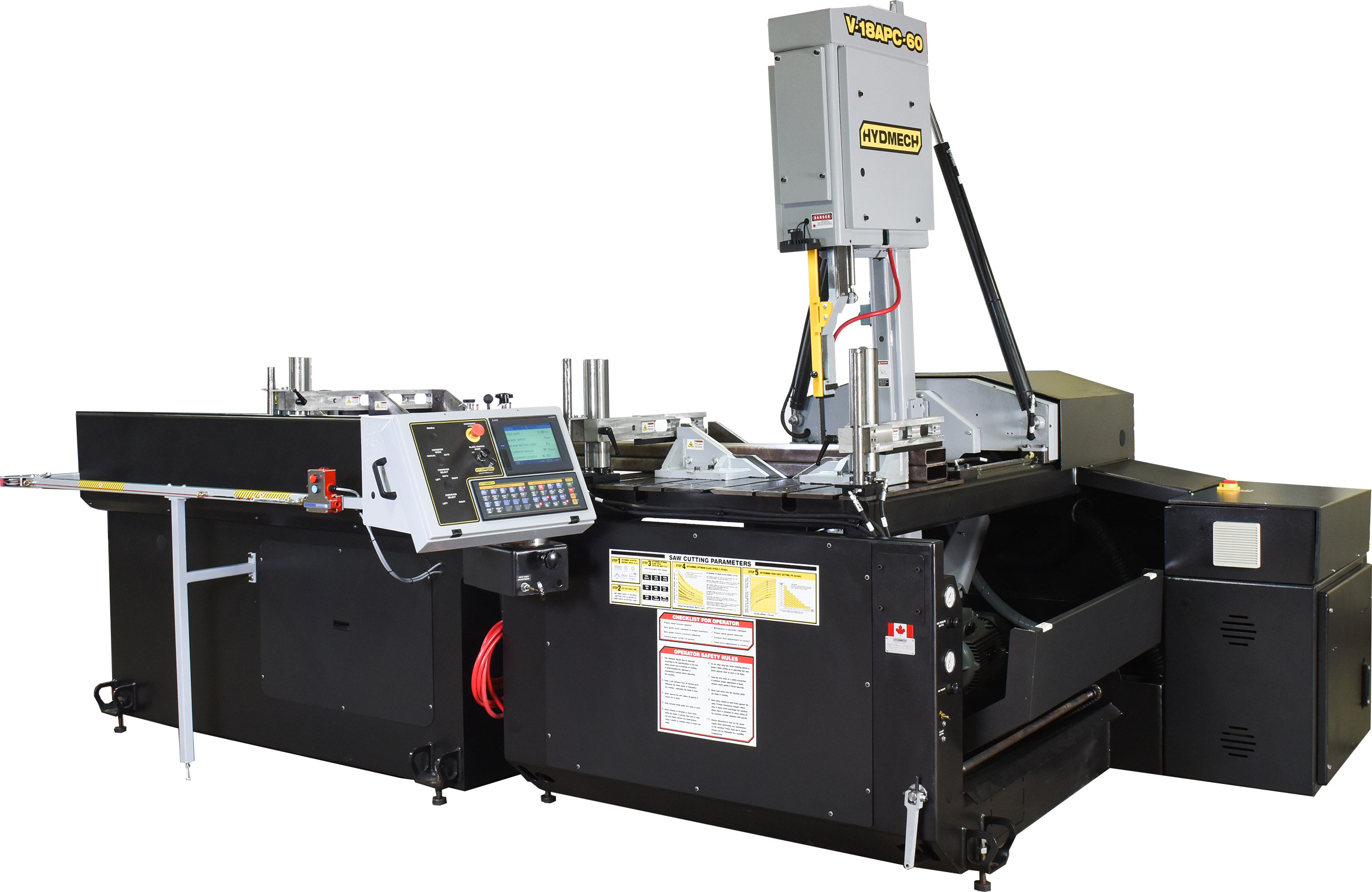

V-18APC-60 VERTICAL BAND SAW

V-18APC-60 BAND SAW

Automatic Vertical Band Saw with 60 Degree Two Way Miter.

The V-18APC-60 is a automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3 degree fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing.

Have a Question? We’re Here to Help You!

WATCH TO LEARN MORE

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Round
90°	22″ x 18″	18″
45°	14.75″ x 18″	13″
30°	9″ x 18″	9″
90° with OH bundling	12″ x 18″	12″
45° with OH bundling	12″ x 18″	12″
30° with OH bundling	6″ x 18″	6″
Blade Size	1 1/4” x 16’ 11”
Blade Drive	7.5 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	65-385 SFM
Automatic Multi-Indexing	40″
Coolant Tank Capacity	30 Gal.
Machine Weight	9,000 lbs.
Table Height	44”
Dimensions (w x l x h)	120” x 188” x 112”

METRIC

Capacity	Rectangular (h x w)	Round
90°	558 mm x 457 mm	457 mm
45°	374 mm x 457 mm	330 mm
30°	228 mm x 457 mm	228 mm
90° with OH bundling	305 mm x 457 mm	305 mm
45° with OH bundling	305 mm x 457 mm	305 mm
30° with OH bundling	152 mm x 457 mm	152 mm
Blade Size	32 mm x 5,156.2 mm
Blade Drive	5.5 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	19-117 m/min
Automatic Multi-Indexing	1,016 mm
Coolant Tank Capacity	113 ltr
Machine Weight	4,082 kg
Table Height	1,117 mm
Dimensions (w x l x h)	3048 x 4775 x 2845 mm

STANDARD FEATURES

Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Four full stroking, hydraulic vises (12” h shuttle, 6” h main, and 6” h outboard) and 12” h squaring vise
Automatic multi-indexing up to 40” in a single stroke
Powered movable guide arm
8.5” GT25 color touch screen display, Mitsubishi FX5U PLC No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
Hydraulic overhead bundling
7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic DDF system

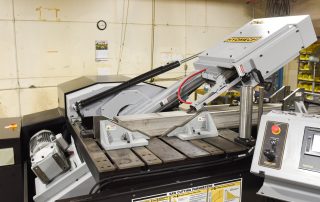

Blade chamber separates material from cut part
Out of stock switch
Cast iron band wheels
Replaceable blade brush
Robust steel base

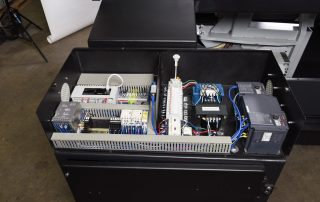

Easy access electrical panel and hydraulics
Blade breakage switch
Drag chain chip conveyor
You choose left or right side infeed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
2 HP hydraulic pump provides system pressure

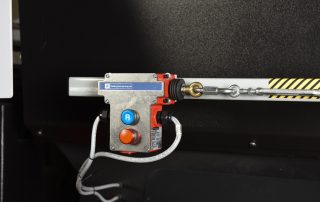

Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
3 degree canted head

Automatic Programmable Mitering

“Go to angle” functionality from 60 degrees left to 60 degrees right. The Automatic PLC control is programmable up to 99 jobs with 5 in queue.

Four Full Stroking Hydraulic Vises

Securing the material with hydraulic pressure results in better blade life, increased operator safety and a decreased risk of the material moving during the cut.
