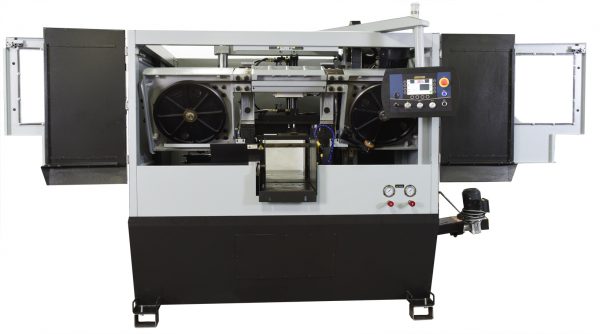

H-320A HORIZONTAL BAND SAW

H-320A HORIZONTAL BAND SAW

Automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications. Designed for safety with saw-in-a-box style.

A heavy duty shuttle vise powered by a ball screw and stepper motor provides material indexing up to 23” in a single stroke with multi-index capability. Its standard split front vise delivers a short material remnant length of 1.8″, reducing material waste. A steel guide arm is mechanically connected to front vise movable jaw provides proper guide arm to material spacing at all times.

Featuring a 12.5″ x 12.5″ capacity, 6 HP VFD motor, and 1 1/4″ blade, the H-320A is a reliable choice for your horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

STANDARD FEATURES

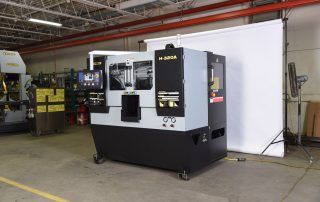

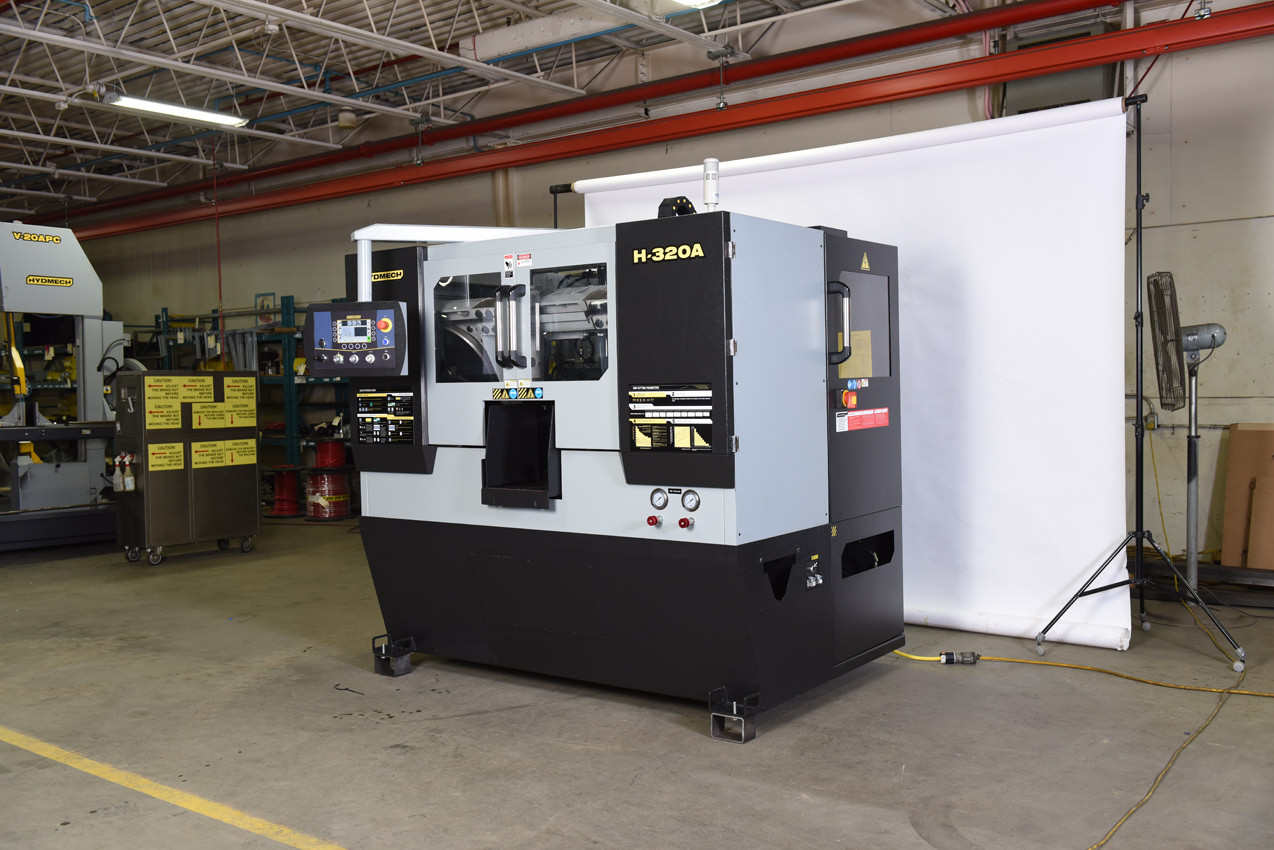

  • Heavy-duty cast iron saw head

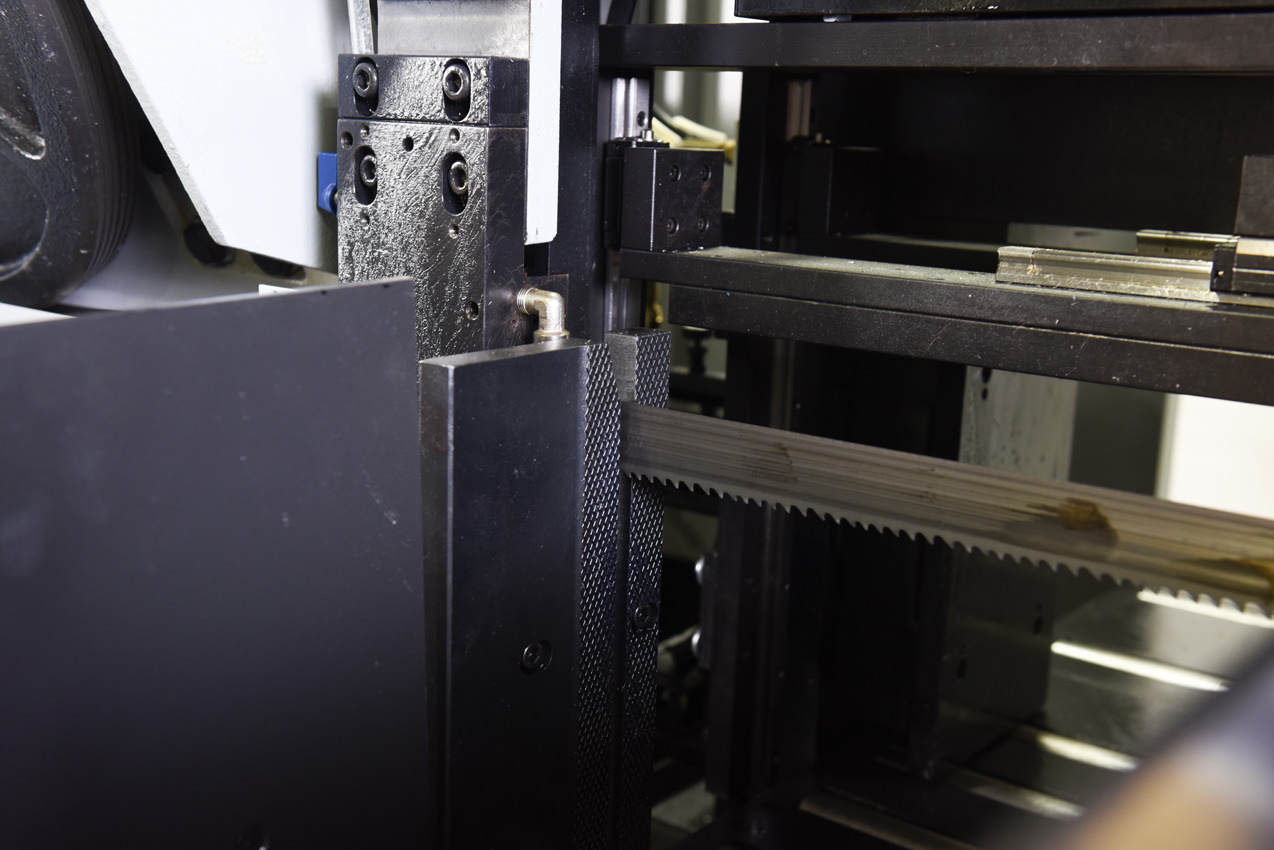

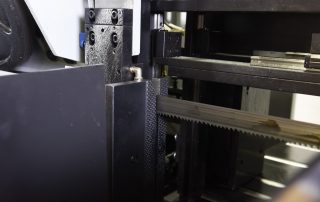

  • Split front vise allows for short 1.8” remnant length

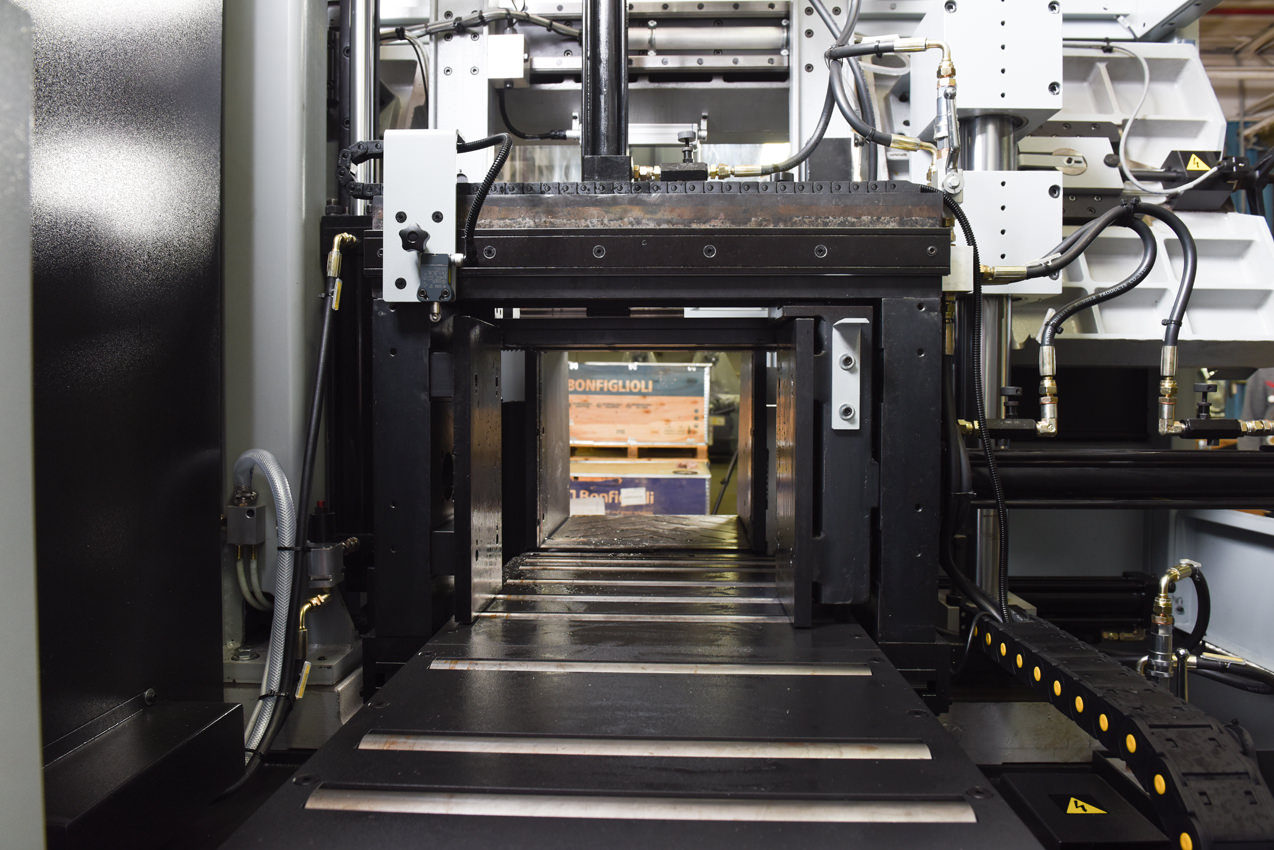

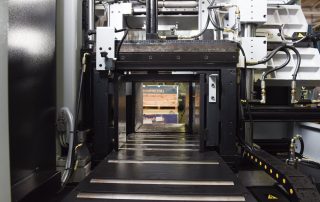

  • Fabricated shuttle features automatic multi-indexing up to 23” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor

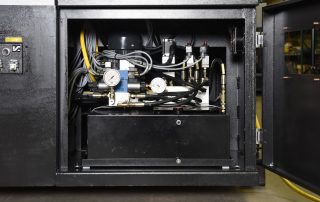

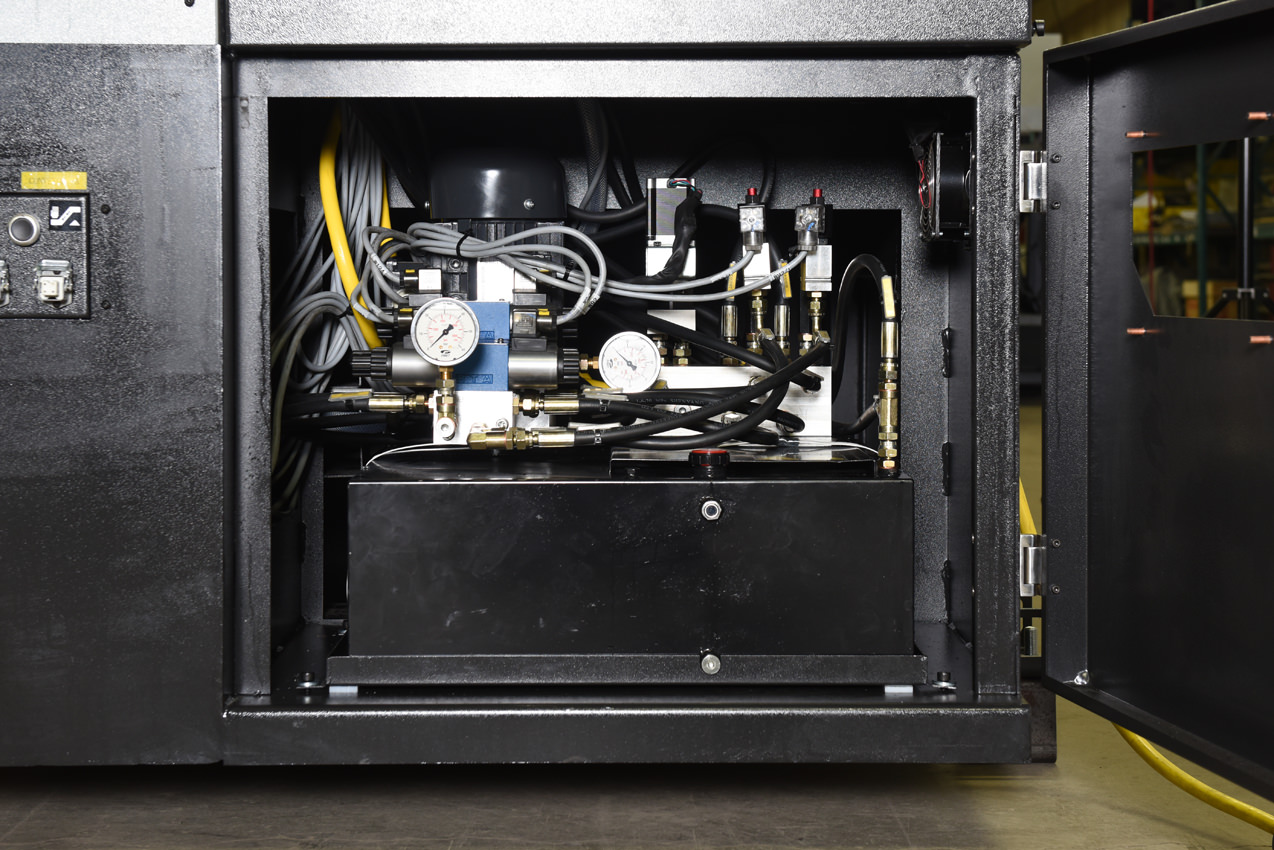

  • On-demand hydraulics save energy

  • Steel guide arms mounted on linear rails. Auto-adjustable guide arm for proper spacing

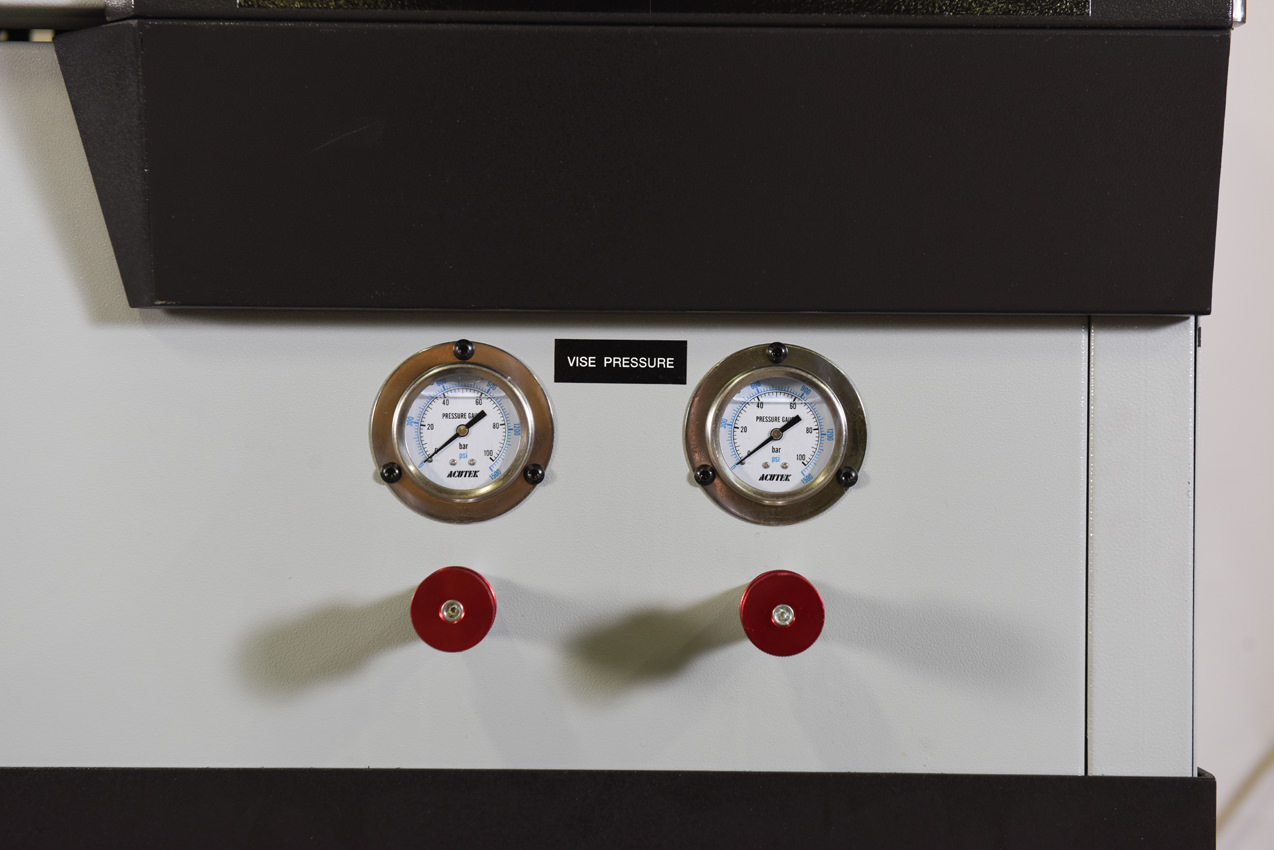

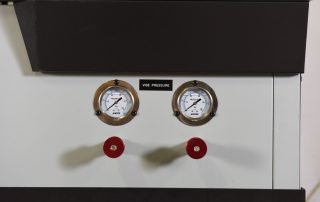

  • Variable vise pressure allows for cutting thin-walled material without deformation

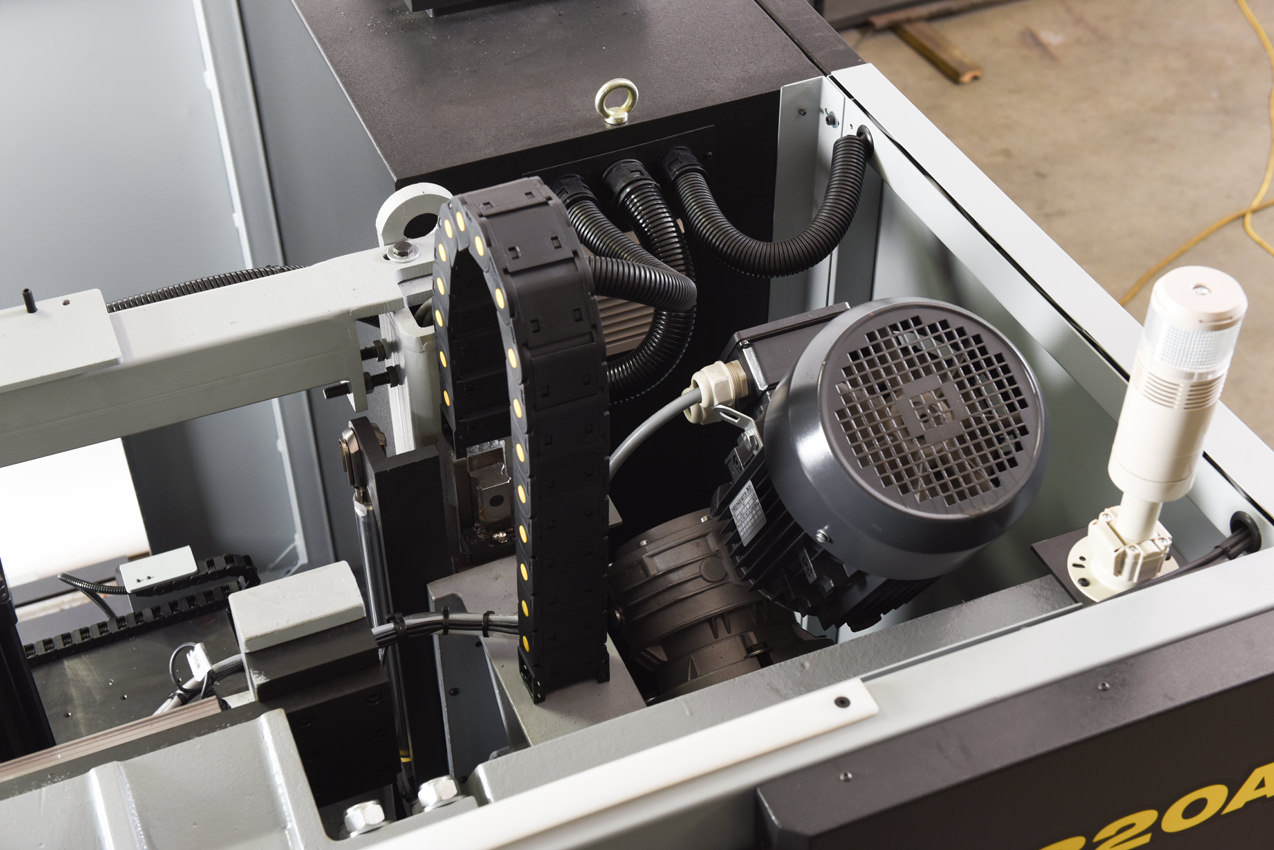

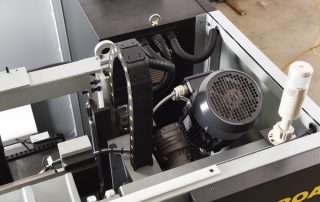

  • 6 HP VFD. True direct blade drive – no belts/pulleys

  • Full capacity, full stroking hydraulic vises

  • Hydraulic positive down feed

  • Blade chamber separates material from cut part

  • Cast iron band wheels

  • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

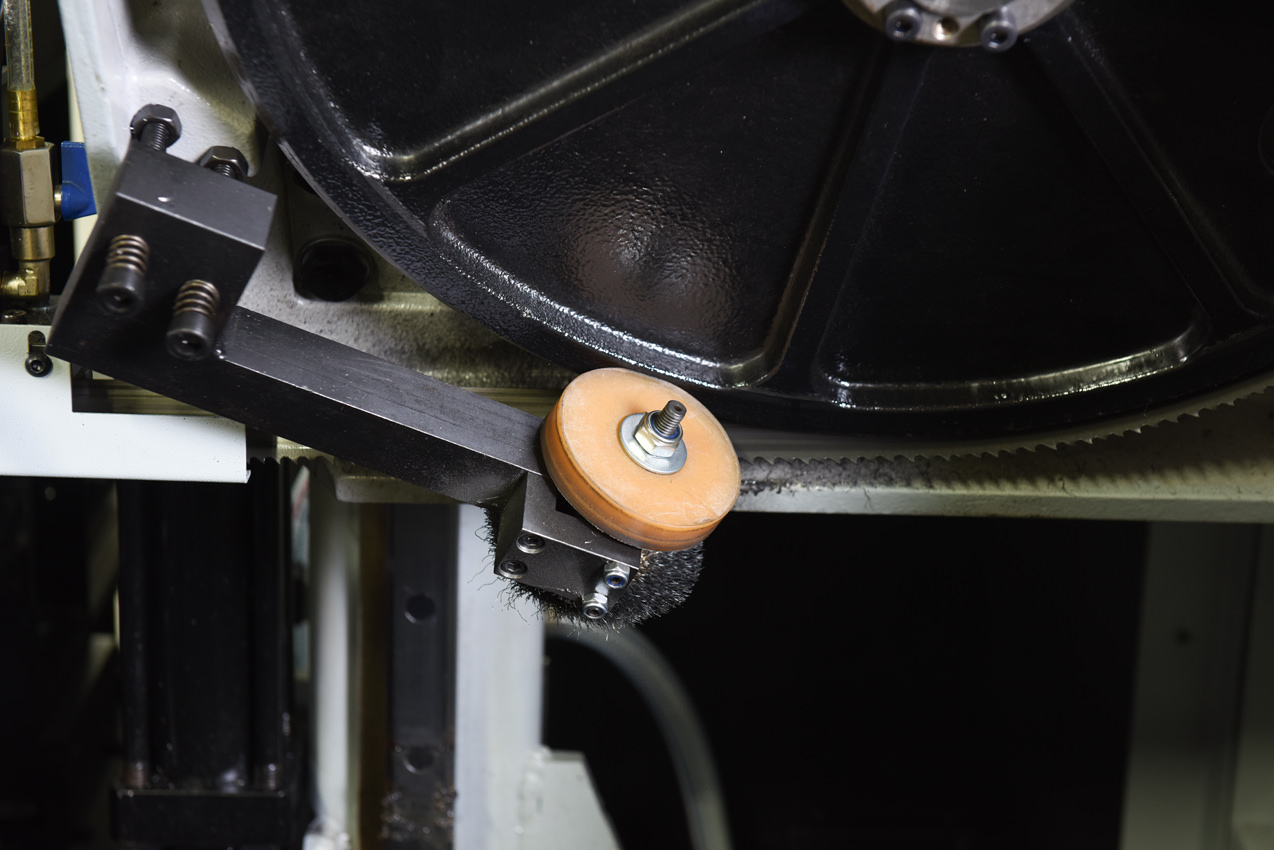

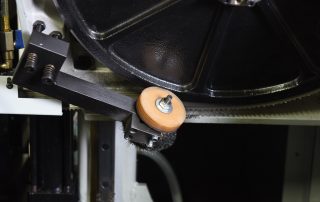

  • Replaceable blade brush

  • Robust steel base

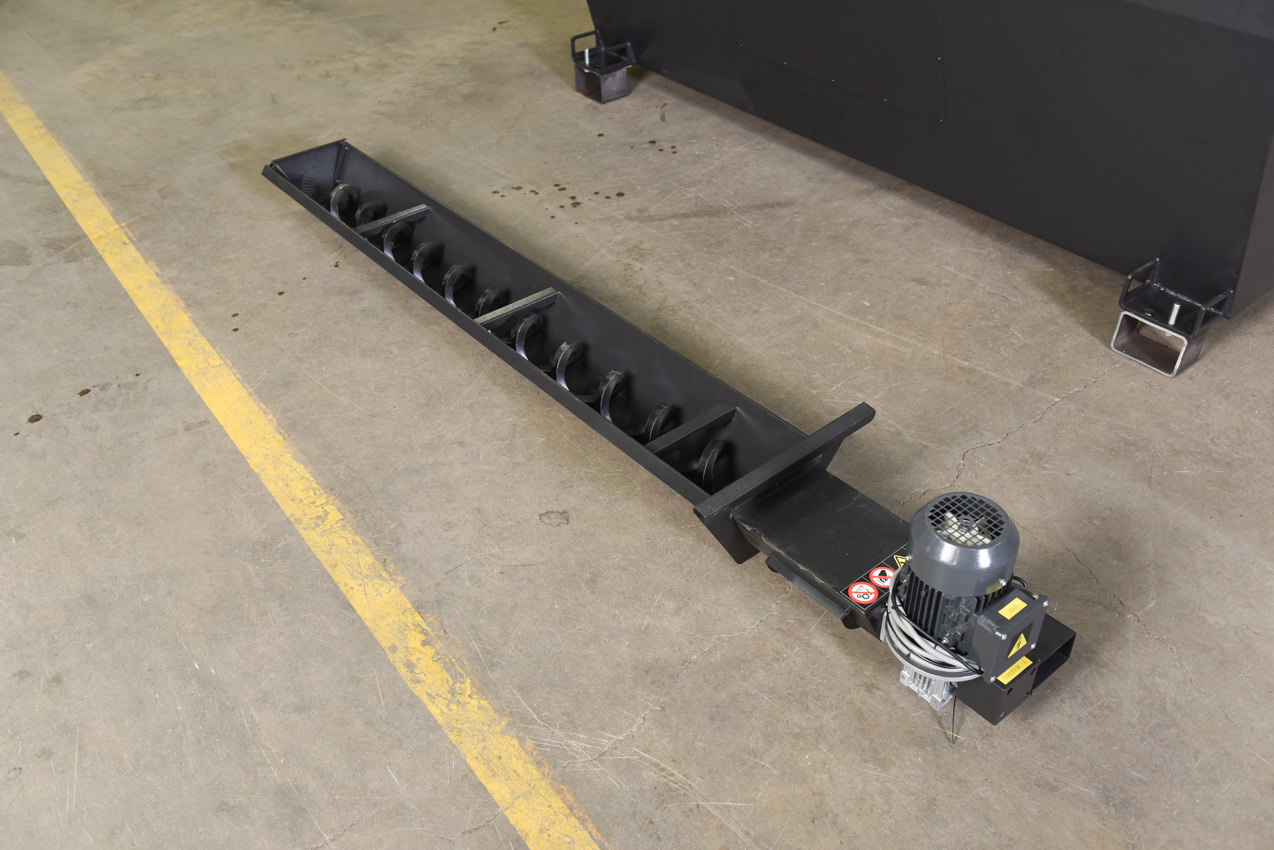

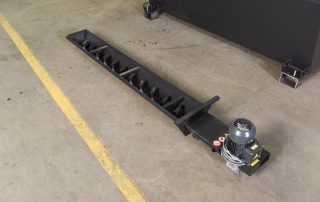

  • Automatic chip removal auger

  • Blade breakage switch

  • Blade deviation monitor

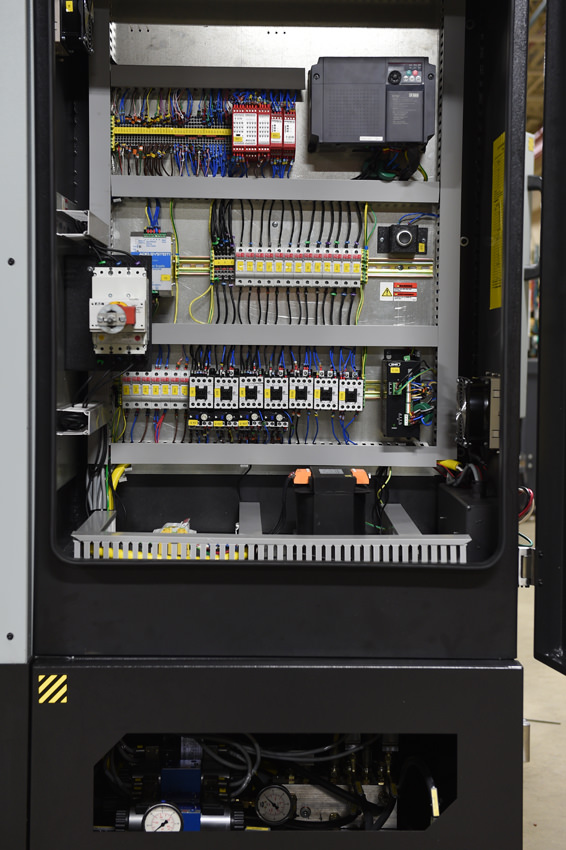

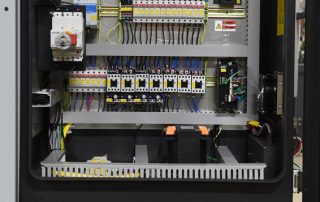

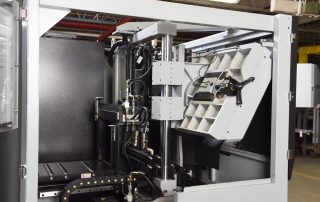

  • Easy access electrical panel and hydraulics

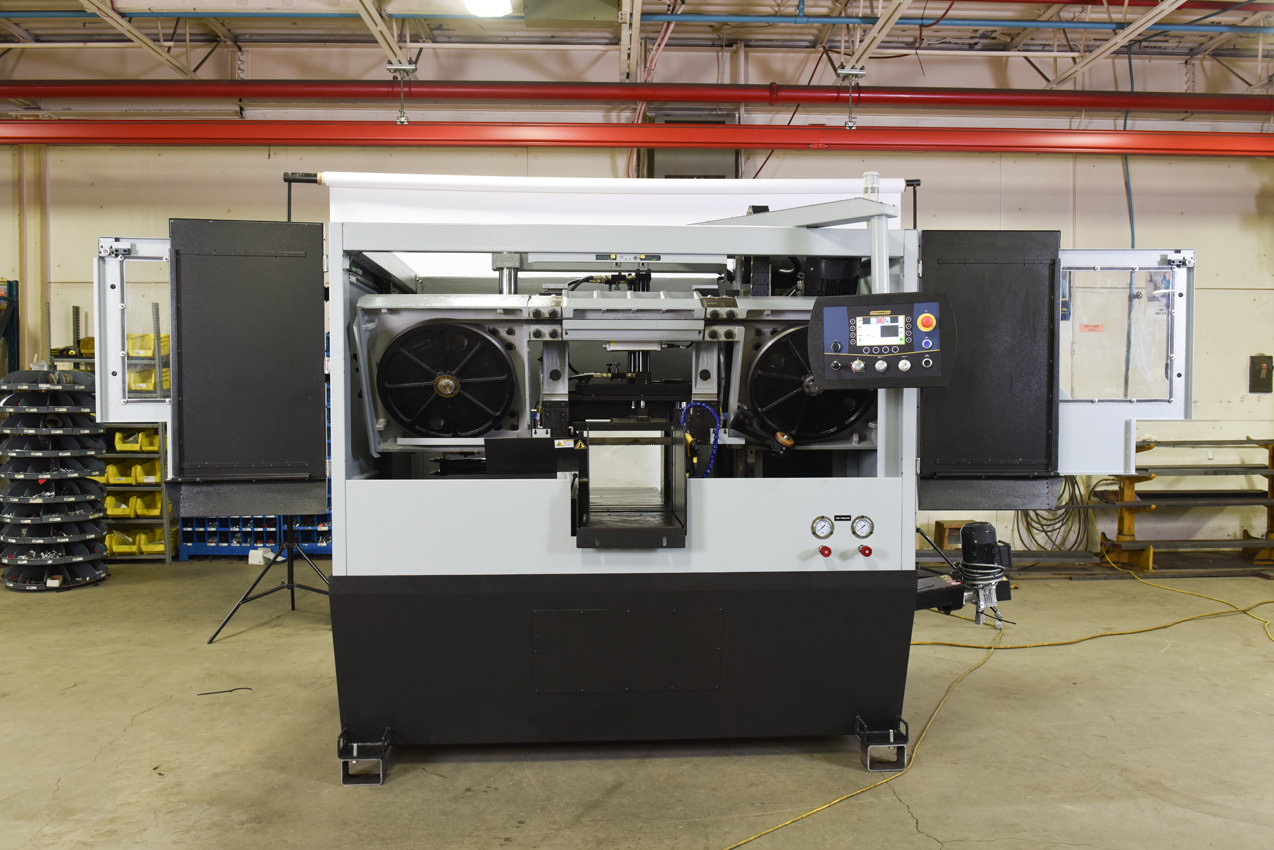

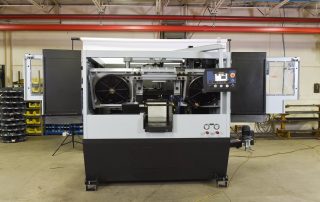

  • Designed for safety with saw-in-a-box style

  • Out of stock switch

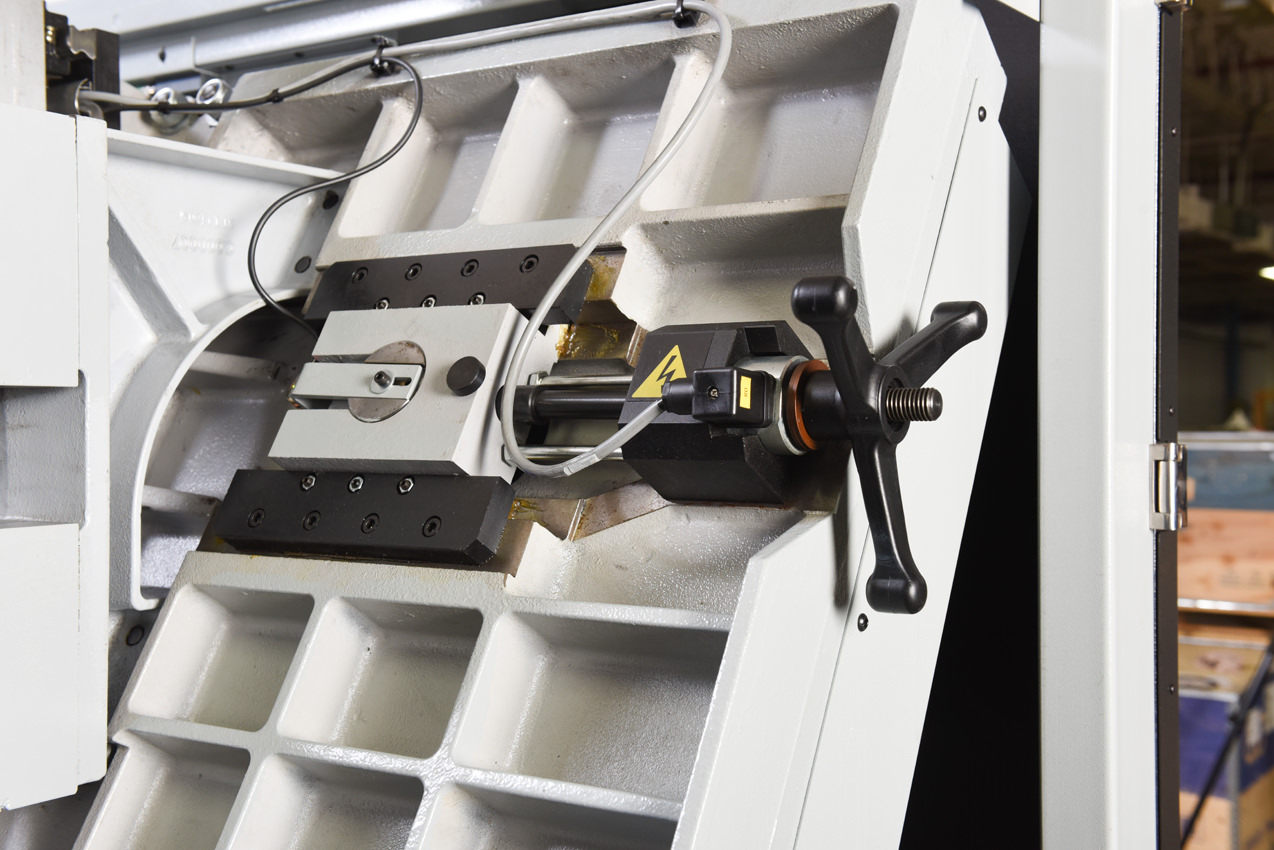

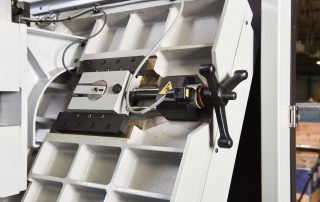

  • Mechanical band tensioning with digital readout

  • Replaceable carbide guide inserts

  • Safety door interlocks with RFID technology

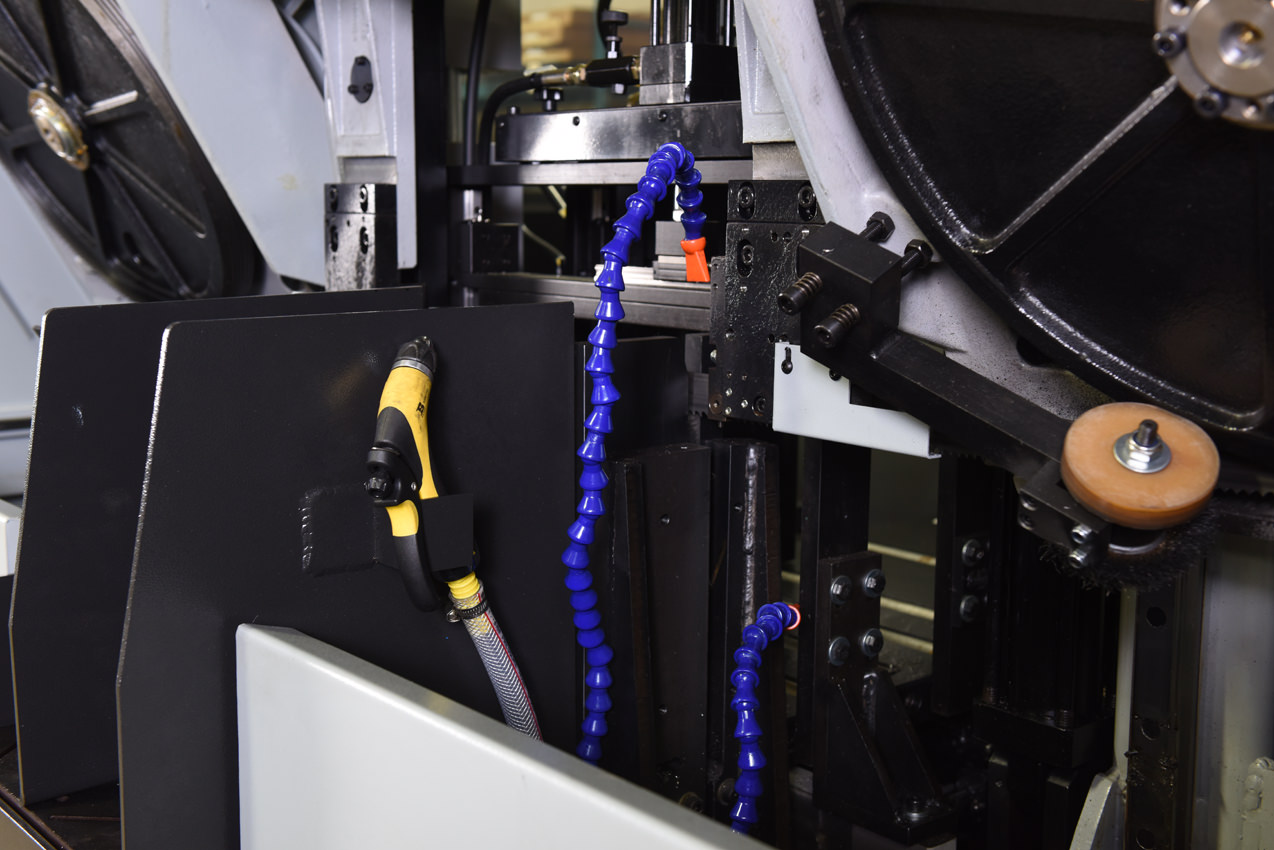

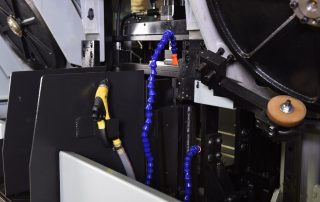

  • Flood coolant with wash down hose

  • Laser light

  • LED Work light

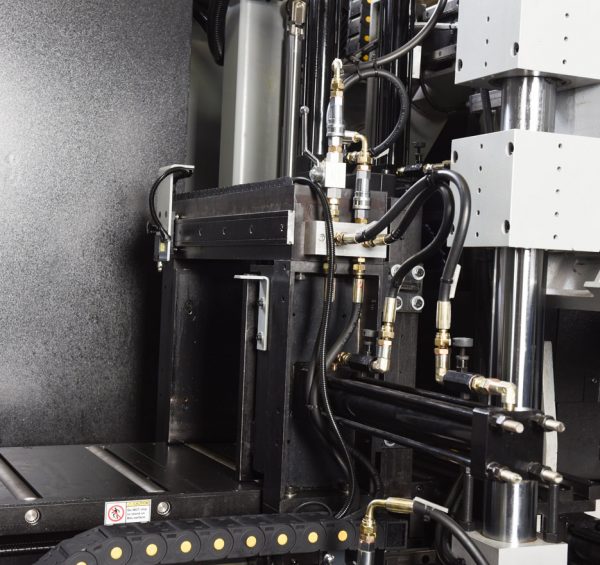

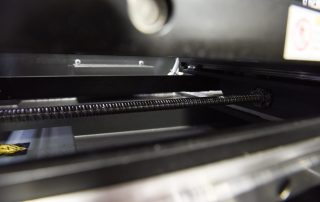

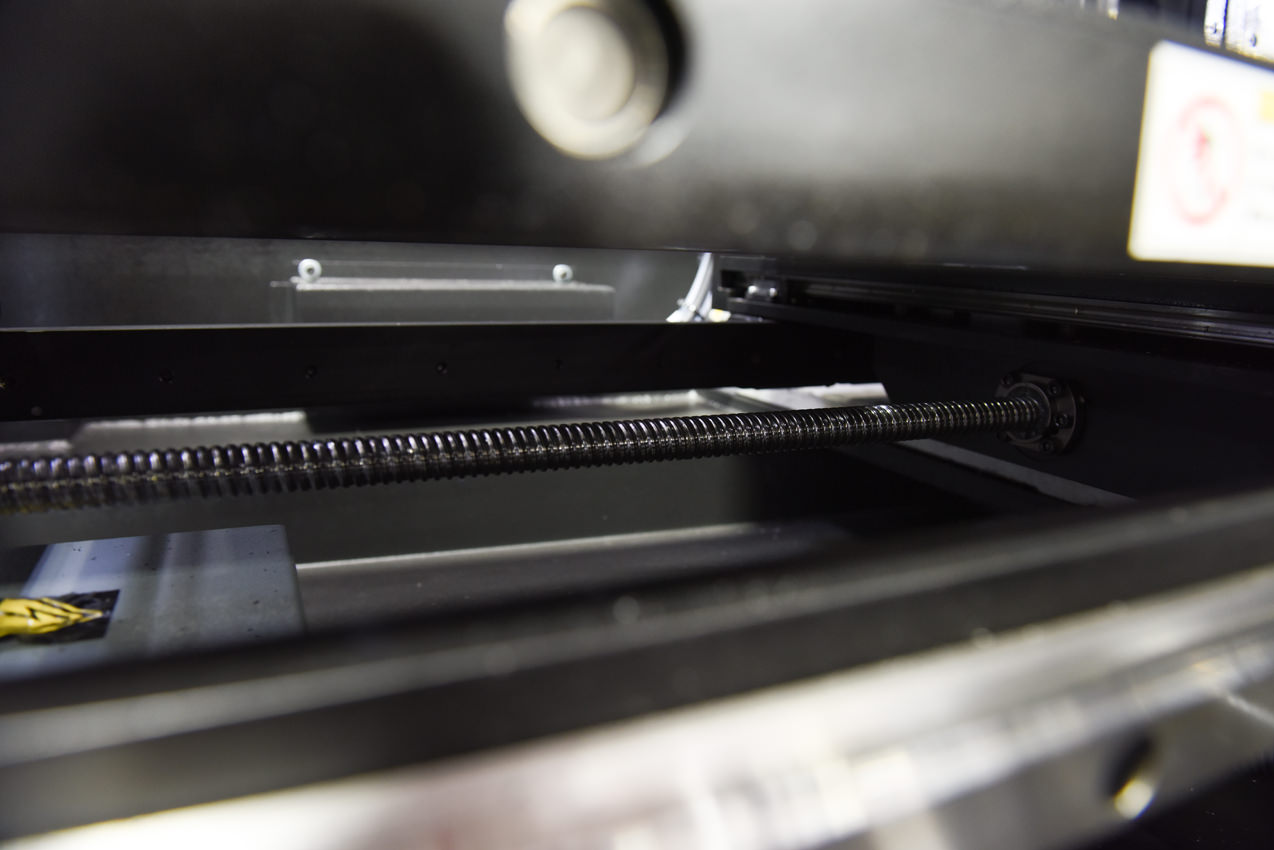

H-320A Shuttle Vise

Heavy-duty Shuttle Vise

A heavy duty shuttle vise powered by a ball screw and stepper motor provides material indexing up to 23” in a single stroke with multi-index capability. Its standard split front vise delivers a short material remnant length of 1.8″, reducing material waste.

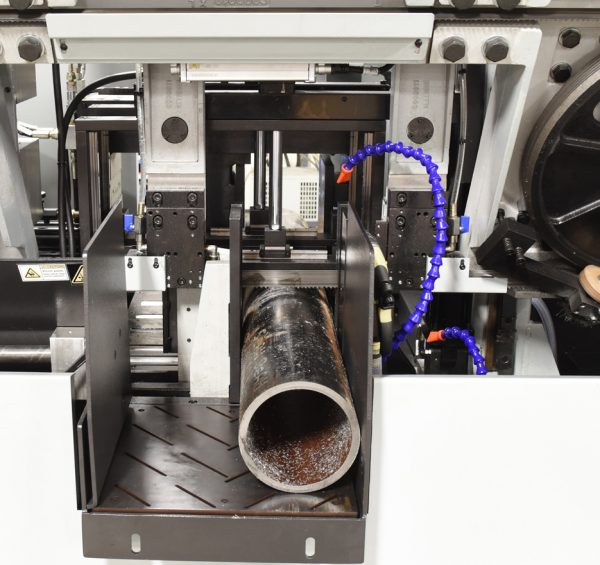

H-320A Automatic Guide Arm

Automatic Guide Arm

A steel guide arm, mounted on linear rails, is automatically adjustable for proper guide arm to material spacing at all times.

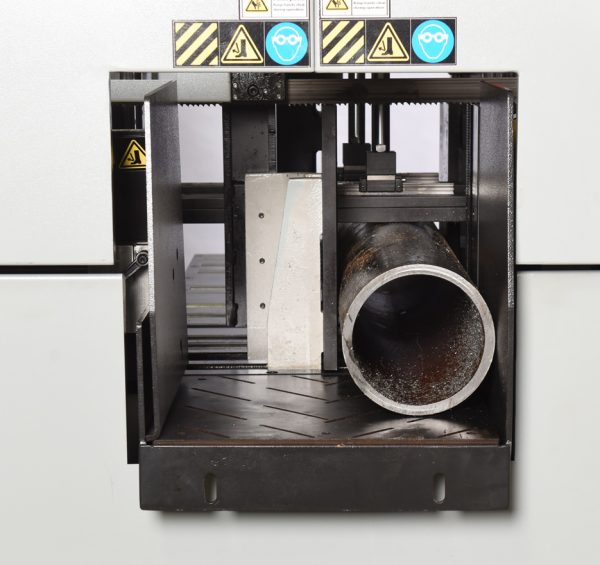

H-320A Dual Down Feed

Dual Down Feed System

The H-320A’s electronic Dual down feed system allows the operator to control both feed rate and feed force, for more efficient cutting. Controlled by amperage draw chip load, the head feeding will automatically adjust based on relative chip load.

S-20 Horizontal Pivot Band Saw Angle Measurement

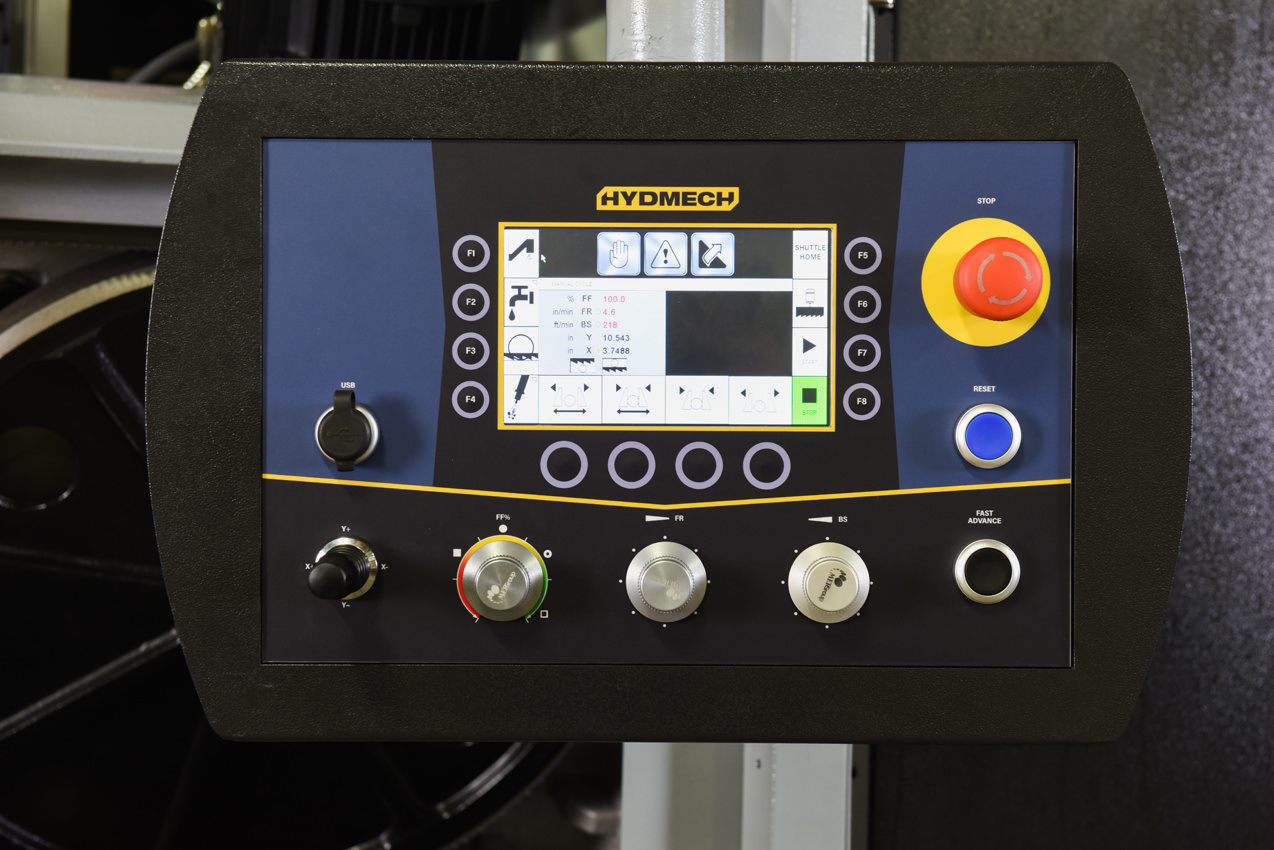

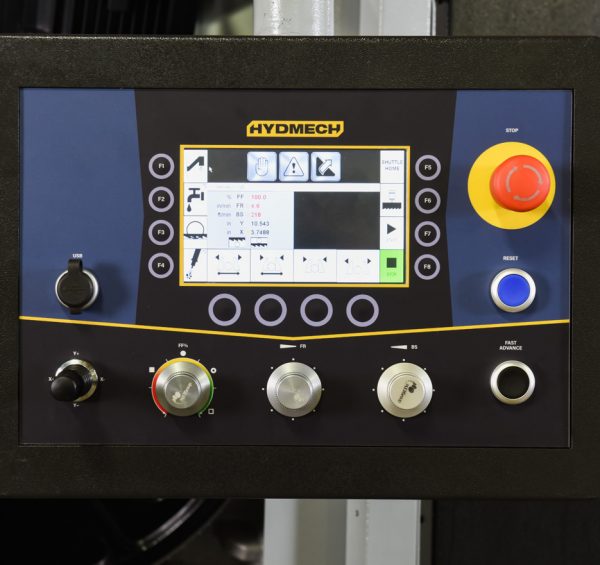

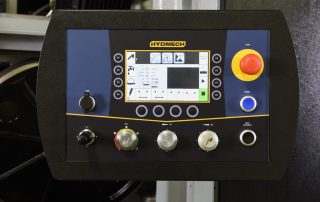

Touch Screen Control

The H-320A’s touch screen control is very intuitive and easy to program. The controller can be easily programmed, storing up to 100 different cutting jobs with 20 in queue and features several different cutting modes.

OPTIONAL FEATURES

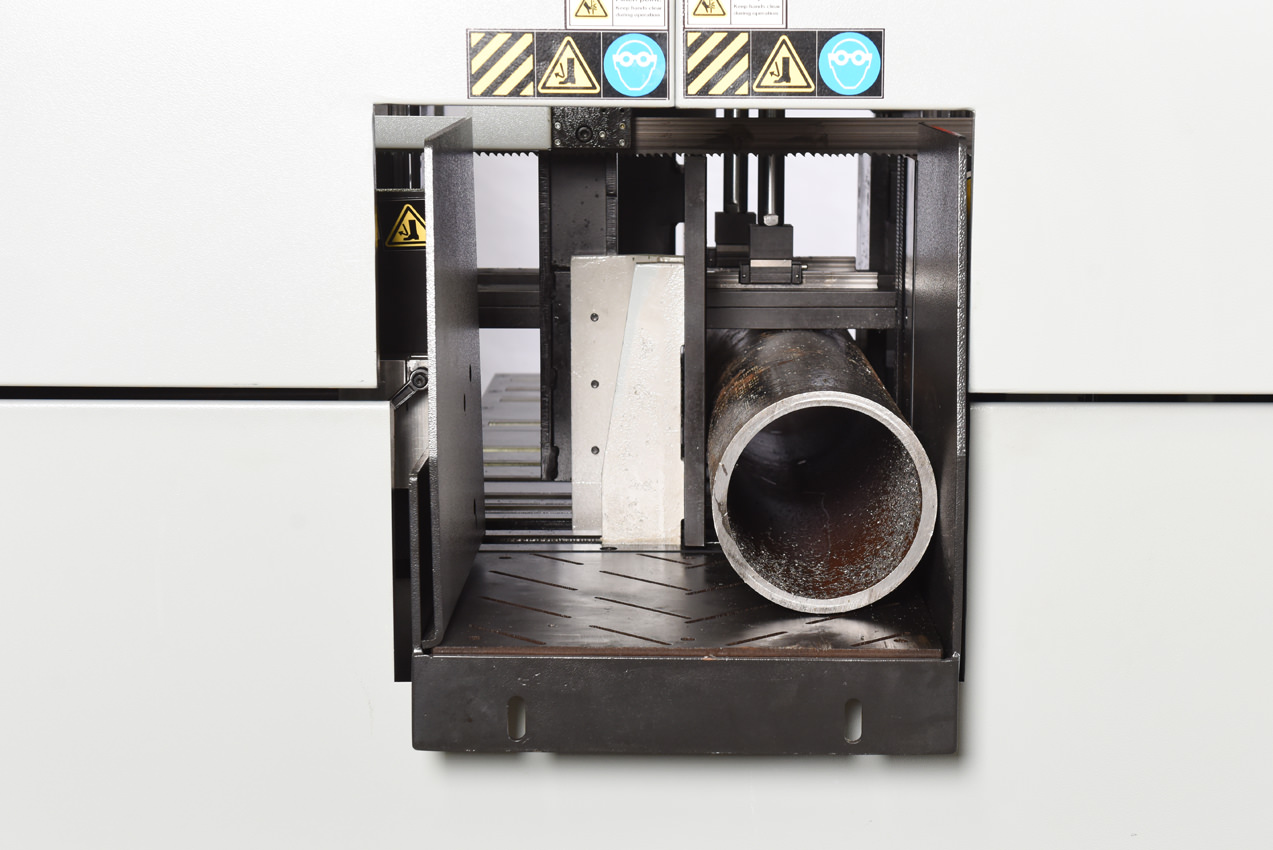

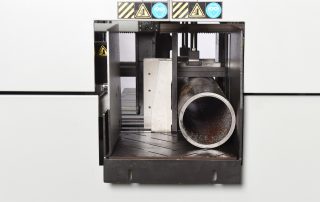

  • Full capacity hydraulic OH bundling

  • Mist lubrication

  • Power transformers

  • Vertical rollers

  • Reversible chip auger

  • Idler conveyors and accessories

  • Powered conveyors and accessories
