H-18A-120 HORIZONTAL BAND SAW

*Machine may appear slightly different than pictured

The H-18A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for medium to heavy-duty applications.

The H-18A-120 cuts fast, with its high-speed shuttle feed indexing up to 120″ in a single movement. Its standard split front vise delivers a short material remnant length, reducing material waste.

Featuring a 120″ bar feed, 18″ x 18″ capacity, 10 HP motor, and 1 1/2″ blade, the H-18A-120 is a reliable choice for all your horizontal metal cutting applications.

Have a Question? We’re Here to Help You!

MACHINE SPECIFICATIONS

IMPERIAL
METRIC

IMPERIAL

Capacity	Rectangular (h x w)	Square	Round
90°	18″ x 18″	18″	18″
Blade Size	1 1/2” x 19’ 2”
Blade Drive	10 HP VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	50-350 SFM
Automatic Multi-Indexing	0-118″
Coolant Tank Capacity	30 gallons
Machine Weight	16,032 lbs.
Table Height	35”
Dimensions (w x l x h)	127” x 192” x 92”

METRIC

Capacity	Rectangular (h x w)	Square	Round
90°	457 mm x 457 mm	457 mm	457 mm
Blade Size	41 mm x 5842 mm
Blade Drive	7.5 kW VFD
Machine Voltage	480 v (all other voltages require optional transformer)
Blade Speed	15-115 m/min
Automatic Multi-Indexing	0-3000 mm
Coolant Tank Capacity	113 Liters
Machine Weight	7272 kg
Table Height	889 mm
Dimensions (w x l x h)	3225 x 4876 x 2336 mm

STANDARD FEATURES

Spilt front vise
3 m bar feed
Full capacity hydraulic overhead bundling
Shuttle features automatic multi-indexing up to 3 m in a single stroke with automatic kerf compensation
Powered by a rack and pinion servo drive
Steel Guide arms
The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
7.5 KW VFD
True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
High resolution feed rate valve allows for constant feed rate when cutting special alloys
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC control programmable up to 999 jobs with 10 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Hydraulic carbide guide tensioning
Hardened, replaceable wear plates
Safety door interlocks
Flood coolant with wash down hose
Work light
Variable vise pressure
Out of stock switch

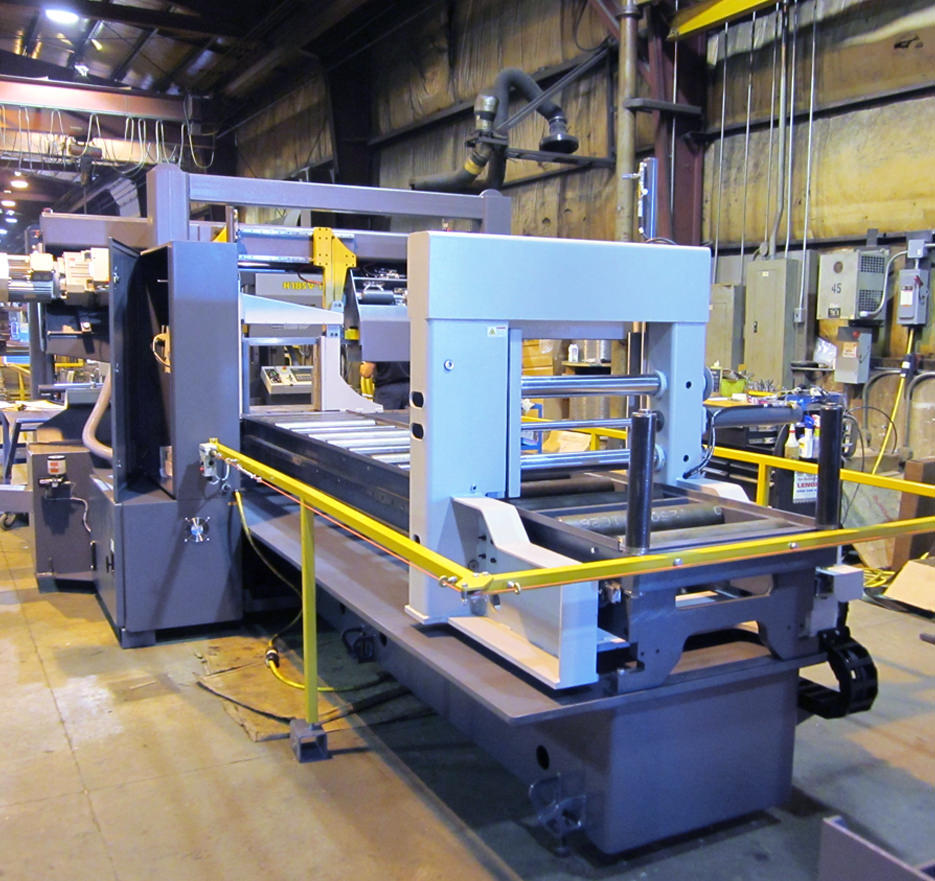

10′ Bar Feed

10’ bar feed with servo drive is faster than a hydraulic cylinder. It’s much faster for processing longer pieces, lowering cycle times.

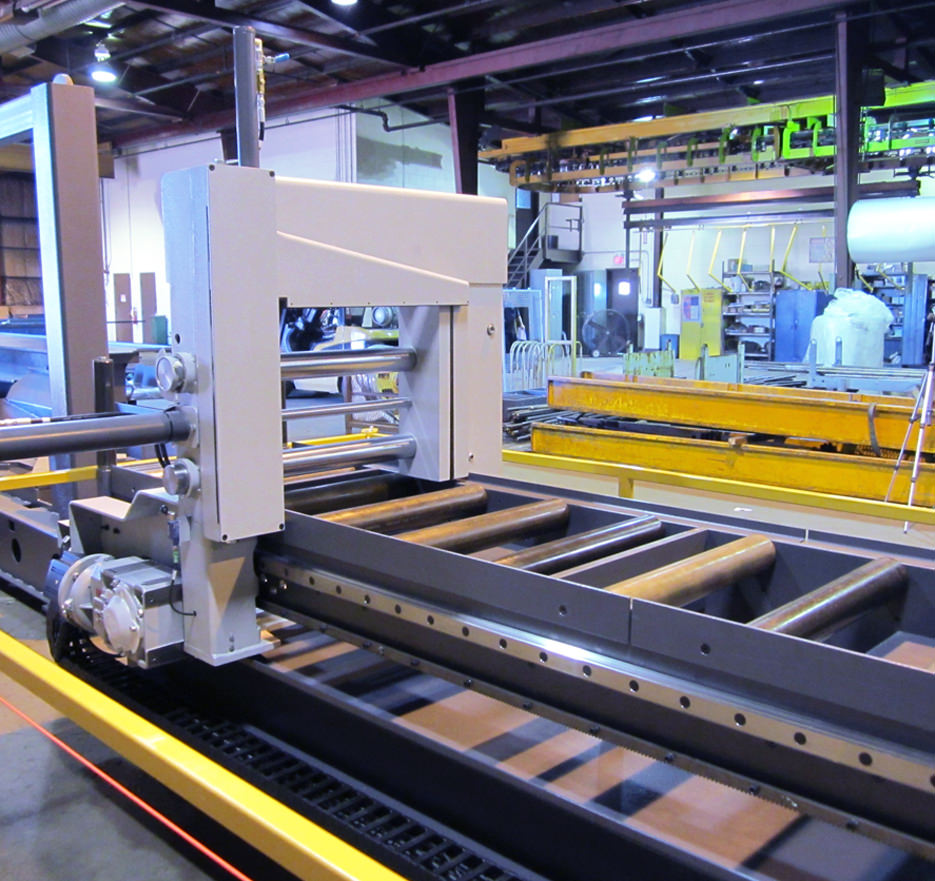

Full Height, Full Stroking Vises

Full height full stroking vises, allows you to operate the vises faster and hold large pieces better. Full height vises allow you to hold large objects more efficiently, like I-beams. Full stroking vises mean you don’t have to manually change the position of the vise operator.

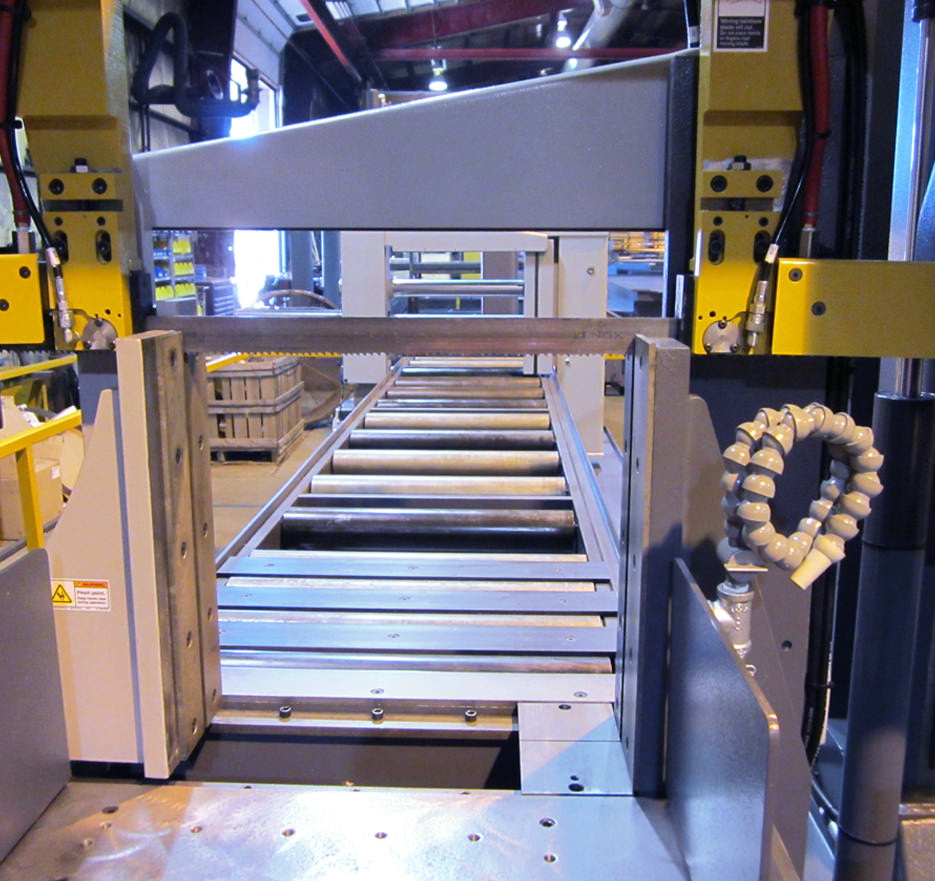

Split Front Vises

Split front vises reduce burrs and allow for holding thin pieces close to the blade on both sides. The blade passes through the vise and the vise holds the workpiece on both sides at the same time, also reduces burrs and allows you to split short pieces that you could not do with a standard vise.

Hydraulic Clamping Guides

The machine controls the clamping of the guides not the operator. Since the pressure is set by the machine and not the operator, it is more consistent resulting in less errors.
